Hoshizaki KM-1301SAJ-E Ice Machines
Description

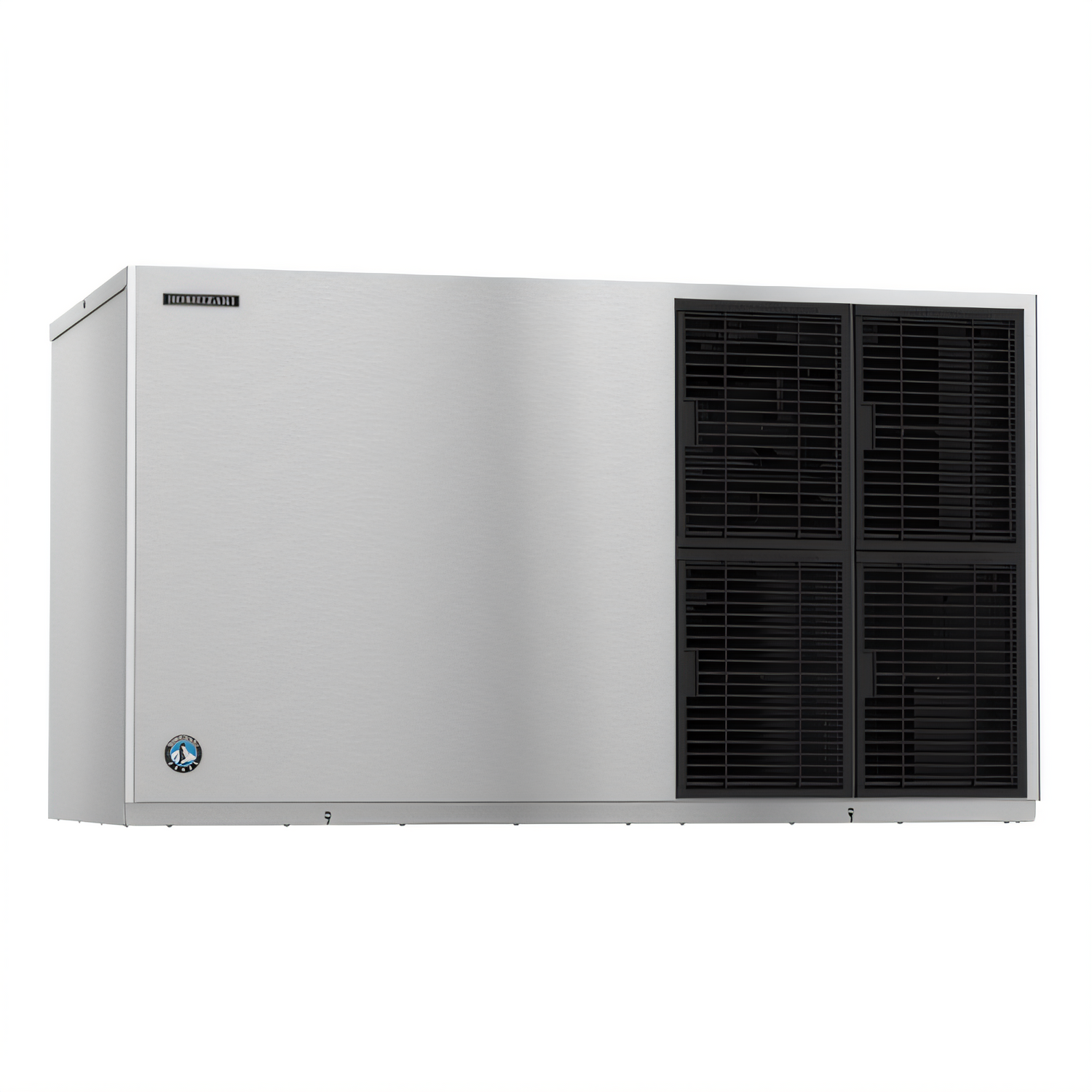

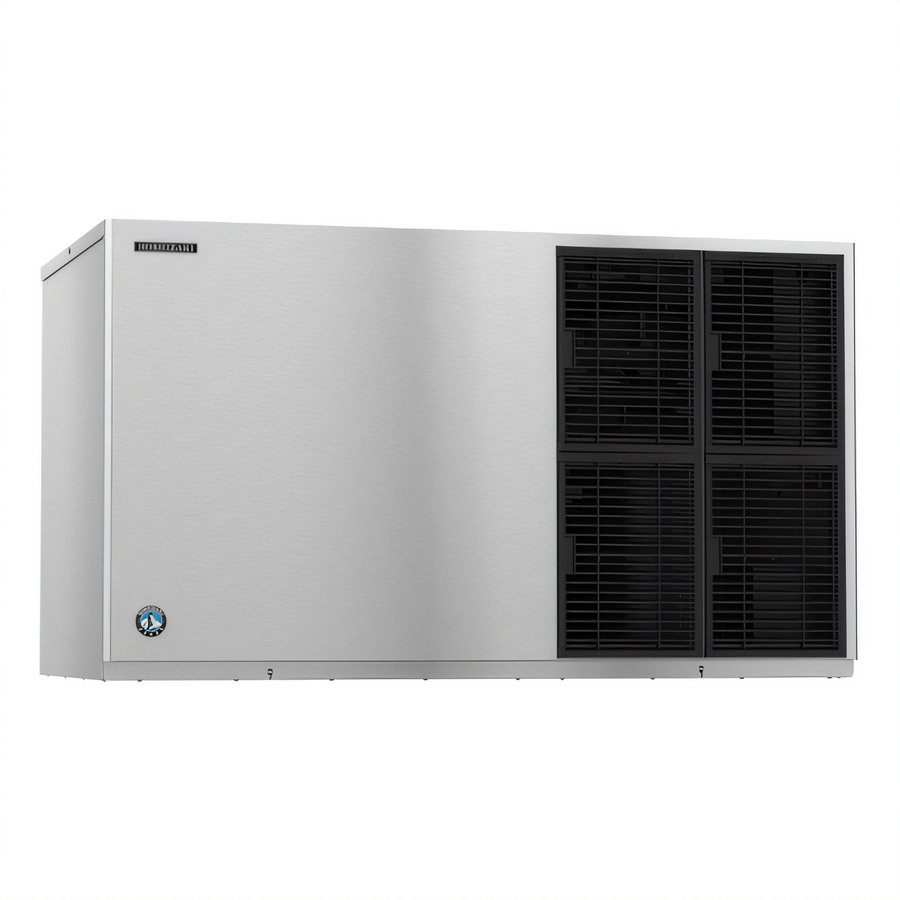

Hoshizaki KM-1301SAJ-E Modular Crescent Ice Machine – 624 kg/Day
50 Hz • Air-cooled • Self-contained • 48″ WideBuilt on the powerful KMEdge™ platform, the KM-1301SAJ-E delivers more ice with fewer cycles, lower energy costs and rock-solid reliability. Its dual-sided stainless steel evaporator freezes the cleanest water, rinsing away impurities to create Hoshizaki’s signature crystal-clear crescent cubes that flow freely, displace more liquid and last longer in the glass.
Key Features
- Up to 624 kg of ice every 24 hours (21 °C air / 10 °C water).
- AHRI Certified 501 kg/day at 32 °C air / 21 °C water.
- Energy-saving CycleSaver™ design produces the same ice in half as many cycles.

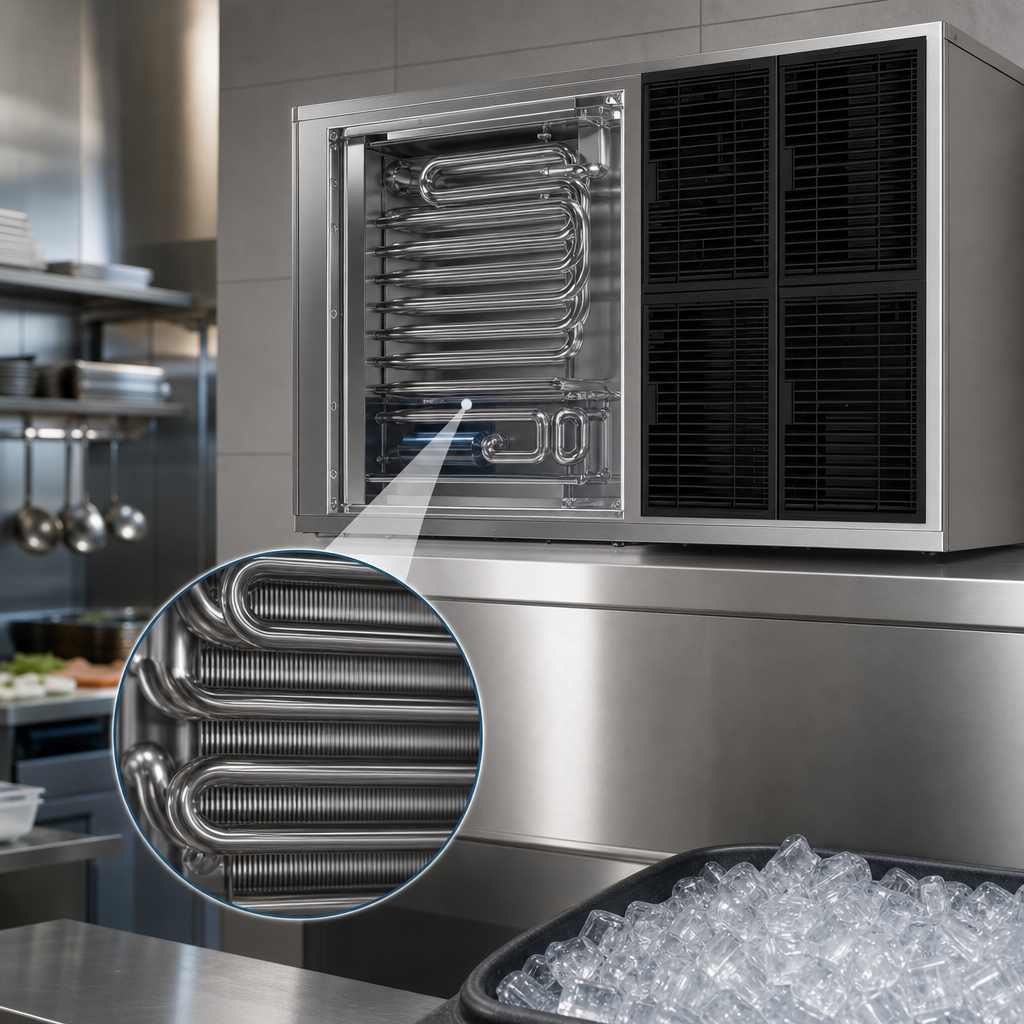

- Exclusive dual-sided stainless steel evaporator resists mineral build-up and extends service life.
- EverCheck™ audible/visual alert system simplifies diagnostics and maintenance.
- Field-cleanable, removable air filters maintain peak condenser efficiency.
- Stackable: double output to 1,248 kg/day by adding a second head on the same bin.
- Durable all-stainless exterior with food-safe R-404A refrigeration.
- Certified to NSF & CE standards.
Performance & Utilities
| Ice type | Individual crescent cubes (≈38 mm × 28 mm × 13 mm*) |
|---|---|
| Maximum production | 624 kg / 24 hr @ 21 °C air / 10 °C water |
| AHRI production | 501 kg / 24 hr @ 32 °C air / 21 °C water |
| Energy use | 4.52 kWh per 45 kg of ice |
| Potable water use | 132 L per 45 kg of ice |
| Refrigerant / charge | R-404A / 1.9 kg |
| Heat rejection | 16,100 BTU/hr |
| Electrical | 220–240 V • 50 Hz • 1-phase • 11.35 A (20 A min. circuit) |
| Dimensions (W × D × H) | 1219 × 695 × 695 mm (48″ × 27-3/8″ × 27-3/8″) |
| Net / ship weight | 136 kg / 154 kg |
| Ambient temp range | 7 °C – 38 °C |
| Water temp range | 7 °C – 32 °C |
| Water pressure | 69 – 779 kPa |
*Cube dimensions are approximate.
Installation Notes
- Maintain 150 mm (6″) clearance at rear, sides and top for ventilation and service.
- Water supply: 10 mm OD copper (or equivalent) cold-water line.
- Gravity drain: 18 mm OD hard pipe.
- Unit ships without cord; must be hard-wired by a qualified electrician (GFCI breaker when required).
Optional Bins & Accessories

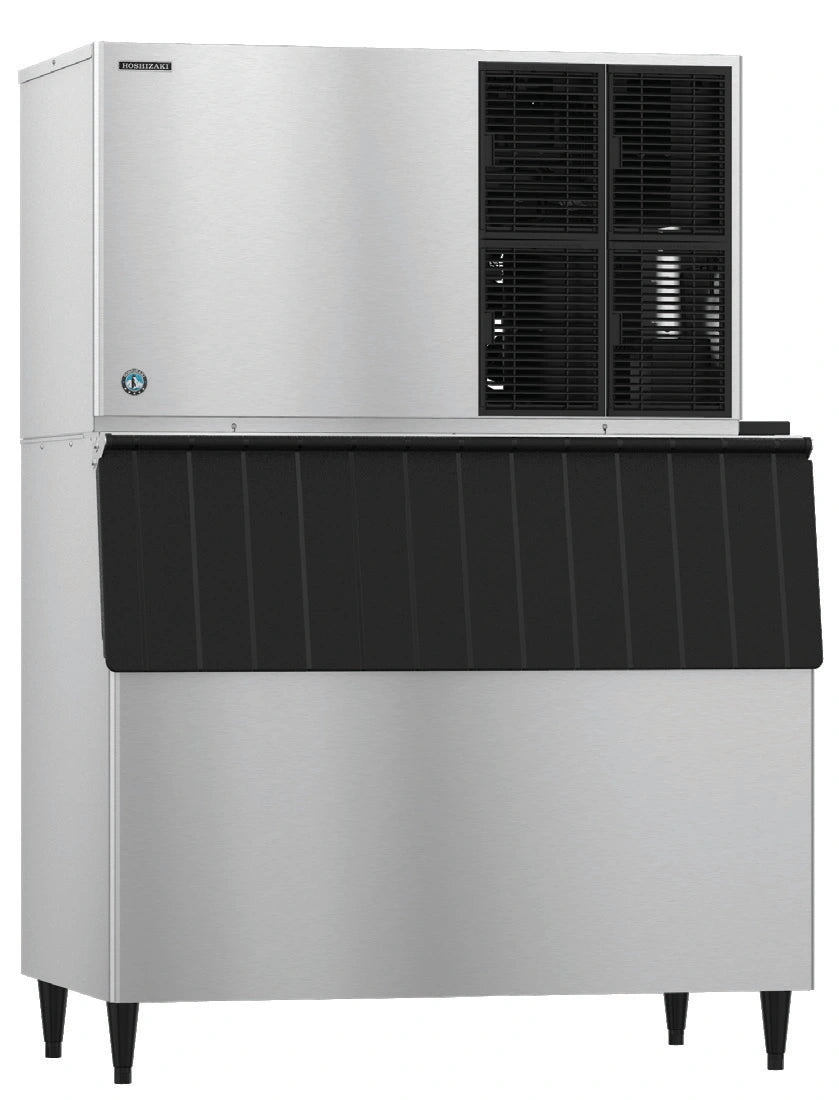

- Compatible ice bins: B-800, B-900, B-1150SS, B-1300SS, B-1500SS, B-1650SS (bin top kit may be required).
- HS-5252 stainless steel tamper-proof front panel kit for high-security installations.
- Hoshizaki water filtration systems and EcO Ice3 ozone sanitation device for superior ice quality.
Contact us for current factory warranty details on the KM-1301SAJ-E.
