Hoshizaki KM-116BAJ Ice Machines
Description

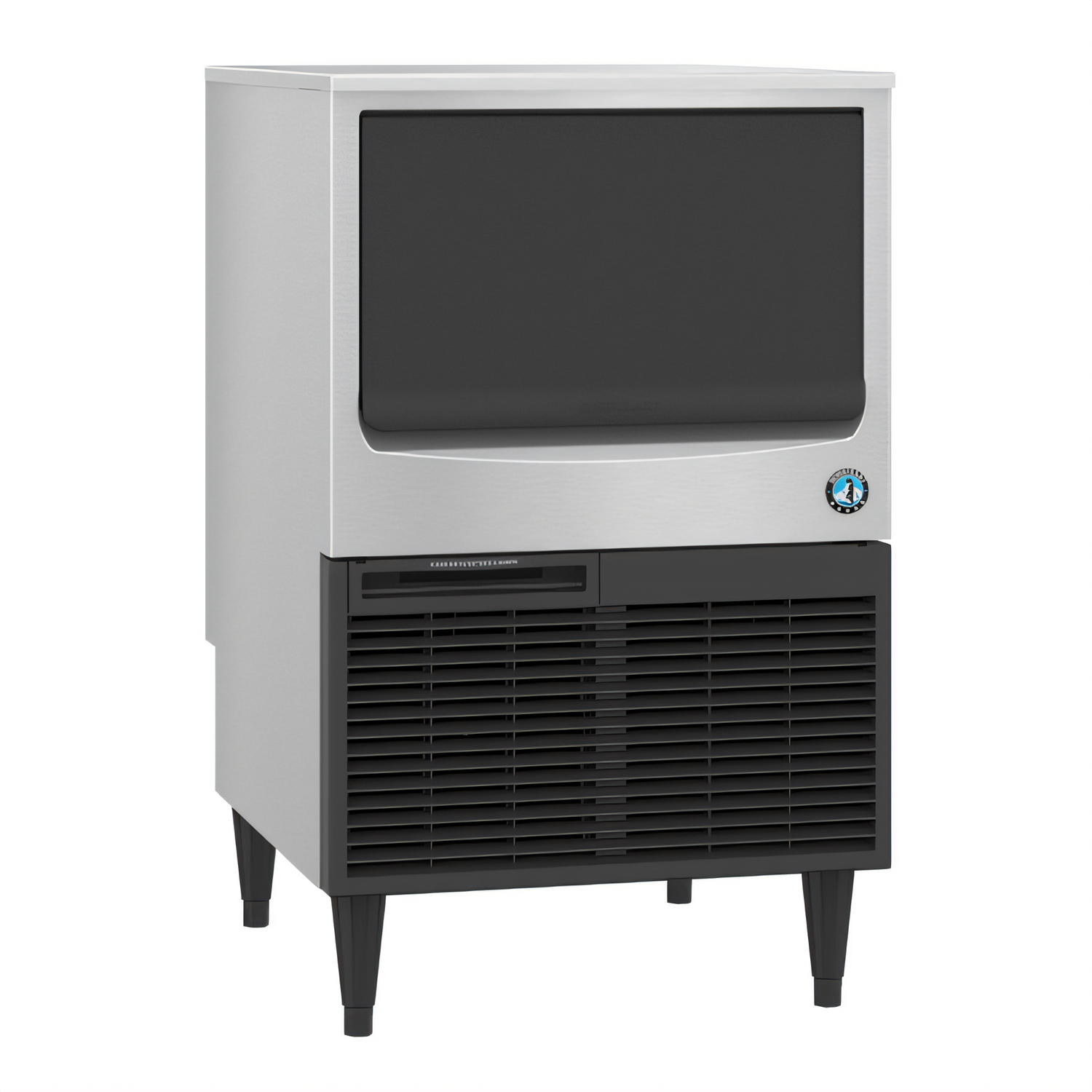

Hoshizaki KM-116BAJ Crescent Ice Maker with Built-In Bin
125 lb/24 hr Production • 53 lb Storage • Air-Cooled • ENERGY STAR®Produce crystal-clear crescent cubes right where you need them. The KM-116BAJ pairs Hoshizaki’s stainless steel evaporator and CycleSaver™ technology with a space-saving 24"-deep footprint—perfect for cafés, bars, break-rooms and small restaurants that demand dependable ice all day long.
Key Features

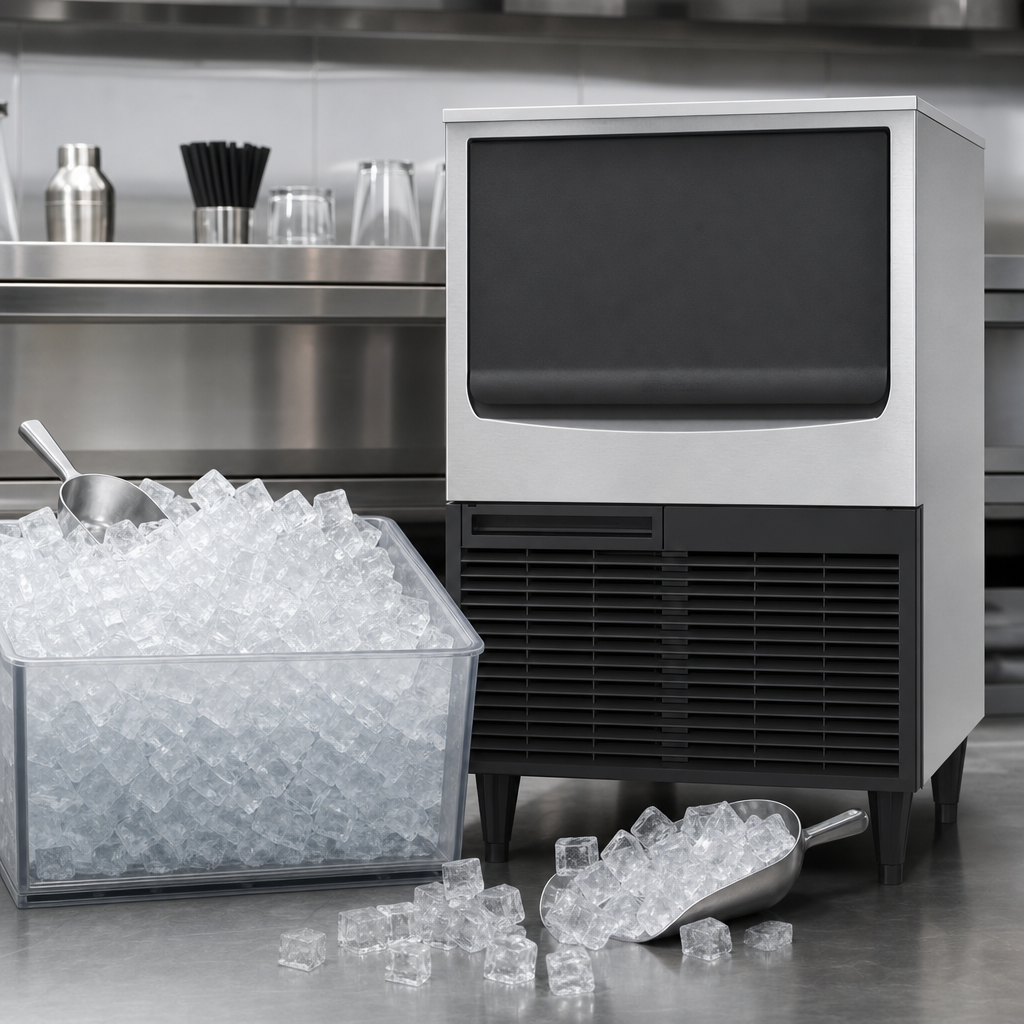

- Up to 125 lb of ice every 24 hours (70 °F air / 50 °F water).

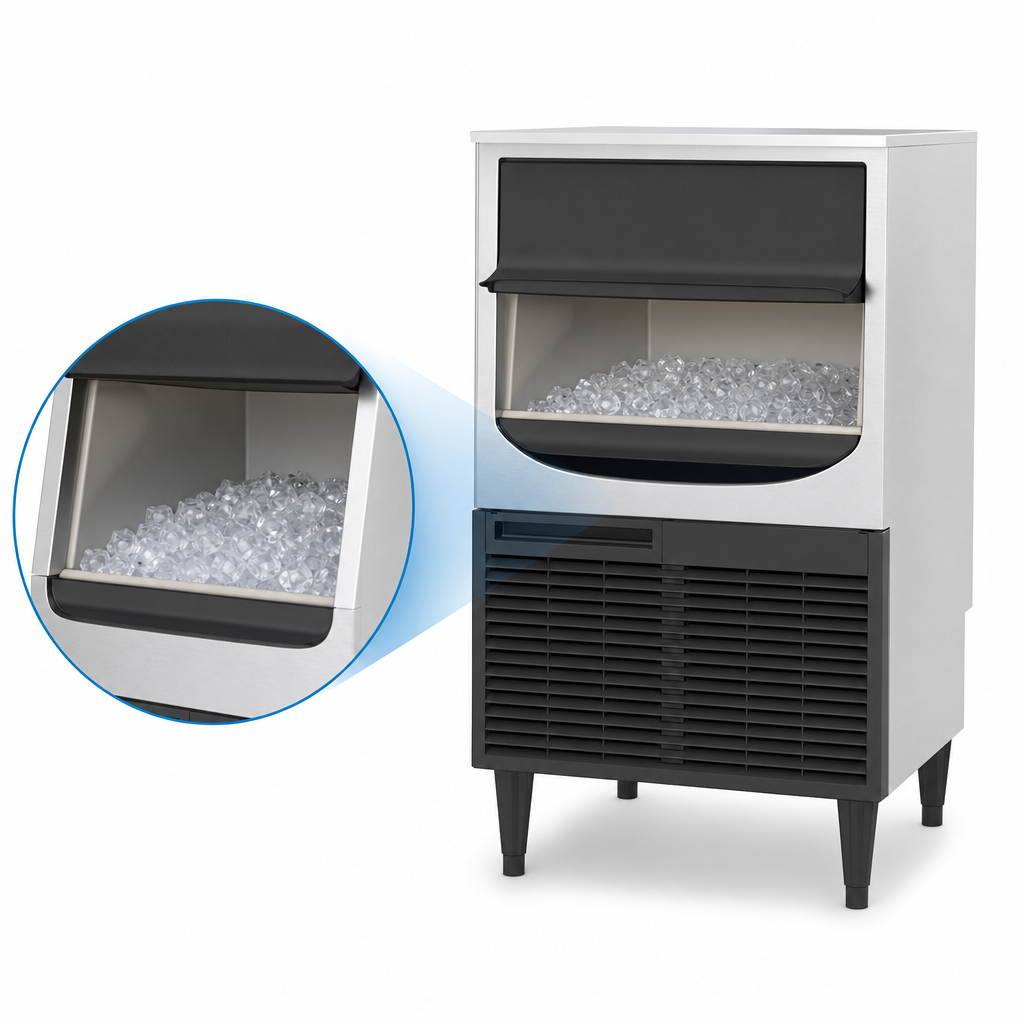

- 53 lb built-in storage bin with smooth, slide-in door.
- Hard, individual crescent cubes for better drink displacement & slower melt.
- ENERGY STAR® qualified – just 8.10 kWh & 20 gal water per 100 lb of ice.
- Dual-sided stainless steel evaporator + CycleSaver™ for faster harvest & longer life.
- H-GUARD Plus antimicrobial protection in key food-zone components.
- EverCheck™ audible alert & diagnostic system simplifies service.
- Front-in/front-out airflow and removable air filter for tight, built-in installs.
- Rugged stainless steel exterior on adjustable 6" painted legs.
- Ships with 6.5 ft cord & NEMA 5-15P plug—115 V, 5.5 A connection.
Technical Specifications
| Ice production (70 °F/50 °F) | 125 lb / 24 hr |
|---|---|
| AHRI production (90 °F/70 °F) | 100 lb / 24 hr |
| Storage capacity | 53 lb (1.8 ft³) |
| Ice style | Crescent cube – approx. 1 ⅛" × ½" × 1 ½" |
| Condenser | Air-cooled, self-contained |
| Refrigerant | R-134a |
| Electrical | 115 V / 60 Hz / 1-ph, 5.5 A, NEMA 5-15P |
| Water usage | 20 gal per 100 lb of ice |
| Energy usage | 8.10 kWh per 100 lb of ice |
| Heat rejection | 2,100 BTU/hr |
| Dimensions (W × D × H) | 23 ¾" × 24" × 39" (incl. 6" legs) |
| Net / Ship weight | 111 lb / 146 lb |
Operating Requirements
- Ambient: 45 °F – 100 °F
- Incoming water: 45 °F – 90 °F
- Water pressure: 10 – 113 psi
- Water inlet: ¼" ID copper tubing (min.)
- Gravity drain: ¾" ID (optional HS-5061 drain pump available)
Certifications & Warranty
- cETLus • NSF • UL • ENERGY STAR®
- 3-Year parts & labor on the entire machine
- 5-Year parts & labor on the stainless steel evaporator
- 5-Year parts on compressor & air-cooled condenser coil
Ice production ratings are based on 70 °F ambient air & 50 °F incoming water. Actual output will vary with site conditions.
