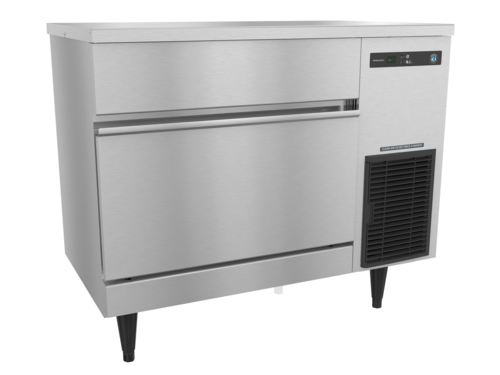

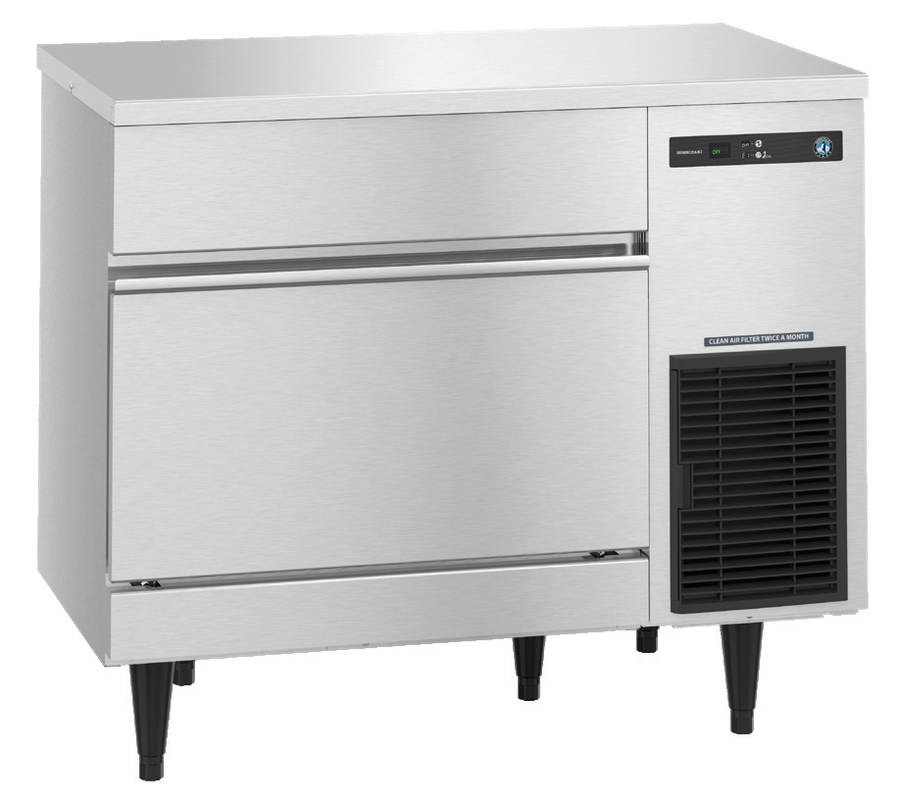

Hoshizaki IM-200BAK Undercounter Square Cube Ice Maker with Built-In Storage Bin

Air-Cooled, 186 lb/Day, 75 lb Storage Capacity, Stainless Steel

A compact undercounter ice maker that delivers high square-cube output and built-in storage in one space-saving unit.

  • Produces up to 186 lb of clear square ice per 24 hours, with 150 lb at 90°/70°F test conditions.
  • Built-in storage bin holds 75 lb of ice for convenient on-hand supply.
  • Air-cooled, self-contained design uses R290 refrigerant for efficient operation.
  • EverCheck digital control with LED display and alert system helps simplify monitoring.
  • Stainless steel exterior and removable air filter support easy maintenance.
  • 115V electrical connection with NEMA 5-15P plug and 6' cord makes installation straightforward.

Overall Dimensions:

39.54"W x 20.22"D x 33.54"H

Product Weight:

212.0 lb

Undercounter Self-Contained Design

Compact unit combines the ice maker and storage bin in one undercounter footprint.

Square Cube Production

Produces large, individual clear square cubes for beverage service.

Air-Cooled Condenser

Air-cooled, self-contained condenser supports straightforward installation.

High Daily Output

Produces up to 186 lb per 24 hours at 70°/50°F, with 150 lb at 90°/70°F test conditions.

Built-In Storage Bin

Integrated bin provides 75 lb of ice storage to keep product ready for service.

EverCheck Digital Control

LED display and alert system help monitor operation and status.

Removable Air Filter

Cleanable filter simplifies routine service and helps maintain airflow.

Stainless Steel Exterior

Durable stainless steel finish is built for heavy commercial use.

Included Ice Scoop and Adjustable Legs

Ice scoop is included, and 6-inch adjustable legs aid installation and placement.

Type Ice Maker With Built-In Storage Bin
Style Cube-Style
Installation Type Undercounter
Refrigeration Type Self-Contained
Condenser Type Air-Cooled
Storage Capacity 75 lb
Ice Production Capacity 186 lb per 24 Hours
Controls Digital
Material Stainless Steel
Finish Stainless Steel
Refrigerant Type R290
BTU 4,200 BTU/hr
Voltage 115 Volts
Amps 5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch FPT
Drain Connection Size 3/4 Inch FPT
Selling Unit Each
Units Per Case 1
Shipping Width 40 Inches
Shipping Depth 21 Inches
Shipping Height 34 Inches
Shipping Weight 212 lb

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3 year parts and labor; 5 year parts on the compressor and air-cooled condenser coil.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It produces up to 186 lb per 24 hours at 70°/50°F, and 150 lb at 90°/70°F test conditions.
The built-in storage bin holds 75 lb of ice.
It makes large, individual clear square cubes.
It operates on 115V/60/1 power, draws 5 amps, and comes with a NEMA 5-15P plug and 6' cord.
It requires a 1/2 inch FPT water inlet and a 3/4 inch FPT drain connection.
Yes. It includes EverCheck digital control with an LED display and alert system, plus a removable air filter.
