Hoshizaki HC2A-FS-FS Heated Cabinets & Holding Shelves
Description

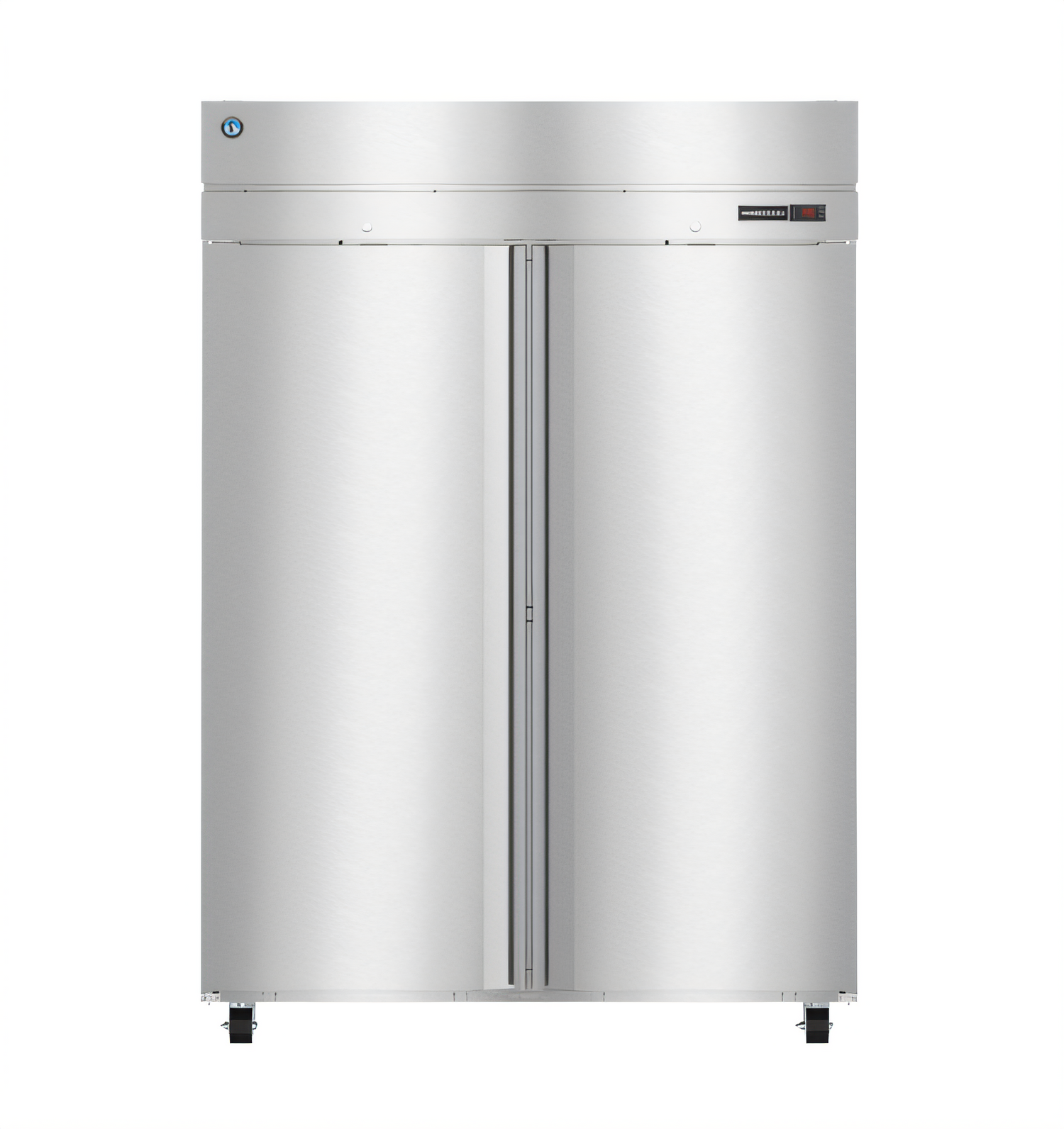

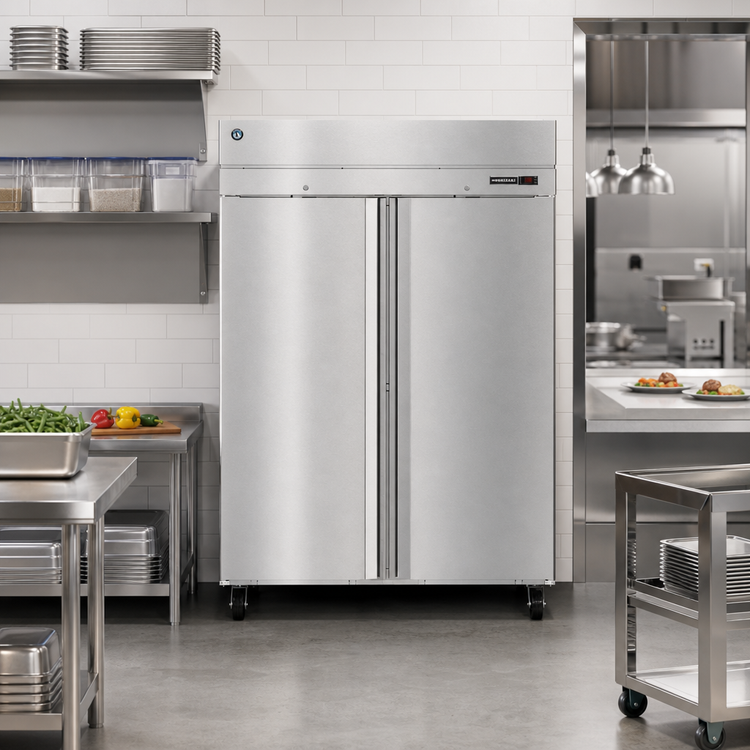

Hoshizaki HC2A-FS-FS Pass-Thru Heated Cabinet

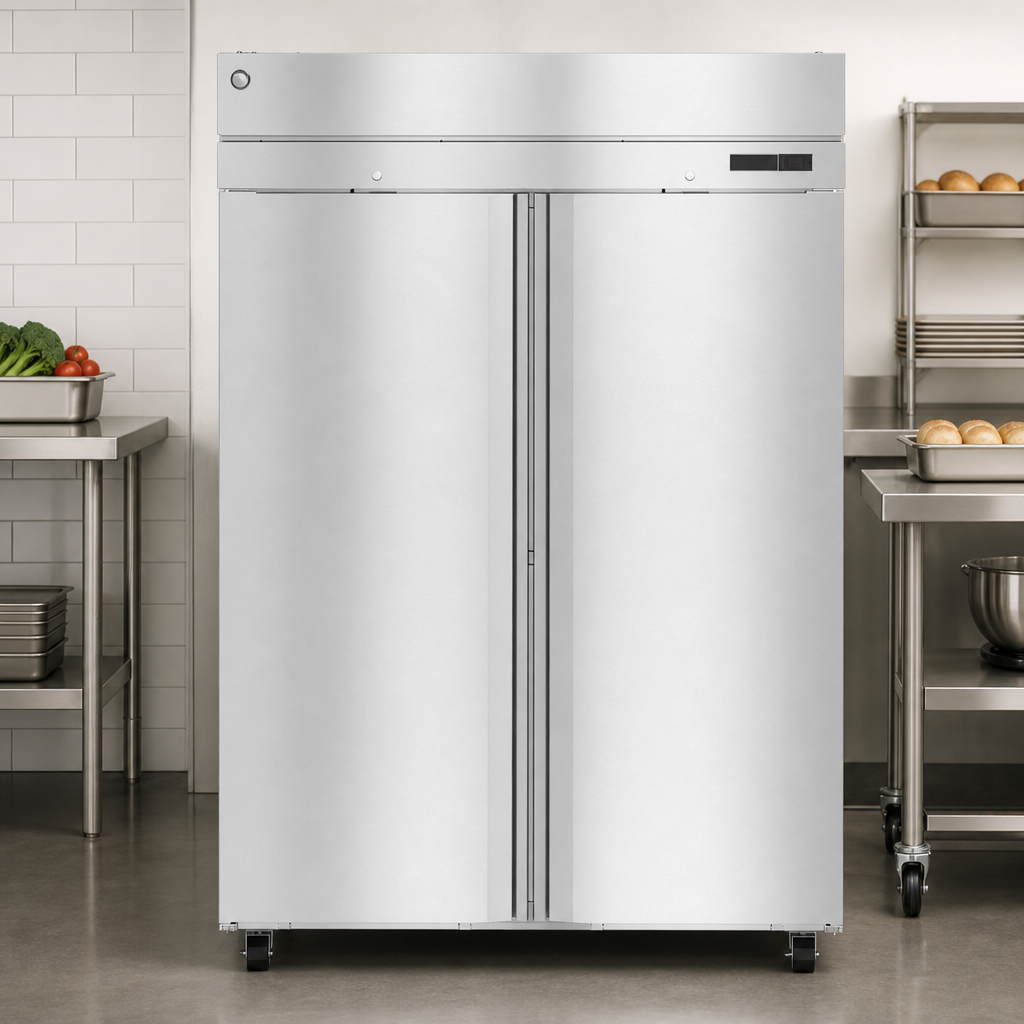

Two-Section • Full Stainless • 52.4 cu ftKeep plated meals, bulk entrées or banquet pans hot, safe and ready for service with the Hoshizaki SteelHeart HC2A-FS-FS. This full-stainless, pass-thru heated cabinet combines generous capacity, precision temperature control and a compact footprint—perfect for high-volume kitchens that need speed without sacrificing food quality.
Highlights
- Top-mounted heating element with high-temp fan for even heat distribution
- Solid-state digital controller with LED °F/°C display & hi/lo temperature & voltage alarms
- Additional upper compartment stores 36 full-size sheet pans (18" × 26")
- Six (6) adjustable 21.25" × 30.75" epoxy-coated wire shelves included

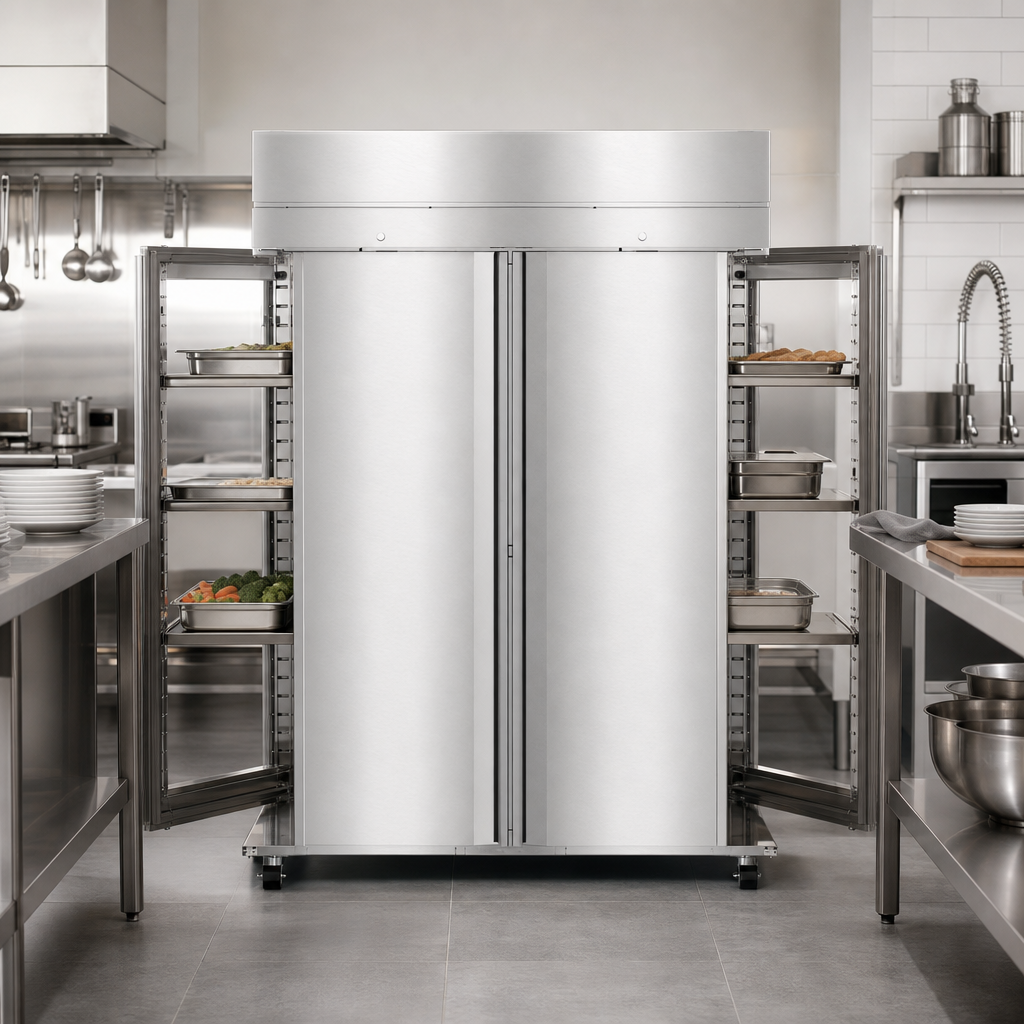

- Pass-thru design streamlines workflow between prep & service areas
- Self-closing, field-reversible stainless doors with stay-open feature & built-in locks
- Exclusive stepped door edge protects snap-in magnetic gaskets
- 2-3/8" CFC-free foamed-in-place polyurethane insulation for superior heat retention
- Bright 6000 K LED interior lighting
- Mounted on 4" polyolefin casters (front two locking) with 10 ft cord & L14-20P plug
- ENERGY STAR®, cETLus, ETL-Sanitation & NSF listed
Capacity at a Glance
- Interior volume: 52.4 cu ft (AHAM)
- Sheet pans: up to 36 (top compartment)
- Supplied shelves: 6 adjustable
- Optional pan/tray slides, extra shelves, 6" legs, foot pedal & more
Technical Specifications
| Model | HC2A-FS-FS |
|---|---|
| Sections / Doors | 2 sections / 4 full stainless swing doors (pass-thru) |
| Exterior Dimensions (W × D × H) | 55" × 35.75" × 79.5" (includes 4" casters) |
| Door Opening (W × H) | 21.75" × 59.25" |
| Depth with Doors 90° | 87.25" |
| Shelf Size (W × D) | 21.25" × 30.75" |
| Temperature Range | 140° – 180°F (60° – 82°C) adjustable |
| Electrical | 208-230 V / 60 Hz / 1-ph, 9 A @ 208 V / 10 A @ 230 V 20 A HACR breaker, NEMA L14-20P |
| Energy Consumption | 305.4 W (ASTM F2140-11) |
| Shipping Weight | 625 lb |
Built to Last
- All stainless steel front, sides, top and interior; coated-steel back & bottom
- Heavy-duty 8-gauge stainless hinge plates with welded pins
- One-piece full-length door handles for a secure, comfortable grip
- Tool-free, snap-in door gaskets for fast cleaning & replacement
Looking for a custom shelf layout or factory-approved accessories? Reach out and our specialists will configure the perfect HC2A-FS-FS for your kitchen.
