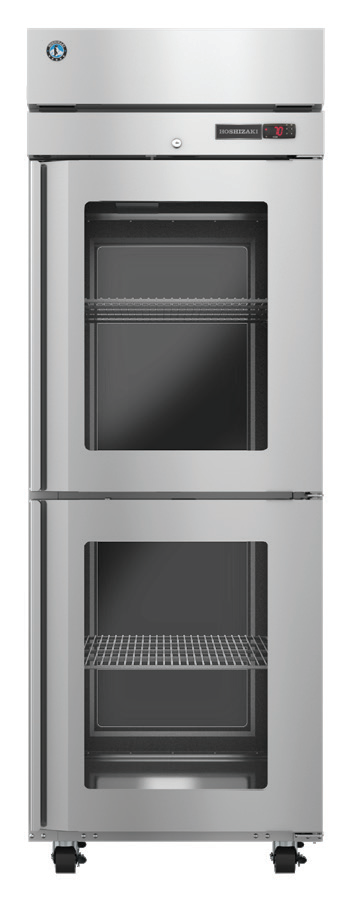

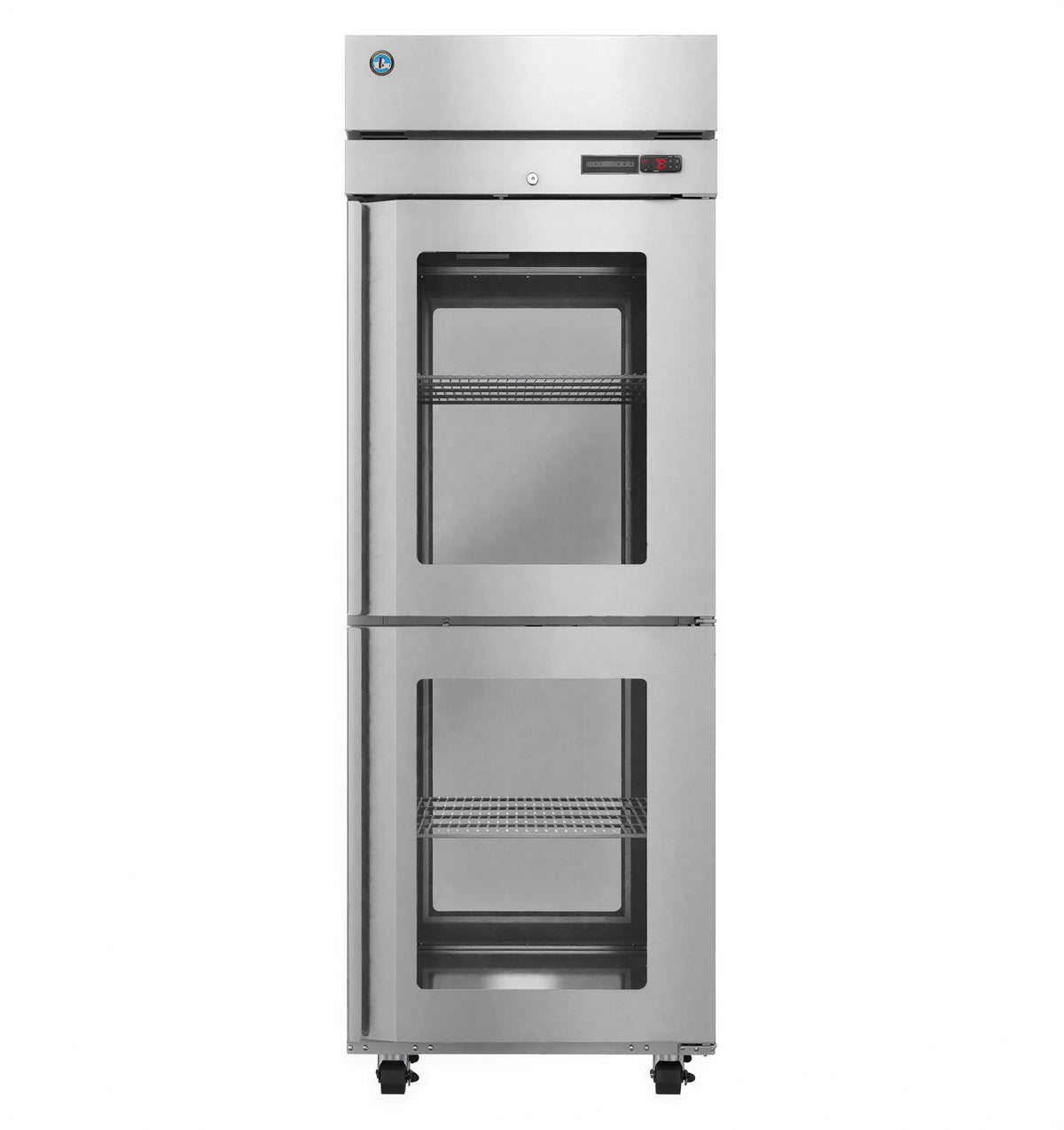

Hoshizaki Steelheart One-Section Pass-Thru Heated Holding Cabinet with Half Glass Doors

27.5" W x 35.75" D x 79.5" H, 115V, with 4" Casters

Keep prepared foods hot and organized with a compact pass-thru cabinet that delivers even heat, secure glass doors, and easy front-and-back access.

  • Pass-thru design provides convenient access from both sides of the line.
  • Top-mounted heating element with fan helps circulate heat evenly through the cabinet.
  • Multi-pane argon-filled glass doors lock, self-close, and stay open when needed.
  • Stainless steel front, sides, top, and interior simplify cleaning and improve durability.
  • Includes three adjustable epoxy-coated wire shelves and room for additional sheet pan storage.
  • Standard 4" casters and a 10-foot cord make placement and service easier.

Pass-Thru Access

Front and back doors allow loading, staging, and service from either side.

Even Heat Circulation

A top-mounted heating element with fan moves warm air throughout the cabinet for consistent holding temperatures.

Solid-State Digital Controls

Digital controller includes temperature alarms and an LED display with Fahrenheit/Celsius selection.

Energy-Efficient Glass Doors

Multi-pane, argon-filled glass doors help retain heat and include standard locks.

Stainless Steel Construction

Stainless steel front, sides, top, and interior provide a durable, easy-to-clean build.

Insulated Cabinet and Doors

Foamed-in-place polyurethane insulation helps maintain cabinet temperatures efficiently.

Adjustable Shelving

Three epoxy-coated wire shelves are standard and adjust in 1" increments on stainless steel pilasters.

Self-Closing Door Design

Doors stay open at 90° and self-close at 75° for added convenience.

Standard Mobility

4" casters are included, with two brakes for stability.

Field-Reversible Doors

Door hinging can be changed in the field to suit installation needs.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Capacity 23.82 Cubic Feet
Material Stainless Steel
Interior Finish Stainless Steel
Controls Solid State Digital
Temperature Range 140°F to 180°F
Ambient Temperature Range 45°F to 100°F
Voltage 115 Volts
Amps 15 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 10 Feet
Shipping Width 38.5 Inches
Shipping Depth 31.5 Inches
Shipping Height 81 Inches
Shipping Weight 367 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year labor, parts, and compressor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Hoshizaki steelheart warranty PDF Download

Frequently Asked Questions

It operates on 115/60/1 power, draws 15 amps, and uses a NEMA 5-15P plug.
Yes. The glass doors include locks and are field reversible.
Three epoxy-coated wire shelves are included and adjust in 1" increments.
Yes. It is designed with doors on both the front and back for pass-thru operation.
Yes. The unit comes standard with 4" casters, including two with brakes.
The control setpoint range is 140°F to 180°F, and the ambient temperature range is 45°F to 100°F.
