Hoshizaki HC1A-FS Heated Cabinets & Holding Shelves
Description

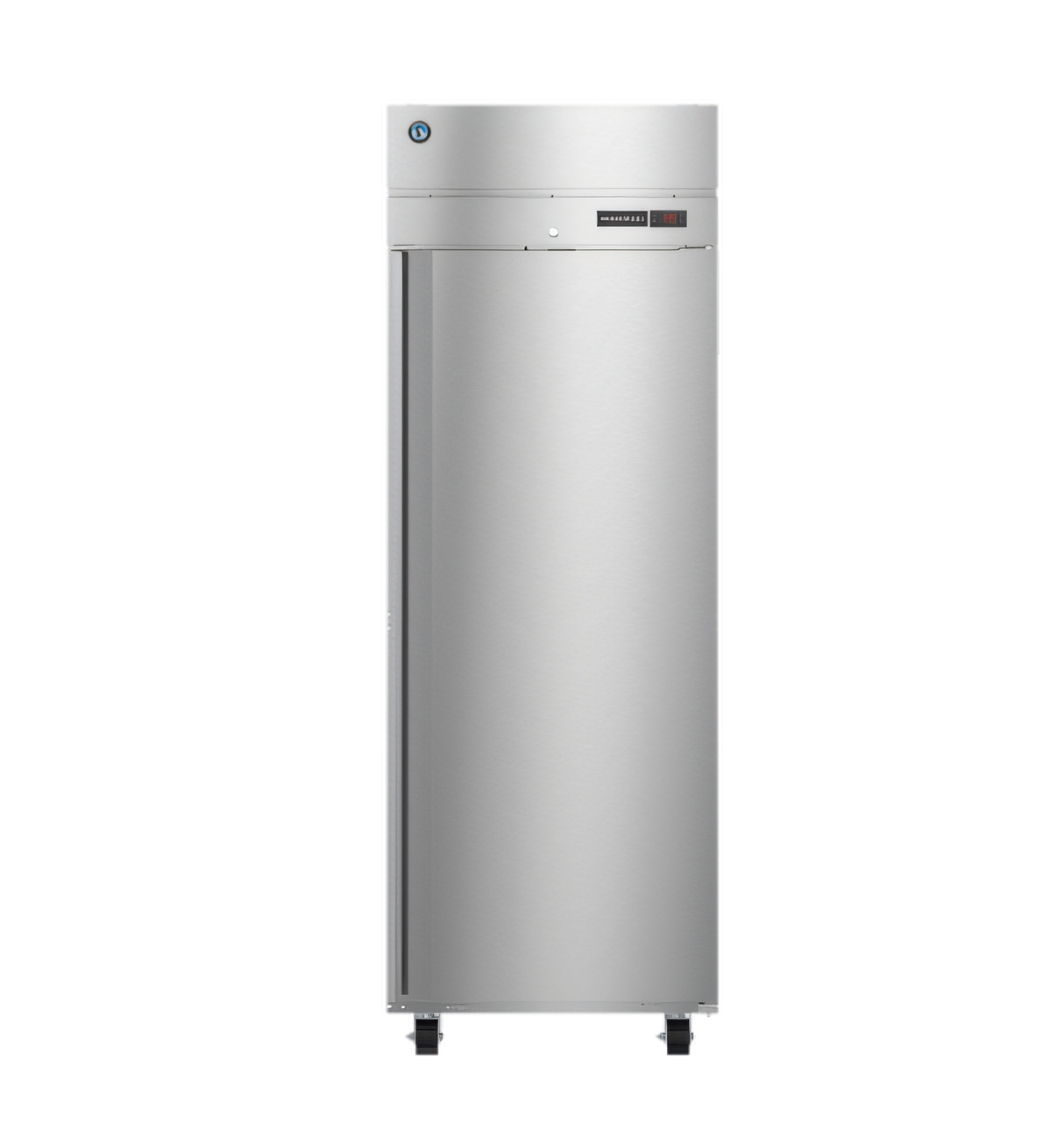

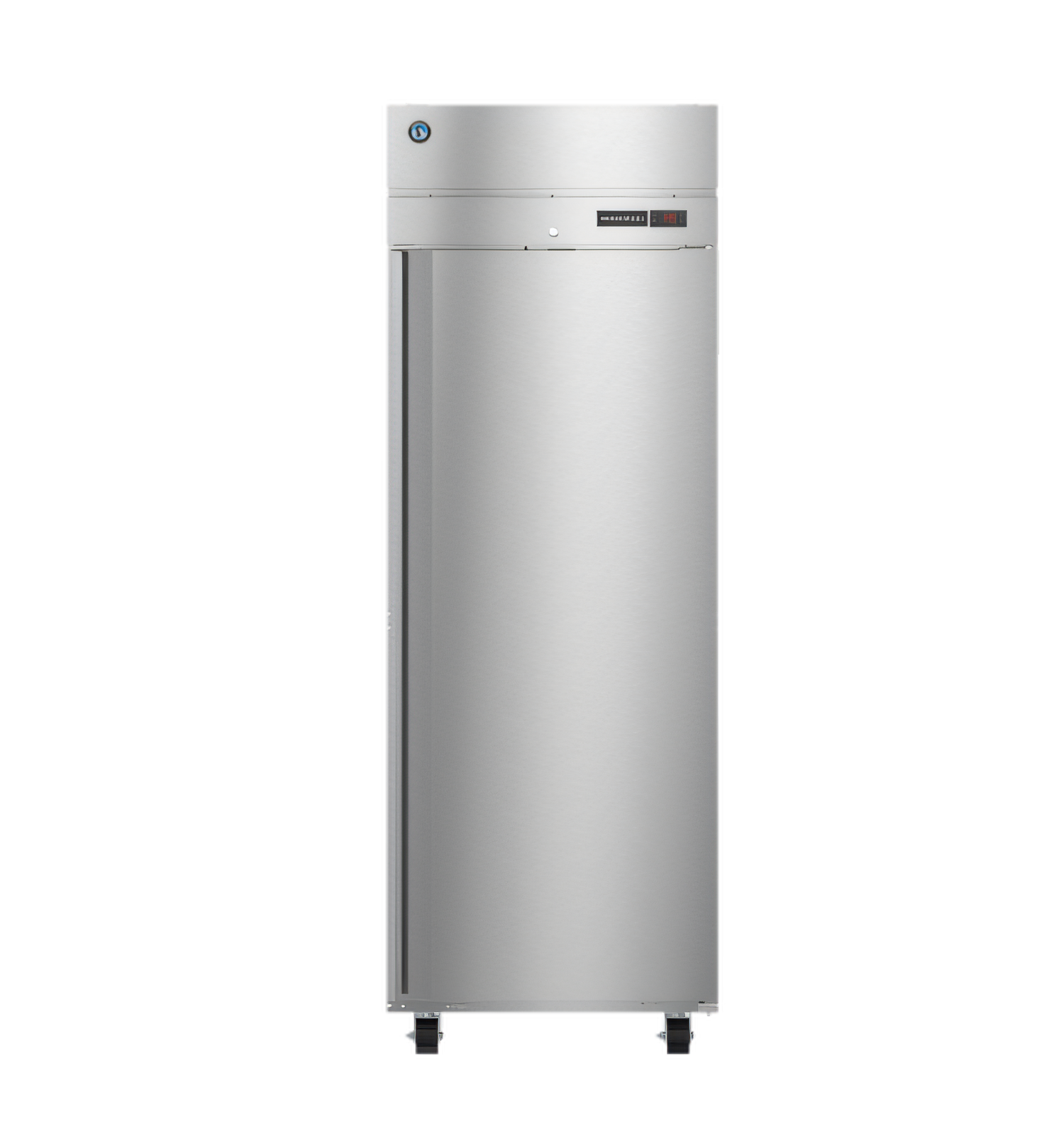

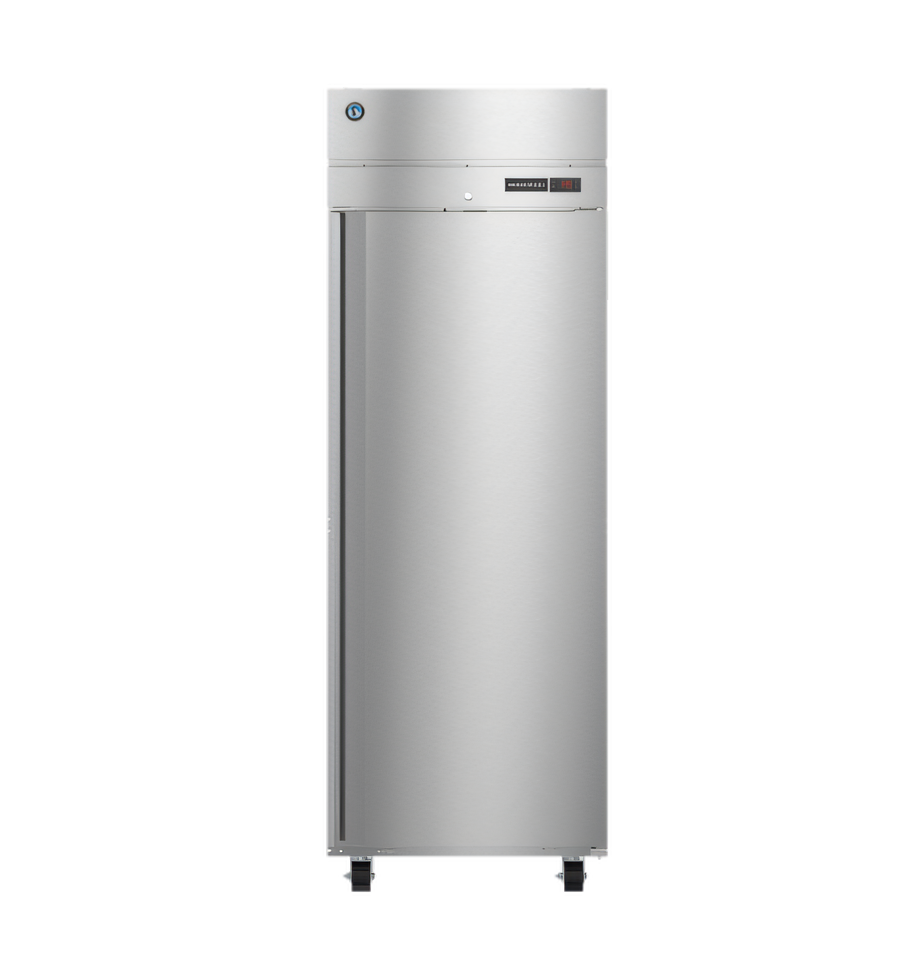

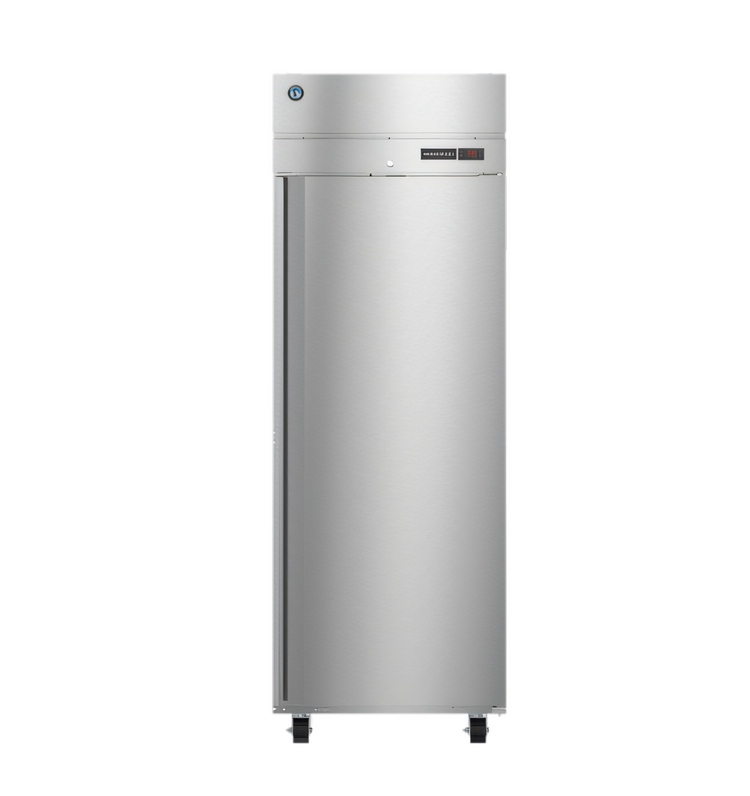

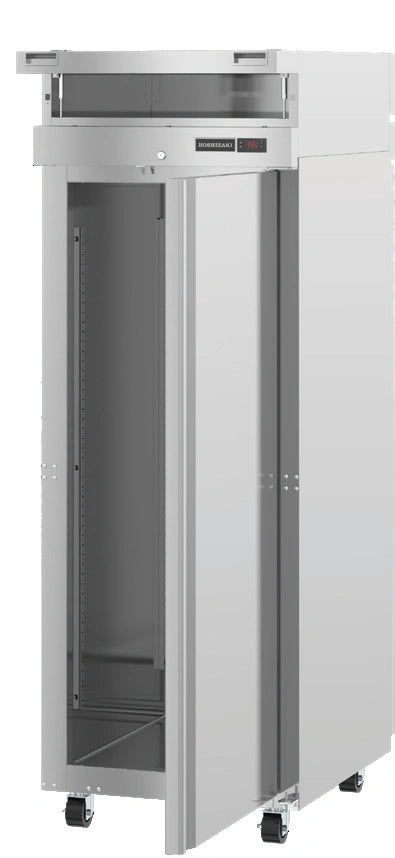

Hoshizaki HC1A-FS Full Stainless Heated Cabinet – One-Section Reach-In
22.7 cu. ft. • 27.5" W × 33.5" D × 79.5" H • ENERGY STAR® QualifiedKeep food hot, safe, and ready for service with the Hoshizaki HC1A-FS. This upright heated cabinet couples rock-solid stainless-steel construction with precision digital controls, fitting a generous 22.7 cu. ft. of storage into a slim 27 ½-inch footprint—ideal for any commercial kitchen that demands performance and durability.
Key Features
- Top-mounted heating element with high-temperature fan for even heat circulation.
- Solid-state digital controller with LED °F/°C read-out plus high/low temperature & voltage alarms.
- All stainless-steel interior, front, sides & top—easy to sanitize and corrosion-resistant.
- Full-height, self-closing stainless door with stay-open feature and keyed lock.

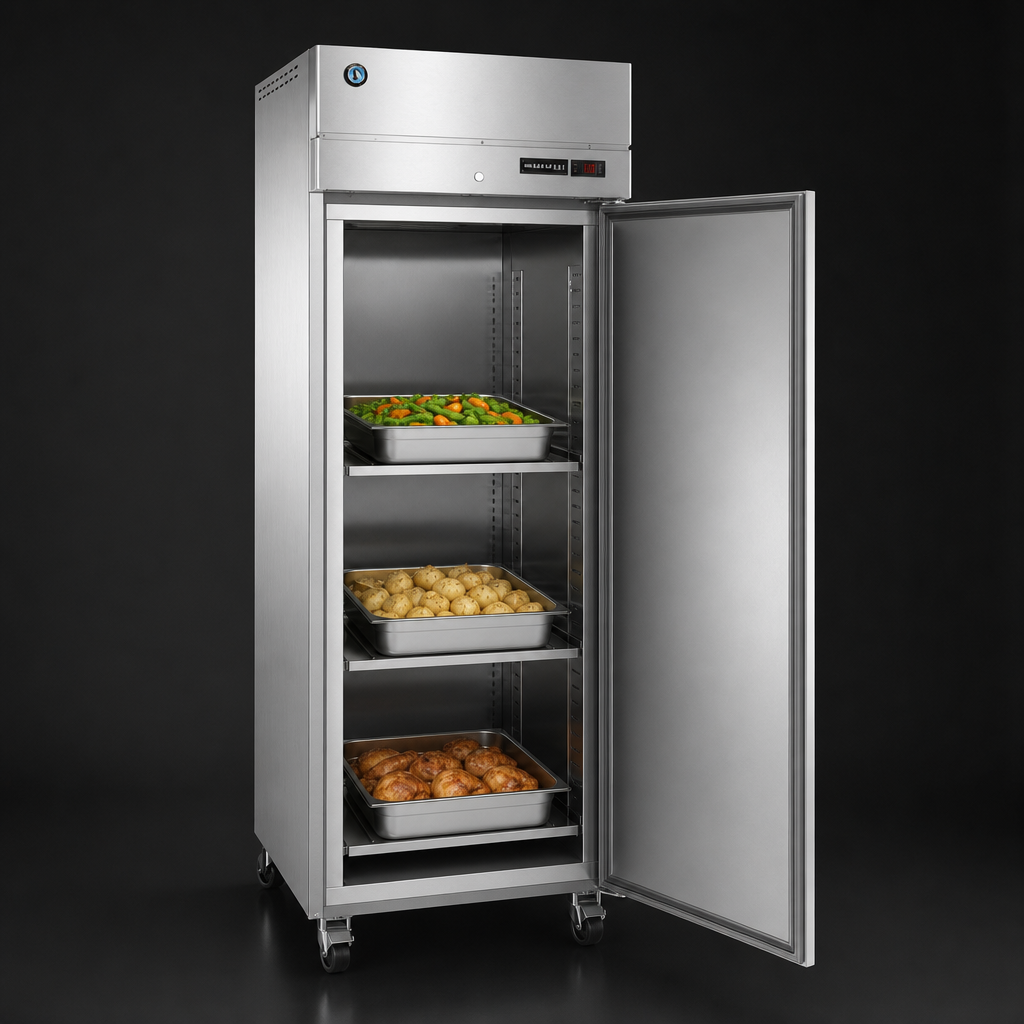

- (3) 21.25" × 26" adjustable epoxy-coated wire shelves; holds up to 12 full-size sheet pans or 20-24 tray slides.
- 2-3/8" foamed-in-place CFC-free polyurethane insulation for maximum heat retention.
- Energy-efficient 6 000 K LED interior lighting activates when the door opens.
- Factory-installed 4" polyolefin casters (front two locking) for easy mobility.
- Plug-and-play 115 V operation with 10-ft cord and NEMA 5-15P plug.
- Certified cETLus, ETL-Sanitation, NSF, UL and ENERGY STAR®.
Engineered for the Real-World Kitchen
- Zero-clearance installation—no side, rear, or top spacing required.
- Field-reversible door swing adapts to changing layouts.
- Exclusive stepped door design protects the recessed magnetic gasket from damage.
- Heavy 8-gauge stainless hinge plates with welded pins for long-term durability.
- Tool-free, snap-in gaskets speed up routine maintenance.
What’s Included
- (3) epoxy-coated wire shelves
- 4" casters (2 locking)
- 10-ft cord & NEMA 5-15P plug
- Factory-installed door lock with keys
Popular Options (Sold Separately)
- Additional epoxy or stainless-steel shelves
- Pan & wire slide kits (1, 2, 4, 6, or 8 slides)
- 6" adjustable stainless legs
- Foot-pedal door opener (right-hinge)
Technical Specifications
| Model | HC1A-FS (Full Stainless Door) |
|---|---|
| Capacity | 22.7 cu. ft. (AHAM) |
| Standard Shelves | (3) 21.25" W × 26" D epoxy-coated wire |
| Pan Capacity | Up to 12 full-size (18" × 26") sheet pans |
| Exterior Dimensions | 27.5" W × 33.5" D × 79.5" H (with 4" casters) |
| Door Opening (W × H) | 21.75" × 59.25" |
| Depth with Door at 90° | 59.25" |
| Controller Set-Point Range | 140 °F – 180 °F |
| Voltage / Phase | 115 V / 60 Hz / 1-phase |
| Amperage | 10 A (15 A HACR breaker recommended) |
| Plug Type | NEMA 5-15P |
| Energy Consumption | 143.4 W (ASTM 2140-11) |
| Ambient Operating Range | 45 °F – 100 °F |
| Shipping Weight | ≈ 340 lb |
If a GFCI is required by local code, Hoshizaki recommends using a GFCI circuit breaker in lieu of a receptacle.
