Hoshizaki HC1A-FS-FS Heated Cabinets & Holding Shelves
Description

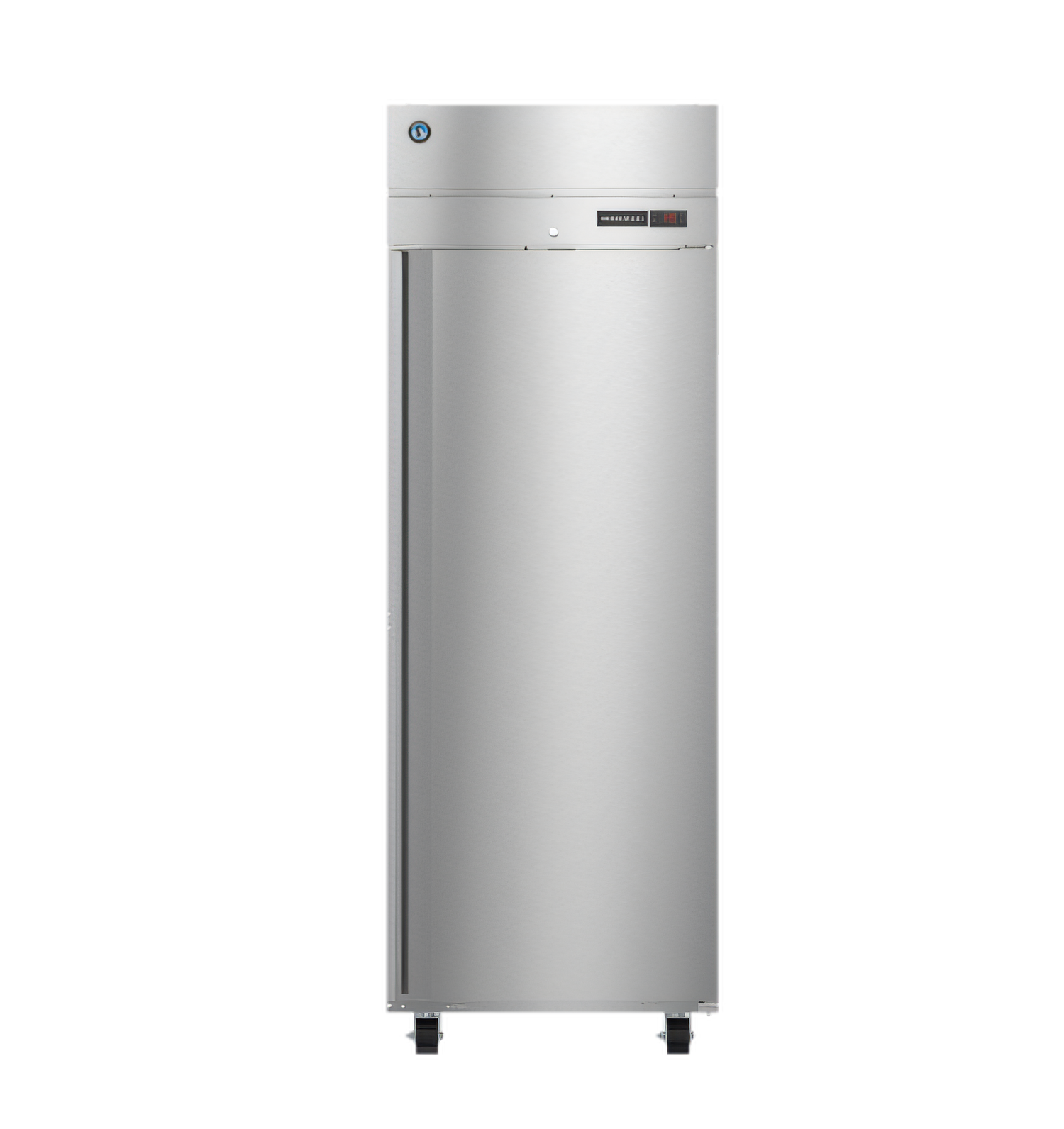

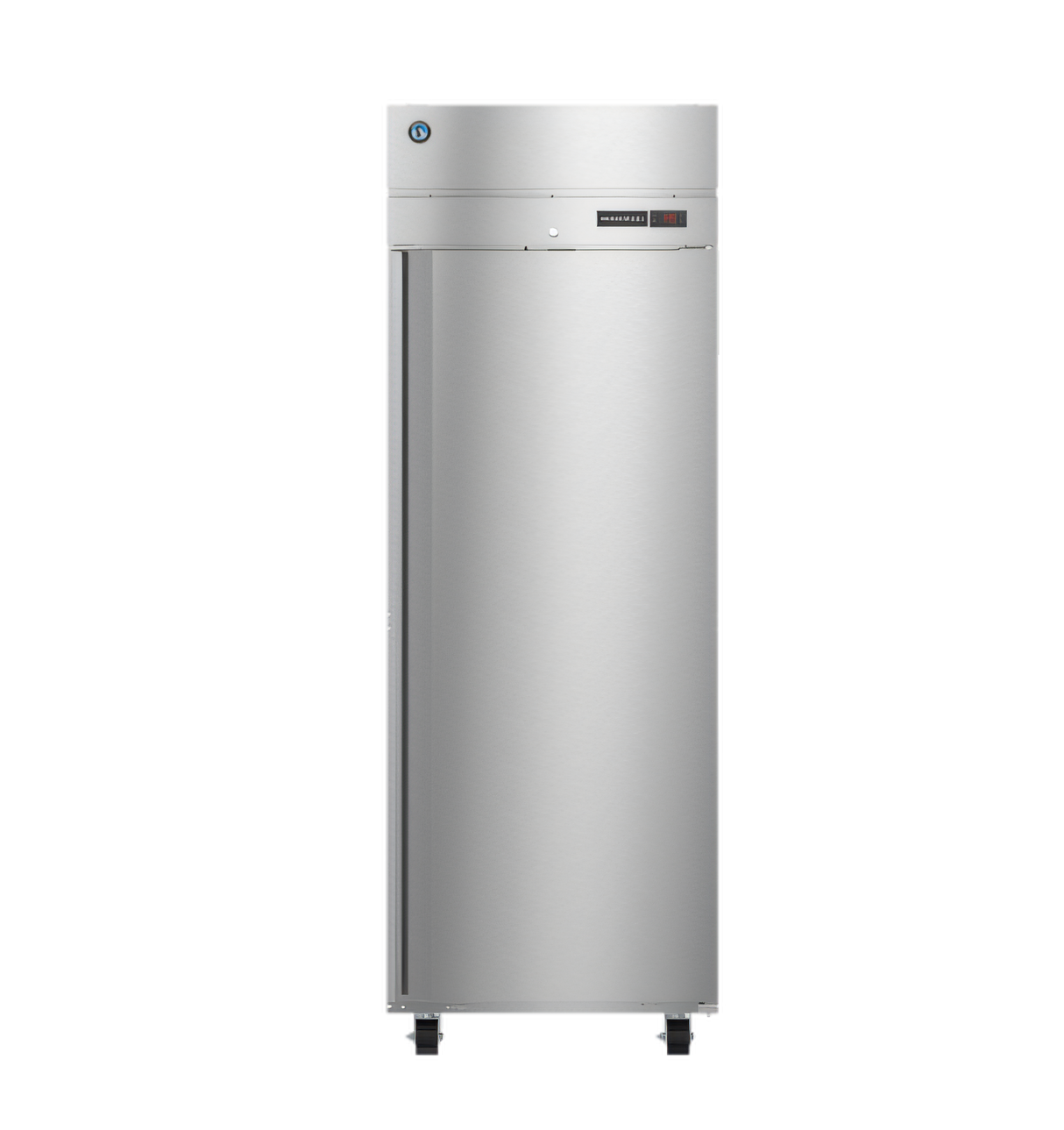

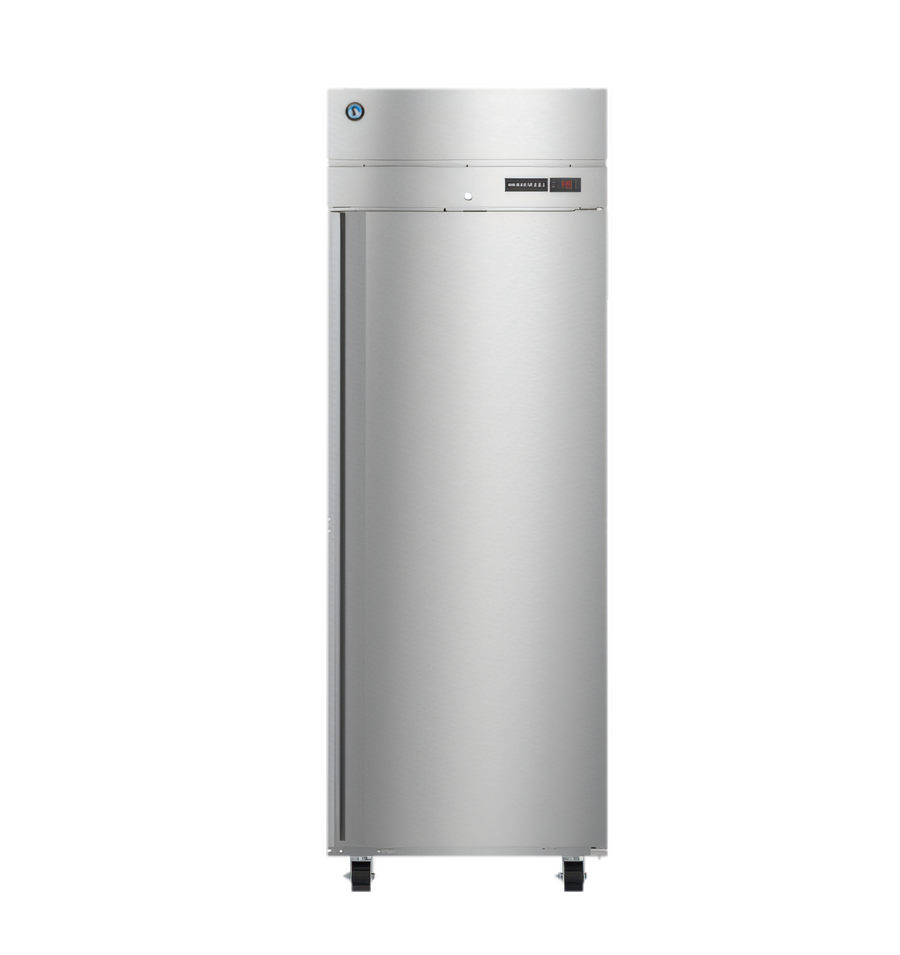

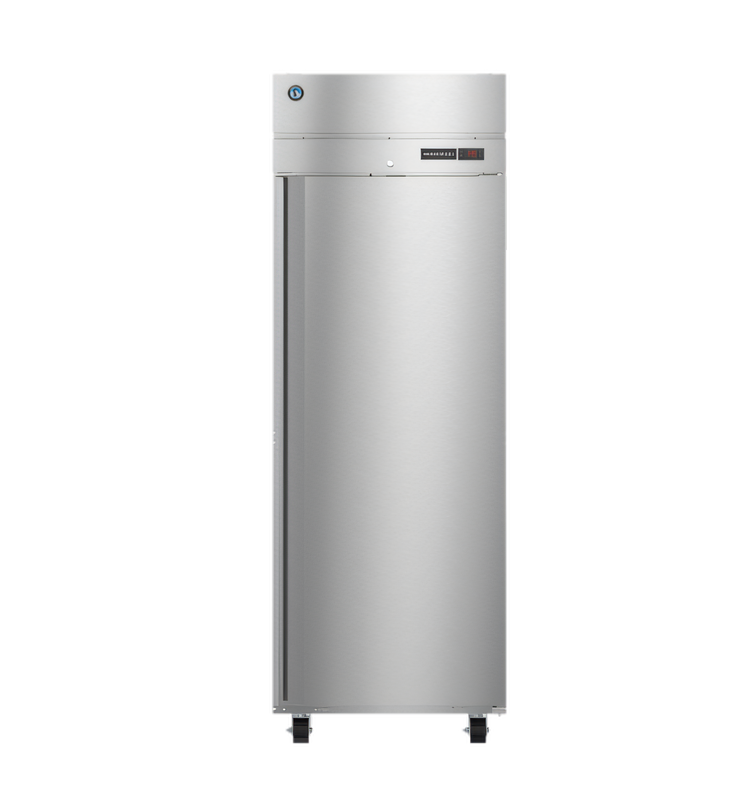

Hoshizaki HC1A-FS-FS Steelheart Pass-Thru Heated Cabinet
One section • Full stainless doors • 23.8 cu. ft. capacityKeep plated meals and sheet pans at safe-holding temperatures without losing valuable floor space. The ENERGY STAR® qualified HC1A-FS-FS delivers dependable, even heat in a slim 27.5-inch footprint—and its pass-thru design lets kitchen staff load from the prep side while servers pull from the service side.
Why you’ll love it

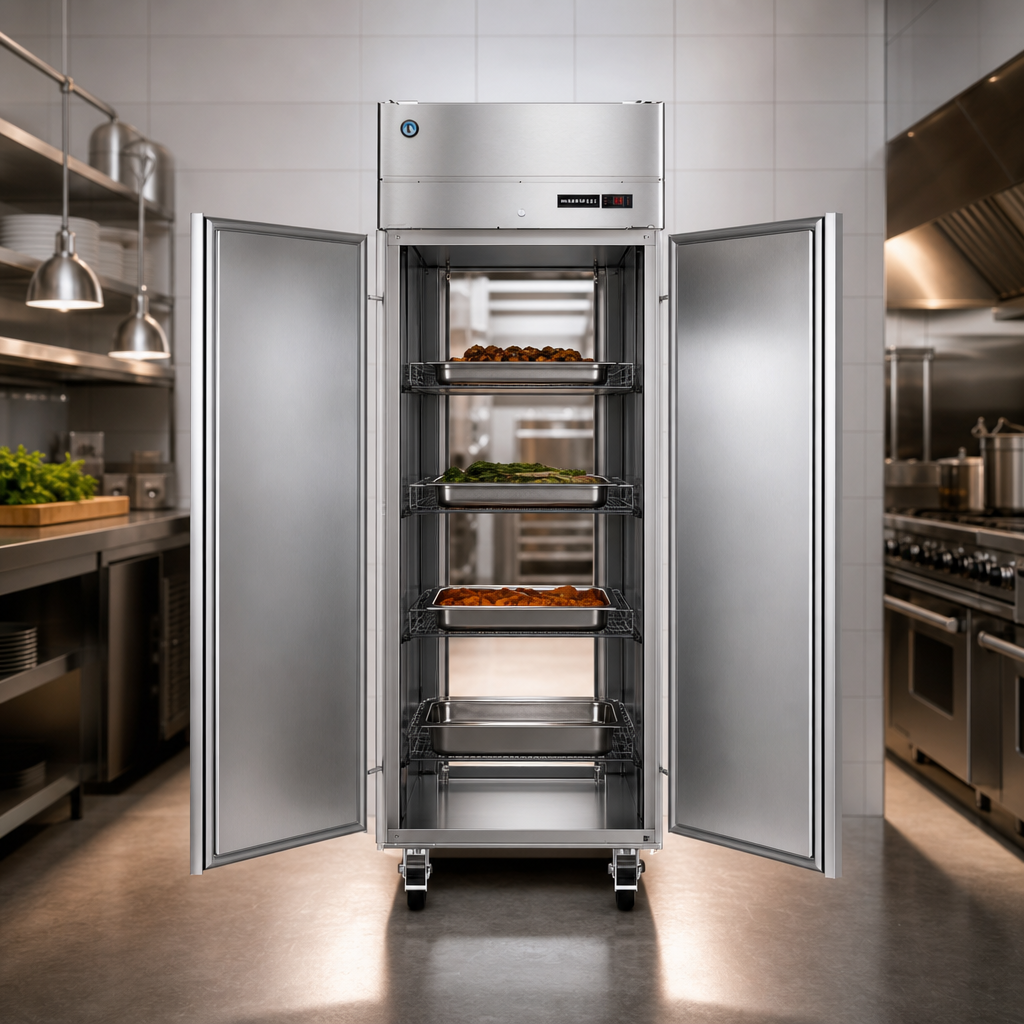

- Pass-thru, upright cabinet with full stainless steel doors front and back.
- Interior top-mounted heating element with high-temp fan for uniform airflow.
- Solid-state digital controller with LED display (°F or °C) plus high/low temp & voltage alarms.
- Holds up to 12 full-size (18 × 26 in.) sheet pans or (3) included adjustable shelves.
- Exclusive stepped door design protects the recessed, snap-in magnetic gaskets.
- 2-3/8″ CFC-free foamed-in-place polyurethane insulation in doors and walls.
- Bright, energy-efficient 6000 K LED interior lighting.
- 4″ polyolefin casters (front two locking) make the unit easy to manoeuvre and clean around.
- Field-reversible, self-closing doors with stay-open feature past 90°.
- cETLus, ETL-Sanitation, UL, NSF & ENERGY STAR® listed for commercial kitchens.
Consistent heat, simple controls

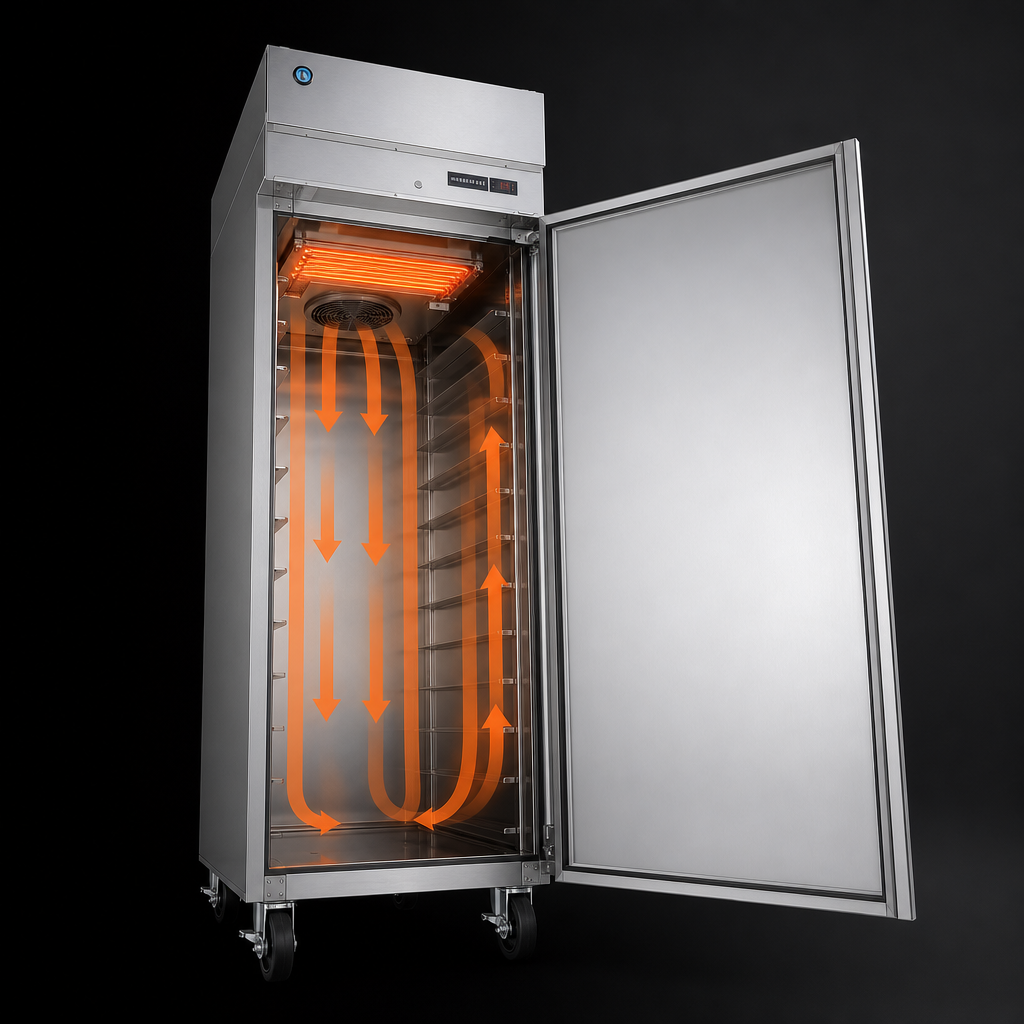

The HC1A-FS-FS draws cabinet air across a resistive heater and redistributes it through a ducted louver pattern for even temperatures from top to bottom. Setpoints are adjustable from 140 to 180 °F (60 to 82 °C), and the controller’s visual alarms alert staff before product quality is affected.
Technical specifications
| Model / Item # | HC1A-FS-FS / 13680 |
|---|---|
| Configuration | Pass-thru, upright, one section, full solid stainless doors |
| Interior capacity (AHAM) | 23.82 cu. ft. (675 L) |
| External dimensions (W × D × H) | 27.5″ × 35.75″ × 79.5″ (with 4″ casters) |
| Door opening (W × H) | 21.75″ × 59.25″ |
| Depth with doors at 90° | 87.25″ |
| Included shelves | (3) epoxy-coated wire shelves, 21.25″ × 30.75″ |
| Temperature setpoint range | 140 – 180 °F (60 – 82 °C) |
| Electrical | 115 V / 60 Hz / 1 φ, 10 A, NEMA 5-15P, 10 ft cord |
| Energy consumption (ASTM 2140-11) | 161.4 W |
| Certifications | cETLus, ETL-Sanitation, UL, NSF, ENERGY STAR® |
| Shipping weight | 367 lb |
What’s in the box
- HC1A-FS-FS heated cabinet
- (3) adjustable epoxy-coated shelves
- 4″ locking/swivel casters (factory-installed)
- Integrated door locks & LED lighting
- Operating manual
Popular accessories (sold separately)
- Additional epoxy or stainless steel shelves
- Wire or pan slide kits (up to 24 tray positions)
- Foot pedal door opener (right-hand hinge)
- 6″ adjustable legs
Ambient operating range: 45 – 100 °F. If a GFCI is required, use a GFCI breaker in lieu of a GFCI receptacle.
Questions about installation, accessories, or lead times? Contact our team—we’re here to help.
