Hoshizaki

Hoshizaki steelheart one-section heated pass-thru holding cabinet with full glass doors

SKU: HC1A-FGE-FGE
$9,433.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best sellers Food holding & warming equipment Food warmers & holding equipment Heated cabinets & holding shelves Holding cabinets Holding cabinets Hoshizaki New arrivals Pizza holding cabinet Restaurant equipment

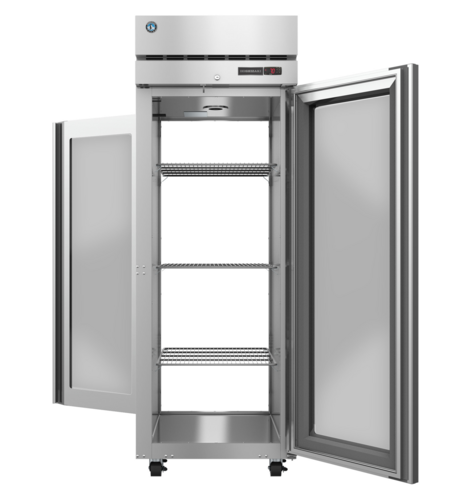

Hoshizaki Steelheart One-Section Heated Pass-Thru Holding Cabinet with Full Glass Doors

27.5"W x 35.75"D x 79.5"H, 115V, 1-Phase

Keep product hot and visible from either side with even heat circulation, precise digital control, and lockable full glass doors.

  • Pass-thru design keeps product accessible from both the front and back of the cabinet.
  • Full glass doors are energy efficient, argon-filled, lockable, self-closing, and stay open for loading.
  • Interior top-mounted heating element with fan helps circulate heat evenly throughout the cabinet.
  • Stainless steel construction and thick polyurethane insulation support durability and heat retention.
  • Includes three adjustable epoxy-coated wire shelves, 4" casters, and a 10' cord with plug.

Top-Mounted Heating System

Interior top-mounted heating element with fan circulates warm air through the cabinet; a heat shield helps protect the insulation.

Pass-Thru Glass Doors

Multi-pane, argon-filled glass doors provide visibility from both sides and include standard locks.

Digital Temperature Control

Solid-state controller includes an LED display, temperature alarms, and Fahrenheit/Celsius selection.

Stainless Steel Construction

Stainless steel front, sides, top, and interior with a coated steel back and bottom for long-term durability.

Insulated Cabinet

Cabinet and doors use 2-3/8" CFC-free foamed-in-place polyurethane insulation to help retain heat.

Adjustable Shelving

Three epoxy-coated wire shelves are standard and adjust in 1" increments on stainless steel shelf supports.

Self-Closing, Reversible Doors

Doors self-close at 75° and stay open at 90°; field-reversible hinging simplifies installation.

Interior LED Lighting

Energy-efficient 6000K LED lighting illuminates the cabinet interior when selected.

Mobile Base

Standard 4" casters are included, with two casters equipped with brakes.

Additional Storage Capacity

Cabinet offers additional storage that fits up to 12 sheet pans.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Freestanding
Compartments 1
Capacity 23.82 Cubic Feet
Material Stainless Steel
Interior Finish Stainless Steel
Controls Digital
Temperature Range 140°F to 180°F
Voltage 115 Volts
Amps 15 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 10 Feet
Shipping Width 38.5 Inches
Shipping Depth 31.5 Inches
Shipping Height 81 Inches
Shipping Weight 367 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Seven-year limited warranty on labor, parts, and compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Hoshizaki steelheart warranty PDF Download

Frequently Asked Questions

Three epoxy-coated wire shelves are included standard.
The cabinet runs on 115 Volts, 60 Hz, single phase, draws 15 amps, and uses a NEMA 5-15P plug.
The solid-state controller is adjustable from 140°F to 180°F.
Yes. The glass doors self-close at 75° and stay open at 90° for easier loading.
Yes. It comes standard with 4" casters, including two with brakes.
