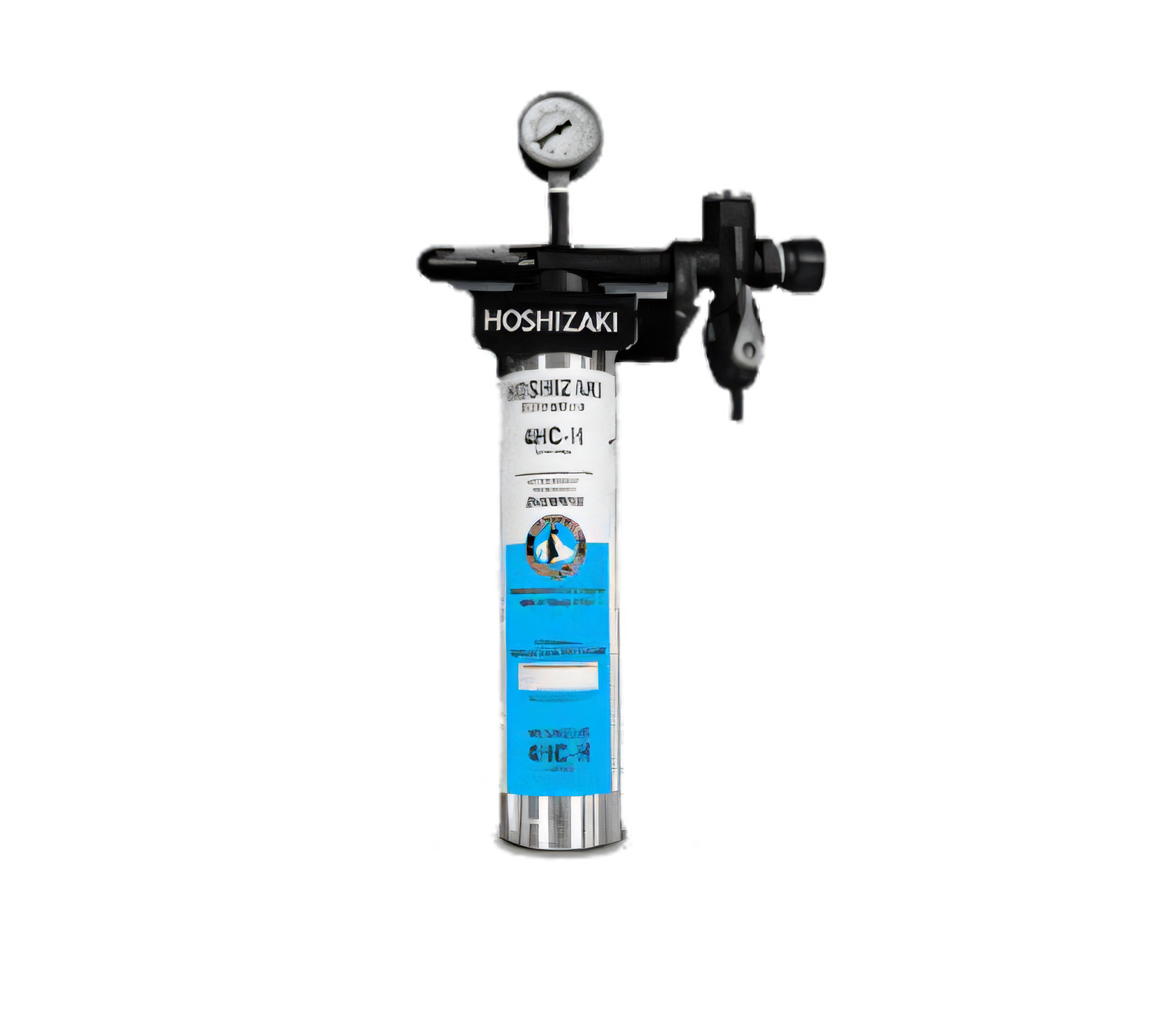

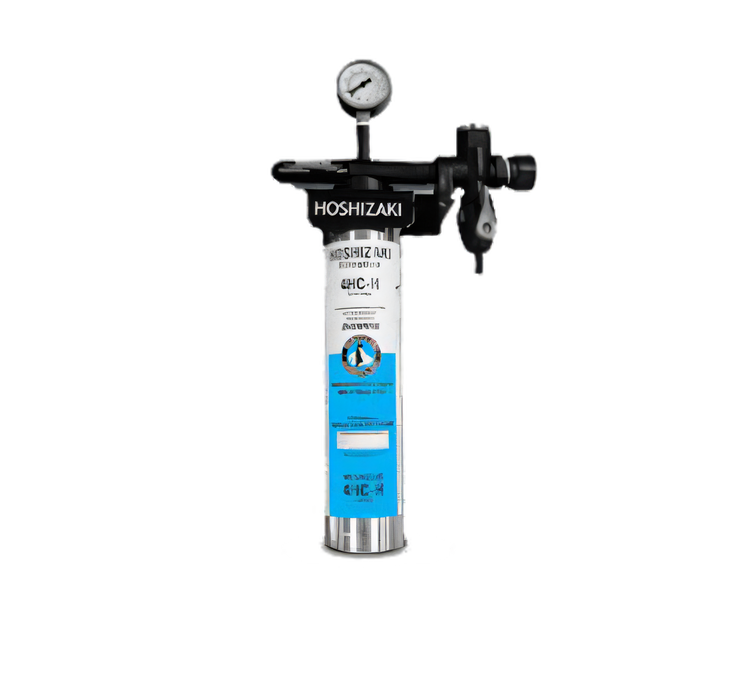

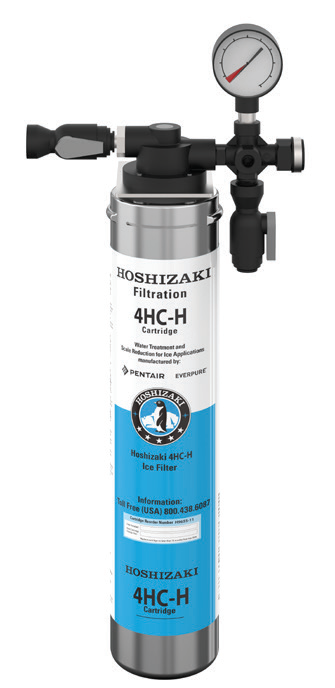

Hoshizaki H9320-51 Ice Maker Water Filtration System with Manifold and Cartridge, Single Configuration, NSF Certified, 0.1–2.0 GPM
$320.00
/each
Ships in 4–7 business days
Free Shipping
- Configuration
- Single
- Filter quantity
- 1
- Service flow rate
- 0.1–2.0 GPM
- Dimensions
- 18.4"H
- Filtration rating
- 1 micron nominal
- Filter capacity
- 21,000 gal
Specifications
Configuration
Single
Filter quantity
1
Service flow rate
0.1–2.0 GPM
Height
18.4 in, including manifold and cartridge
Filtration rating
1 micron nominal
Filter capacity
21,000 gal
Working pressure
10–125 psi
Filter temperature
35–100°F
Inlet connection
3/8 in FNPT
Outlet connection
3/8 in FNPT
Standard
NSF/ANSI Standard 42
Description
The Hoshizaki H9320-51 is a single-configuration water filtration system for ice-maker applications. Its documented height is 18.4 inches, including the manifold and cartridge.
- Service flow: 0.1–2.0 GPM.
- Filtration: 1 micron nominal rating.
- Connections: 3/8-inch FNPT inlet and outlet.
- Certification: Tested and certified by NSF International against NSF/ANSI Standard 42.
Overall Dimensions:
18.4"HProduct Weight:
3.8 lbSingle configuration

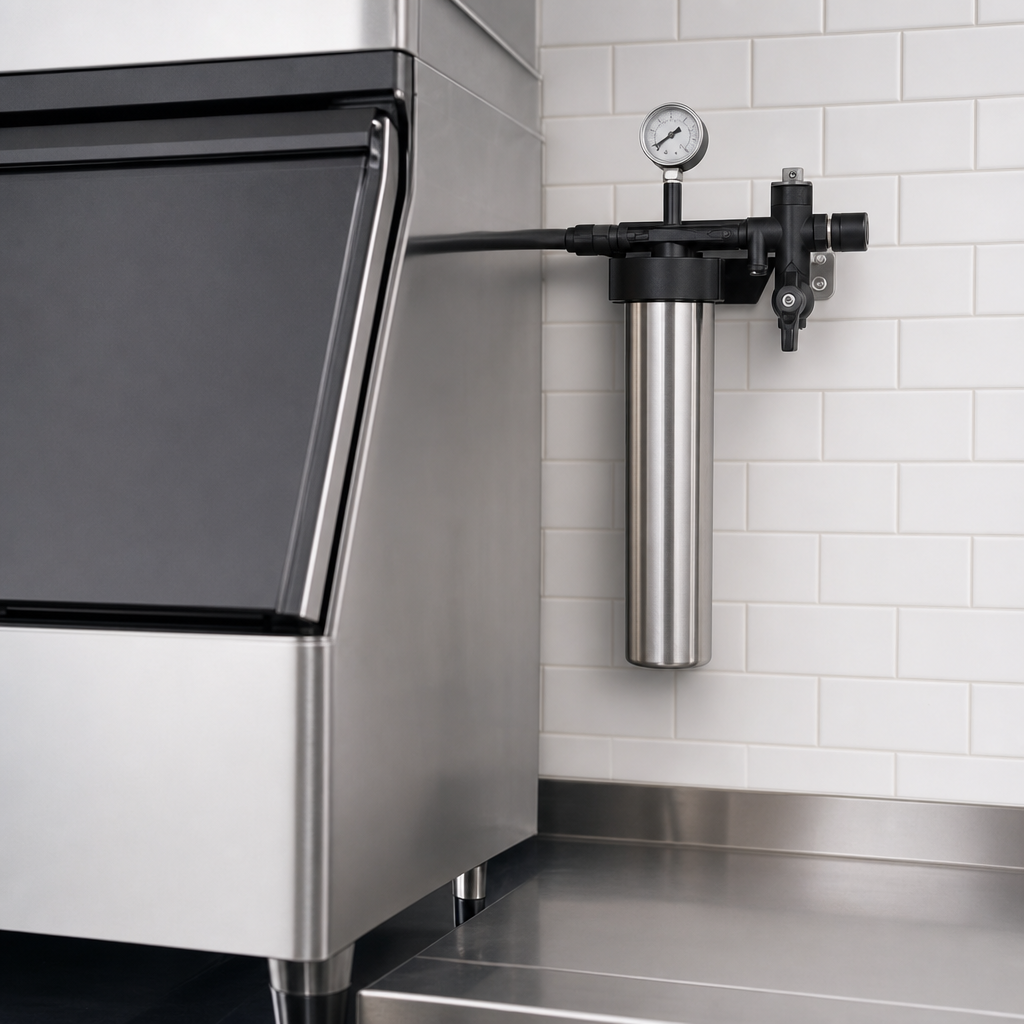

The H9320-51 is identified as the single configuration.
NSF certification
The H9320 system is tested and certified by NSF International against NSF/ANSI Standard 42.
Nominal filtration rating
The filter is rated at 1 micron nominal.
Filter capacity
The H9320-51 is listed with a 21,000-gallon filter capacity.
Working pressure
The listed working pressure is 10–125 psi.
Filter temperature
The listed filter temperature range is 35–100°F.
Inlet and outlet connections
The single configuration uses 3/8-inch FNPT inlet and outlet connections.
Documentation
Certifications & Compliance
Frequently Asked Questions
The H9320-51 is a single-configuration water filtration system.
The authoritative service flow rate is 0.1–2.0 GPM.
The system is 18.4 inches high, including the manifold and cartridge.
It uses 3/8-inch FNPT inlet and outlet connections.
The listed filter capacity is 21,000 gallons.
The warranty is one year for replaceable elements and one year for the entire system.
