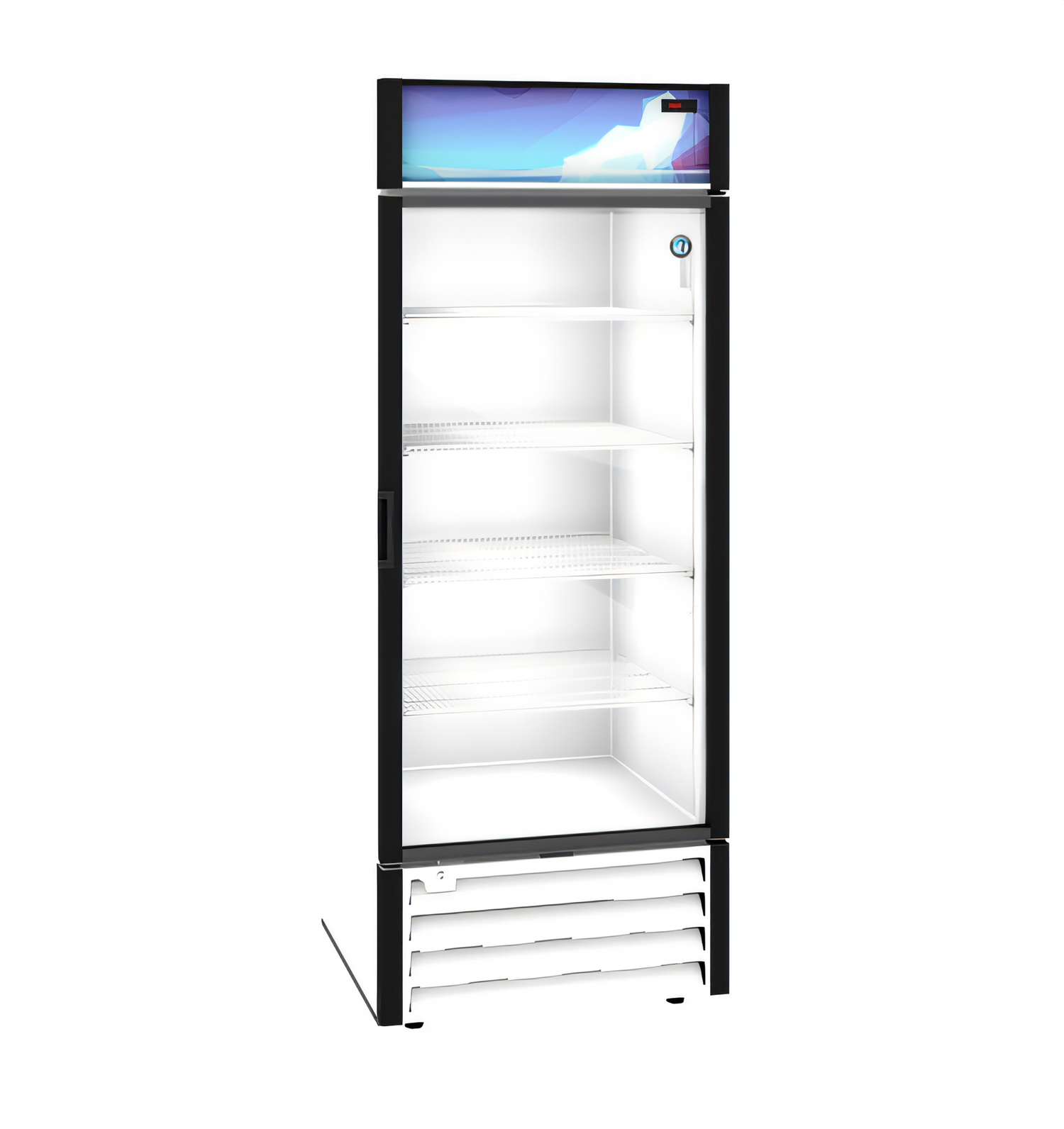

Hoshizaki FM-23-HC-WHT Glass Door Freezer Merchandiser
20.71 cu. ft. • -10 to -0 °F holding temperatures • 30" wideShowcase frozen entrées, ice cream or grab-&-go novelties while keeping them at food-safe temperatures. The FM-23-HC-WHT delivers brilliant product visibility, quick temperature pull-down and the energy-saving features you expect from Hoshizaki.
Key Features

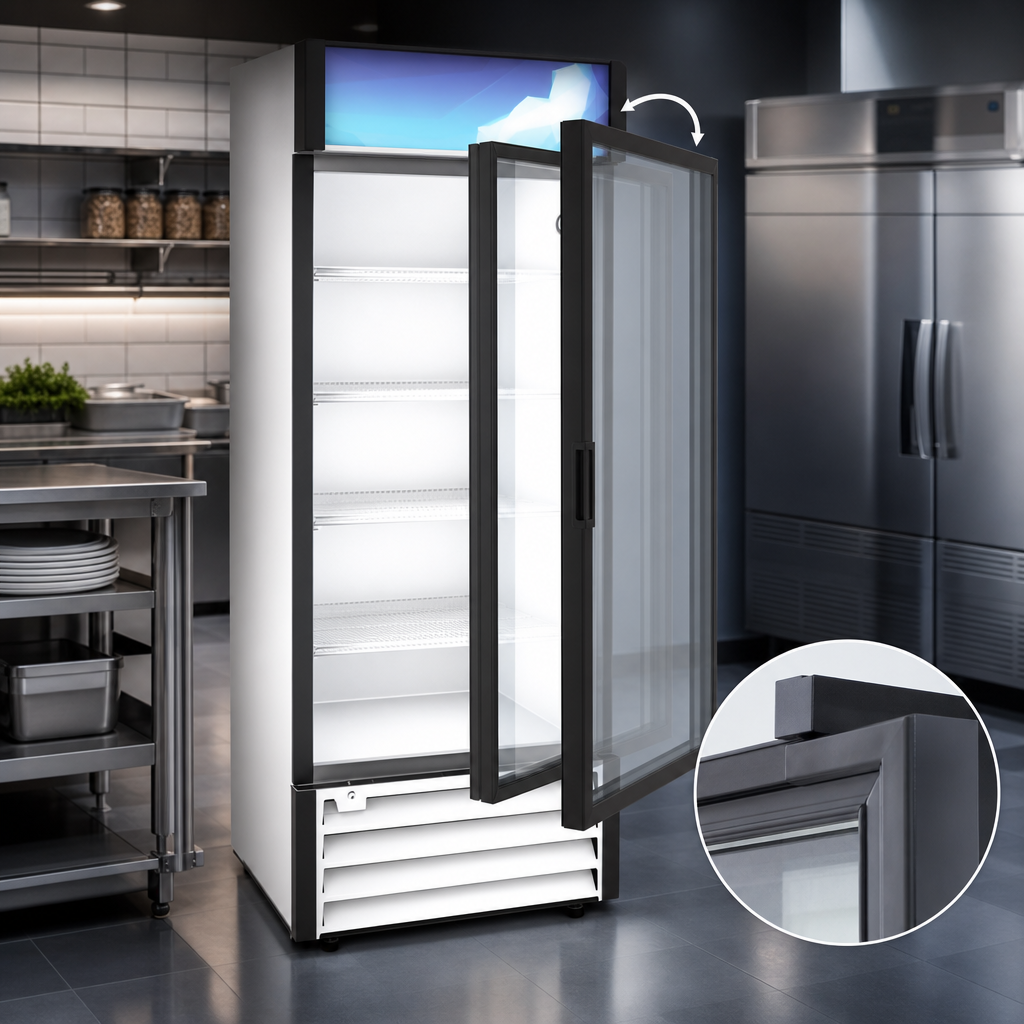

- Single swing Low-E multi-pane glass door with factory-installed lock and self-closing hinge.
- Bright, energy-efficient vertical LED interior lighting plus an illuminated header to attract impulse sales.

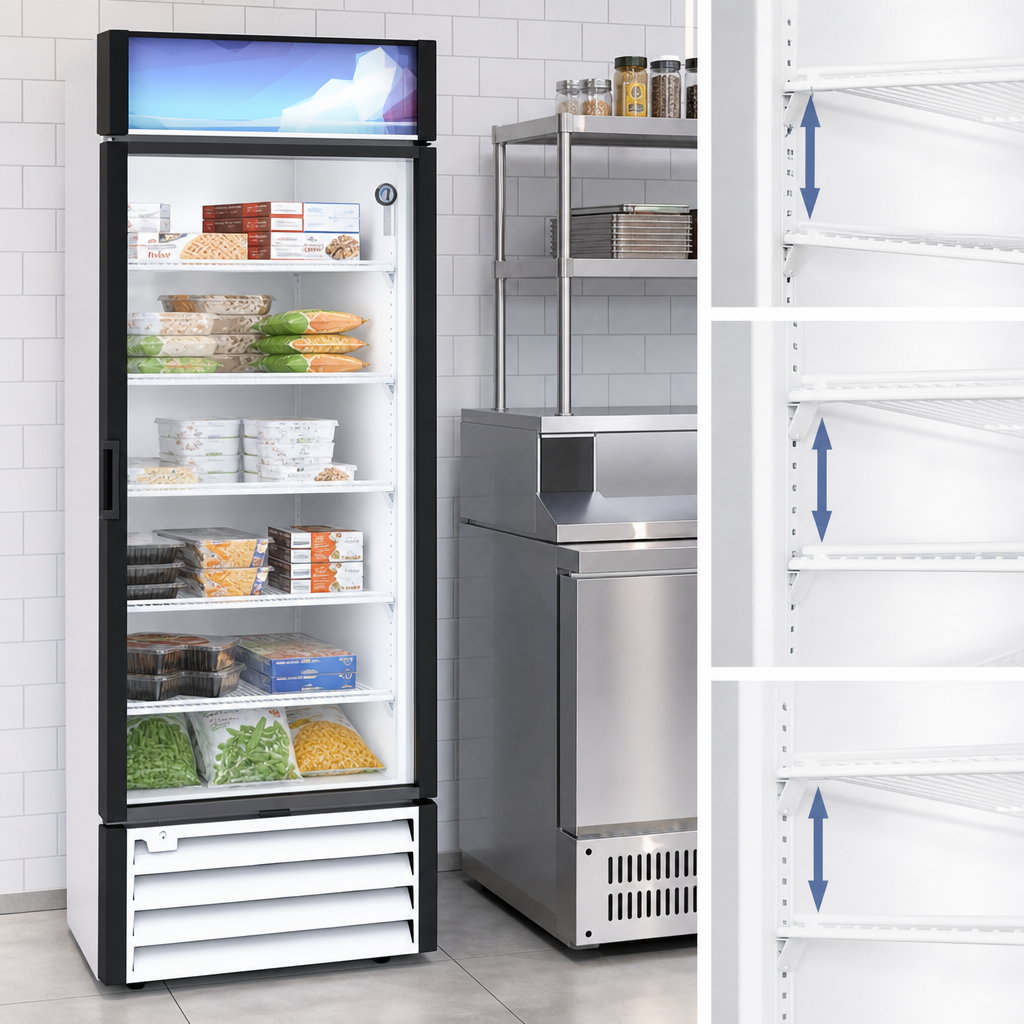

- Five epoxy-coated shelves with product stops; height can be changed in ½" increments.
- Forced-air evaporator rapidly pulls product down to the setpoint and maintains a steady -10° – -0 °F.
- Hot-gas loop and electric glass-door heater prevent frost build-up for a clear view.
- Bottom-mounted, self-contained system uses eco-friendly R290 hydrocarbon refrigerant.
- Time-initiated automatic defrost for trouble-free operation.
- Durable white painted galvanized-steel exterior, NSF-approved white steel interior and easy-to-clean stainless floor.
- 2" leveling legs included; optional 4" casters and reversible door hinging available.
Specifications
| Model | FM-23-HC-WHT |
|---|---|
| Capacity (AHAM) | 20.71 cu. ft. |
| Exterior Dimensions (W × D × H) | 30" × 29.75" × 78" |
| Interior Dimensions (W × D × H) | 25.25" × 25.25" × 60.5" |
| Shelves | 5 adjustable – 24.56" × 23.25" |
| Temperature Range | -10° to -0 °F |
| Refrigeration | Bottom-mount, forced-air, R290 (10.58 oz.) |
| Electrical | 115 V / 60 Hz / 1-phase, 4.8 A, NEMA 5-15P (15 A HACR breaker) |
| Maximum Ambient | 86 °F (30 °C) |
| Certifications | cULus Listed, UL EPH (NSF/ANSI 7) |
| Shipping Weight | 385 lb. |
| Warranty | 3 yr parts & labor • 5 yr compressor |
Perfect For
- Convenience & fuel stations
- Supermarkets and specialty retail
- Cafeterias & campus dining
- Coffee shops & bakeries needing frozen merchandising
If a GFCI is required, use a GFCI breaker in place of a GFCI receptacle.
$4,945.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Hoshizaki FM-23-HC-WHT 1-section glass door freezer merchandiser — 20.7 cu ft, LED lighting, adjustable shelves, R290 eco refrigerant, -10° to 0°F.
Manufacturer
Hoshizaki
Certifications
cULus, UL EPH
Height
78.0in
Width
30.0in
Depth
29.75in
Shipping Weight
385.0lbs
Size
1 section
Refrigeration
self-contained, bottom mounted
Capacity
9 - 23 cu. ft.
Doors
hinged
Exterior Finish
white
Depth (front - back)
standard
Specifications
Freezer Merchandiser, 1-section, 20.71 cu. ft., 30"W x 29-3/4"D x 78"H, (1) self-closing multi pane hinged glass doors, (5) adjustable shelves, LED interior lighting, temperature range: -10° to -0°F, bottom mount self-contained refrigeration system, 2" leveling legs, white painted galvanized steel exterior, white steel interior and stainless steel floor, R290 Hydrocarbon refrigerant, 115v/60/1-ph, 15 amp, NEMA 5-15P, cULus, UL EPH
