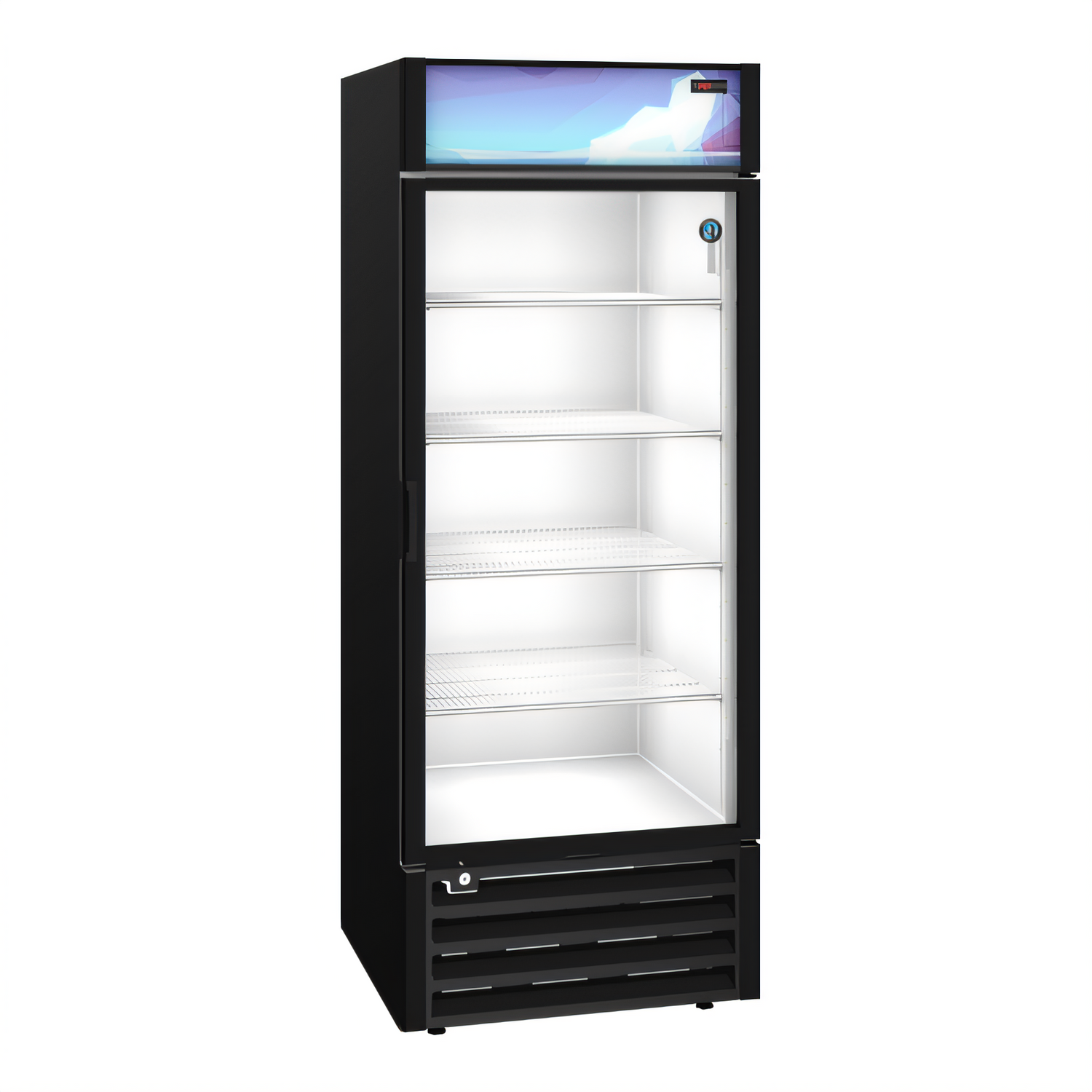

Hoshizaki FM-23-HC-BLK Glass Door Freezer Merchandiser – 20.7 cu ft

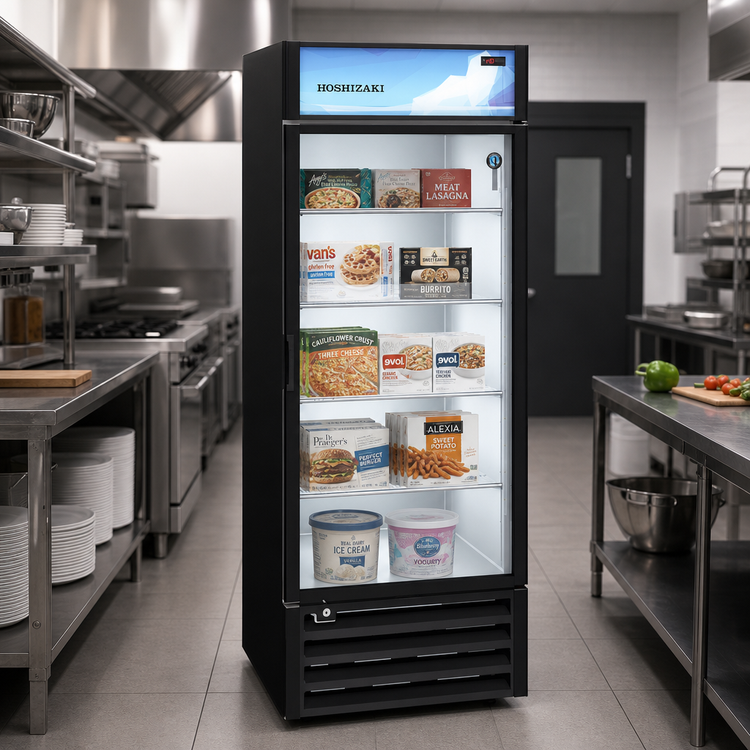

30" W × 29.75" D × 78" H • single-section, swing doorShowcase frozen entrées, desserts and grab-and-go favorites while keeping them at a food-safe -10 °F to 0 °F. The FM-23-HC-BLK pairs Hoshizaki’s commercial-grade construction with eye-catching LED lighting and a slim 30-inch footprint—perfect for c-stores, markets and cafés that want to turn freezer space into profit space.
Key features

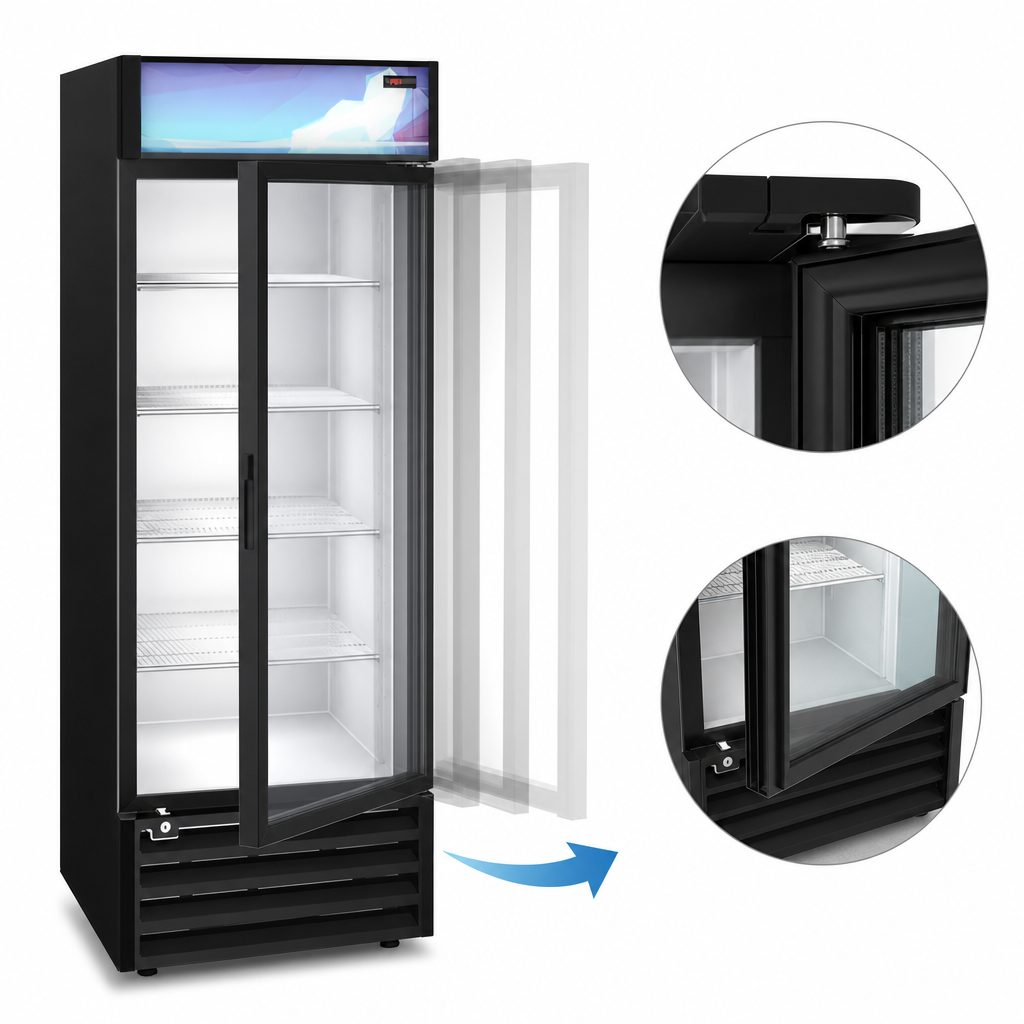

- Low-E multi-pane glass door with factory lock & self-closing heavy-duty hinges
- Hot-gas door frame heater + electric glass heater prevent frosting without extra energy drain
- Full-length vertical LED lighting & illuminated header to highlight your brand

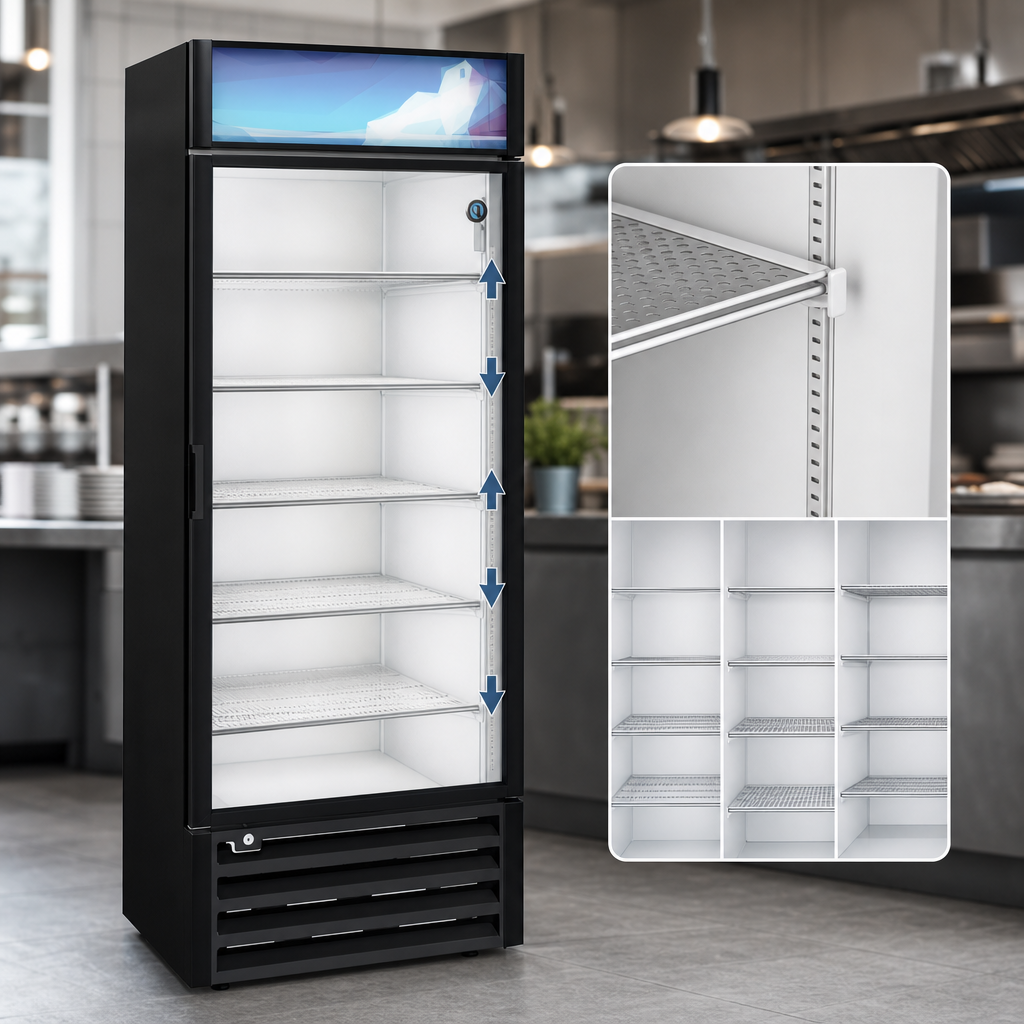

- (5) epoxy-coated shelves with product stops, adjustable every ½ inch
- Bottom-mount, self-contained refrigeration with eco-friendly R290 hydrocarbon
- Forced-air evaporator for rapid, even temperature pull-down
- Time-initiated automatic defrost for worry-free operation
- Durable black painted galvanized steel exterior, NSF white interior & stainless steel floor
- 2 inch front-access leveling legs standard; 4 inch casters optional
- 8 ft cord with NEMA 5-15P plug—no hard-wiring required
Ideal applications
- Convenience & grocery stores
- Entertainment & concession venues
- Cafés, micro-markets & cafeterias
- Back-bar or satellite retail zones
Specifications
| Model | FM-23-HC-BLK |
|---|---|
| Capacity (AHAM) | 20.71 cu ft |
| Exterior dimensions (W × D × H) | 30" × 29.75" × 78" |
| Interior dimensions (W × D × H) | 25.25" × 25.25" × 60.5" |
| Shelves | (5) adjustable epoxy-coated wire shelves |
| Temperature range | -10 °F to 0 °F |
| Refrigeration system | Bottom-mount, forced-air, R290 (10.58 oz) |
| Electrical | 115 V / 60 Hz / 1-ph • 4.8 A • NEMA 5-15P |
| Certifications | NSF/ANSI 7, cULus, UL EPH |
| Shipping weight | 385 lb |
| Legs / casters | 2" leveling legs standard • 4" casters optional |
Door swing can be factory-reversed upon request. When GFCI protection is required, use a GFCI breaker instead of a receptacle.
Installation tip: Maintain unobstructed airflow to the front condenser grille and allow adequate
clearance around the cabinet for optimal performance.
$4,945.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Hoshizaki FM-23-HC-BLK 1-section freezer merchandiser: 20.7 cu ft, glass door, LED lighting, adjustable shelves, -10° to 0°F, R290 efficient refrigeration.
Manufacturer
Hoshizaki
Certifications
cULus, UL EPH
Height
78.0in
Width
30.0in
Depth
29.75in
Shipping Weight
385.0lbs
Size
1 section
Doors
hinged
Capacity
9 - 23 cu. ft.
Refrigeration
self-contained, bottom mounted
Depth (front - back)
standard
Exterior Finish
black
Specifications
Freezer Merchandiser, 1-section, 20.71 cu. ft., 30"W x 29-3/4"D x 78"H, (1) self-closing multi pane hinged glass doors, (5) adjustable shelves, LED interior lighting, temperature range: -10° to -0°F, bottom mount self-contained refrigeration system, 2" leveling legs, black painted galvanized steel exterior, white steel interior and stainless steel floor, R290 Hydrocarbon refrigerant, 115v/60/1-ph, 15 amp, NEMA 5-15P, cULus, UL EPH
