Hoshizaki F3A-HS Steelheart Reach-In Refrigerators & Freezers
Description

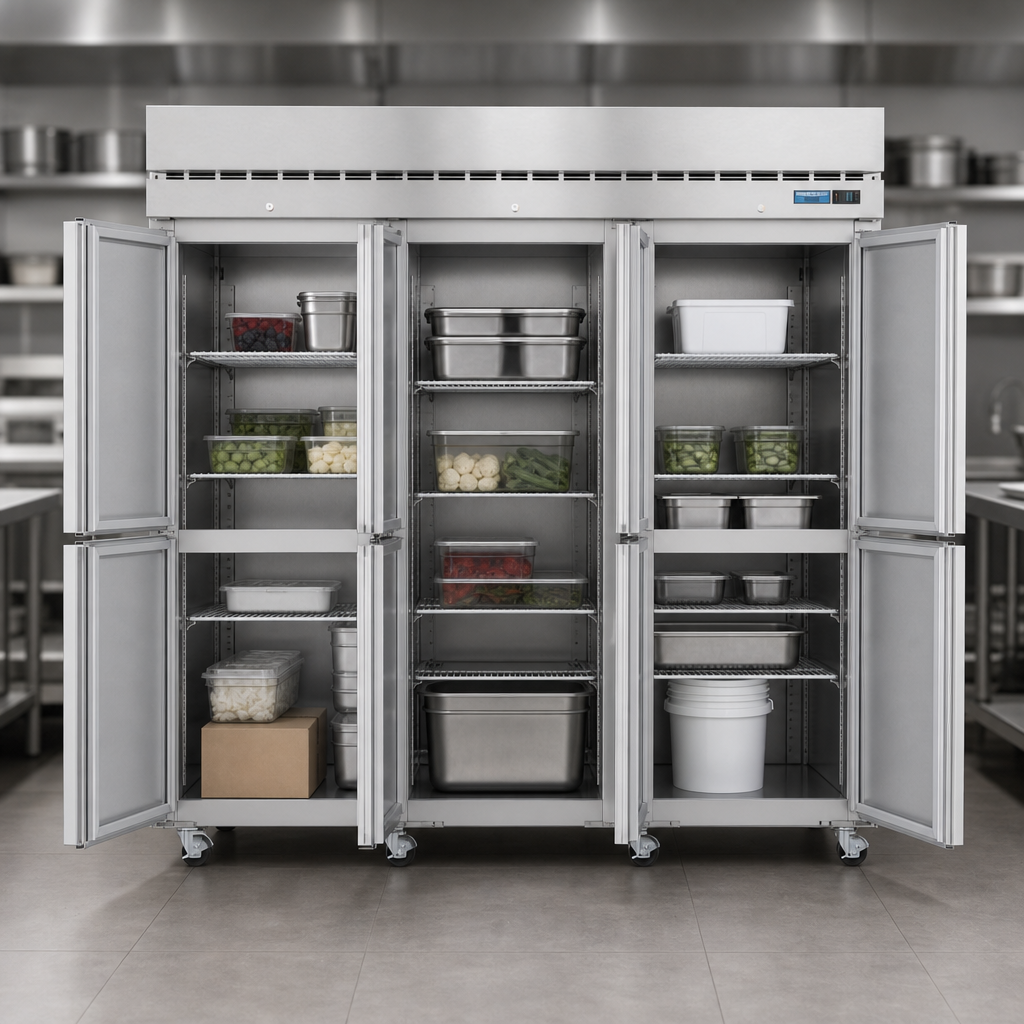

Hoshizaki Steelheart F3A-HS Three-Section Reach-In Freezer
79.03 cu. ft. | Top-Mount Self-Contained | All-Stainless ConstructionBuilt beyond strong for high-volume kitchens, the Steelheart F3A-HS delivers cavernous frozen storage, rapid temperature recovery and rock-solid durability—while still rolling through a standard 80" doorway. Its smart digital controls, ducted dynamic airflow and energy-saving hydrocarbon refrigerant keep product safe, operating costs down and staff confident shift after shift.
Key features
- 79.03 cu. ft. of usable interior volume with the smallest external footprint in its class

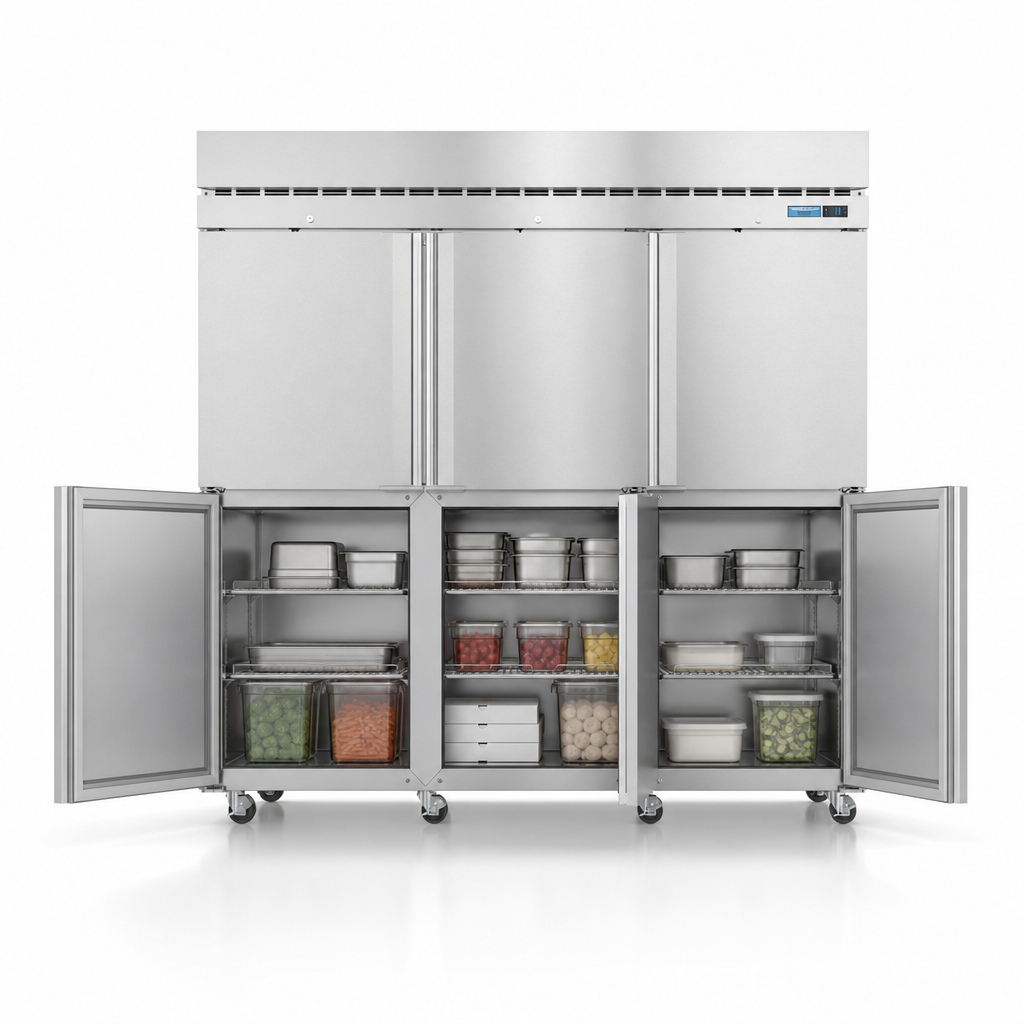

- Six locking half-height solid stainless doors—field reversible, spring-assisted & stay-open at 90°
- Dynamic louvered ducted airflow ensures uniform cold on every shelf
- Top-mount, self-contained system with dual ¾ HP compressors & removable condenser filter
- TXV (Thermostatic Expansion Valve) provides fast recovery during heavy door openings
- Solid-state digital controller with high/low temp & voltage alarms and bright °F/°C LED display
- Eco-friendly R290 hydrocarbon refrigerant & automatic hot-gas condensate evaporation
- Nine epoxy-coated wire shelves on stainless pilasters—adjust in 1" increments
- Exclusive stepped door design protects snap-in magnetic gaskets from damage
- (8) 4" heavy-duty polyolefin casters—3 with brakes—for effortless mobility & cleaning access
- Stackable two units high for warehouse or back-of-house storage efficiency
- cETLus & ETL-Sanitation listed; 5-yr parts & labor / 7-yr compressor warranty
Specification highlights
| Model | F3A-HS |
|---|---|
| Configuration | Reach-in freezer, three section |
| Capacity | 79.03 cu. ft. (AHAM) |
| Exterior dimensions (W × D × H) | 82.5" × 33.5" × 79.5" (with 4" casters) |
| Door type / quantity | Half-height solid stainless / 6 |
| Shelves supplied | 9 epoxy-coated wire, 21.25" × 26", adjustable |
| Temperature range | -10 °F to 12 °F |
| Refrigeration | Top-mount, dual ¾ HP compressors, TXV controlled |
| Refrigerant | R290 hydrocarbon |
| Electrical | 230 V / 60 Hz / 1 Ph, 11 A, NEMA L14-20P |
| Energy use | 17.02 kWh/day (ASHRAE) |
| Ambient rating | 45 °F – 100 °F |
| Shipping weight | 830 lb (crated) |
Need extra flexibility? Optional stainless or additional epoxy shelves, tray/pan slides, 6" legs and foot-pedal door openers are available.
