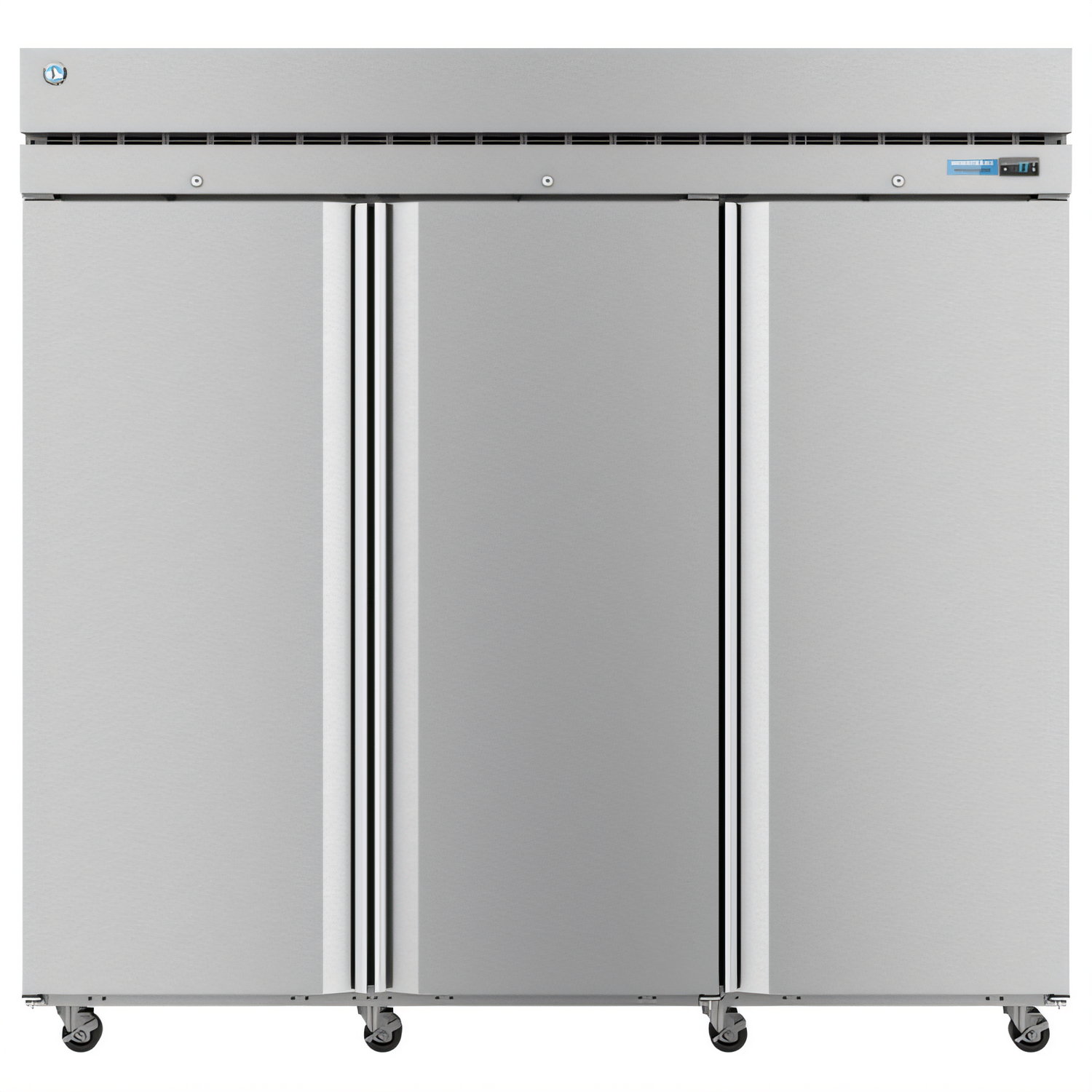

Hoshizaki Steelheart® F3A-FS Reach-In Freezer
Three-Section | 79.03 cu. ft. | Solid Stainless DoorsEngineered for relentless performance in high-volume kitchens, the Steelheart F3A-FS combines a massive 79 cu. ft. of frozen storage with an all-stainless build, energy-saving R290 refrigeration and the smart control you need to keep ingredients food-safe around the clock.
Built Beyond Strong

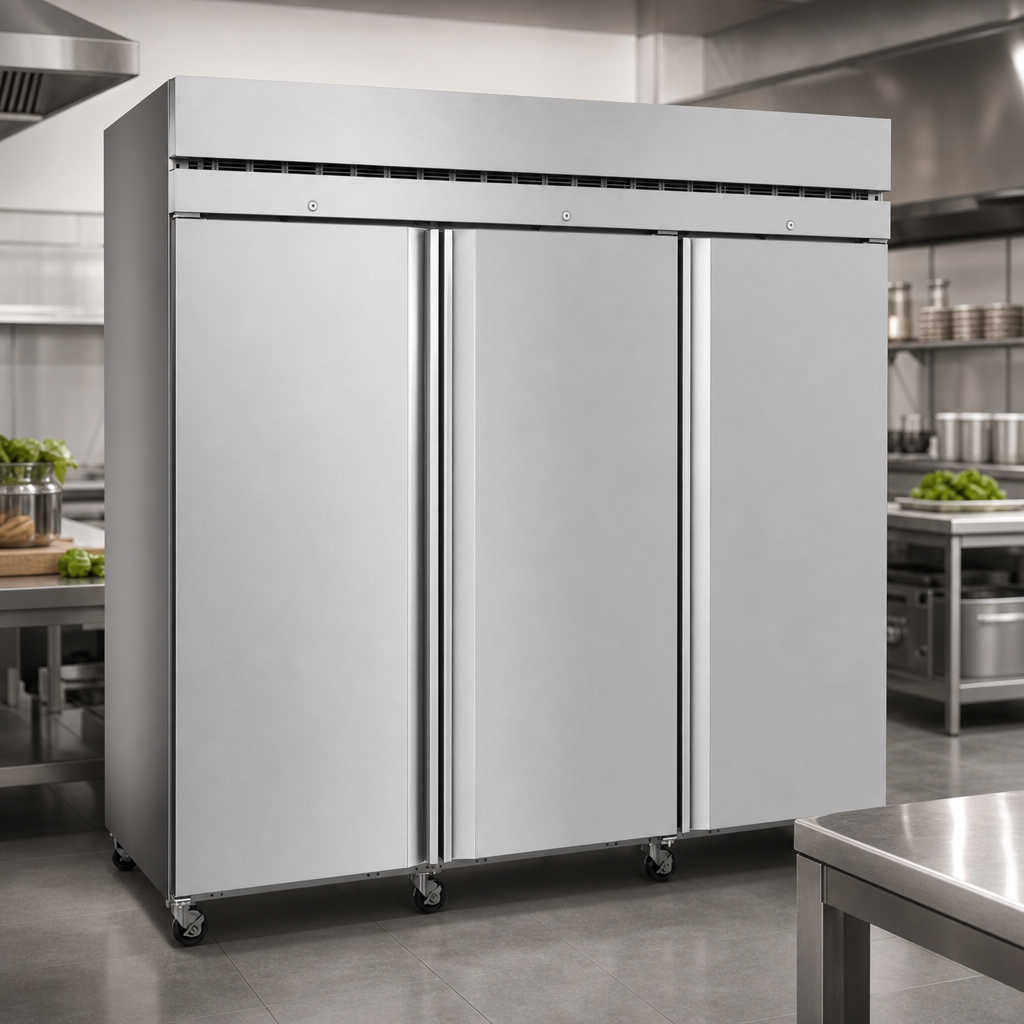

- Rugged stainless steel interior & exterior front, sides and top
- Top-mount, self-contained refrigeration with easy-access condenser filter
- Dynamic louvered duct system surrounds every shelf with uniform cold air
- Solid-state digital controller with high/low temp & voltage alarms, LED display (°F/°C)
- Environmentally friendly R290 hydrocarbon refrigerant + thermostatic expansion valve for fast recovery
- Three field-reversible, locking stainless doors with stepped “seal-saver” gasket protection
- Spring-assisted, self-closing doors stay open past 90° for safe, hands-free loading

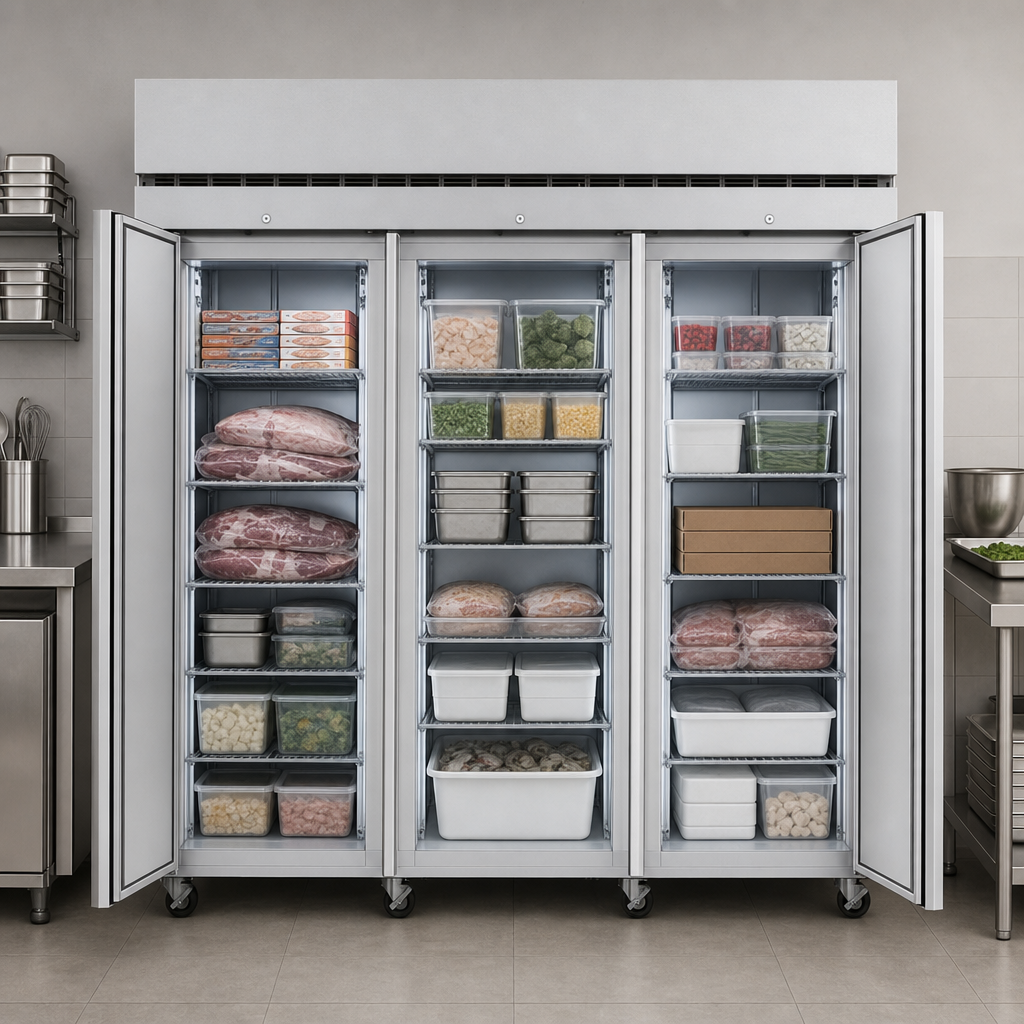

- Nine heavy-duty epoxy-coated shelves on stainless pilasters – adjust in 1" increments
- Bright, energy-efficient interior LED lighting
- Eight 4" heavy-duty casters (brakes on front) roll through standard doorways
Cold You Can Count On
- Temperature set-point range: -10 °F to 12 °F (-23 °C to -11 °C)
- (2) ¾ HP compressors share the load for superior efficiency and backup redundancy
- Time-initiated, heated defrost prevents ice build-up without raising cabinet temperature
- Hot-gas condensate evaporator – no electric elements to fail
- 2-⅜" CFC-free foamed-in-place polyurethane insulation locks cold in and energy costs out
At-a-Glance Specs
| Model | F3A-FS (Steelheart Series) |
|---|---|
| Capacity (AHAM) | 79.03 cu. ft. / 2,238 L |
| Exterior Dimensions | 82.5" W × 33.5" D × 79.5" H (incl. 4" casters) |
| Doors / Shelves | (3) solid stainless / (9) adjustable wire shelves |
| Door Opening (W × H) | 21.75" × 59.25" |
| Depth With Door 90° | 59.25" |
| Refrigerant | R290, 4.1 oz × 2 (eco-friendly hydrocarbon) |
| Compressor Power | (2) ¾ HP (top-mount) |
| Electrical | 230 V / 60 Hz / 1φ, 11 A, NEMA L14-20P |
| Energy Use | 17.02 kWh per day (ASHRAE) |
| Listings | cETLus, ETL-Sanitation |
| Net / Crated Weight | ≈ 830 lb crated |
Popular Options
- Additional wire or stainless shelves & tray/pan slides
- 6" height-adjustable legs (replace casters)
- Hands-free foot-pedal door opener
- Extended 7-year compressor, parts & labor warranty
If a GFCI is required, a GFCI breaker must be used in place of a GFCI receptacle.
Standard warranty: 3-year parts & labor on entire unit, 5-year parts on compressor.
