Hoshizaki  |  Steelheart  |  SKU: F2A-FS

Hoshizaki F2A-FS Steelheart Reach-In Refrigerators & Freezers

$7,517.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Hoshizaki steelheart warranty Warranty Service manual Instructions Refrigeration brochure Parts manual Upright comparison flyer Training booklet
Related Searches
Frozen Food Storage & Dispensers Hoshizaki Reach-In Refrigerators & Freezers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

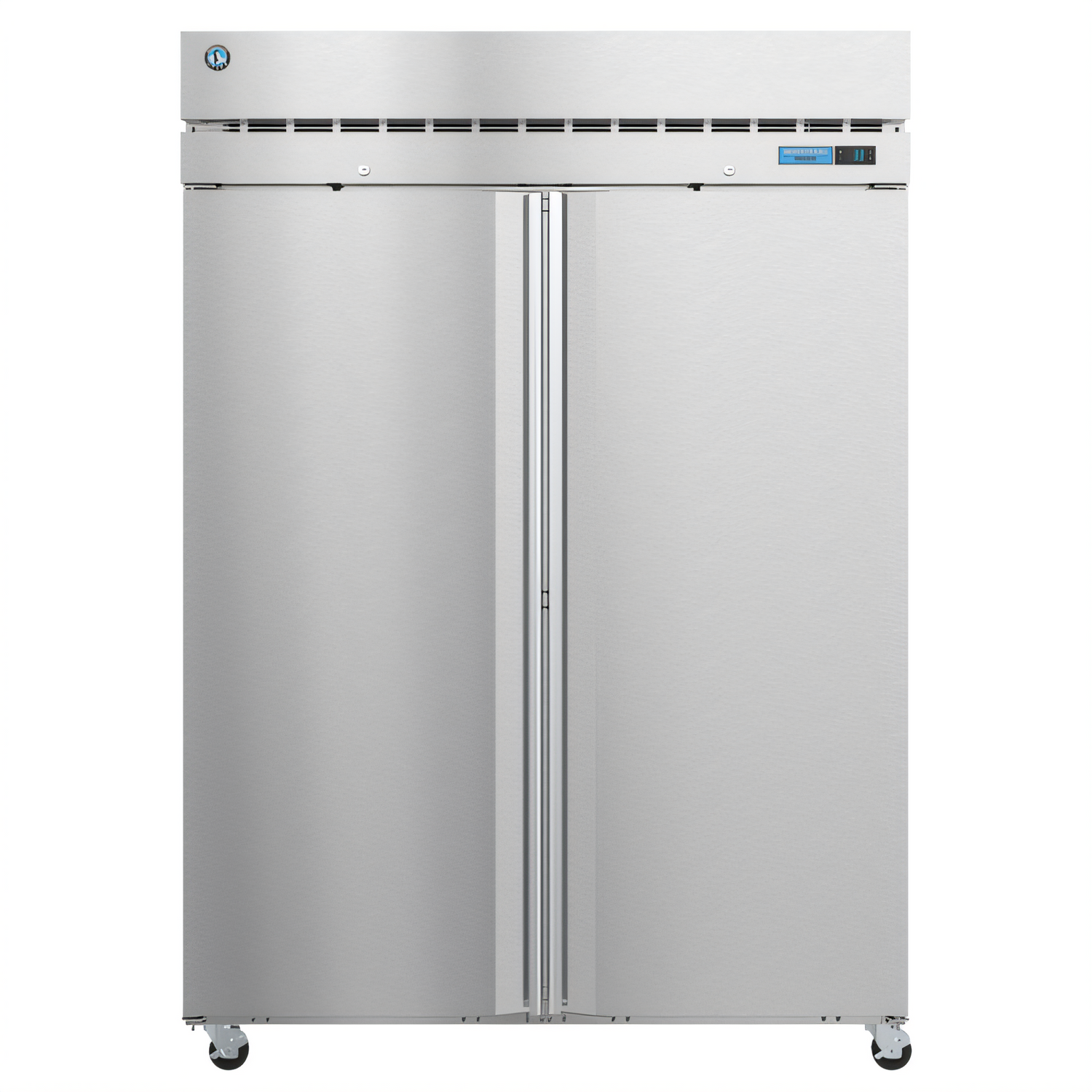

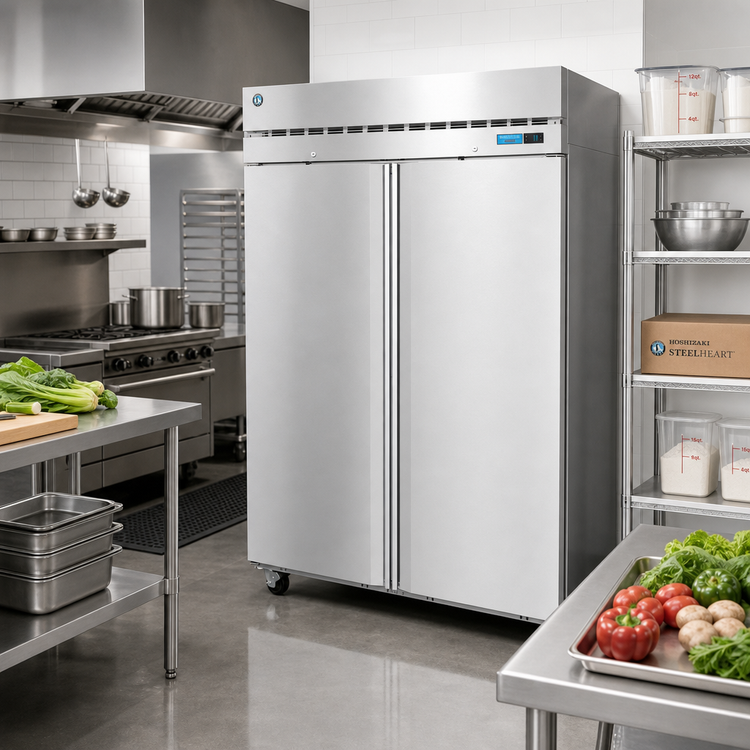

Hoshizaki Steelheart F2A-FS Two-Section Reach-In Freezer

50.37 cu. ft. | Top-Mount Self-Contained | Stainless Inside & Out

Built beyond strong for the toughest commercial kitchens, the Steelheart F2A-FS delivers maximum frozen storage in a compact 55 inch footprint. Hoshizaki’s dynamic airflow design, stainless-steel construction and eco-friendly R290 refrigeration keep product safe, employees productive and energy costs in check.

Why you’ll love it

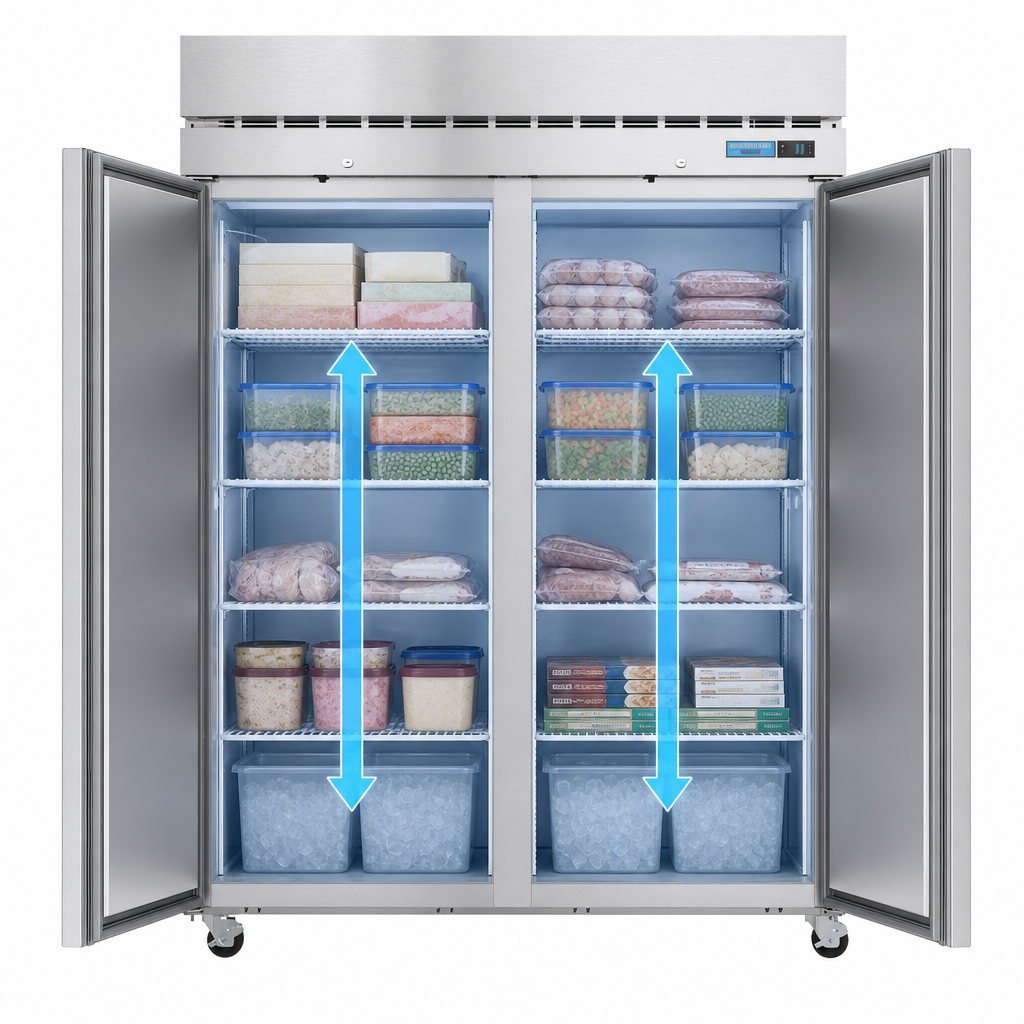

  • Room to spare – 50.37 ft3 of organized storage with six adjustable epoxy-coated shelves.

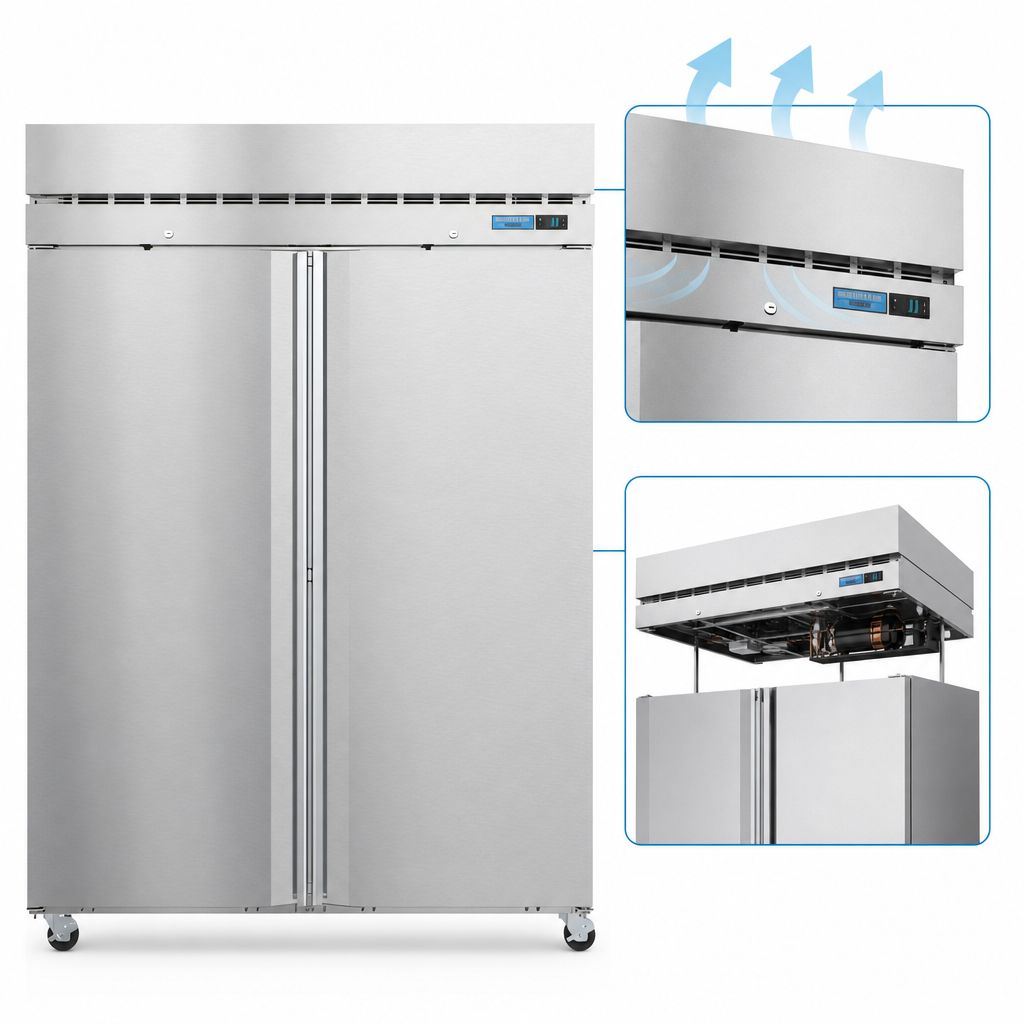

  • Top-mount 1 HP refrigeration stays cleaner, provides faster recovery, and adds usable cabinet space.
    • Thermostatic Expansion Valve (TXV) for rapid temperature pull-down.
    • Natural R290 hydrocarbon refrigerant.
  • All-stainless steel interior plus front, sides & top stand up to daily abuse and simplify sanitation.
  • Smart digital controls with LED read-out, °F/°C selection, and audible/visual high-low temperature & voltage alarms.
  • Secure, self-closing doors – field-reversible, locking, spring assisted, stay-open past 90°, and protected by Hoshizaki’s exclusive stepped gasket design.
  • Bright, energy-saving LED lighting activates when either door opens.
  • Ready to roll – 4 in. heavy-duty polyolefin casters (front two with brakes) fit through a standard doorway (unit height 79.5 in.).
  • Service made easy – slide-out condenser filter and epoxy-coated evaporator coil resist corrosion for longer life.

Technical specifications

Interior capacity 50.37 cu. ft. (AHAM)
Temperature range –10° to +12 °F  adjustable (factory preset –5 °F)
Exterior dimensions (WxDxH) 55 in. × 33.5 in. × 79.5 in.
(includes 4 in. casters)
Door(s) 2 full-height solid, locking, field reversible, self-closing with stay-open feature
Shelving 6 epoxy-coated wire shelves 21.25 in. × 26 in., adjustable on 1 in. increments
Construction Stainless steel interior; stainless steel front, sides & top; coated steel rear/bottom
Insulation 2 3⁄8 in. CFC-free foamed-in-place polyurethane
Refrigeration system Top-mounted, self-contained, 1 HP compressor, TXV, hot-gas condensate evaporator
Refrigerant / charge R290 hydrocarbon / 4.2 oz
Electrical 115 V / 60 Hz / 1-phase, 8.7 A, NEMA 5-15P, 10 ft cord
HACR breaker 15 A
Energy consumption 12.16 kWh/day (@ASHRAE)
Heat rejection 1,820 BTU/hr (@NSF)
Ambient rating 45 °F – 100 °F
Casters 4 in. heavy-duty (2 braking)
Certifications cETLus, ETL-Sanitation, KCL-approved, Natural Refrigerant
Shipping weight 562 lb

Industry-leading warranty

  • 7-year parts & labor coverage – INCLUDING compressor.
  • Limited lifetime warranty on solid doors & hinges (original owner, active product line).
  • Serviceable nationwide through Hoshizaki America’s authorized network.

Proper registration within 30 days of installation required. See full warranty terms for details.

Popular options (sold separately)

  • Additional epoxy or stainless-steel shelves
  • Tray / pan slides
  • Foot-pedal door opener
  • 6 in. adjustable legs in lieu of casters
Electrical note: If a ground-fault circuit interrupter (GFCI) is required, use a GFCI breaker rather than a receptacle to prevent nuisance tripping.

Features & Specs

Manufacturer

Hoshizaki

Brand_name

Steelheart

Certifications

cETLus, ETL-Sanitation

Height

79.5in

Width

55.0in

Depth

33.5in

Shipping Weight

560.0lbs

Door Type

solid door(s)

Door Style

full hinged

Compressor HP

1 HP

Capacity

38 - 53 cu. ft.

Exterior Finish

stainless steel front & sides

Refrigeration

self-contained, top mounted

Interior Finish

all stainless steel interior

Size

2 section

Specifications

Steelheart Series Freezer, reach-in, two-section, 50.37 cu. ft., top mounted self-contained refrigeration system, (6) epoxy-coated wire shelves, (2) full-height solid hinged doors, digital temperature display/controls, audible/visual alarms, LED interior lighting, stainless steel interior, stainless steel exterior front & sides, (4) 4" heavy duty casters (2 with brakes), R290 Hydrocarbon refrigerant, 1 HP, NEMA 5-15P, cETLus, ETL-Sanitation
