Hoshizaki F1A-HSL Steelheart Reach-In Refrigerators & Freezers
Description

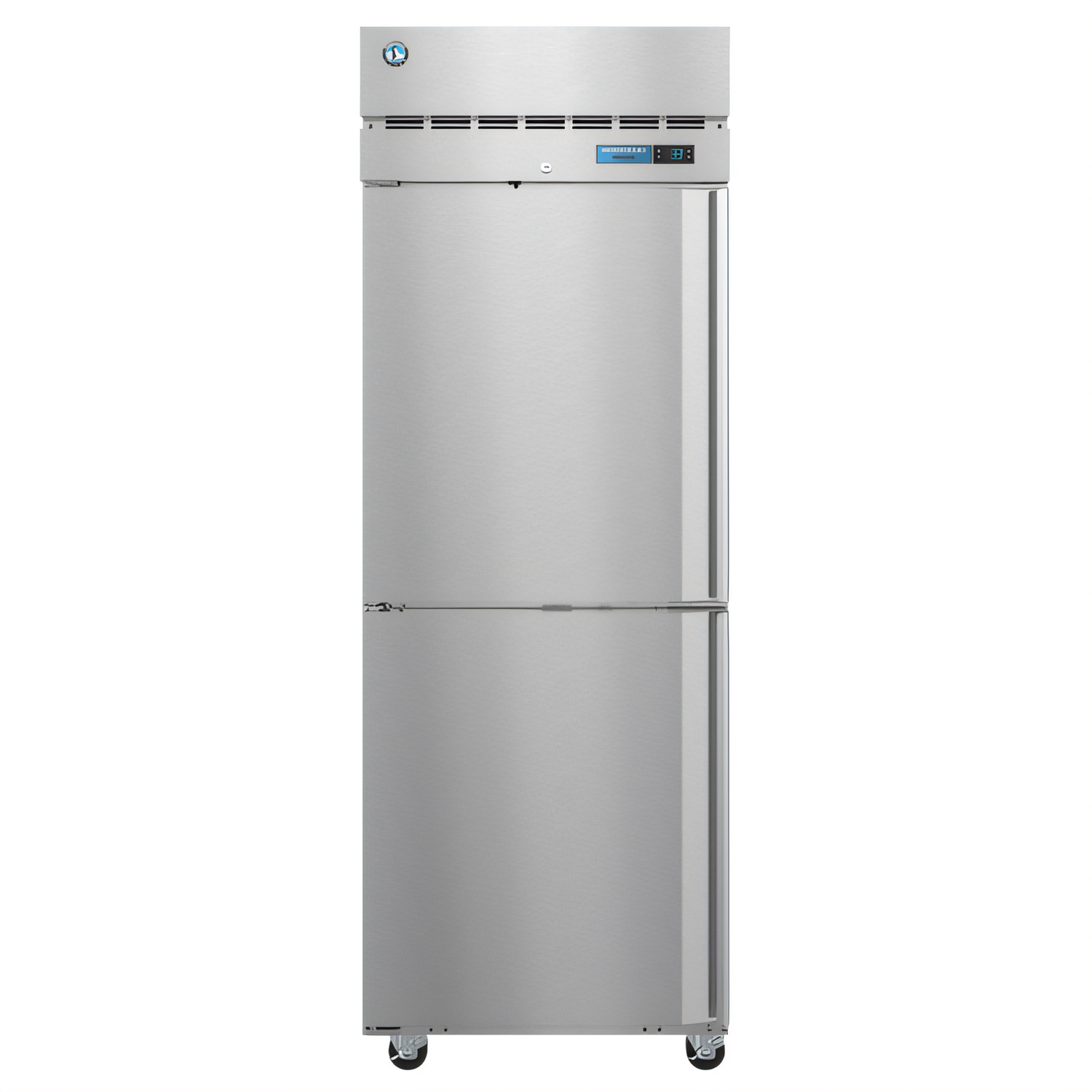

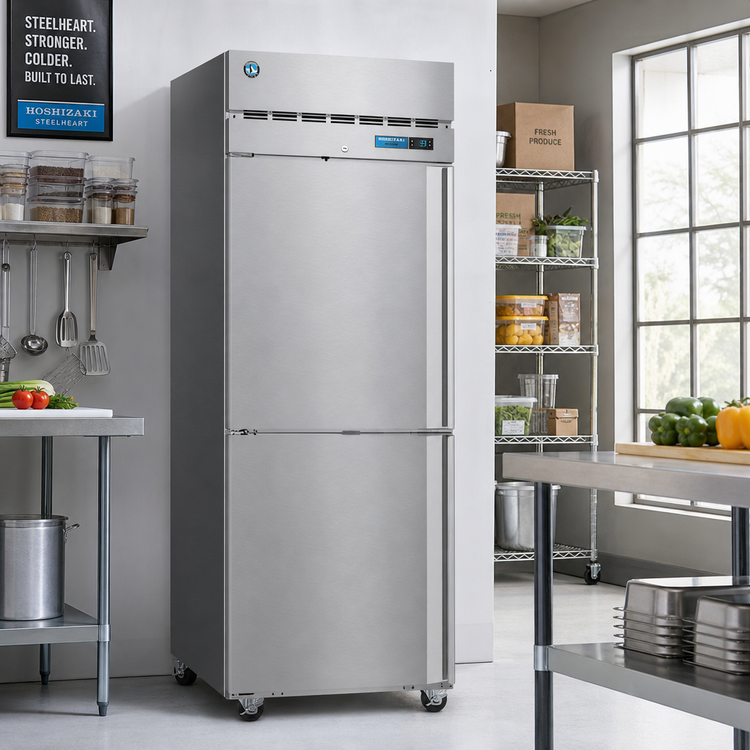

Hoshizaki Steelheart® F1A-HSL Reach-In Freezer – 23.1 cu ft
One-section, half-door, top-mount ¾ HP freezer built beyond strong for demanding kitchensKeep high-value ingredients safely frozen and always within reach. The Steelheart F1A-HSL combines heavy-gauge stainless construction with Hoshizaki’s dynamic airflow and hydrocarbon refrigeration technology to deliver rock-solid -10 °F to +12 °F holding temperatures—even in 100 °F kitchens. Rugged, agile and ENERGY-smart, it’s the freezer that works as hard as your crew.
Key performance & durability features
- 23.1 cu ft interior in a slim 27.5 in wide footprint
- All-stainless interior plus stainless front, sides & top for maximum hygiene and longevity

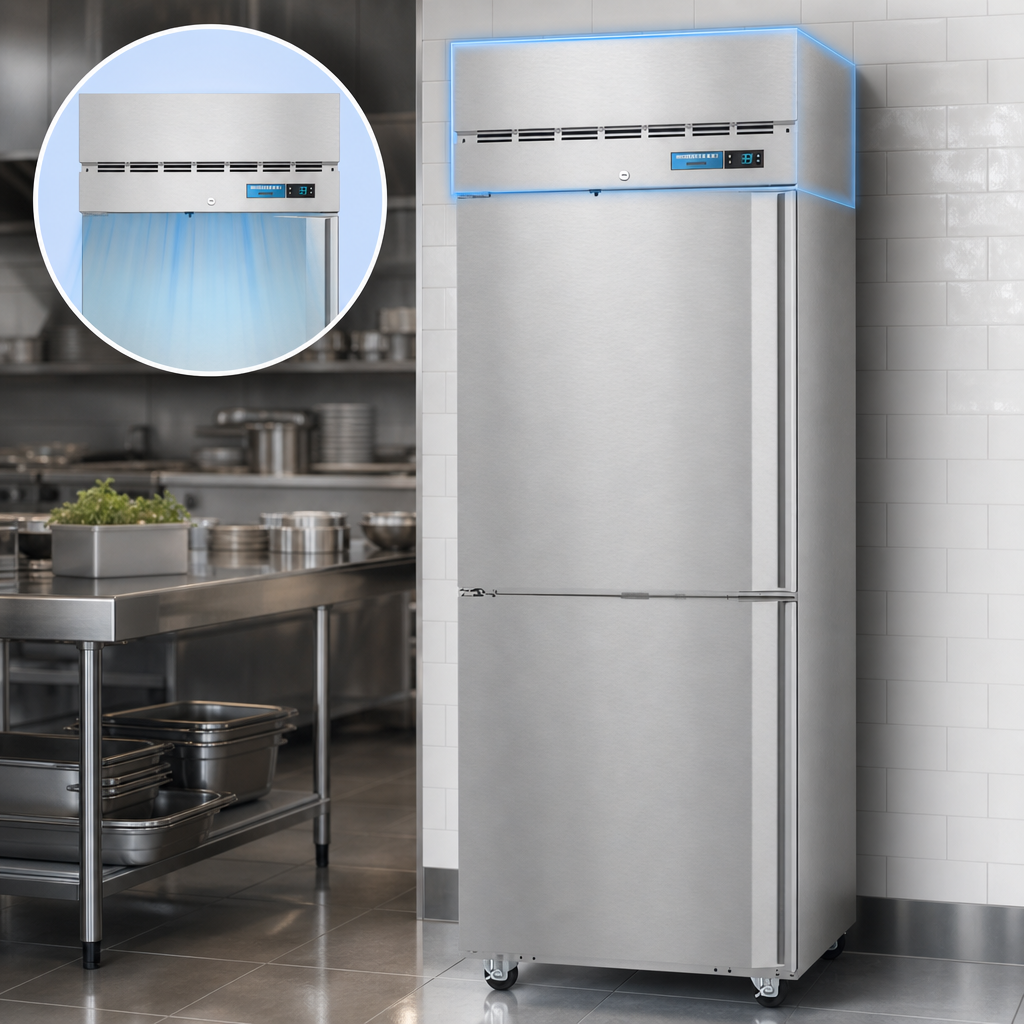

- Top-mount, self-contained refrigeration with removable condenser filter for easy service
- Dynamic ducted airflow and TXV for fast recovery and uniform shelf-level temperatures

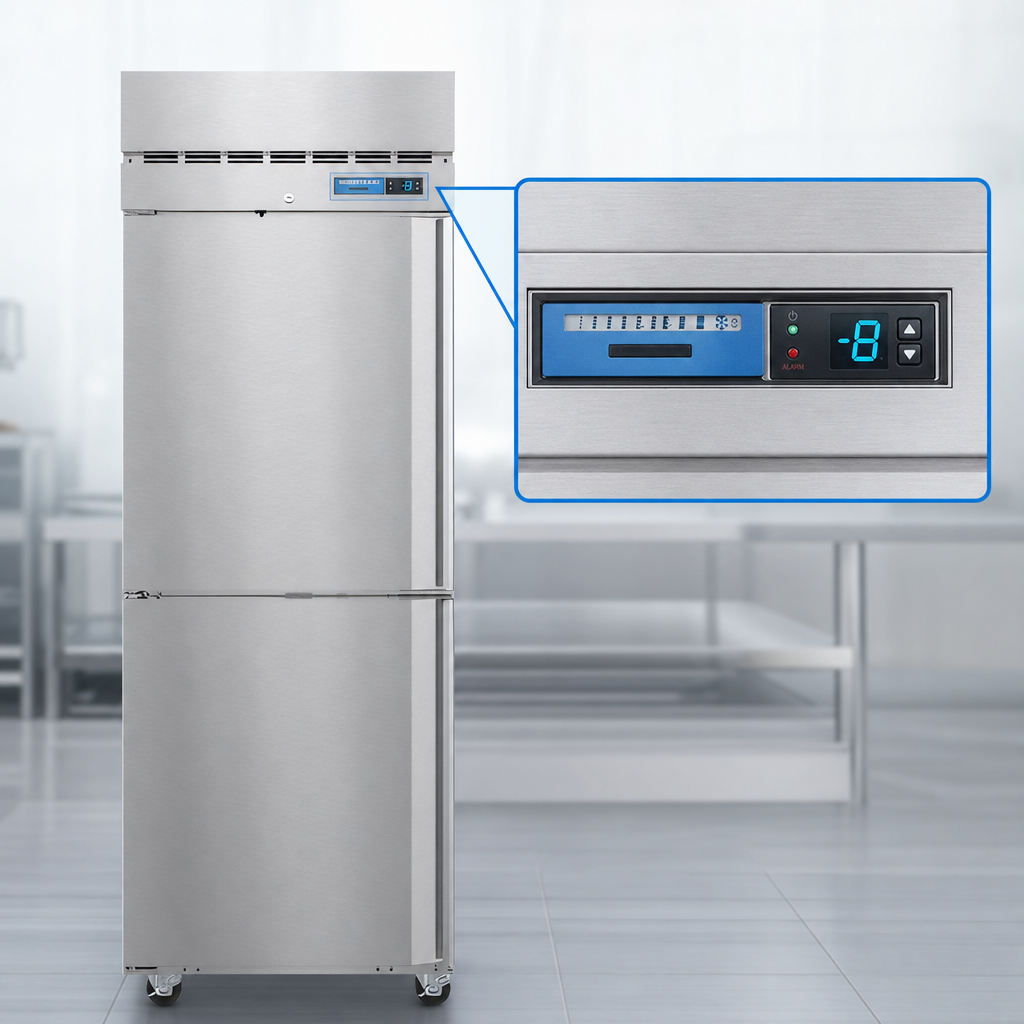

- Solid-state digital controller with high/low temperature & voltage alarms and bright LED display (°F/°C)
- Two lockable, spring-assisted half-height doors (left-hand hinged) with stay-open feature at 90°
- Exclusive stepped door design protects recessed magnetic gaskets; field-reversible hinging
- Three heavy-duty 21.25 in × 26 in epoxy-coated shelves, adjustable on stainless pilasters in 1 in increments
- Energy-saving interior LED lighting activates on door open
- Environmentally friendly R290 hydrocarbon refrigerant & hot-gas condensate evaporation
- 4 in polyolefin casters—two locking—for effortless mobility and cleaning access
Specification overview
| Model | F1A-HSL (left-hinged half doors) |
|---|---|
| Capacity | 23.10 cu ft (AHAM) |
| Exterior Dimensions | 27.5 in W × 33.5 in D × 79.5 in H (with 4 in casters) |
| Shelf Count / Size | 3 × 21.25 in W × 26 in D, epoxy coated wire |
| Door Type | (2) half-height solid, lockable, self-closing with stay-open 90° |
| Temperature Range | -10 °F to +12 °F adjustable |
| Controller | Solid-state digital, LED display, hi/lo temp & voltage alarms |
| Refrigerant / Charge | R290 Hydrocarbon / 4.1 oz |
| Compressor | ¾ HP, 1 425 BTU/h nominal |
| Energy Use | 6.25 kWh per day (ASHRAE) |
| Electrical | 115 V / 60 Hz / 1-ph, 8.46 A, NEMA 5-15P, 10 ft cord |
| Ambient Rating | 45 °F – 100 °F |
| Certifications | cETLus, ETL Sanitation |
| Shipping Weight | 345 lb crated |
Designed for smooth kitchen flow
- Rolls through standard doorways and tucks flush against walls—ideal for tight prep lines
- Top-mount system clears the base cabinet for extra storage volume and better condensate removal
- Stepped “seal-saver” door edge prevents damage from full sheet pans and trays
- Foamed-in-place 2 ⅜ in CFC-free polyurethane insulation slashes energy costs
- Stackable two units high for warehouse or back-of-house space savings
Peace-of-mind warranty
5 years parts & labor + an additional 2 years on the compressor (U.S., Canada & Puerto Rico).
Hoshizaki may update specifications without notice. For full documentation visit hoshizakiamerica.com.
