Hoshizaki F1A-HS Steelheart Reach-In Refrigerators & Freezers
Description

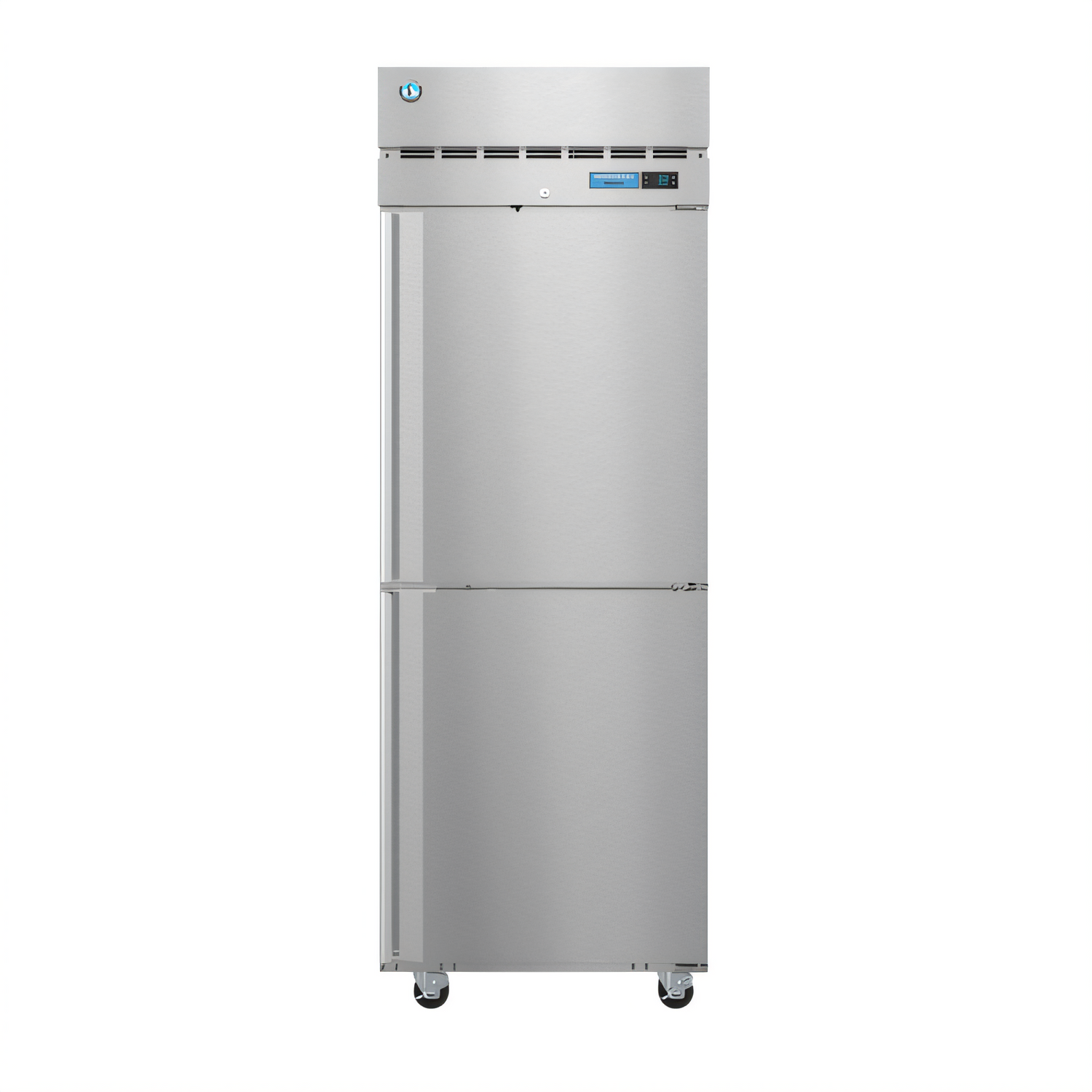

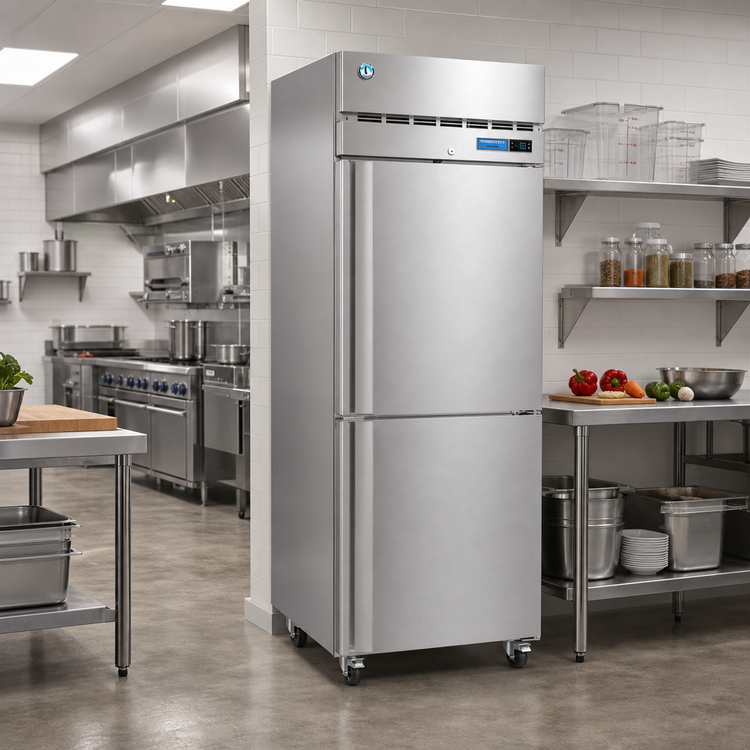

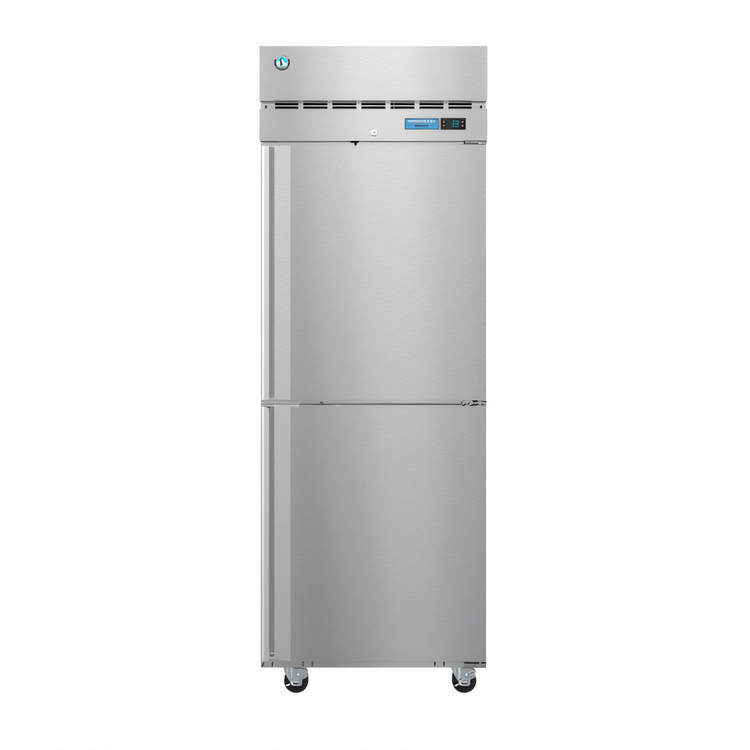

Hoshizaki Steelheart F1A-HS Reach-In Freezer
23.1 cu ft • one section • (2) half-height solid right-hinged doors • 115 VEngineered for the rigors of a busy commercial kitchen, the Steelheart F1A-HS packs full-size freezing power into a slim 27.5-inch footprint. All-stainless construction, a top-mount 3/4 HP refrigeration system, and smart digital controls keep your product safe, your crew productive, and your energy costs low.
Key Advantages
- 23.1 cu ft storage capacity in a cabinet that rolls through a standard 80" doorway.
- All-stainless interior & exterior front, sides and top for superior durability and sanitation.
- Dynamic ducted airflow surrounds every shelf with even, food-safe temperatures—no hot spots.

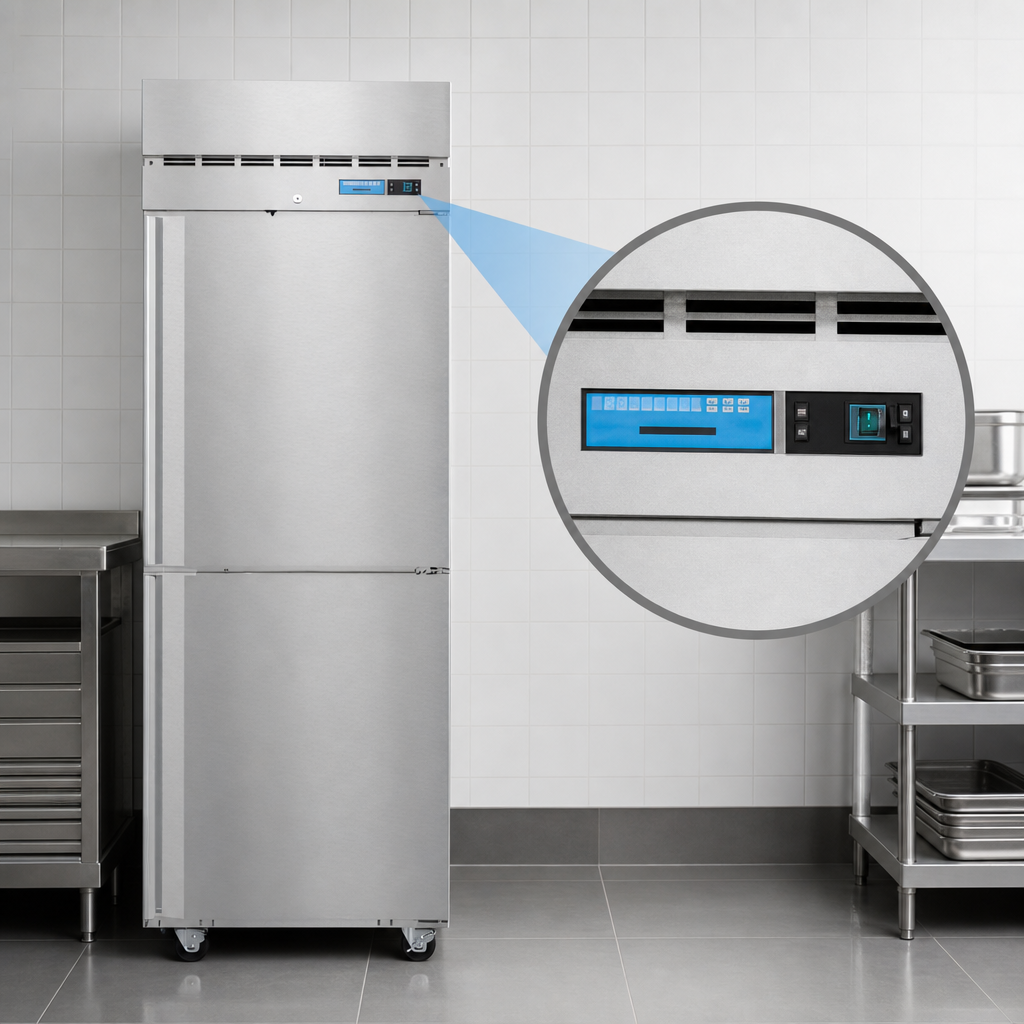

- Solid-state digital controller with °F/°C read-out plus high/low temperature & voltage alarms.
- Eco-friendly R290 hydrocarbon refrigerant and TXV metering for rapid temperature recovery.
- (2) lockable half-height doors with spring-assist self-closing, 90° stay-open, and field-reversible hinges.
- Exclusive stepped door design protects easy-to-replace snap-in gaskets.
- (3) heavy-duty 21¼" × 26" epoxy-coated shelves, adjustable on stainless pilasters in 1" increments.

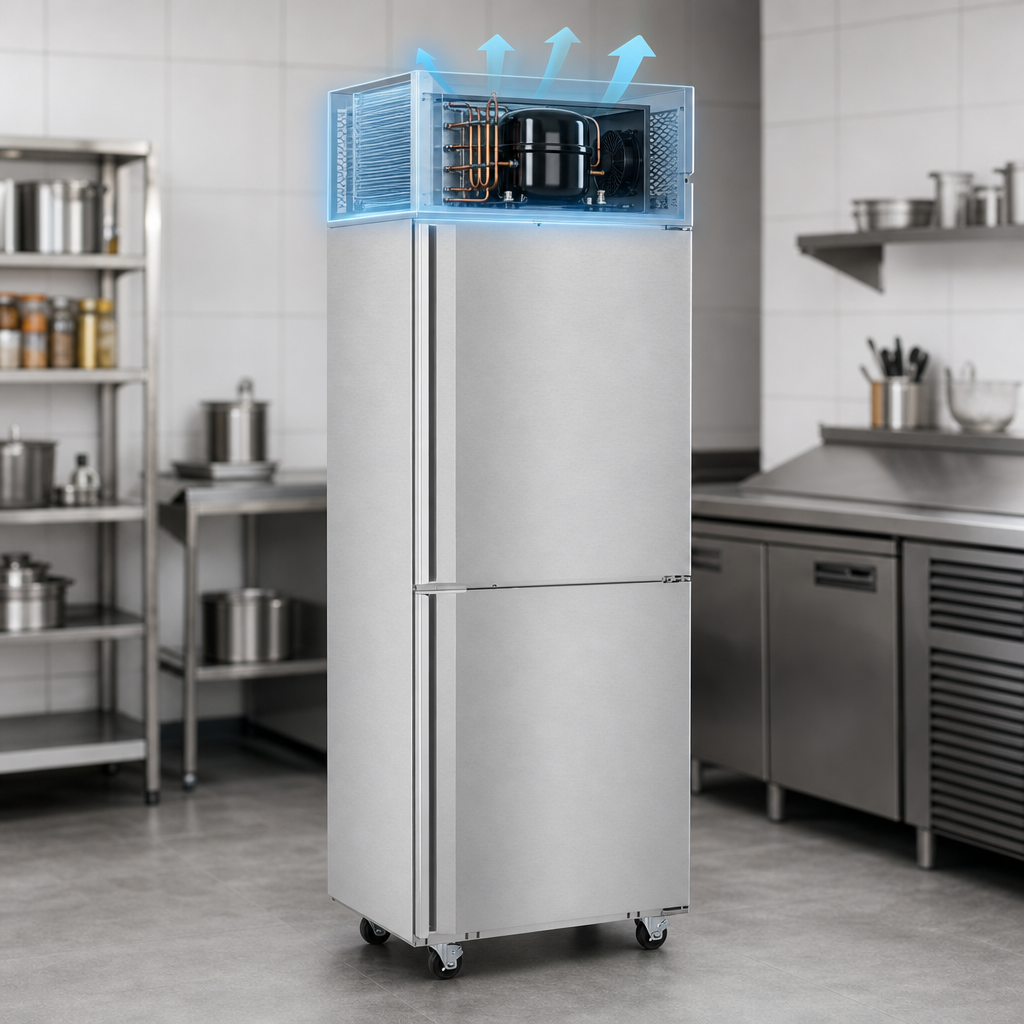

- Top-mount refrigeration frees interior space, simplifies service, and allows extra storage on the cabinet top.
- Epoxy-electrocoated evaporator & hot-gas condensate system for long-lasting, worry-free operation.
- Ships on 4" heavy-duty swivel casters (2 w/ brakes) for instant mobility.
Technical Specifications
| Model | F1A-HS (Right-hinge) |
|---|---|
| Capacity | 23.1 cu ft (AHAM) |
| Exterior Dimensions (W × D × H) | 27.5" × 33.5" × 79.5" (includes 4" casters) |
| Door Configuration | (2) half-height solid doors, lockable, self-closing w/ 90° stay-open |
| Shelves (standard) | (3) epoxy-coated wire shelves, 21.25" × 26" |
| Temperature Set-point Range | -10 °F to +12 °F |
| Refrigeration System | Top-mount, self-contained, 3/4 HP, TXV metered, R290 refrigerant |
| Electrical | 115 V / 60 Hz / 1-ph, 8.46 A, NEMA 5-15P (10 ft cord) |
| Energy Consumption | 6.25 kWh/day (ASHRAE) |
| Heat Rejection | 1,178 BTU/hr (NSF) |
| Ambient Rating | 45 °F – 100 °F |
| Casters | (4) 4" polyolefin (2 w/ brakes) |
| Shipping Weight | 345 lb |
What’s Included
- Factory-installed door locks
- Removable condenser air filter for tool-free cleaning
- 10-ft power cord & plug
- Comprehensive factory performance test
Rock-Solid Warranty
Your investment is protected by an industry-leading 5-year labor, 6-year parts and 7-year compressor warranty (U.S. & Canada).
Need optional tray slides, stainless shelves or 6" adjustable legs? Contact us for factory-approved accessories.
