Hoshizaki F1A-HG Steelheart Reach-In Refrigerators & Freezers
Description

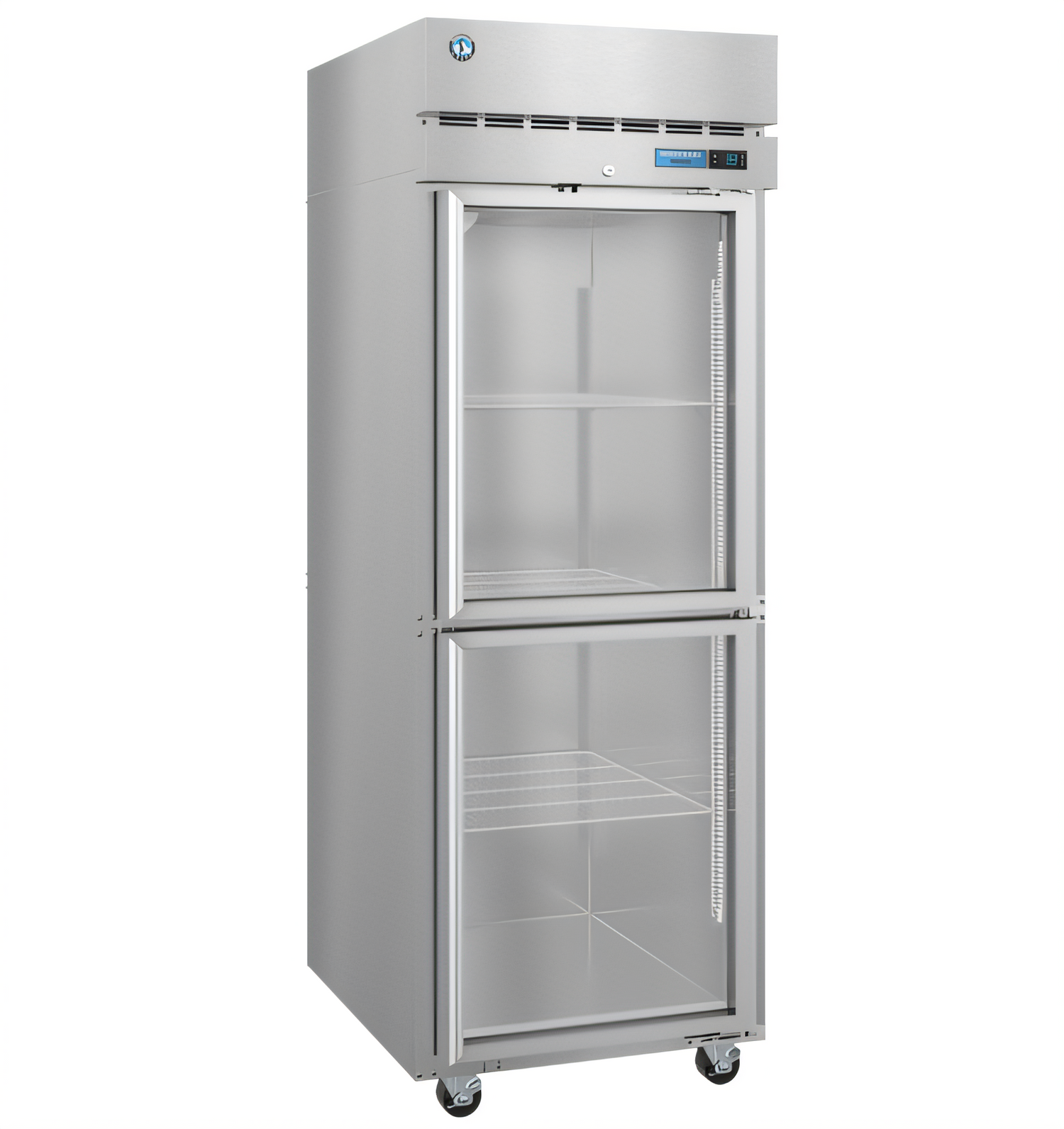

Hoshizaki Steelheart F1A-HG Reach-In Glass Door Freezer – 23.1 cu. ft.
One-section | Top-mount | -10 °F to +12 °F set pointBuilt beyond strong for the busiest commercial kitchens, the Steelheart F1A-HG combines a space-saving footprint with rugged, all-stainless construction and advanced temperature control. Two half-height locking glass doors put product in clear view while a top-mounted, self-contained refrigeration system keeps it safely frozen with industry-leading efficiency.
Key performance features
- 23.1 cu. ft. of storage in a compact 27.5 in W cabinet

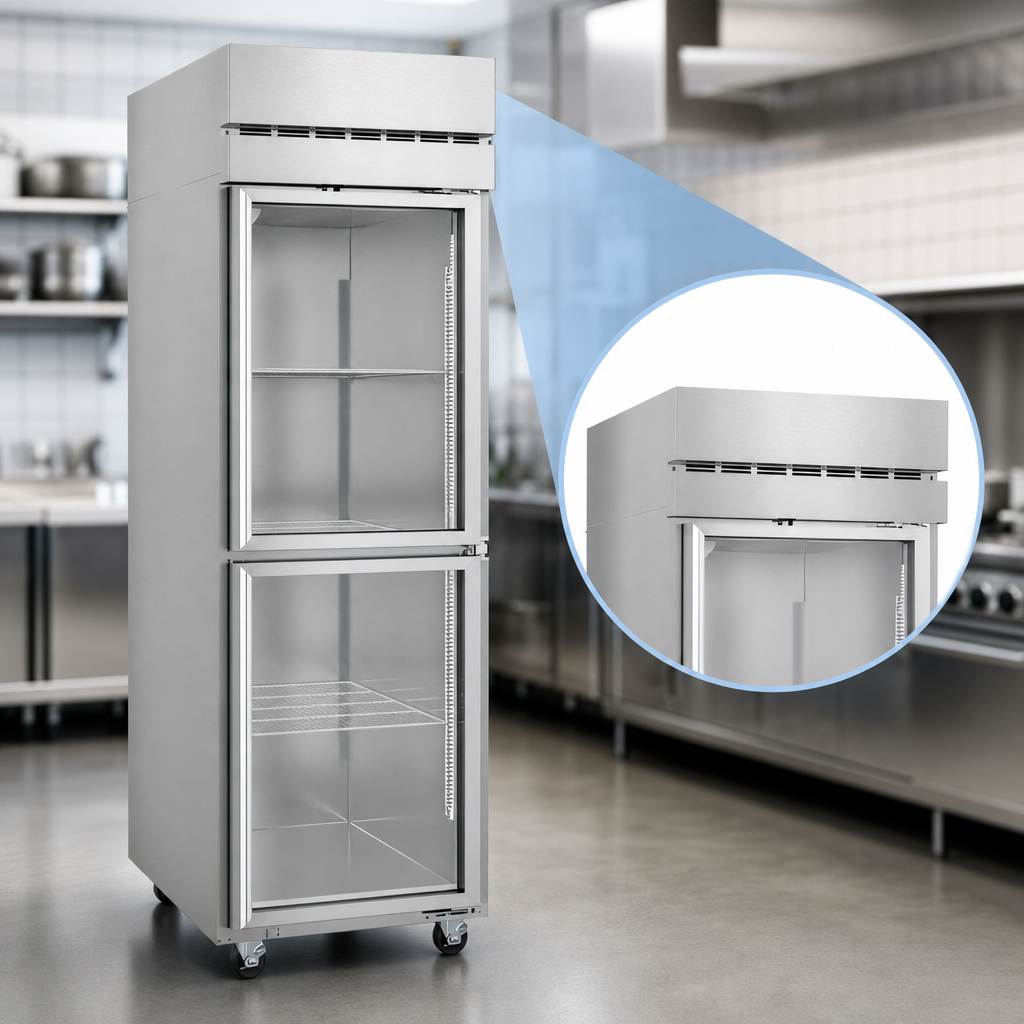

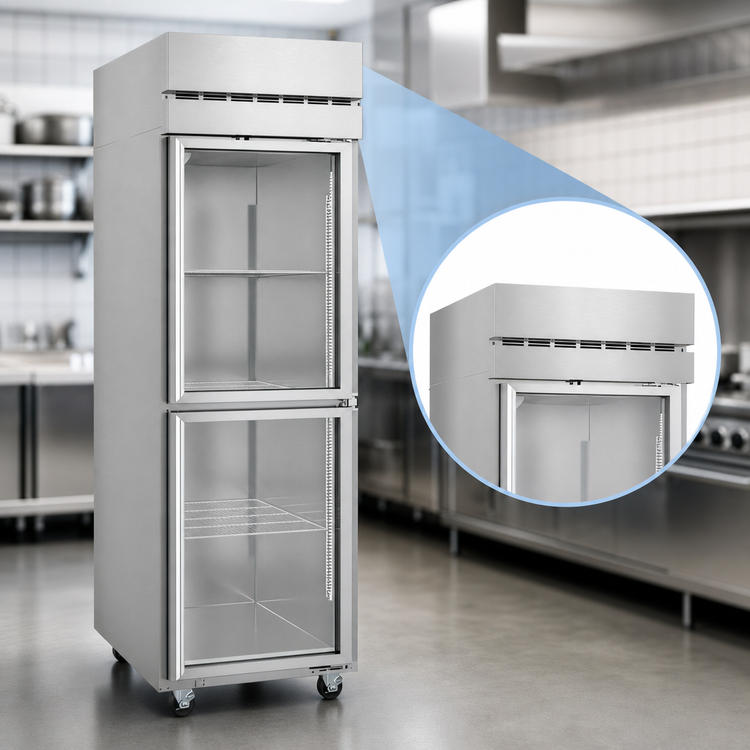

- Top-mounted, self-contained refrigeration with easy-access condenser filter
- Dynamic louvered duct system delivers uniform air distribution to every shelf
- Solid-state digital controller with high/low temperature & voltage alarms and bright LED display (°F/°C)
- Energy-efficient multi-pane, argon-filled glass doors with factory-installed locks

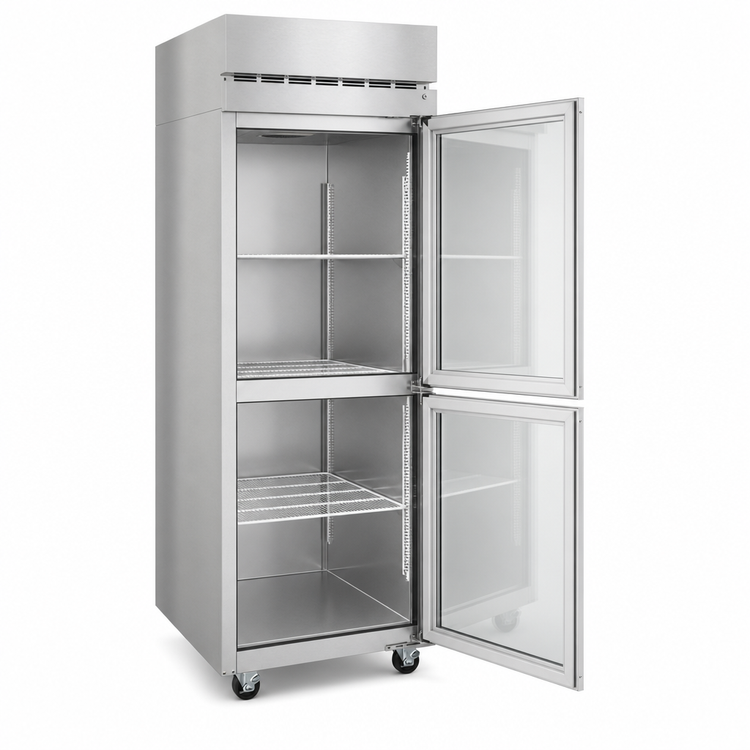

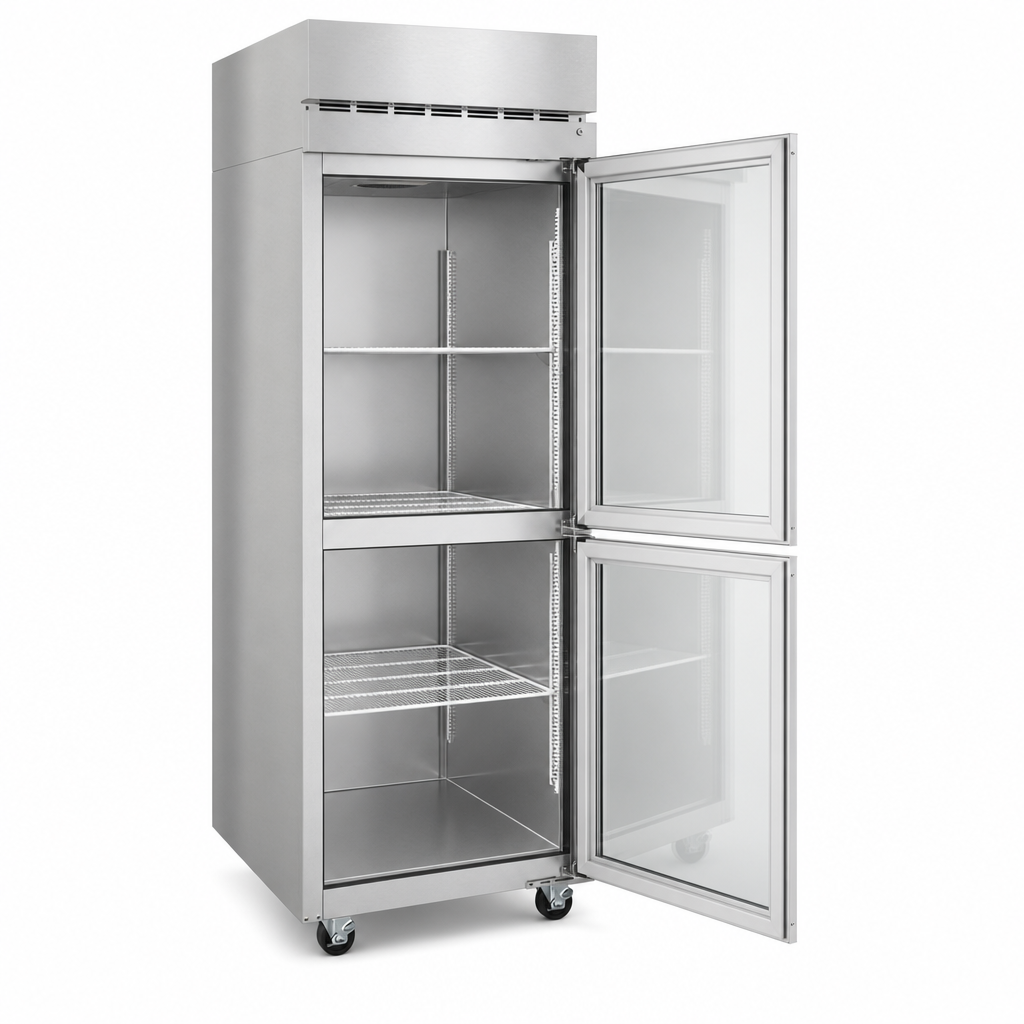

- Spring-assisted, field-reversible doors self-close at 75° and stay open at 90° for loading
- (3) adjustable heavy-duty epoxy-coated wire shelves on stainless supports
- Interior vertical LED lighting for brilliant product visibility
- CFC-free 2 ⅜ in foamed-in-place polyurethane insulation
- Environmentally friendly R290 hydrocarbon refrigerant | ENERGY STAR® qualified
Built to last
- Stainless steel interior, front, sides & top with coated-steel back/bottom
- Exclusive stepped door design protects the magnetic gasket from damage
- 8-gauge stainless hinge plates with welded pins for long-term durability
- Mounted on 4 in heavy-duty casters (2 locking) – rolls through a standard 80 in doorway
- Worry-Free Warranty: 5 yr labor, 6 yr parts, 7 yr compressor
Technical specifications
| Model | F1A-HG (Steelheart Series) |
|---|---|
| Capacity | 23.1 cu. ft. (AHAM) |
| Exterior Dimensions (W × D × H) | 27.5 in × 34.5 in × 79.5 in (with 4 in casters) |
| Door Style | (2) half-height, locking, argon-filled glass – field reversible |
| Shelf Count / Size | (3) epoxy-coated wire, 21.25 in × 26 in – adjustable in 1 in increments |
| Temperature Range | Controller set point –10 °F to +12 °F |
| Compressor | 3/4 HP (1425 BTU/hr nominal) |
| Refrigerant | R290 Hydrocarbon (4.1 oz charge) |
| Electrical | 115 V / 60 Hz / 1-ph, 8.5 A, NEMA 5-15P (15 A HACR breaker) |
| Energy Consumption | 7.73 kWh per day (ASHRAE) |
| Heat Rejection | 806 BTU/hr (NSF) |
| Shipping Weight | 365 lb |
| Certifications | cETLus, ETL-Sanitation (NSF-7), ENERGY STAR® |
Need extra flexibility? Optional epoxy or stainless shelves, tray/pan slides, 6 in adjustable legs, and 10 ft cord sets are available.
Choose Steelheart for exceptional cold storage, effortless maintenance, and the confidence that your ingredients are protected shift after shift.
