Hoshizaki F1A-FSL Steelheart Reach-In Refrigerators & Freezers
Description

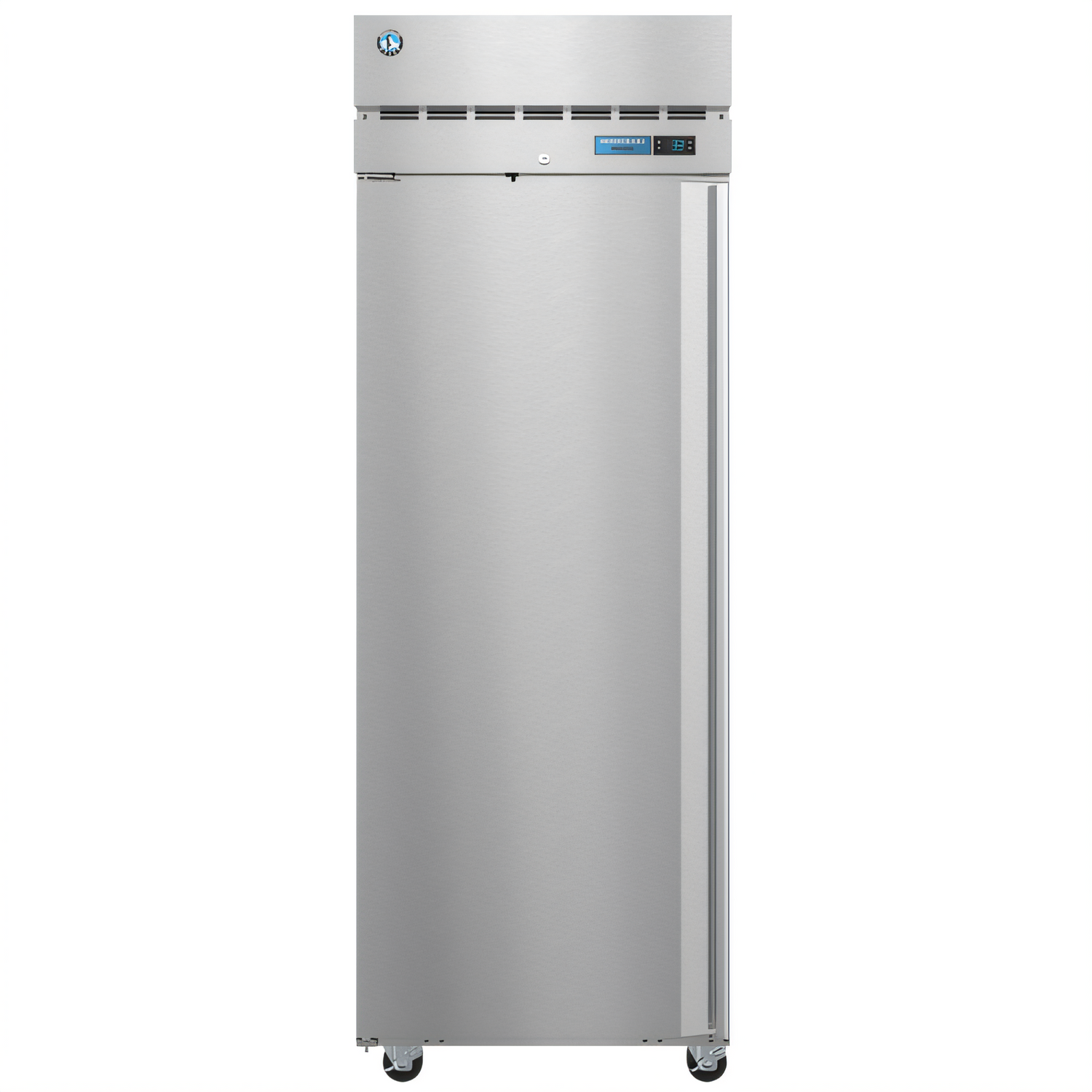

Hoshizaki Steelheart® F1A-FSL Reach-In Freezer

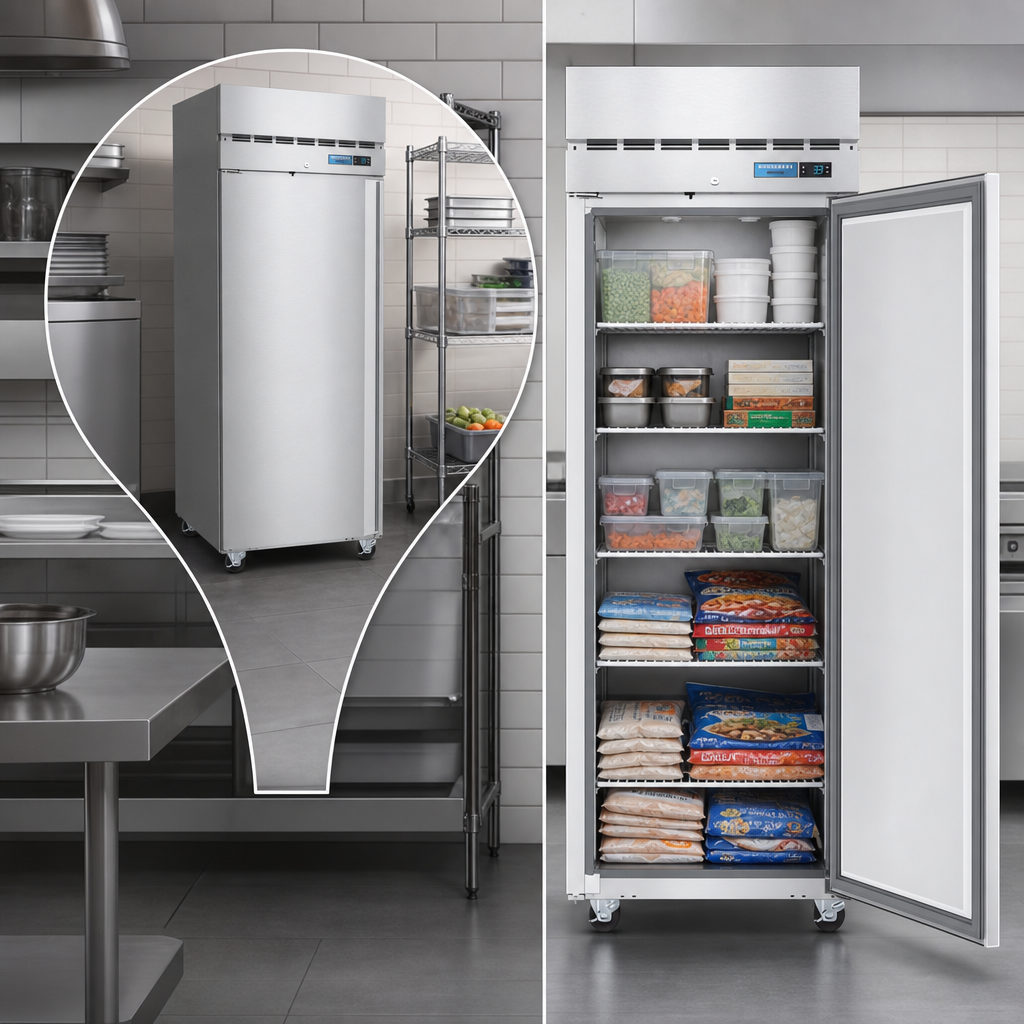

23.1 cu ft • One-Section • Full-Height Solid Left-Hinged DoorBuilt for the daily grind of commercial kitchens, the Steelheart F1A-FSL delivers rock-solid freezing performance in a space-saving 27½″ footprint. All-stainless construction, a top-mounted ¾ HP refrigeration system, and Hoshizaki’s patented ducted airflow keep product safe, visible, and always within spec.
Key advantages
- 23.1 cu ft of usable storage—largest capacity in the smallest footprint in its class
- All-stainless steel interior, exterior front & sides for maximum hygiene and durability

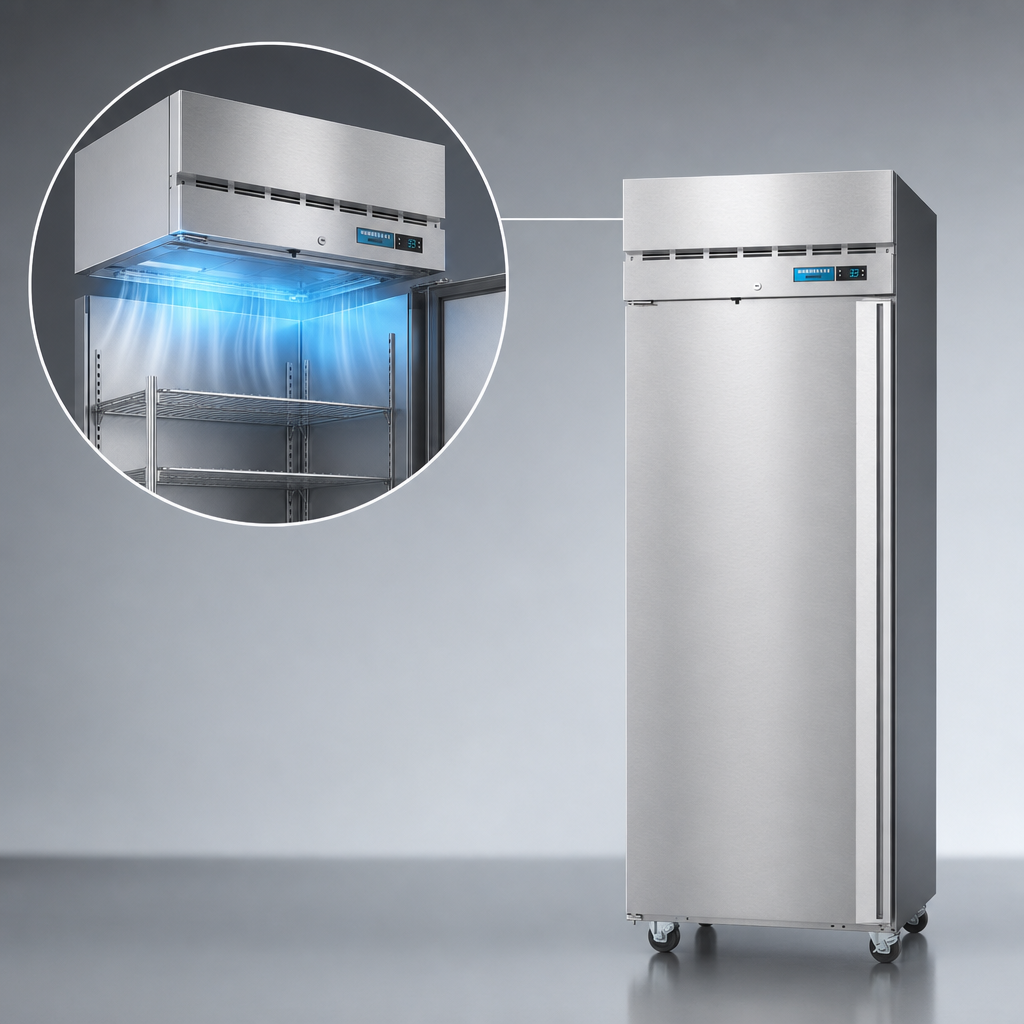

- Top-mounted, self-contained refrigeration with easy-change condenser filter
- Environmentally friendly R290 hydrocarbon refrigerant & TXV for rapid temperature recovery
- Solid-state digital controller with high/low temp & voltage audible + visual alarms
- Exclusive stepped door design protects the recessed gasket and includes factory door lock
- (3) heavy-duty epoxy-coated shelves, adjustable on 1″ centers
- Bright, energy-saving LED interior lighting
- Spring-assisted self-closing door with 90° stay-open feature; field-reversible hinges
- Mounted on 4″ polyolefin casters (front two locking) for effortless mobility
At-a-glance specifications
| Model | F1A-FSL (left-hinge) – Steelheart Series |
|---|---|
| Capacity | 23.1 cu ft (AHAM) |
| Exterior Dimensions (W × D × H) | 27.5″ × 33.5″ × 79.5″ (with 4″ casters) |
| Door Opening (W × H) | 21.75″ × 59.25″ |
| Shelves | (3) epoxy-coated wire, 21.25″ × 26″ – adjustable |
| Temperature Range | -10 °F to +12 °F |
| Refrigerant / Charge | R290 / 4.1 oz |
| Compressor | ¾ HP top-mount |
| Electrical | 115 V / 60 Hz / 1 ph • 8.46 A • NEMA 5-15P • 10 ft cord |
| Energy Consumption | 6.25 kWh per day (ASHRAE) |
| Ambient Rating | 45 °F – 100 °F |
| Insulation | 2-⅜″ CFC-free foamed-in-place polyurethane |
| Shipping Weight | 345 lb (crated) |
| Certifications | cETLus • ETL Sanitation |
Ultra-long warranty
- 7-year parts & labor coverage — including the compressor
- Limited lifetime parts warranty on solid doors & hinges
- QR code on unit for instant access to service & warranty resources
If ground-fault protection is required, a GFCI breaker must be used in place of a receptacle. Hoshizaki reserves the right to change specifications without notice.
