Hoshizaki F1A-FS Steelheart Reach-In Refrigerators & Freezers
Description

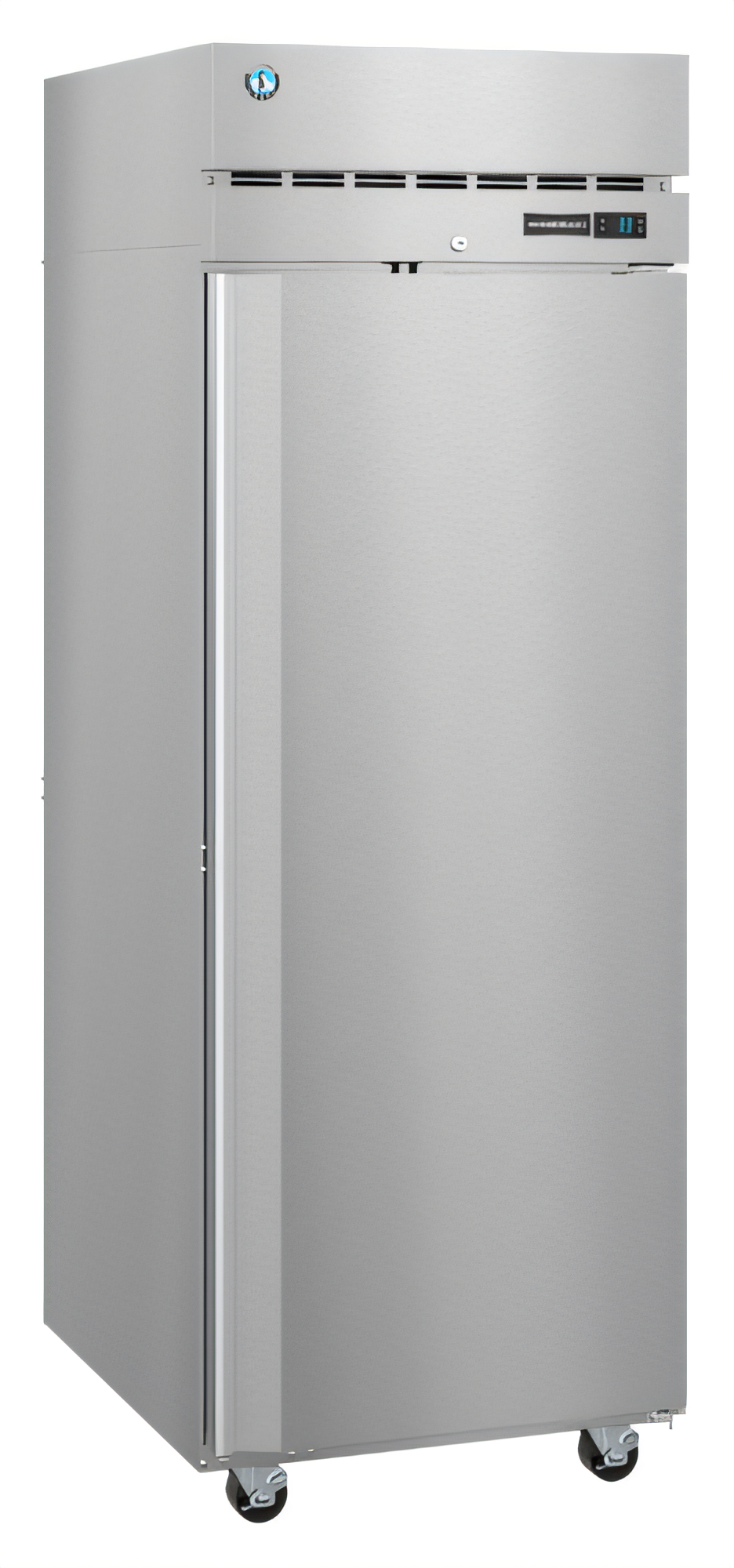

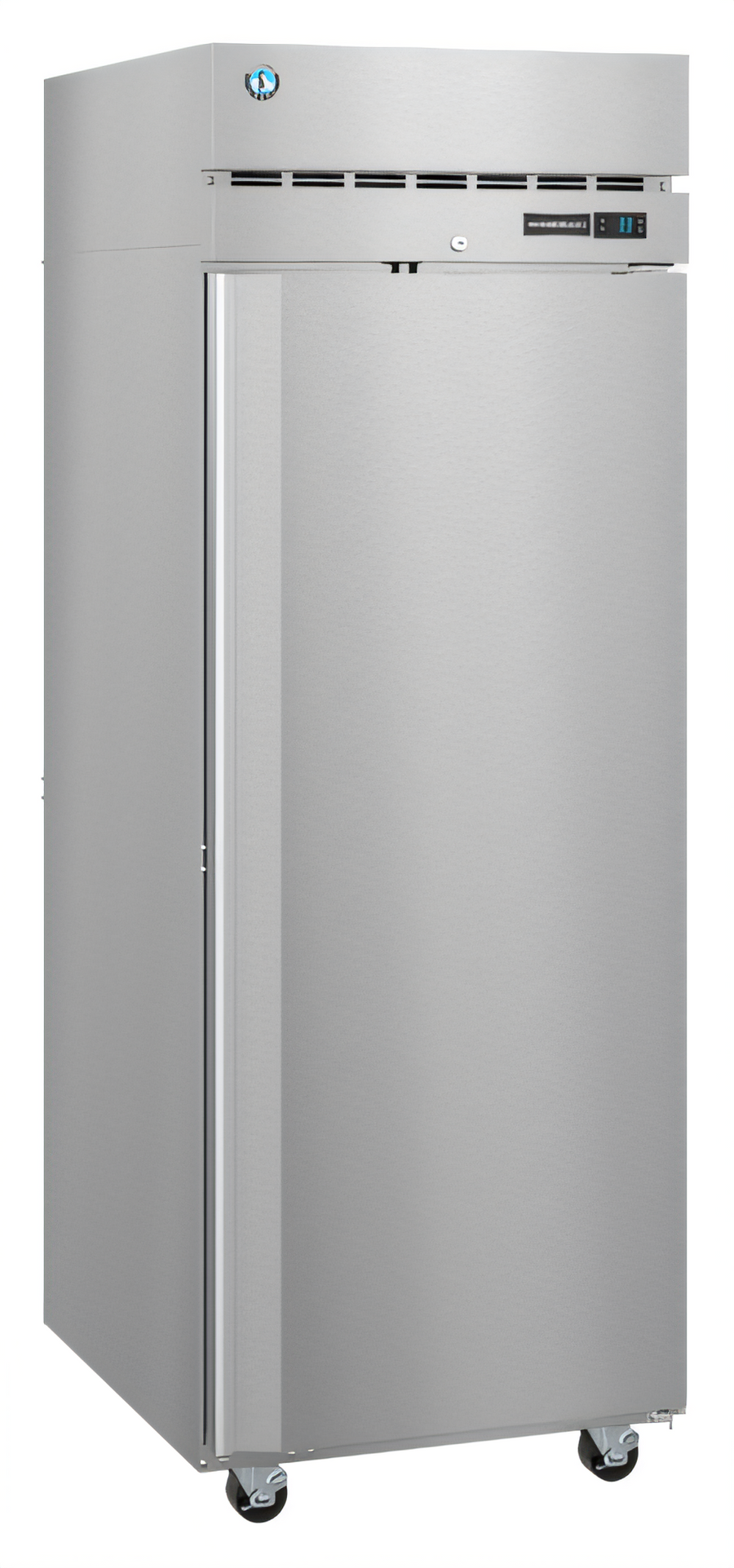

Hoshizaki Steelheart® F1A-FS One-Section Reach-In Freezer
23.1 cu ft • Top-Mounted ¾ HP System • Stainless Inside & OutBuilt for demanding commercial kitchens, the Steelheart F1A-FS delivers full-size freezing power in a slim 27½-inch footprint. All-stainless construction, a high-efficiency top-mount refrigeration system, and smart digital controls keep inventory food-safe while saving space, energy, and maintenance time.
Why chefs choose Steelheart
- 23.1 cu ft of AHAM-rated storage—the most capacity per square inch in its class.
- Stainless steel interior, front, sides & top withstand years of heavy use and clean easily.
- Dynamic ducted airflow & TXV metering ensure even, fast-recovery temperatures.
- Solid-state controller with LED read-out (°F/°C) plus audible & visual temp/voltage alarms.

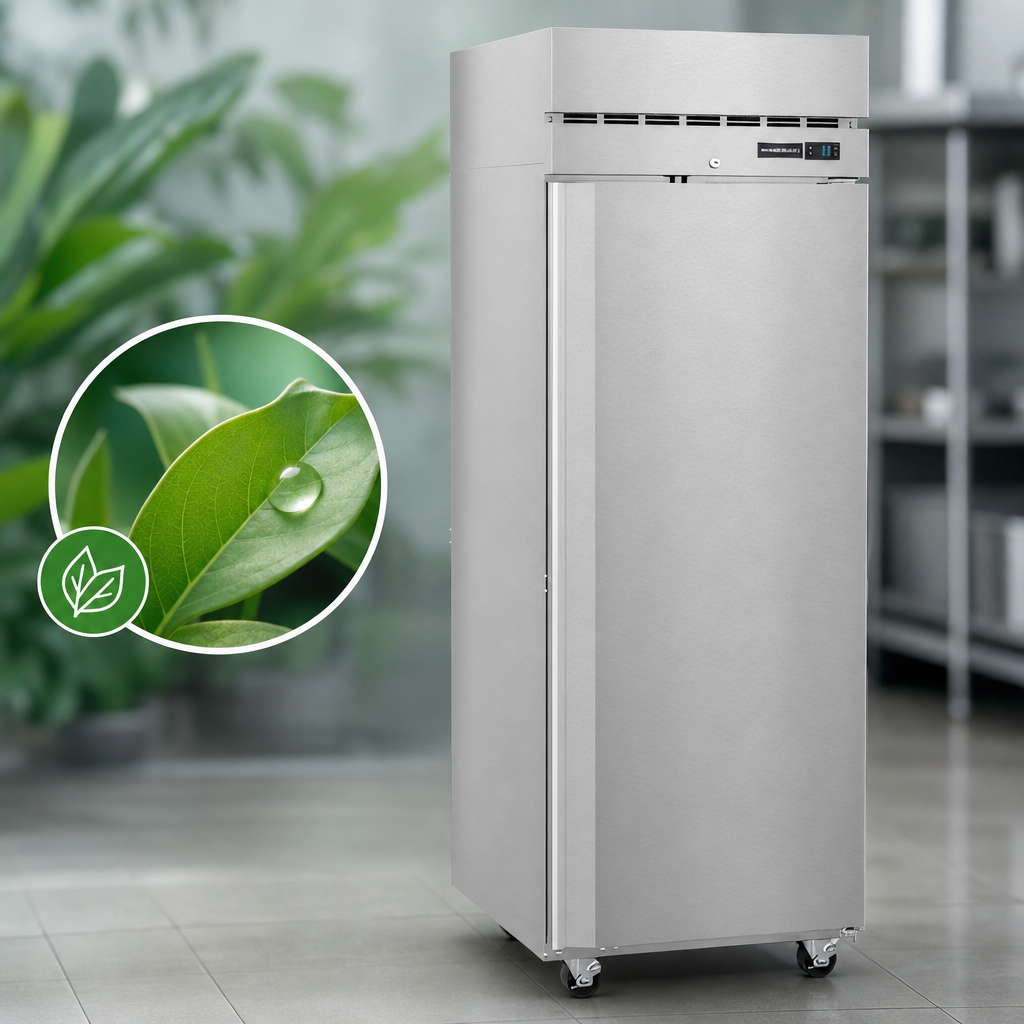

- ENERGY STAR® qualified and charged with natural R290 hydrocarbon refrigerant.
- Spring-assisted solid door (right-hinged, field-reversible) self-closes and stays open past 90°.
- Exclusive “stepped” seal-saver door design protects the recessed magnetic gasket.
- (3) heavy-duty epoxy-coated wire shelves adjust on stainless pilasters every 1".
- Bright, energy-saving LED interior lighting for clear product visibility.
- 4" polyolefin casters—front two locking—roll through a standard 80" doorway.
- Removable condenser air filter & slide-out refrigeration module simplify service.
Technical Specifications
| Model | F1A-FS (right-hinge) |
|---|---|
| Capacity | 23.1 cu ft (AHAM) |
| Exterior Dimensions (W × D × H) | 27.5" × 33.5" × 79.5" (with 4" casters) |
| Door Opening (W × H) | 21.75" × 59.25" |
| Shelves | (3) epoxy-coated wire, 21.25" × 26" |
| Temperature Range | –10 °F to +12 °F |

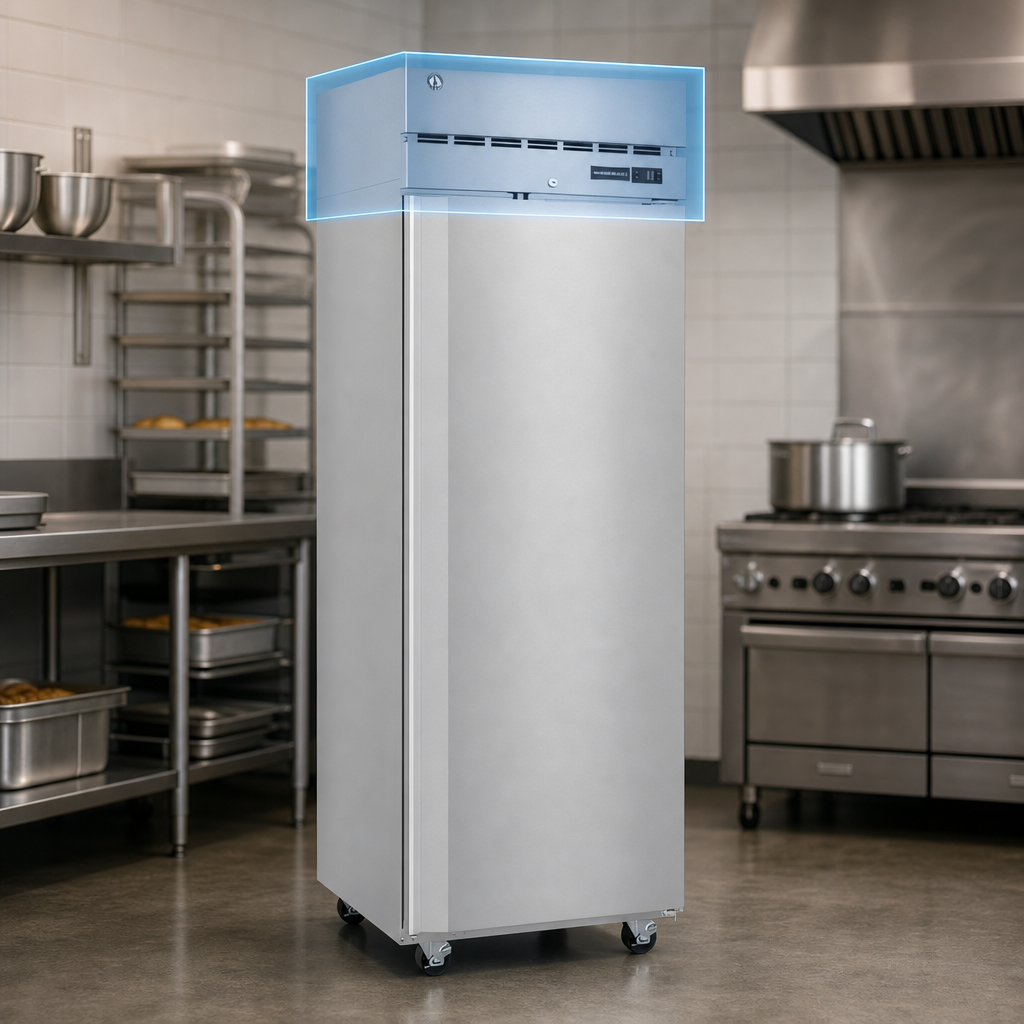

| Refrigeration System | Top-mounted, self-contained, ¾ HP, R290, TXV controlled |
| Electrical | 115 V / 60 Hz / 1-phase, 8.46 A, NEMA 5-15P (10 ft cord) |
| Energy Consumption | 6.25 kWh/day (ASHRAE) |
| Heat Rejection | 1,178 BTU/hr (NSF) |
| Ambient Rating | 45 °F – 100 °F |
| Insulation | 2 ⅜" CFC-free foamed-in-place polyurethane |
| Casters | (4) 4" polyolefin (2 locking) |
| Certifications | cETLus • ETL-Sanitation • ENERGY STAR |
| Shipping Weight | 345 lb (crated) |
Industry-leading warranty
5 years parts & labor on the entire cabinet and 7 years parts on the compressor—supported coast-to-coast by Hoshizaki’s authorized service network.
