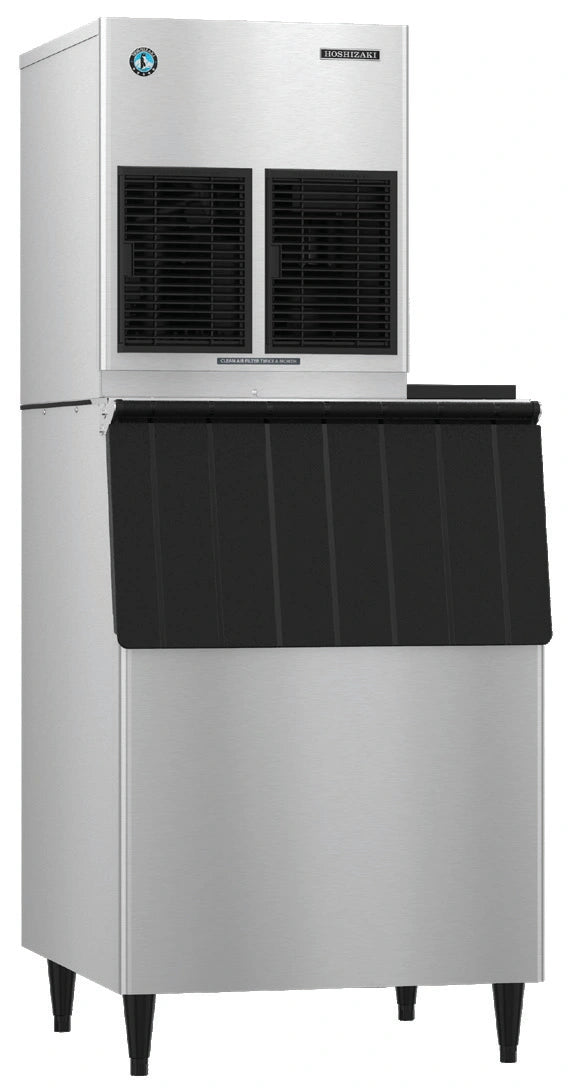

Hoshizaki F-1002MRJZ-SC Remote Air-Cooled Cubelet Ice Machine
22" Slim-Line Modular Series • Soft, chewable cubelet iceEngineered for busy healthcare, hospitality, and convenience locations, the F-1002MRJZ-SC delivers high-volume, soft “Sonic®-style” cubelet ice in a narrow 22 inch footprint. A stainless-steel exterior, advanced self-cleaning cycle, and greaseless auger design keep performance high and maintenance low—so you can keep guests happy around the clock.
Key features
- Up to 864 lb of ice per 24 hr at 70 °F air / 50 °F water (744 lb AHRI certified at 90 °F / 70 °F).
- Produces soft, chewable ⅜" × ¼" × ⅜" cubelets—perfect for blended drinks and patient care.
- Advanced CleanCycle24™ initiates a 2-second flush every hour to reduce sediment and scale-build-up.
- Infrared bin sensor replaces mechanical switches for increased reliability and easier sanitizing.
- Stainless-steel auger with greaseless bearing for whisper-quiet operation and simpler upkeep.
- Durable stainless-steel cabinet withstands demanding back-of-house environments.
- Slim-Line design lets you mount two units side-by-side in just 44" of space for double the capacity.
- Eco-friendly, R-404A refrigerant.
- NSF & UL listed; AHRI certified for guaranteed performance.
- Backed by a 3-year parts & labor warranty (5-year compressor & coil parts).
Specifications
| Model | F-1002MRJZ-SC |
|---|---|
| Ice style | Soft cubelet |
| Production capacity | 864 lb/24 hr @ 70 °F air / 50 °F water 744 lb/24 hr @ 90 °F air / 70 °F water (AHRI) |
| Unit dimensions (W × D × H) | 22" × 27 3/8" × 26" |
| Electrical | 115 V / 60 Hz / 1-phase, 15.2 A (20 A max fuse/breaker) |
| Refrigerant | R-404A |
| Water usage | 12 gal per 100 lb of ice |
| Operating limits | Ambient 45–100 °F • Water 45–90 °F • Water pressure 10–113 psi |
| Ship weight | 176 lb (machine only) |
| Compatible ice bins | B-250SF, B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS*, B-1650SS* *Dual-machine installation only. Bin top kit may be required. |
Remote condenser (required & sold separately)
- Pair exclusively with URC-5FZ remote condenser for optimal performance.
- 25' (HS-5587) and 35' (HS-5588) pre-charged refrigerant tubing kits available.
- Ice maker and condenser require separate electrical services.
Sonic® is a registered trademark of the Sonic Corporation. Reference is for ice style only—no endorsement implied.
