Hoshizaki DM-4420N Ice & Water Dispensers
Description

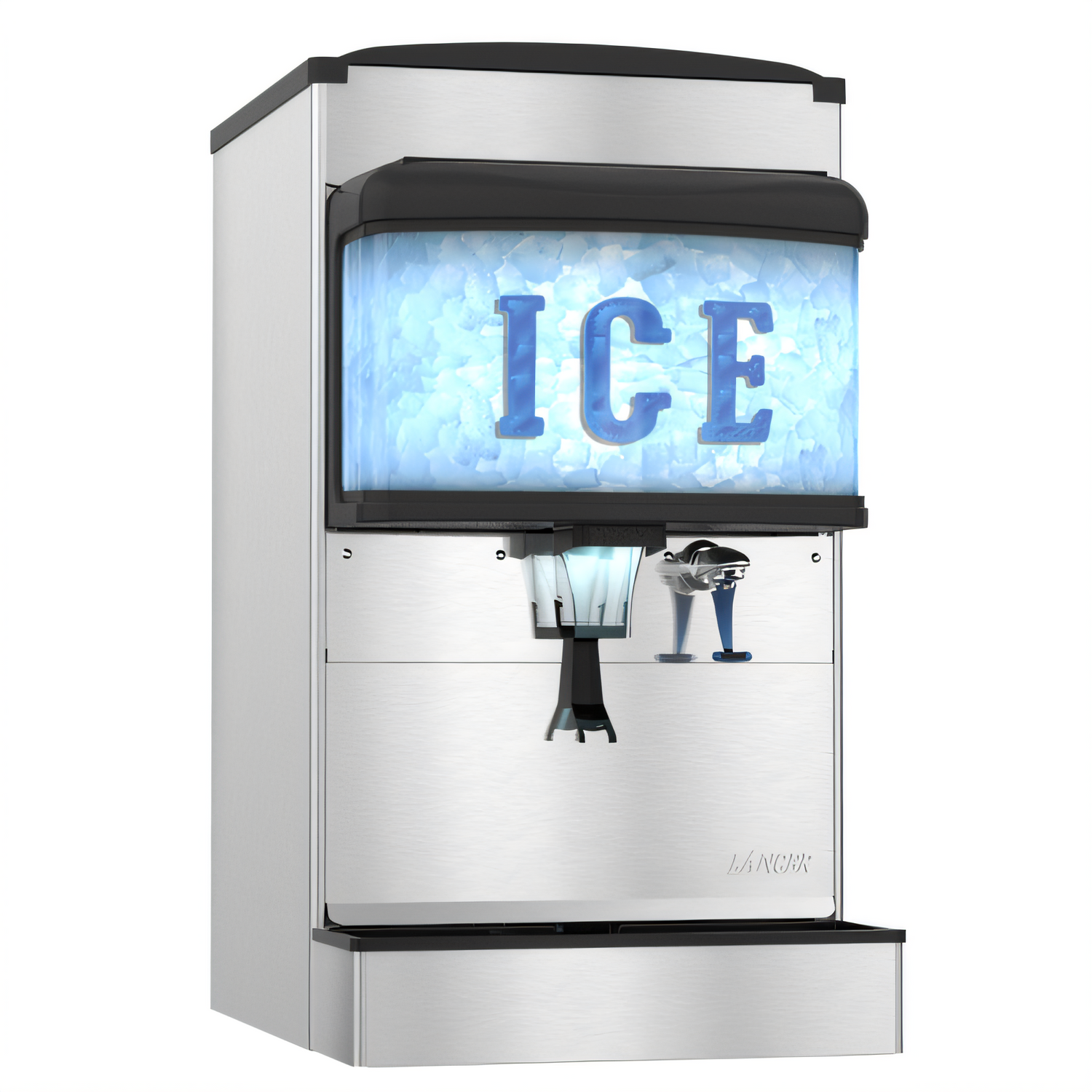

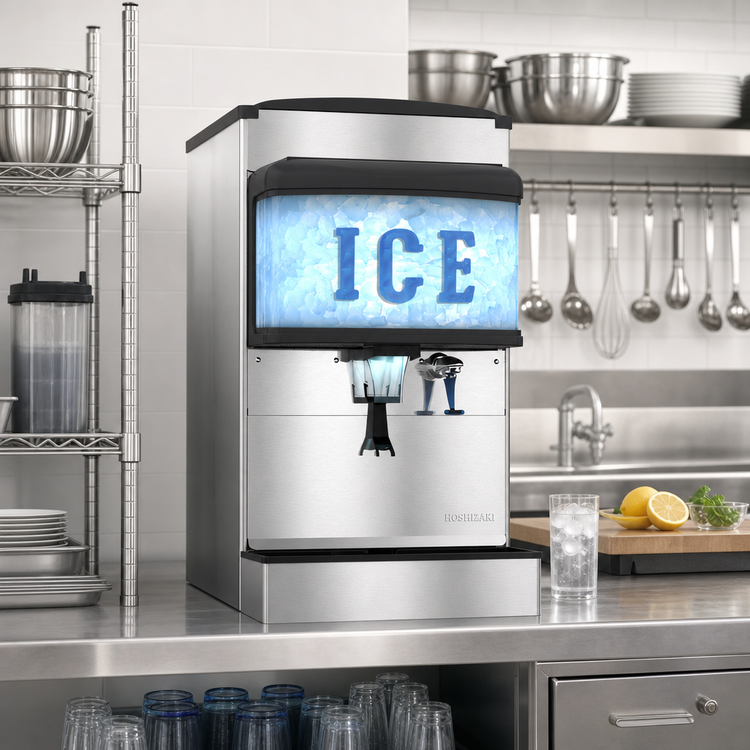

Hoshizaki DM-4420N Cubelet Ice & Water Dispenser
Countertop | 22" W × 30.5" D × 40" H | 200 lb ice capacityDeliver chewable cubelet ice and chilled water from a single, compact footprint. The DM-4420N’s rugged stainless-steel construction, 200-lb insulated bin, and auger-driven dispensing make it the ideal self-service solution for c-stores, healthcare hydration stations, and QSR beverage bars.
Key Features
- Heavy-duty stainless steel exterior resists dents, corrosion, and fingerprints

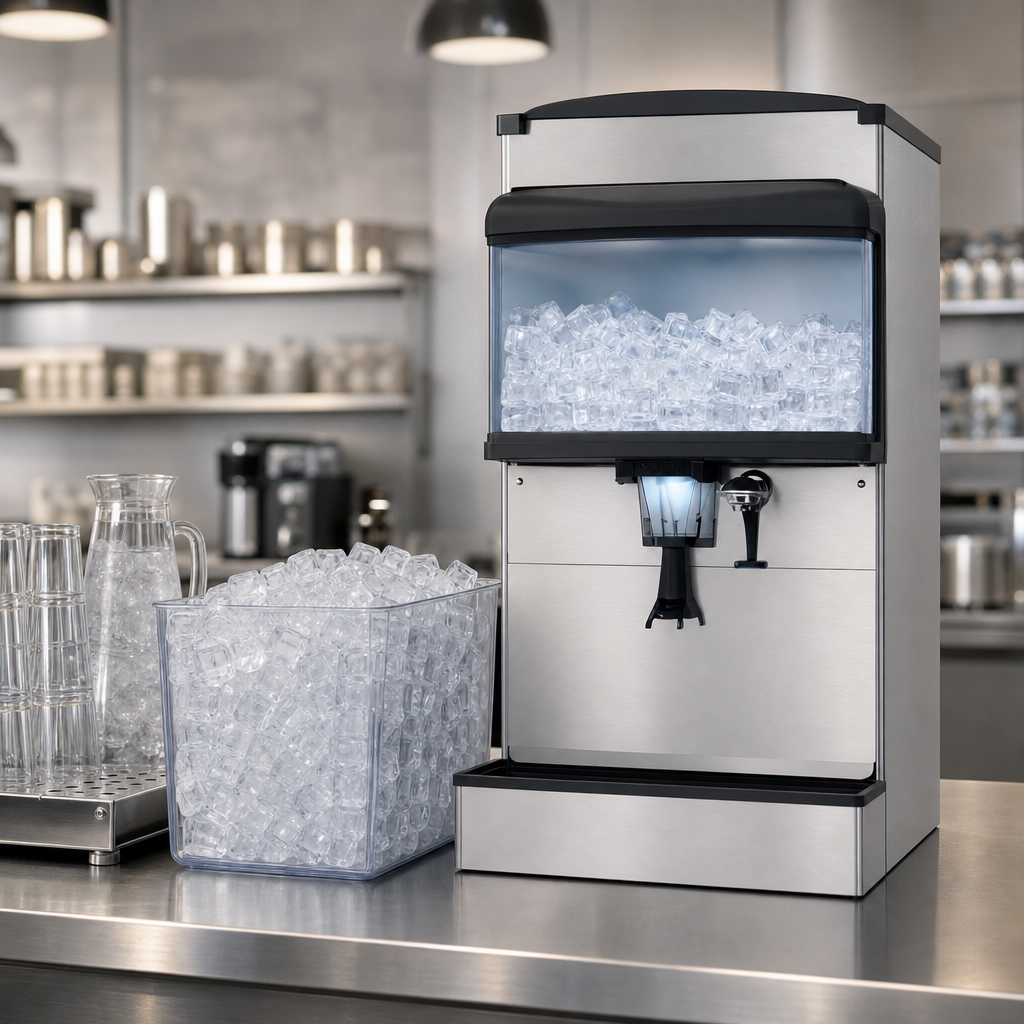

- 200 lb internal ice storage (170 lb dispensable) keeps lines moving during peak demand
- Auger agitator with exclusive Hex Drive system prevents bridging for smooth, reliable dispensing

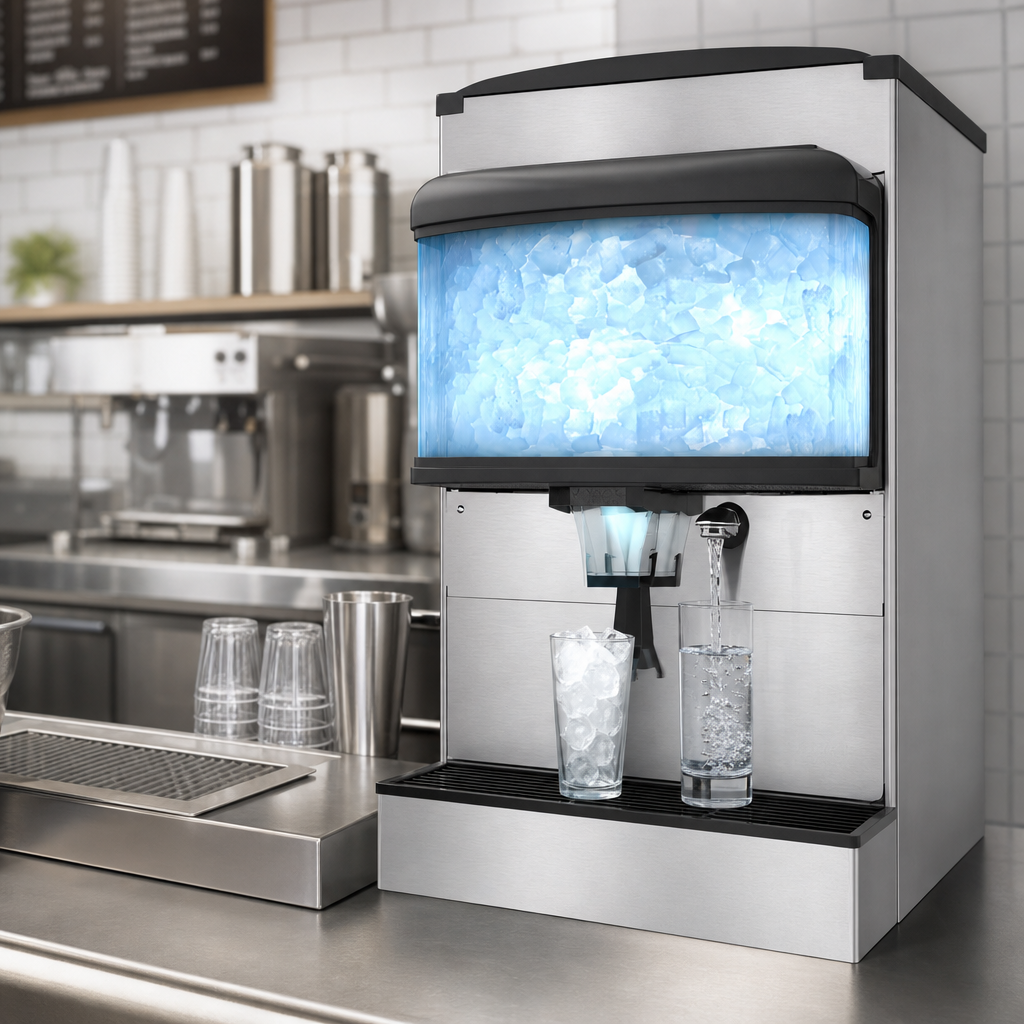

- Dual push levers—one for ice, one for water—offer true beverage bar versatility
- Illuminated, interchangeable front graphics (15 W fluorescent bulb included) boost impulse sales
- Oversized drip tray captures overfill to reduce slip hazards and cleanup time
- Standard 4" adjustable legs simplify cleaning under the unit
- 8 ft factory-installed cord with NEMA 5-15P—plug-and-play on a 115 V, 15 A circuit
- Backed by a 3-year parts & labor warranty from Hoshizaki
Ice Machine Compatibility
Designed for 22"-wide Hoshizaki cubelet ice makers (sold separately): FD-650, FD-1002, or FS-1022. Use adapter kit HS-5330 when mounting an ice machine head; top cover HS-5329 is available for manual-fill or FS-1022 installations.
Specifications
| Model | DM-4420N |
|---|---|
| Exterior Dimensions | 22" W × 30.5" D × 40" H (559 × 775 × 1015 mm) |
| Ice Storage Capacity | 200 lb (90.7 kg) |
| Dispensable Ice | 170 lb (77.1 kg) |
| Ice Type | Cubelet (soft, chewable pellets) |
| Dispense Method | Auger agitator / push-lever |
| Electrical | 115 V / 60 Hz / 1-ph, 3.0 A |
| Plug | NEMA 5-15P, 8 ft cord |
| Recommended Circuit | 15 A |
| Water Inlet | 3/8" barb (tubing not included) |
| Drain Connections | 3/4" slip-fit pan drain & 3/4" barb dispense drain Includes 6 ft insulated tubing plus 90° & 180° fittings |
| Operating Water Pressure | 25 – 65 PSI |
| Clearance for Manual Fill | 16" (41 cm) above unit |
| Shipping Weight | 185 lb (84 kg) |
| Certifications | NSF, cETLus, CE |
| Warranty | 3 years parts & labor |
Ideal Applications
- Convenience stores & travel plazas
- Hospital patient floors & nursing stations
- Office breakrooms and micro-markets
- Fast casual and quick-service restaurants
Manufactured by Lancer Corp. exclusively for Hoshizaki America, Inc. Ice machine head, adapter kits, and installation services are sold separately.
