Hoshizaki  |  SKU: DM-200B

Hoshizaki DM-200B Ice & Water Dispensers

$4,925.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Parts manual Warranty Flyer
Related Searches
Hoshizaki Ice & Water Dispensers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

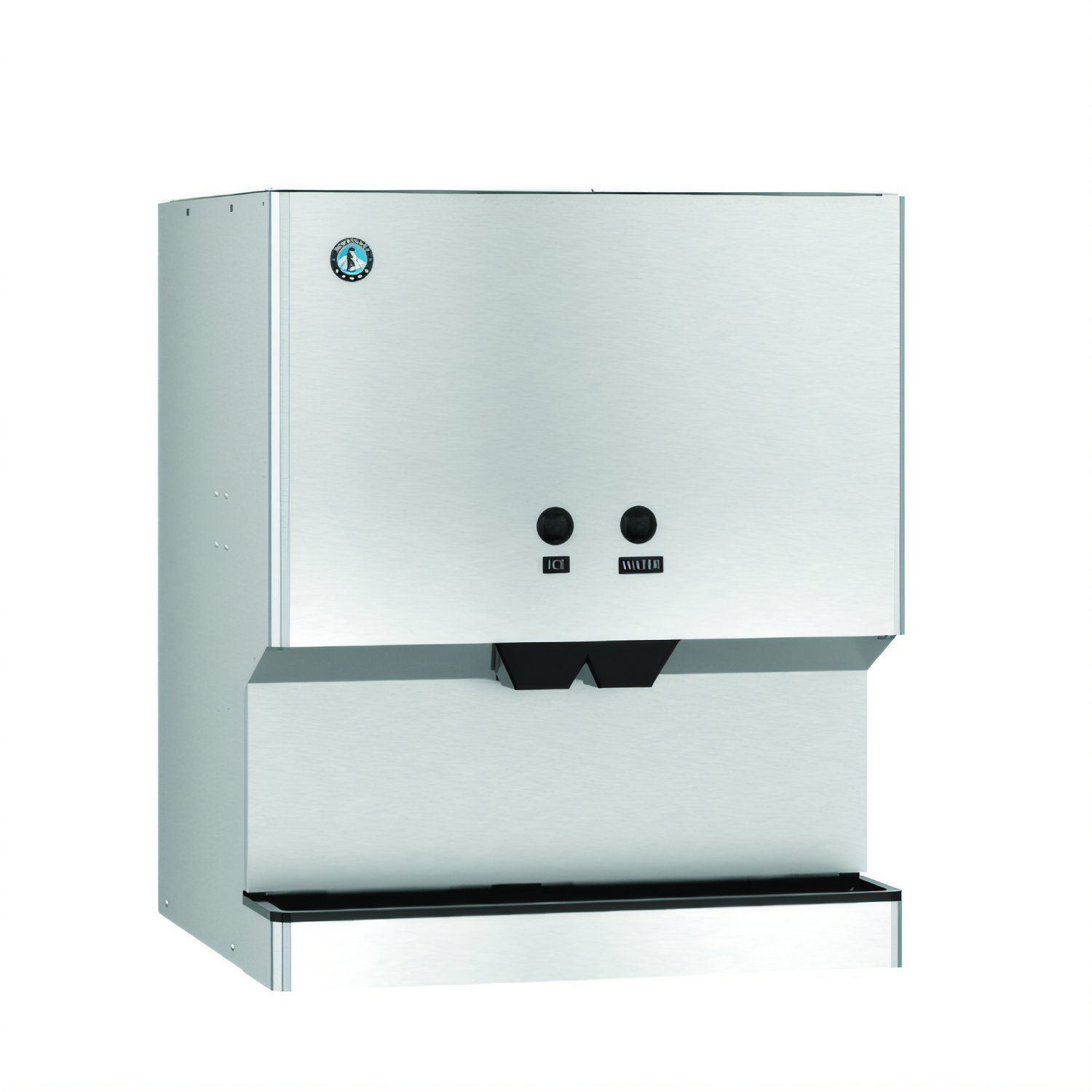

Hoshizaki DM-200B Ice & Water Dispenser

200 lb countertop dispenser – 30" W x 28" D x 36 3⁄8" H

Keep guests, patients or staff refreshed with crystal-clear crescent ice and chilled water from a single, compact unit. The DM-200B combines a rugged stainless exterior with a unique auger agitator that delivers individual cubes—no clumping, no jams.

Key Features

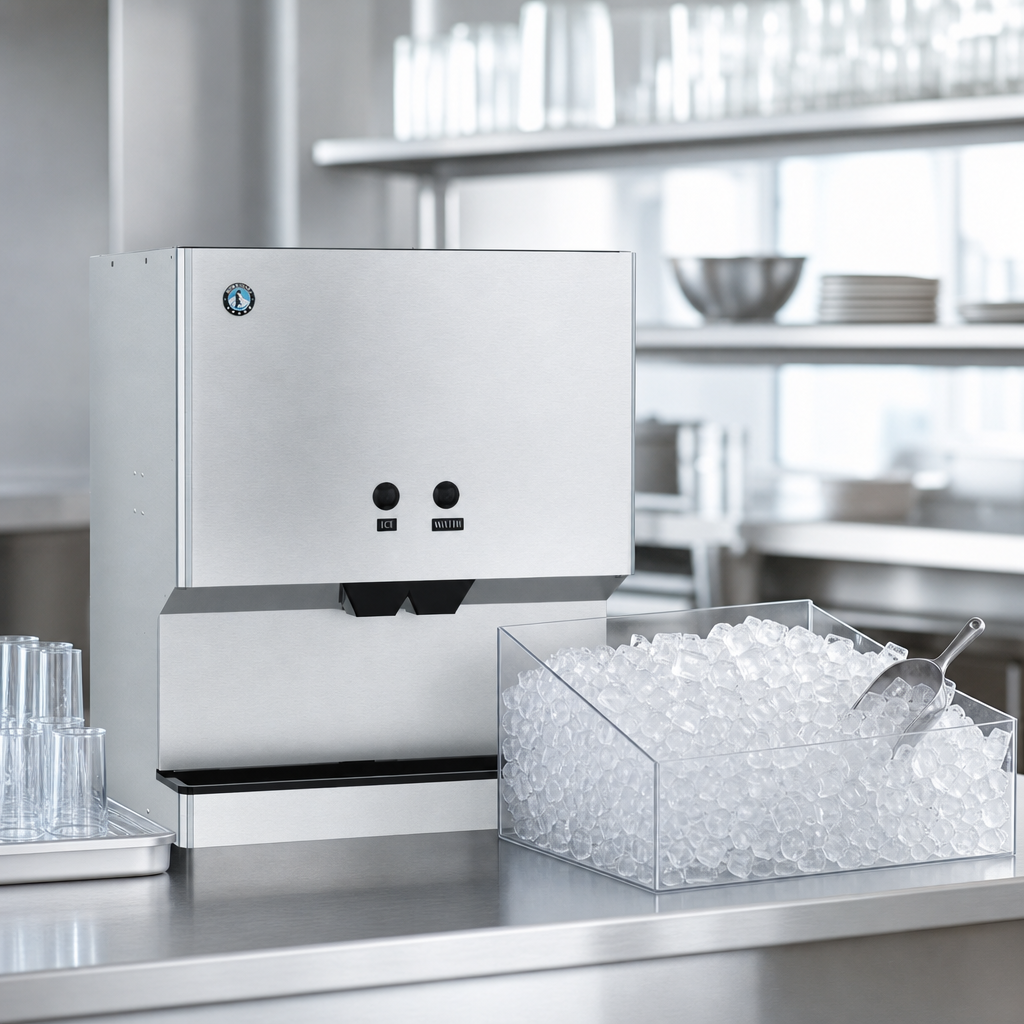

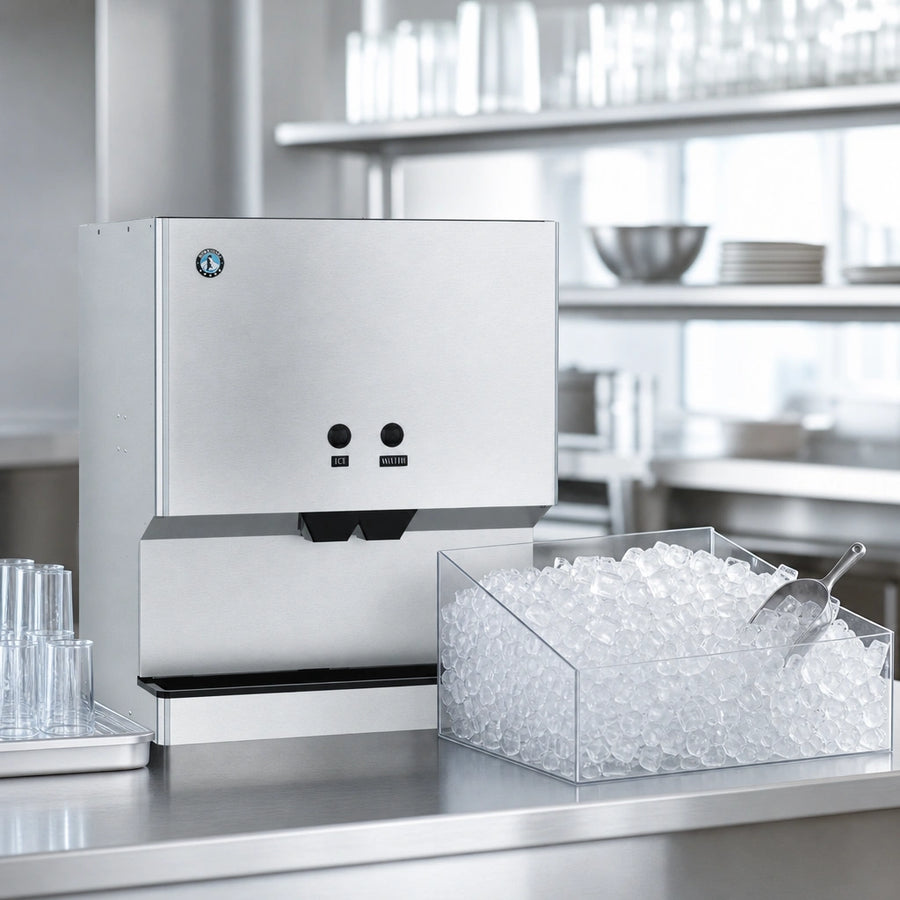

  • Built-in bin stores up to 200 lb (5.72 ft³) of ice
  • Dispenses 7.5 lb of ice per minute at the touch of a button
  • Ice & water dispensing from the same chute for space-saving hydration
  • Accepts a Hoshizaki KML-Series modular ice machine or manual top-off
  • Exclusive single-auger agitator delivers individual cubes and prevents bridging
  • All-stainless exterior stands up to high-traffic commercial environments
  • Factory-installed 8 ft power cord with NEMA 5-15P plug
  • Optional 4" leg kit for sanitation clearance

Specification Highlights

Model DM-200B
Footprint (W × D × H) 30" × 28" × 36 3⁄8"
Ice Storage Capacity 200 lb / 5.72 ft³
Dispensing Rate 7.5 lb ice per minute
Configuration Countertop, air-cooled, push-button ice & water
Electrical 115 V / 60 Hz / 1-ph, 1.4 A, NEMA 5-15P
Max Circuit / Fuse 15 A
Exterior Stainless steel
Shipping Weight 210 lb
Certifications cULus, ETL Sanitation
Warranty 3-year parts & labor (USA, CAN, PR & U.S. territories)

Installation & Operation

  • Ambient temperature: 45 – 100 °F
  • Water temperature: 45 – 90 °F  |  Water pressure: 10 – 113 PSI
  • Voltage range: 104 – 132 V
  • Allow 6" right-side clearance for service and 24" above for ice loading
  • ¾" ID gravity drain and ⅛" ID potable water supply required when plumbed

Pair with a Hoshizaki KM-340, KM-515M or KM-650M modular ice maker using top-kit HS-2036 for automatic ice production.

Heads Up: The DM-200B stores and dispenses ice but does not produce ice on its own. A compatible modular ice maker is required for automatic ice production (sold separately).

Features & Specs

Manufacturer

Hoshizaki

Certifications

cULus, ETL-Sanitation

Height

36.38in

Width

30.0in

Depth

28.0in

Shipping Weight

210.0lbs

Type

ice & water

Style

countertop

Capacity

200 - 399 lb capacity

Specifications

Ice & Water Dispenser, 30"W, counter model, air-cooled, 200-lb. ice capacity, accommodates KML Series ice machines or manual fill, dispenses 7-1/2 lb. ice/minute, auger agitator dispenses individual cubes, stainless steel exterior, 115-120v/60/1-ph, 4.1 amps, NEMA 5-15P, cULus, ETL-Sanitation
