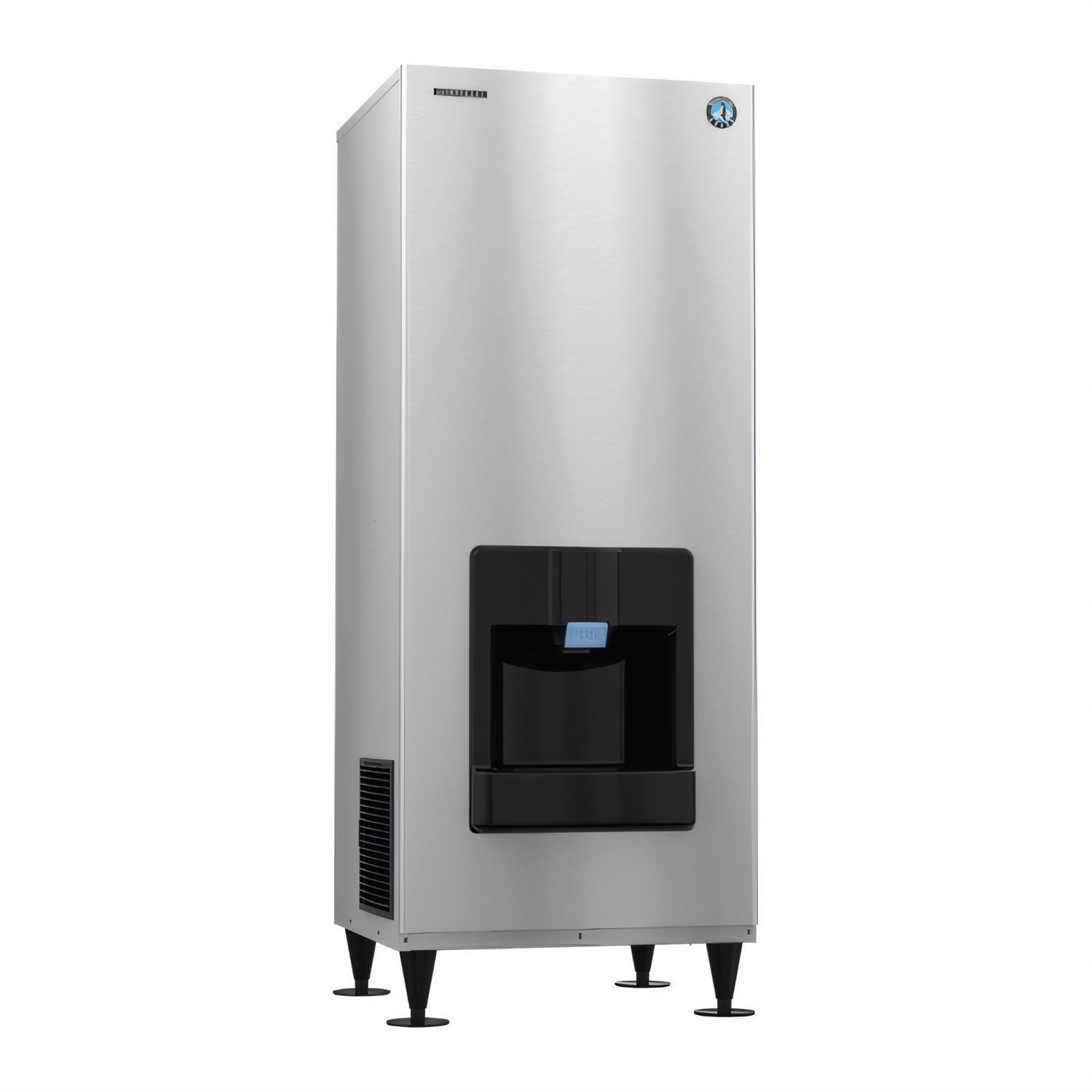

Hoshizaki Serenity Series DKM-500BWJ Ice Maker & Dispenser
Water-Cooled • Crescent Cube • 30 in. WideBuilt for busy cafeterias, healthcare pantries and break-rooms that demand large volumes of crystal-clear ice with the press of a button. The self-contained Serenity DKM-500BWJ produces up to 540 lb of crescent ice every 24 hours, stores 200 lb in its insulated bin and dispenses ice at an impressive 13 lb per minute—all while meeting ADA height guidelines at the chute.
Why you’ll love it
- Individual KMEdge™ crescent cubes—hard, crystal-clear & slow-melting for superior beverage displacement.
- Quiet, water-cooled self-contained condenser—no air exhaust means less heat and noise in the room.
- Push-button dispensing with ADA-compliant 34 in. opening height—easy for all guests to operate.
- H-GUARD Plus antimicrobial agent protects food-zone surfaces between cleanings.
- One-piece stainless-steel exterior and roto-molded polyethylene bin for maximum durability and easy wipe-downs.
- CycleSaver™ design freezes ice on both sides of the stainless evaporator, cutting the number of cycles in half for greater efficiency and longer life.
- Ships on sturdy 6 in. flanged legs (field-install 6 in. casters available).
- Factory-installed 11 ft power cord with NEMA 5-20P plug—plug-and-play 115 V installation.
- NSF & UL listed, CEC compliant; backed by an industry-leading 3-year parts & labor warranty.
Technical specifications
| Model | DKM-500BWJ (Water-Cooled) |
|---|---|
| Ice style | Crescent cube (KMEdge™, approx. 1⅛" × ½") |
| Ice production | 540 lb / 24 hr @ 70 °F air / 50 °F water 500 lb AHRI certified @ 90 °F / 70 °F |
| Built-in storage | 200 lb (6.7 ft³) insulated polyethylene bin |
| Dispense rate | 13 lb per minute, push-button |
| Condenser | Water-cooled, self-contained |
| Refrigerant | R-404A, 1 lb 2 oz charge |
| Potable water use | 18.0 gal / 100 lb ice |
| Condenser water use | 103 gal / 100 lb ice |
| Energy consumption | 4.79 kWh / 100 lb ice |
| Electrical | 115 V / 60 Hz / 1-ph, 12.0 A 20 A min. circuit, NEMA 5-20P plug |
| Heat rejection | 7,700 BTU/hr |
| Exterior | One-piece stainless steel cabinet |
| Dimensions | 30"W × 28"D × 77"H (includes 6" legs) |
| Shipping dimensions | 35 ¾" × 35" × 83" |
| Net / ship weight | 347 lb / 310 lb |
| Operating limits | Ambient 45–100 °F • Water 45–90 °F • Water pressure 10–113 PSI |
| Certifications | NSF, UL, CEC, ADA dispensing height |
| Warranty | 3 yr parts & labor (entire machine) 5 yr parts & labor (evaporator) 5 yr parts (compressor) |
Provide 12 in. clearance on the left and 6 in. on right, rear and top for service access. Use independent ¾ in. gravity drain lines for both ice maker and condenser return.
IMPORTANT: This unit is intended for commercial use. Follow all local plumbing and electrical codes. For optimal ice quality and longer machine life, Hoshizaki recommends an appropriate water filtration system.
$9,510.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Serenity Ice Maker/Dispenser, Crescent Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 540 lb/24 hours at 70°/50° (500 lb AHRI certified at 90°/70°), 200 lb built-in storage capacity, push button operation, polyethylene bin & stainless steel exterior, 6" flanged legs, protected with H-GUARD Plus Antimicrobial Agent, R-404A refrigerant, 12.0 amps, 115v/60/1-ph, CEC compliant, ice dispensing height is ADA compliant, NSF, UL
Manufacturer
Hoshizaki
Brand name
Serenity
Certifications
NSF, UL, AHRI, ADA Compliant
Height
77.0in
Width
30.0in
Depth
28.0in
Shipping Weight
310.0lbs
Cooling
water-cooled
Production per 24 hr
501 - 600 lb = 227 - 272 kg
Ice Type
crescent cubes
Bin Storage Capacity
151 - 200 lb = 69 - 91 kg
Style
floor model
Specifications
Serenity Ice Maker/Dispenser, Crescent Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 540 lb/24 hours at 70°/50° (500 lb AHRI certified at 90°/70°), 200 lb built-in storage capacity, push button operation, polyethylene bin & stainless steel exterior, 6" flanged legs, protected with H-GUARD Plus Antimicrobial Agent, R-404A refrigerant, 12.0 amps, 115v/60/1-ph, CEC compliant, ice dispensing height is ADA compliant, NSF, UL
