Hoshizaki DKM-500BAJ Serenity Ice & Water Dispensers
Description

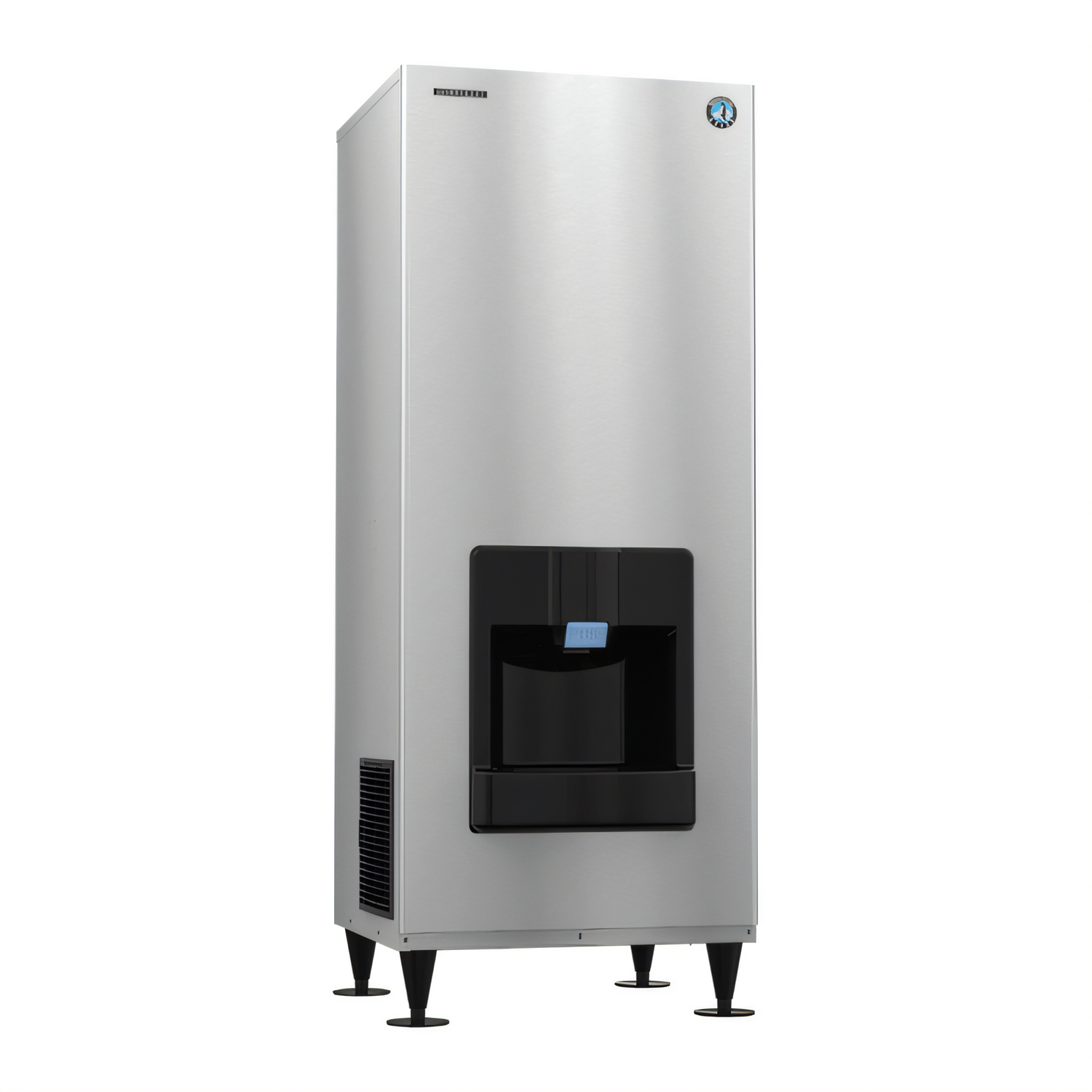

Hoshizaki Serenity DKM-500BAJ Ice Maker & Dispenser
545 lb Crescent-Cube Production • 200 lb Built-In Storage • Air-Cooled, Self-ContainedDeliver crystal-clear KMEdge crescent ice where your staff and guests need it—right at the push of a button. The Serenity series keeps production whisper-quiet in the kitchen while its ADA-compliant dispense height, antimicrobial protection and ENERGY STAR® efficiency make it the smart, inclusive choice for healthcare, hospitality and food-service operations.
Key Features
- Produces up to 545 lb of ice every 24 hr at 70 °F air / 50 °F water (534 lb AHRI certified at 90 °F / 70 °F).
- 200 lb insulated polyethylene bin with push-button dispense—13 lb of ice per minute.
- Quiet, self-contained air-cooled condenser; ideal for server stations and suites.
- KMEdge™ dual-sided stainless steel evaporator + CycleSaver™ design for faster harvests and lower energy use.
- H-GUARD Plus antimicrobial protection on all food-zone surfaces.
- ADA-compliant ice delivery height—easy access for all users.
- Durable one-piece stainless steel exterior; removable air filters for tool-free cleaning.
- Factory-installed 11 ft cord & NEMA 5-20P plug; no remote compressor to install.
Performance & Utilities
| Model | DKM-500BAJ (Serenity Series) |
|---|---|
| Ice type | Individual crescent cube |
| 24 hr production | 545 lb @ 70 °F/50 °F • 534 lb AHRI @ 90 °F/70 °F |
| Storage capacity | 200 lb | 6.7 ft³ (built-in) |
| Dispense rate | ≈ 13 lb per minute (push button) |
| Energy use | 5.56 kWh / 100 lb ice |
| Water use | 16.6 gal potable / 100 lb ice |
| Electrical | 115 V / 60 Hz / 1-ph, 13.5 A, NEMA 5-20P |
| Refrigerant | R-404A (1 lb 12.2 oz charge) |
| Heat rejection | 9,100 BTU/hr |
| Dimensions (W×D×H) | 30" × 28" × 77" (incl. 6" flanged legs) |
| Operating limits | Ambient 45-100 °F • Water 45-90 °F • Water pressure 10-113 PSI |
| Plumbing | 1/4" water supply • 3/4" gravity drain |
| Weight | ≈ 300 lb net • 385 lb shipping |
Certifications & Warranty
- ENERGY STAR®, NSF & UL listed, CEC compliant.
- 3-Year parts & labor warranty on entire machine.
- 5-Year parts & labor on evaporator • 5-Year parts on compressor & air-cooled condenser coil.
Ideal Applications
- Patient floor nourishment rooms & nurses’ stations.
- Hotel concierge lounges and self-serve beverage stations.
- Employee breakrooms where low noise is a must.
- Small restaurants, cafés and bars looking to maximize space.
Ice capacities are calculated using 100 % of bin volume at 30 lb / ft³ density. Always confirm utilities and clearances before final installation.
