Hoshizaki DCM-500BWH Ice & Water Dispensers
Hoshizaki DCM-500BWH Ice & Water Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hoshizaki DCM-500BWH Ice & Water Dispensers
Description

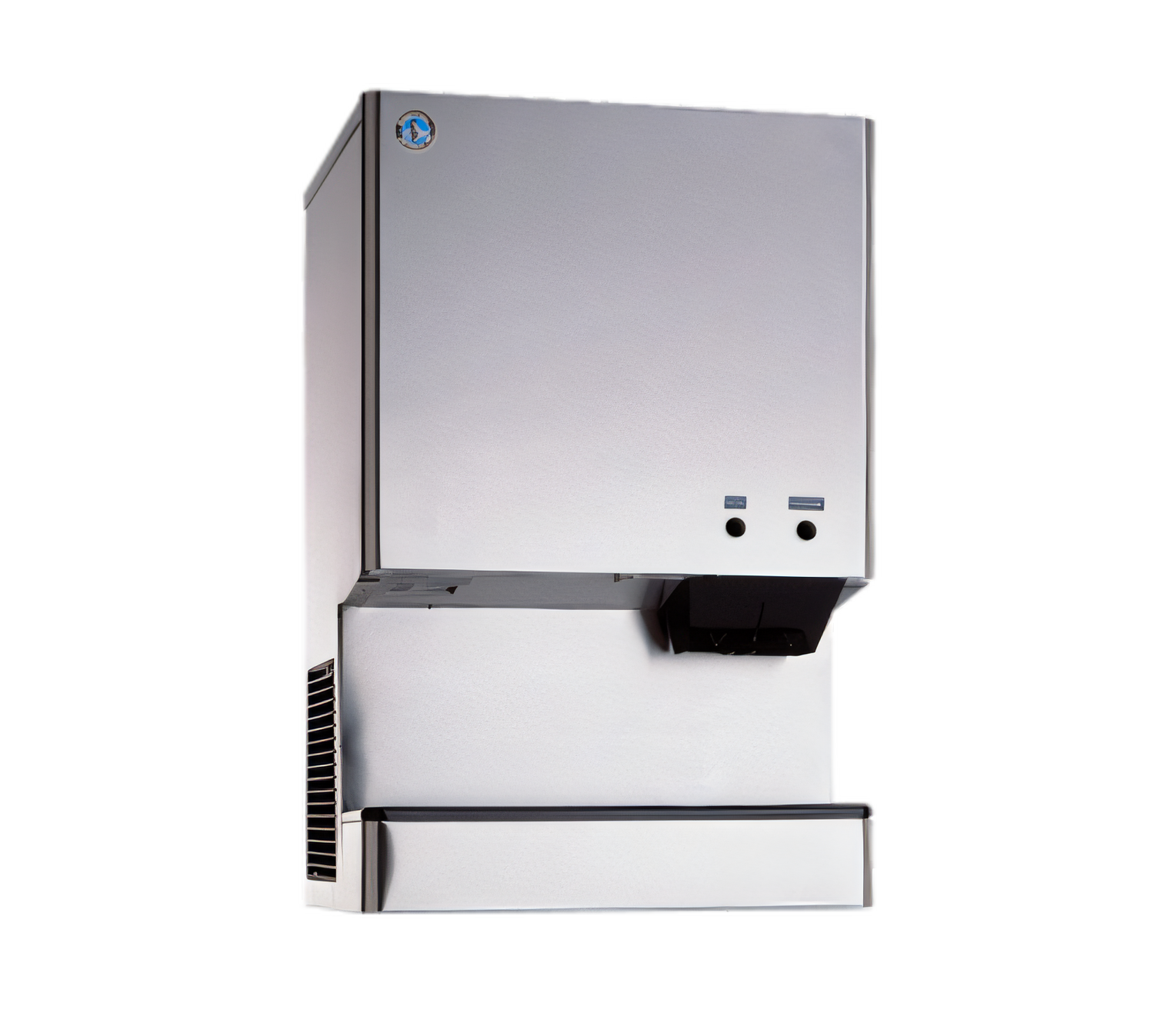

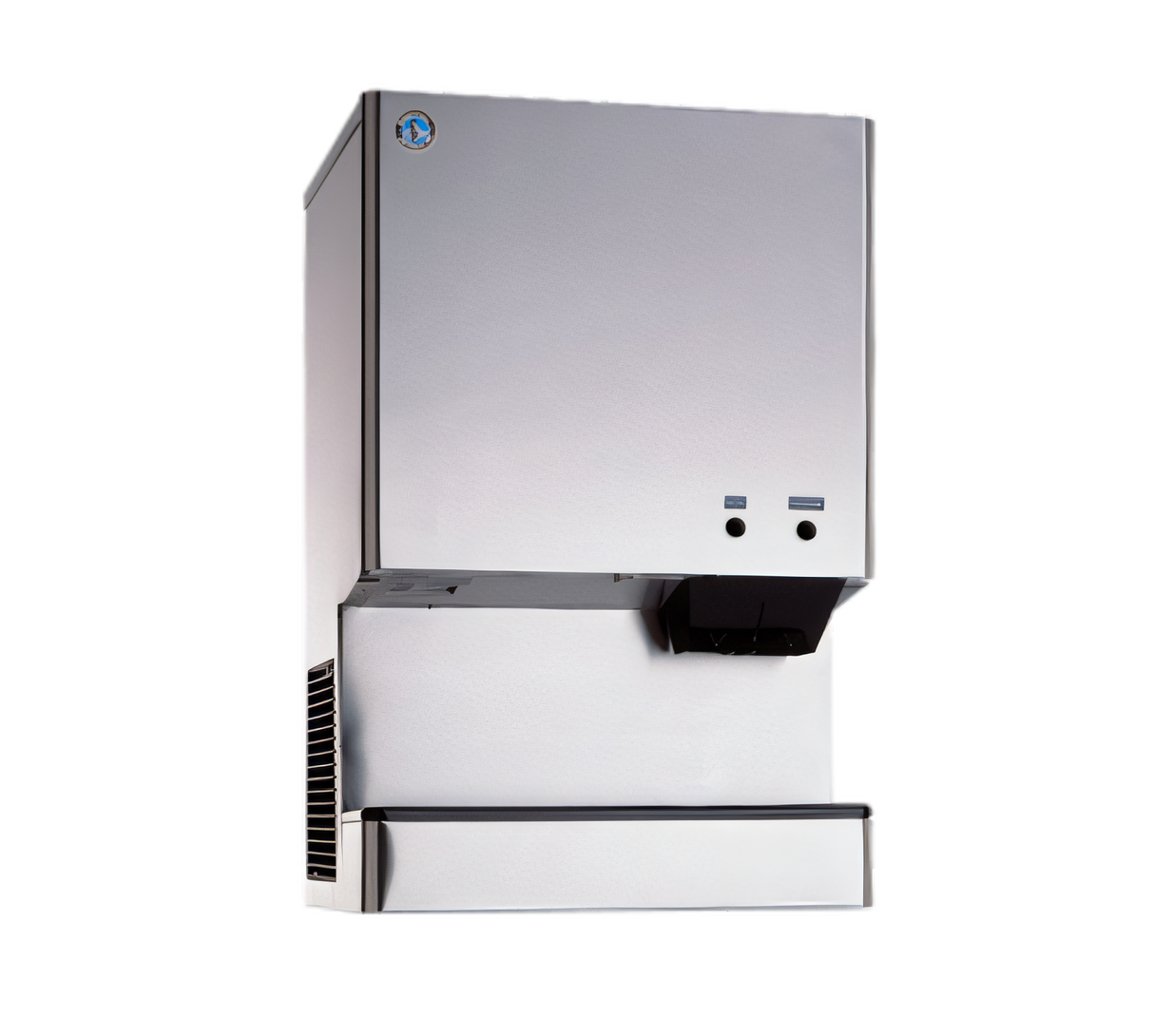

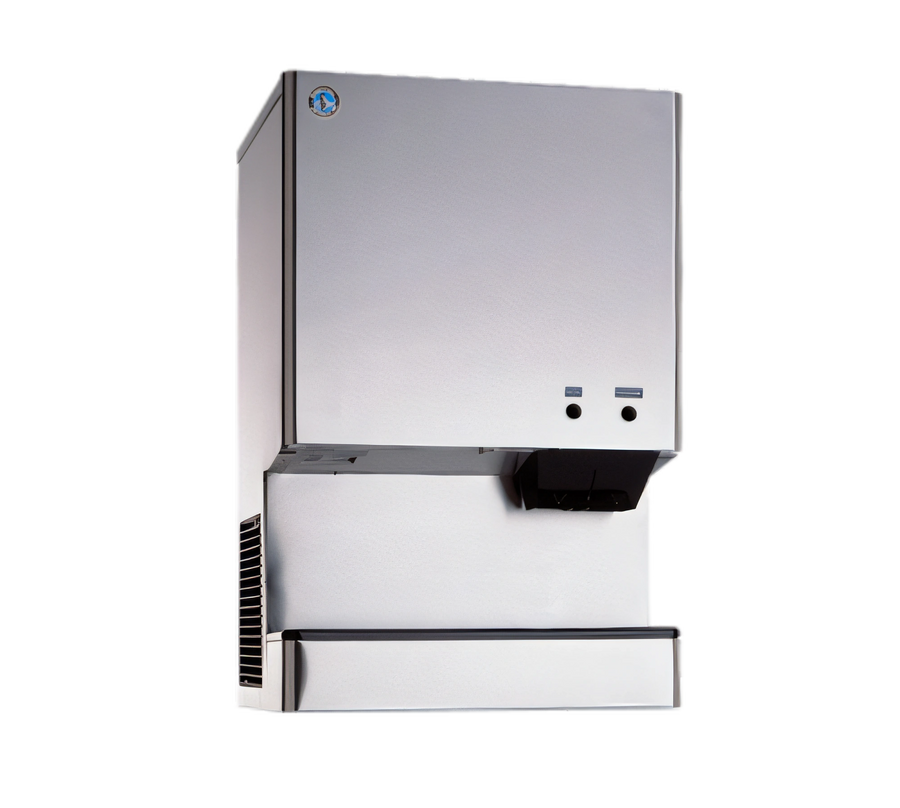

Hoshizaki DCM-500BWH Cubelet Ice & Water Dispenser
Water-Cooled • Countertop • 590 lb/dayDeliver soft, chewable cubelet ice and chilled water from a single, sanitary unit. The DCM-500BWH is engineered for high-demand breakrooms, healthcare hydration stations, and quick-serve counters that need reliable ice production without the heat or noise of an air-cooled machine.
Key Benefits
- High production – up to 590 lb/24 hr (512 lb AHRI certified at 90 °F/70 °F).
- 40 lb (1.3 ft³) built-in bin keeps ice ready for peak demand.
- Favorite cubelet ice is easy to chew, quick-chilling, and perfect for patient and customer beverages.
- Advanced CleanCycle24™ flushes the evaporator for 2 seconds every hour, reducing scale and slime.
- H-GUARD Plus antimicrobial agent is molded into critical food-zone components.
- Durable stainless steel exterior, bin and auger with greaseless graphite bearings.

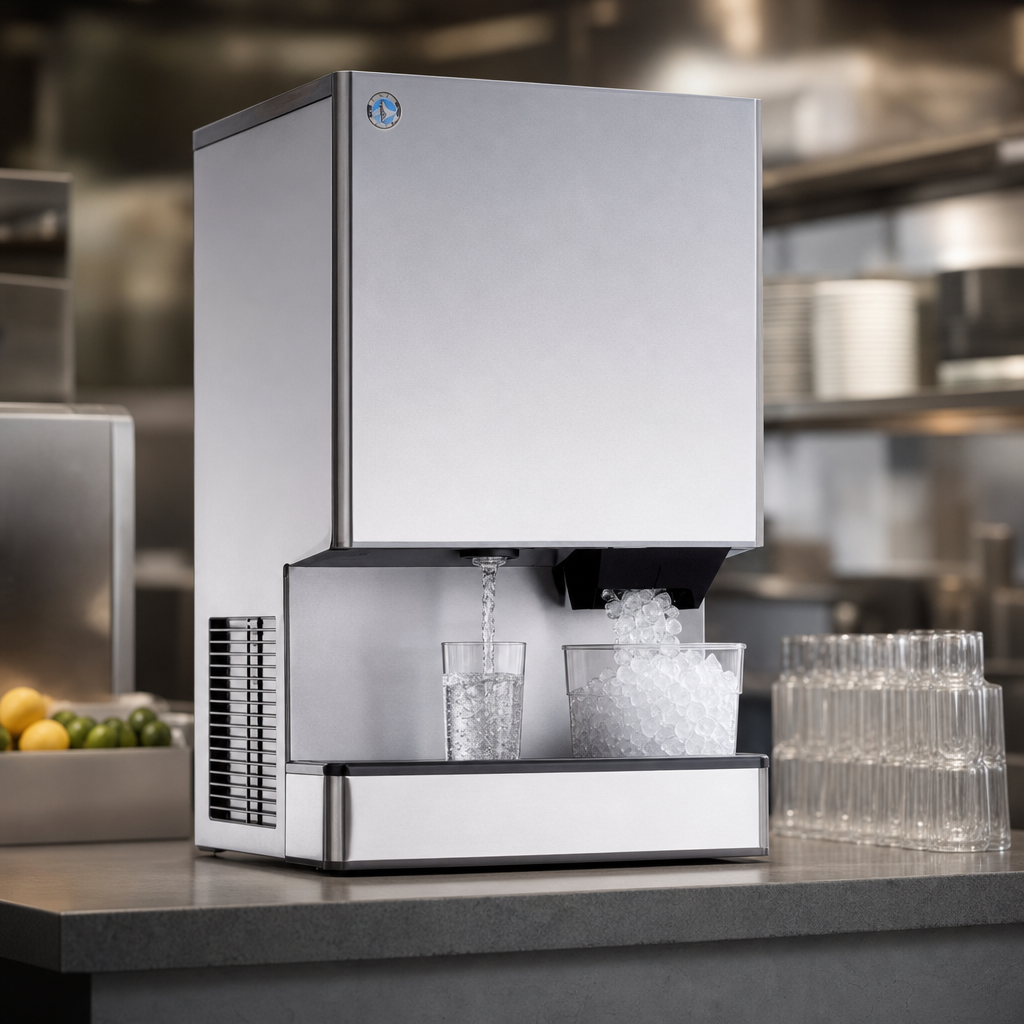

- Simple, hygienic push-button dispensing for ice, water, or ice-water.

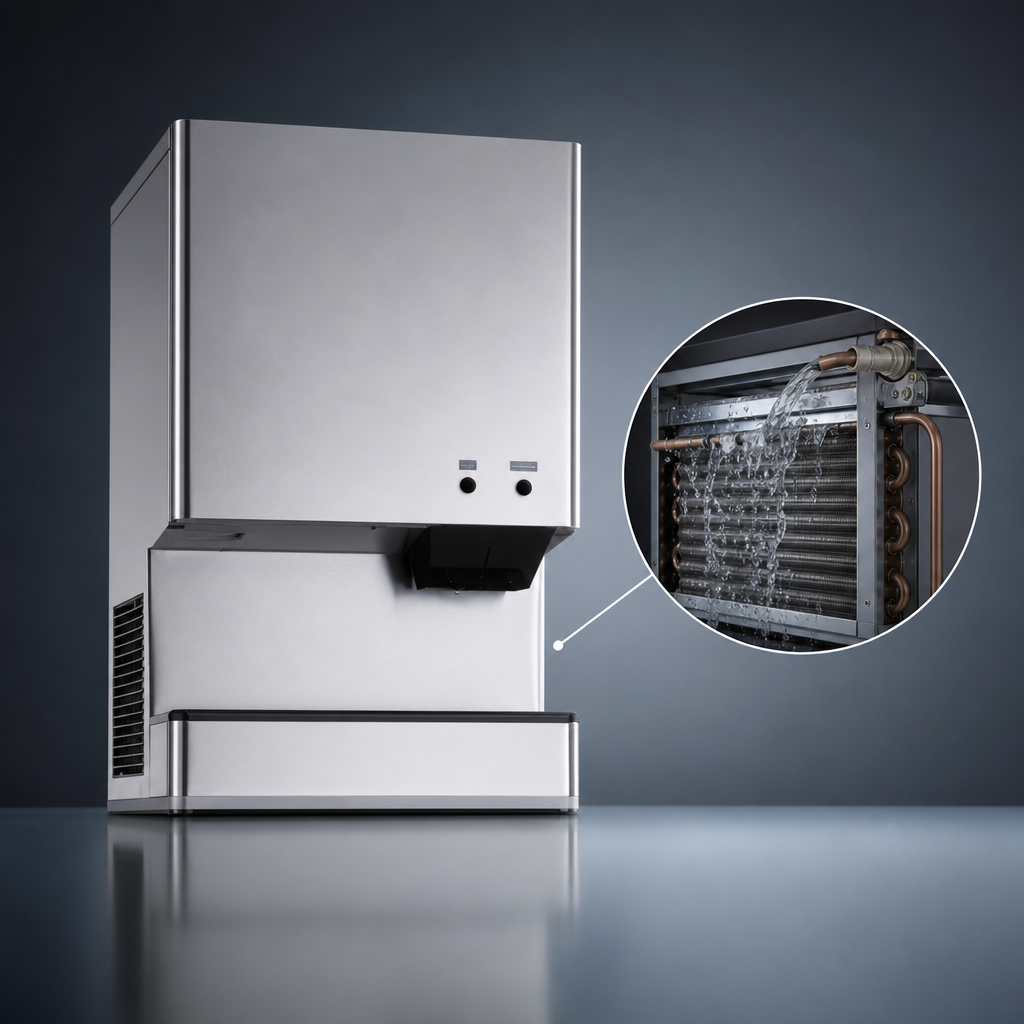

- Quiet, self-contained water-cooled condenser—ideal for hot kitchens or noise-sensitive areas.
- NSF & UL listed, AHRI 820 certified, charged with R-404A refrigerant.
Technical Specifications
| Ice type | Cubelet (nugget-style), chewable |
|---|---|
| Production capacity | 590 lb/24 hr at 70 °F air / 50 °F water 512 lb/24 hr (AHRI) at 90 °F air / 70 °F water |
| Storage capacity | 40 lb (1.3 ft³) internal bin |
| Dimensions (W × D × H) | 26" × 22 ½" × 40" |
| Dispensing method | Push-button ice, water, or ice + water |
| Electrical | 115 V / 60 Hz / 1 ph • 12.6 A • 20 A dedicated circuit |
| Water usage | Potable: 12 gal per 100 lb ice Condenser: 112 gal per 100 lb ice |
| Energy usage | 4.48 kWh per 100 lb ice |
| Heat rejection | 6,000 BTU/hr |
| Refrigerant / charge | R-404A • 11.5 oz |
| Operating limits | Ambient 45–100 °F • Water 45–90 °F • Water pressure 10–113 psi |
| Net / ship weight | 245 lb / 255 lb |
| Warranty | 3 yr parts & labor • 5 yr parts on compressor & air-cooled condenser coil |
Ships without legs. For a finished-height installation and extra dry-storage, add the optional SD-500 stainless steel stand (sold separately).
Why Customers Love Cubelet Ice
- Soft, chewable texture preferred in hospitals, offices, and QSRs.
- Absorbs beverage flavor for longer-lasting taste.
- Increased surface area chills drinks faster with less dilution.
Simple Preventive Maintenance
Follow Hoshizaki’s recommended cleaning & sanitizing procedure every six months to keep ice tasting fresh and your warranty intact.
