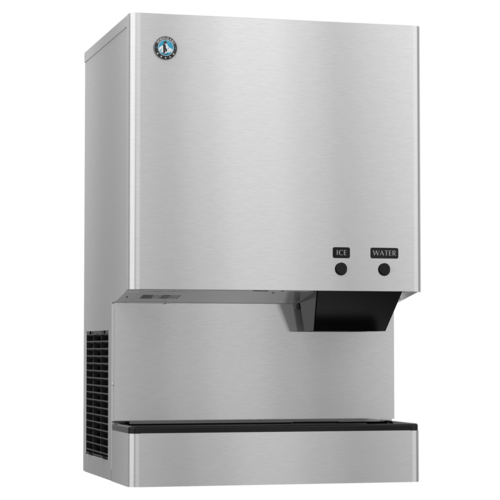

Hoshizaki DCM-500BAK Countertop Air-Cooled Sanitary Cubelet Ice Machine and Water Dispenser with 40 lb Built-In Storage

Self-Contained Condenser, Stainless Steel Exterior, R290 Refrigerant

Serve chewable cubelet ice and fresh water from a compact, sanitary countertop machine built for high-output service.

  • Countertop cubelet ice machine/dispenser that serves both ice and water.
  • Produces up to 597 lb. of ice per day with 40 lb built-in storage.
  • Air-cooled, self-contained condenser helps keep installation straightforward.
  • Durable stainless steel exterior and stainless steel auger support long-term use.
  • CleanCycle24 design and hourly flush cycle help maintain sanitary operation.
  • Runs on 115V single-phase power and uses R290 refrigerant.

Overall Dimensions:

26.0"W x 22.5"D x 40.0"H

Product Weight:

255.0 lb

Cubelet Ice and Water Dispensing

Dispenses chewable cubelet ice and water from a single compact machine.

High Daily Ice Output

Produces up to 597 lb. of ice per 24 hours at 70°/50°F.

40 lb Built-In Storage

Integrated bin stores up to 40 lb. of ice for ready service.

CleanCycle24 Sanitation Design

Automatic 2-second flush cycle every hour helps support clean operation.

Stainless Steel Construction

Durable stainless steel exterior and stainless steel auger with greaseless bearing.

Self-Contained Air-Cooled System

Air-cooled, self-contained condenser simplifies installation and service.

R290 Refrigerant

Uses environmentally friendly R290 hydrocarbon refrigerant.

Type Ice & Water Combination Machine
Style Counter
Installation Type Countertop
Refrigeration Type Air-Cooled
Capacity 40 lb
Ice Production Up to 597 lb. per 24 Hours
Material Stainless Steel
Refrigerant Type R290
Voltage 115 Volts
Amps 6.7 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 20 Amps
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch FPT
Drain Connection Size 3/4 Inch FPT
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor on the entire machine; 5-year parts on the compressor and air-cooled condenser coil.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. It dispenses both cubelet ice and water from the same unit.
Up to 597 lb. per 24 hours at 70°/50°F.
It has 40 lb. of built-in storage capacity.
It operates on 115V/60/1 power, draws 6.7 amps, and requires a 20A minimum circuit.
It uses R290 hydrocarbon refrigerant.
Allow 6" at the rear and sides, and 24" at the top to remove the auger.
