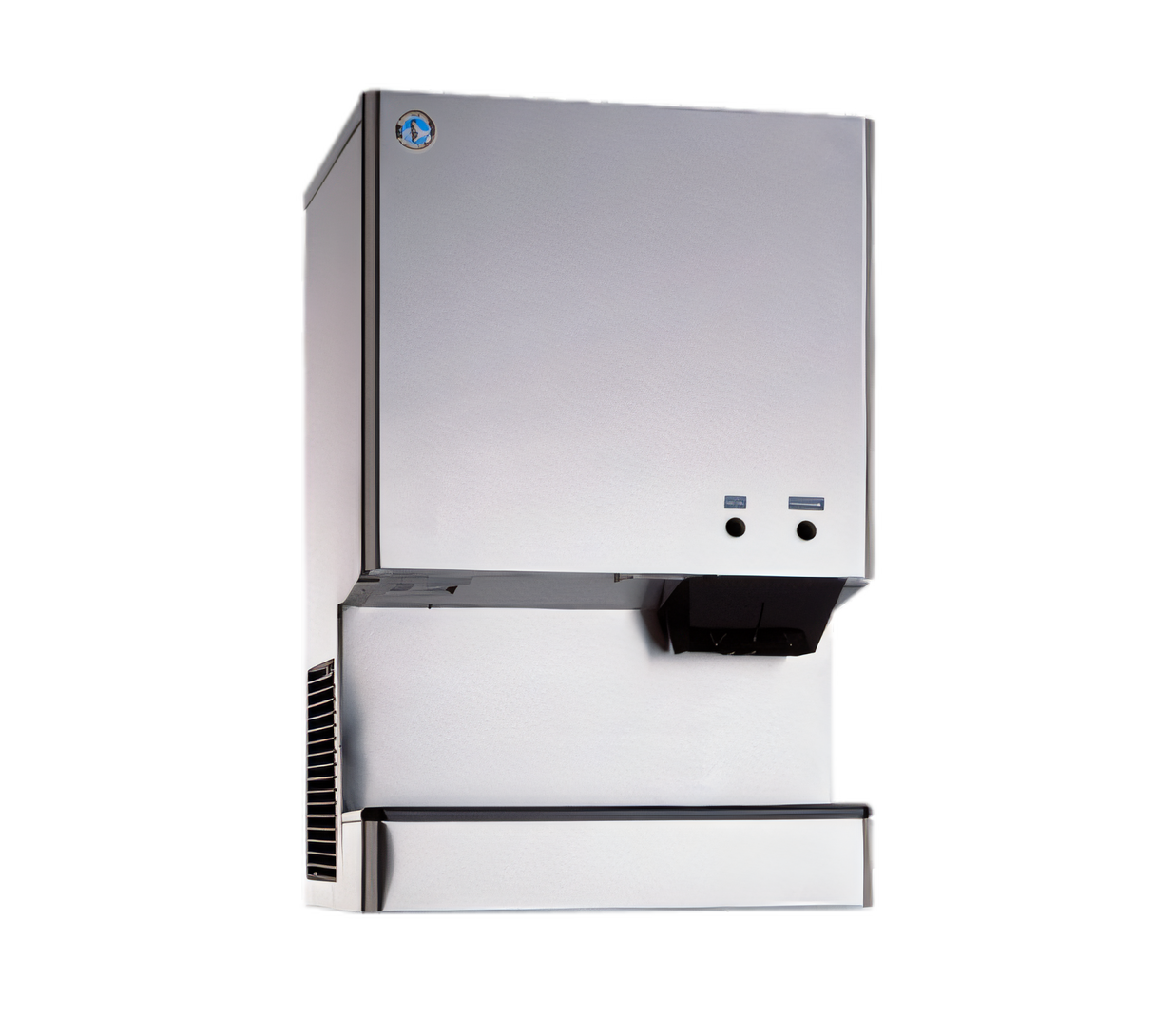

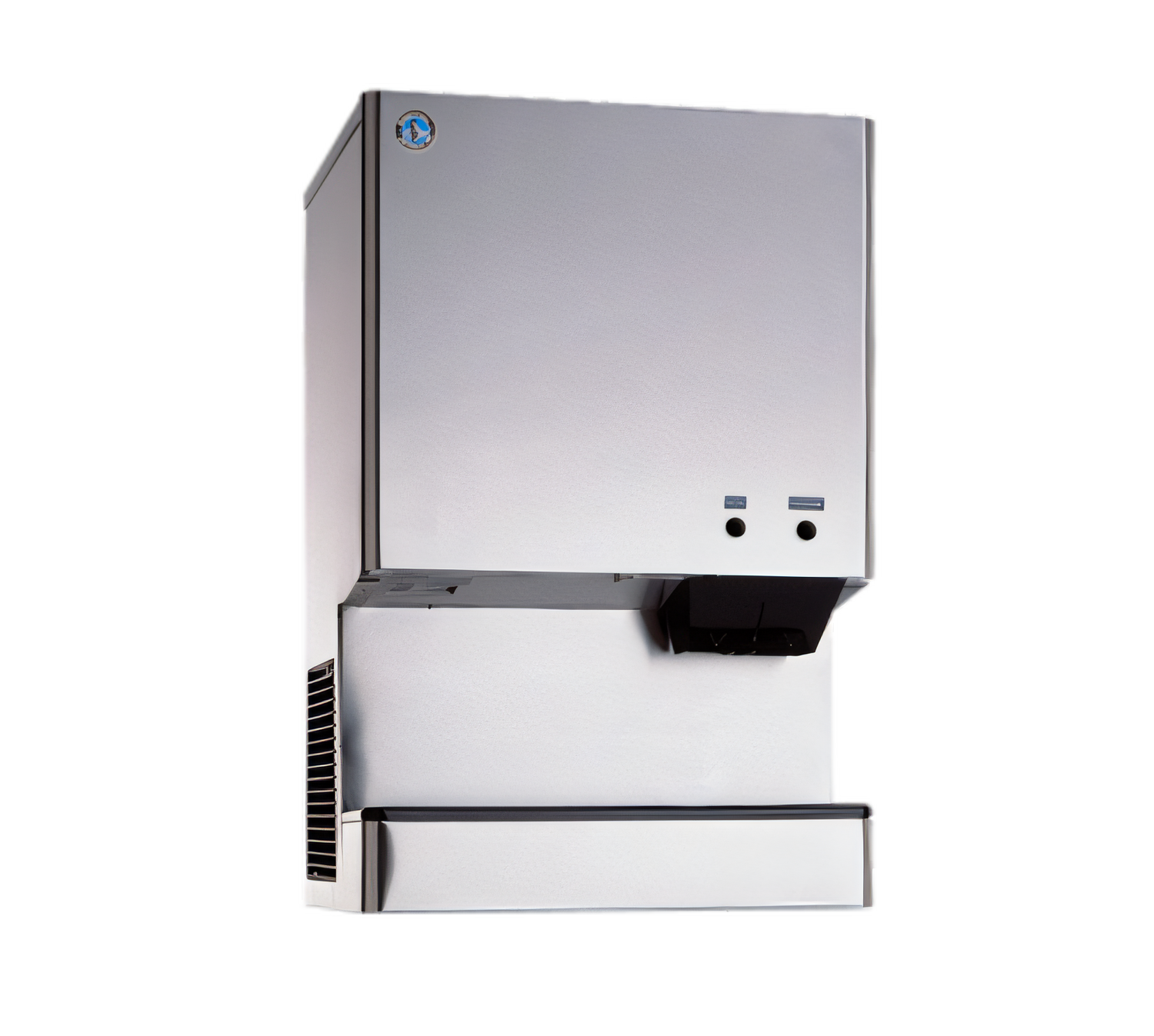

Hoshizaki DCM-500BAH Cubelet Ice & Water Dispenser
Air-cooled, countertop, 618 lb/day productionServe crowd-pleasing, chewable cubelet ice and crystal-clear water from one compact unit. Built for high-volume healthcare, breakroom, café, and c-store applications, the DCM-500BAH pairs Hoshizaki’s industry-leading sanitation technology with push-button simplicity and heavy-duty stainless steel construction.
Why you’ll love it
- High output: up to 618 lb of ice every 24 hr (450 lb AHRI at 90°/70 °F).
- 40 lb built-in bin keeps ice ready for sudden rushes.
- Dual dispense: delivers ice & water at the touch of a button—no scoop, no mess.
- Easy-to-chew cubelet ice absorbs flavors for a better beverage experience.
- CleanCycle24™ flushes the evaporator for 2 sec every hour, automatically reducing scale and sediment.
- H-GUARD Plus antimicrobial protects food-zone components between cleanings.
- Stainless steel exterior, bin & auger with greaseless bearings for long life and lower maintenance.
- Self-contained, air-cooled condenser—no remote refrigeration required.
- Compact 26 in W footprint; optional SD-500 floor stand adds storage & the perfect working height.
Technical specifications
| Ice type | Cubelet (nugget-style), approx. ⅜ in × ½ in × ½ in |
|---|---|
| Daily production (70 °F air / 50 °F water) |
618 lb / 280 kg |
| AHRI production (90 °F air / 70 °F water) |
450 lb / 204 kg |
| Storage capacity | 40 lb (1.3 ft³) built-in bin |
| Dispense method | Push-button – ice or water |
| Condenser type | Air-cooled, self-contained |
| Refrigerant | R-404A |
| Electrical | 115 V / 60 Hz / 1-ph, 12.9 A, 20 A circuit (including ground) |
| Heat rejection | 7,000 BTU/hr |
| Cabinet dimensions | 26 in W × 22 ½ in D × 40 in H |
| Net / Ship weight | 251 lb / 255 lb |
| Certifications | NSF, UL |
| Factory warranty | 3 yr parts & labor, 5 yr compressor & air-cooled coil (US/CA) |
Installation & utility requirements
- Supplied without legs; order the stainless steel SD-500 stand or 6 in legs if floor mounting is desired.
- Allow 6 in (15 cm) clearance on sides & rear for airflow, and 24 in (61 cm) above for auger removal.
- Water supply: ¼ in ID line, 10–113 PSI, 45–90 °F.
- Drain: ¾ in ID gravity drain from bin.
- Ambient operating range: 45–100 °F.
- Use a GFCI breaker (not receptacle) where local code requires GFCI protection.
Need a water-cooled version? See model DCM-500BWH for reduced heat exhaust and lower ambient noise.
Overall Dimensions:
26.0"W x 22.5"D x 40.0"HProduct Weight:
255.0 lbCertifications & Compliance
