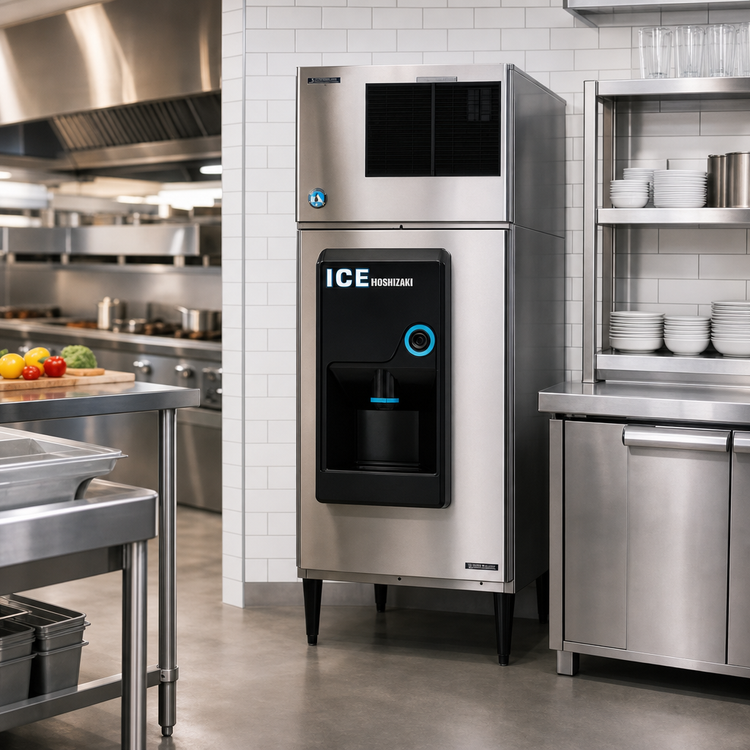

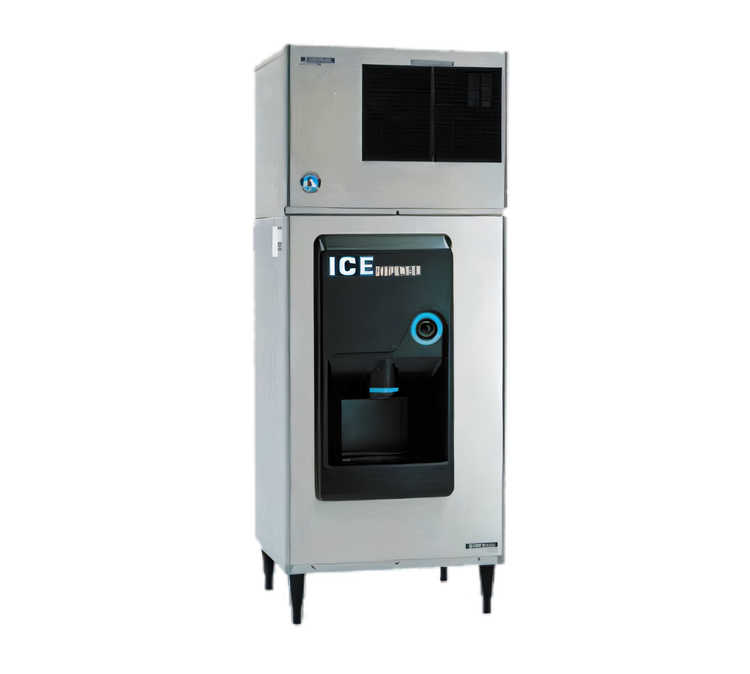

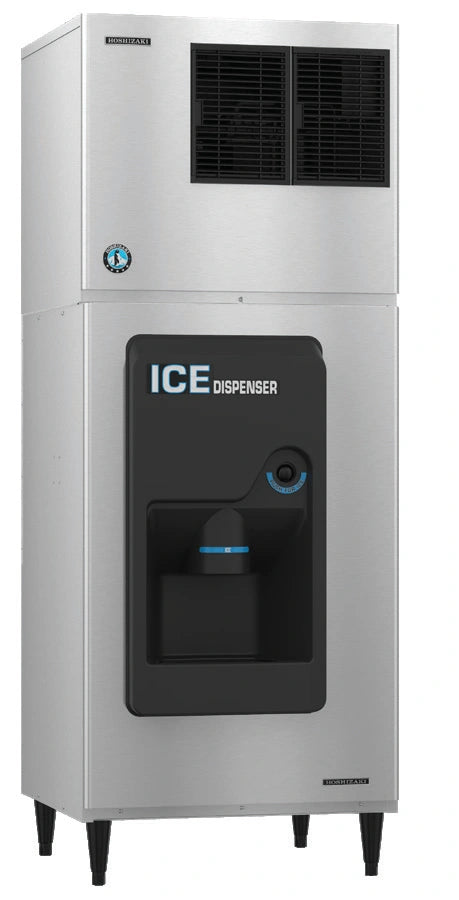

Hoshizaki DB-200H Sanitary Cube Ice Dispenser with 200-lb Built-In Storage

30-Inch Wide Floor Model, ADA-Compliant, 115V Hard-Wired

Built for high-volume service, this ADA-compliant floor dispenser stores 200 lb. of ice and delivers it through a push-button auger system.

  • 200-lb insulated, polyethylene-lined built-in ice storage capacity.
  • ADA-compliant dispensing area for accessible operation.
  • Push-button single auger agitator dispenses ice at up to 13 lb. per minute.
  • Compatible with select KM and KML series cubers; ice machine sold separately.
  • Durable ABS molded front with vinyl covered steel side panels.
  • 115V/60/1 single-phase operation, 60 watts, 1.4 amps; hard-wired installation.
  • Minimum 3/4-inch nominal ID drain line required.
  • Top kit may be required depending on the ice machine/bin combination.

Overall Dimensions:

30.0"W x 30.0"D x 53.0"H

Product Weight:

220.0 lb

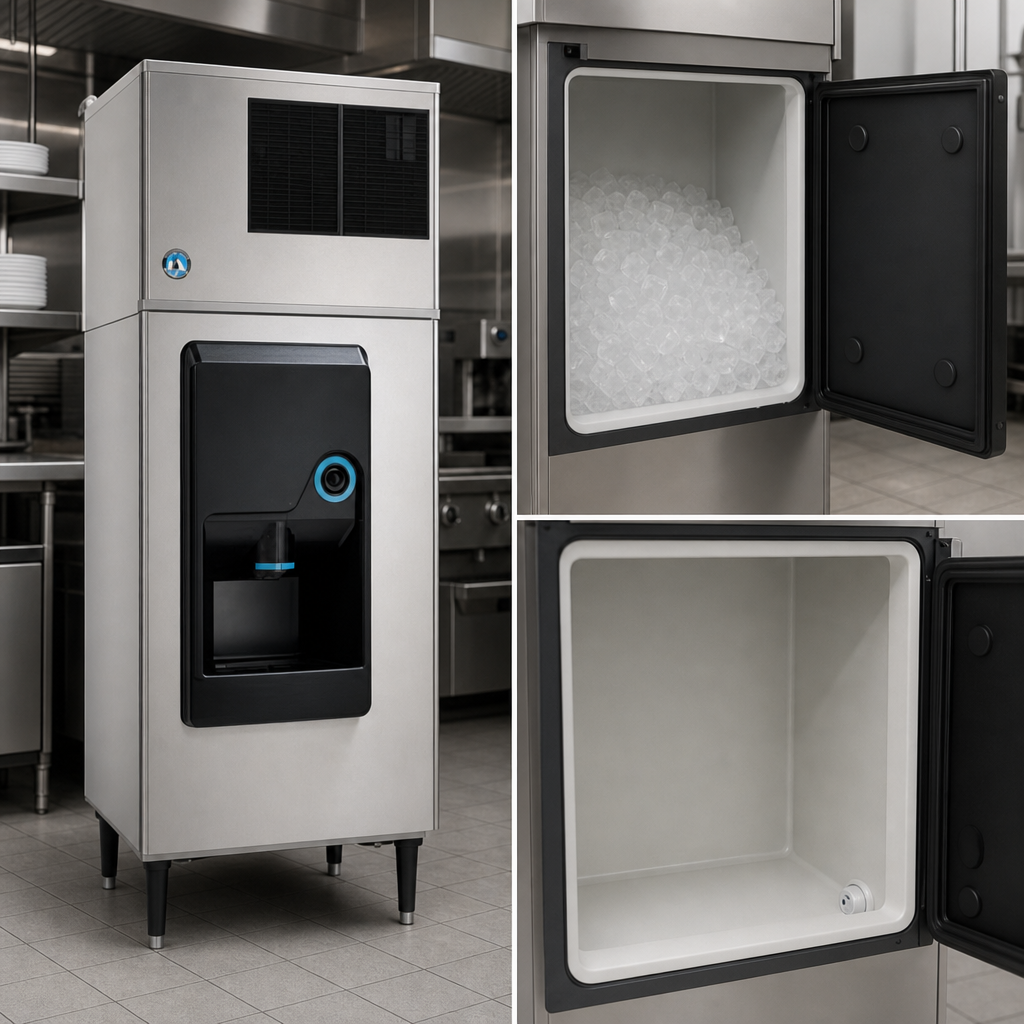

200-lb Built-In Storage Bin

Insulated, polyethylene-lined bin provides 200 lb. of built-in ice storage for steady demand.

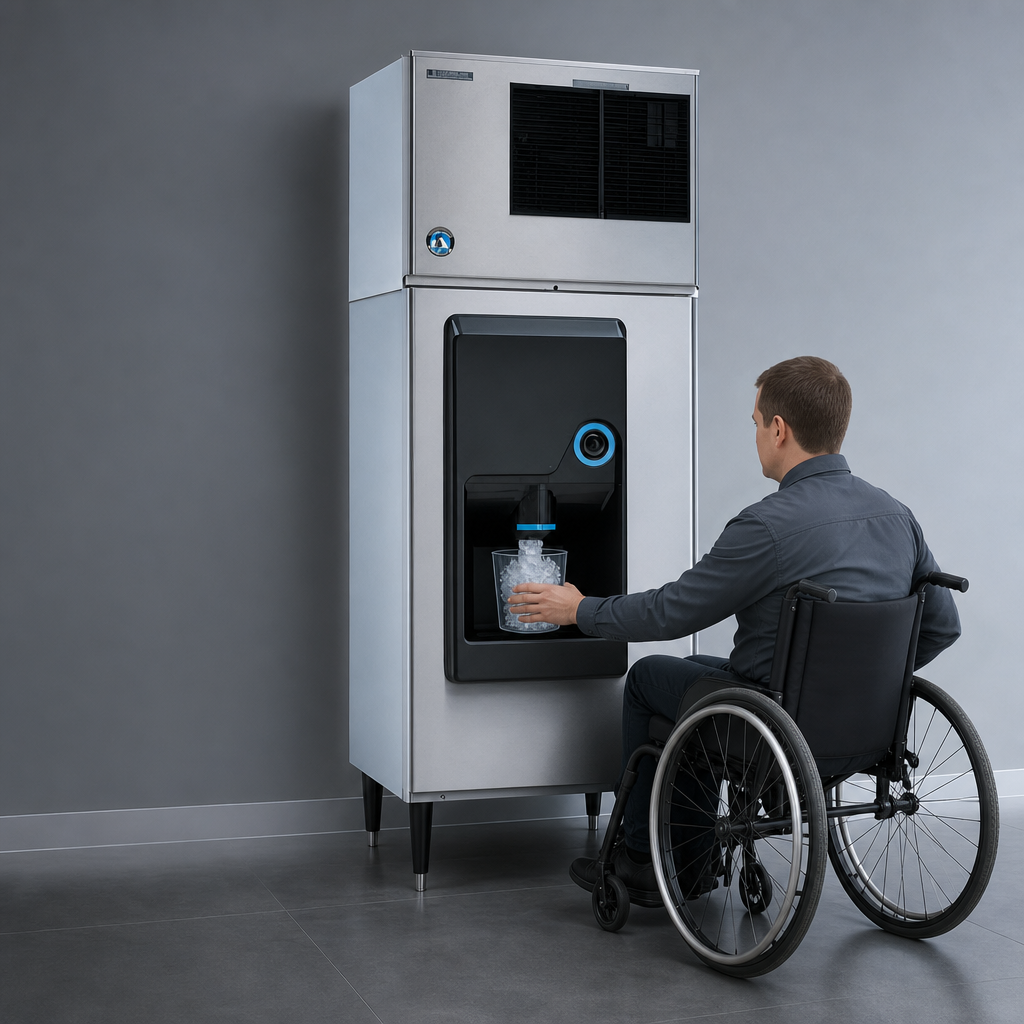

ADA-Compliant Dispensing Area

The ice dispensing area is designed to meet ADA compliance requirements.

Push-Button Single Auger Agitator

Push-button operation activates the auger system to dispense individual ice cubes at up to 13 lb. per minute.

Compatible With Select Cubers

Accommodates KM-340/350, KM-515/520, KM-650/660, and KML series cubers; ice machine sold separately.

Durable Cabinet Construction

ABS molded front and vinyl covered steel side panels provide durable everyday use.

Hard-Wired Electrical Setup

Uses 115V/60/1 power, 60 watts, and 1.4 amps; power cord is not included and the unit must be hard-wired.

6-Inch Legs and Drain Requirements

6-inch painted legs raise the dispenser for floor installation, and the drain line requires a minimum 3/4-inch nominal ID hard pipe or equivalent.

Top Kit May Be Required

Consult the bin matrix for the correct top kit when pairing this dispenser with a specific ice machine.

Type Ice Only
Style Floor Model
Installation Type Floor Model
Capacity 200 lb.
Controls Push Button
Material ABS Plastic / Vinyl Covered Steel
Voltage 115 Volts
Amps 1.4 Amps
Watts 60 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Hardwired
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 33 Inches
Shipping Depth 32.25 Inches
Shipping Height 52 Inches
Shipping Weight 220 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3-year parts and labor on the entire machine.

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Installation & operation PDF Download PDF Flyer PDF Download PDF Warranty PDF Download PDF Bin spec PDF Download

Frequently Asked Questions

It accommodates KM-340/350, KM-515/520, KM-650/660, and KML series cubers.
No. The ice machine is sold separately.
Yes, the ice dispensing area is ADA compliant.
The unit requires 115V/60/1 power, draws 1.4 amps, and uses 60 watts. The power cord is not included and the unit must be hard-wired.
The push-button single auger agitator dispenses ice at up to 13 lb. per minute.
Yes. A minimum 3/4-inch nominal ID hard pipe drain line is required, and a top kit may be needed depending on the ice machine/bin combination.
