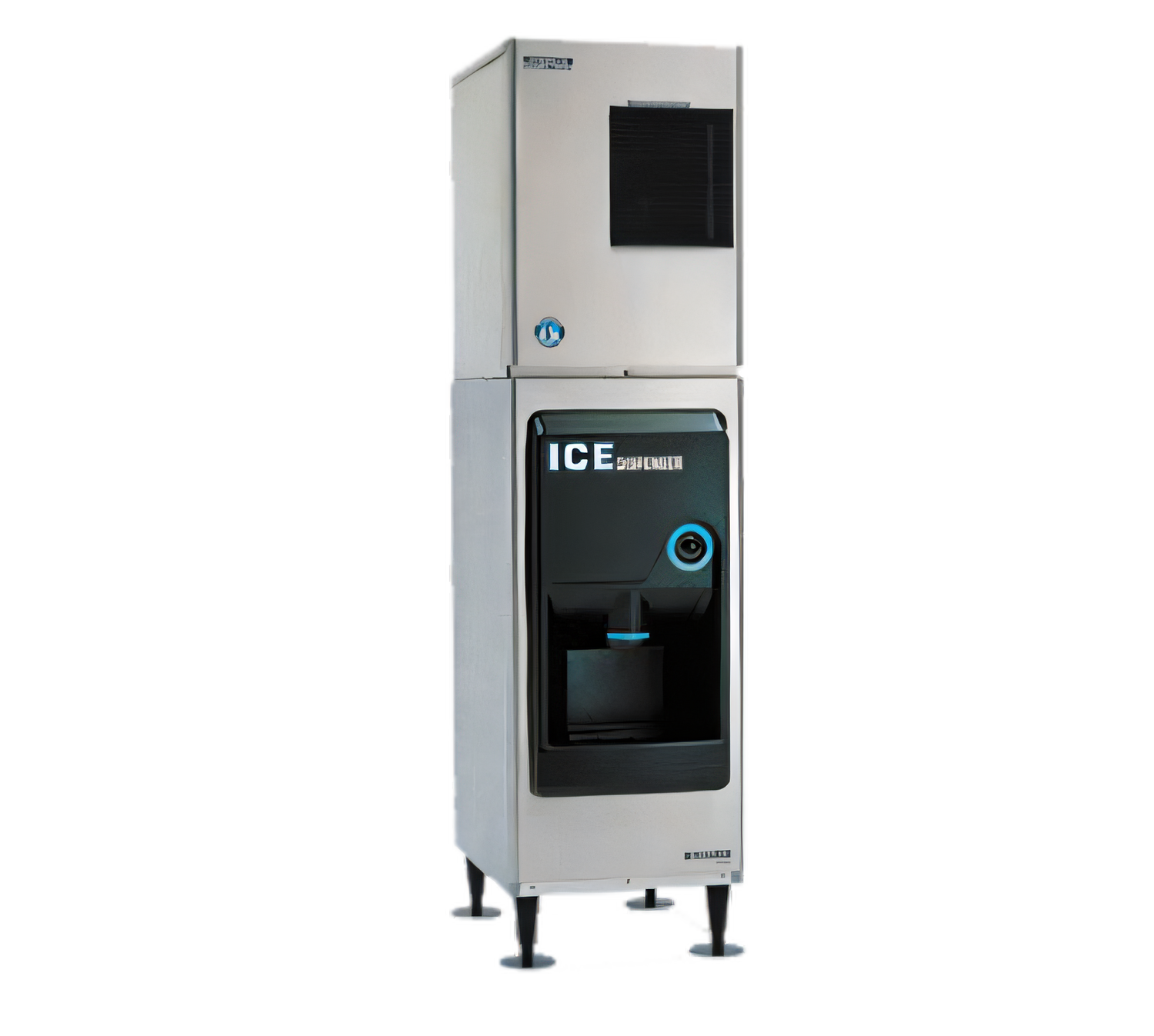

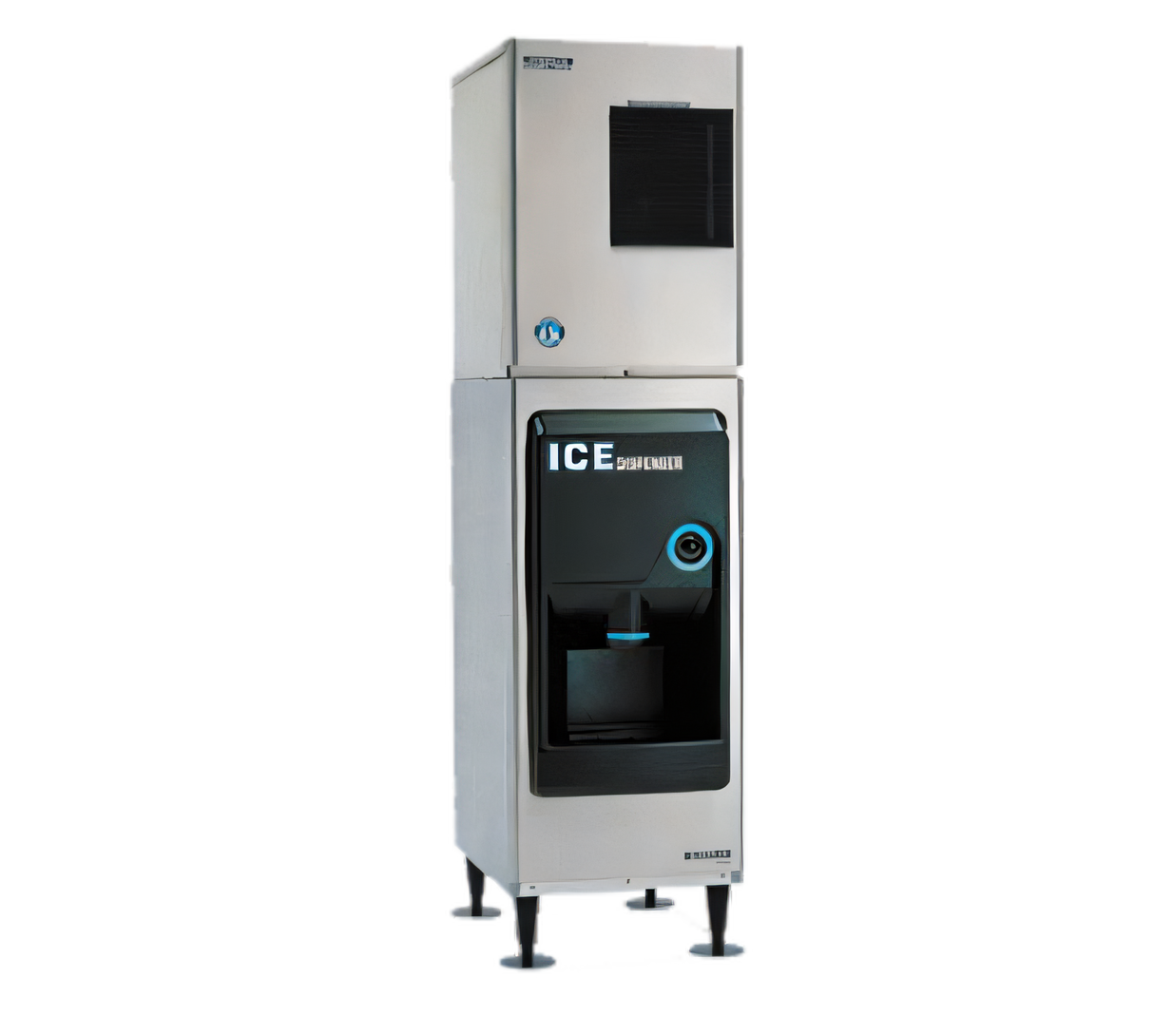

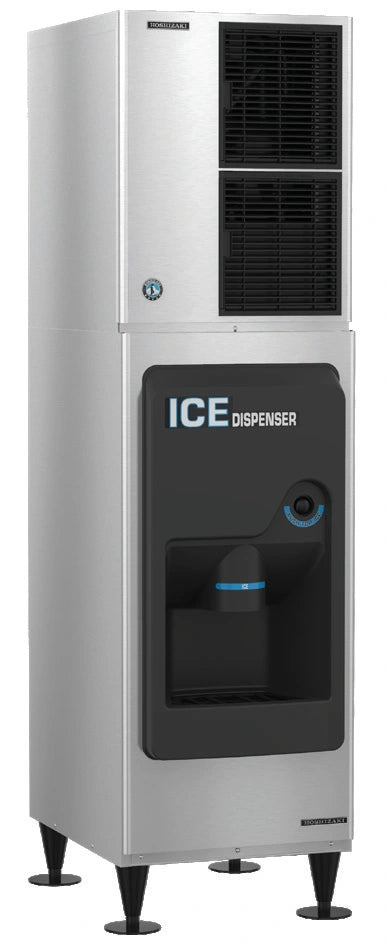

Hoshizaki DB-130H Sanitary Cube Ice Dispenser, 22-Inch Floor Model, 130-lb Built-In Storage Capacity
Hoshizaki DB-130H Sanitary Cube Ice Dispenser, 22-Inch Floor Model, 130-lb Built-In Storage Capacity
ADA-Compliant Dispensing Area, Hard-Wired 115V Operation
A compact, sanitary dispenser that delivers accessible, push-button ice service from a 130-lb insulated storage bin.
- 130-lb built-in storage capacity with an insulated, polyethylene-lined bin.
- ADA-compliant dispensing area for accessible ice service.
- Push-button single auger agitator dispenses ice at up to 20 lb. per minute.
- 22-inch-wide floor model includes 6" flanged painted legs.
- Hard-wired 115V/60/1-phase operation; 60W, 1.4A.
- Compatible with select Hoshizaki KM/KMD cubers; ice machine sold separately.
Overall Dimensions:
22.0"W x 30.0"D x 53.0"HProduct Weight:

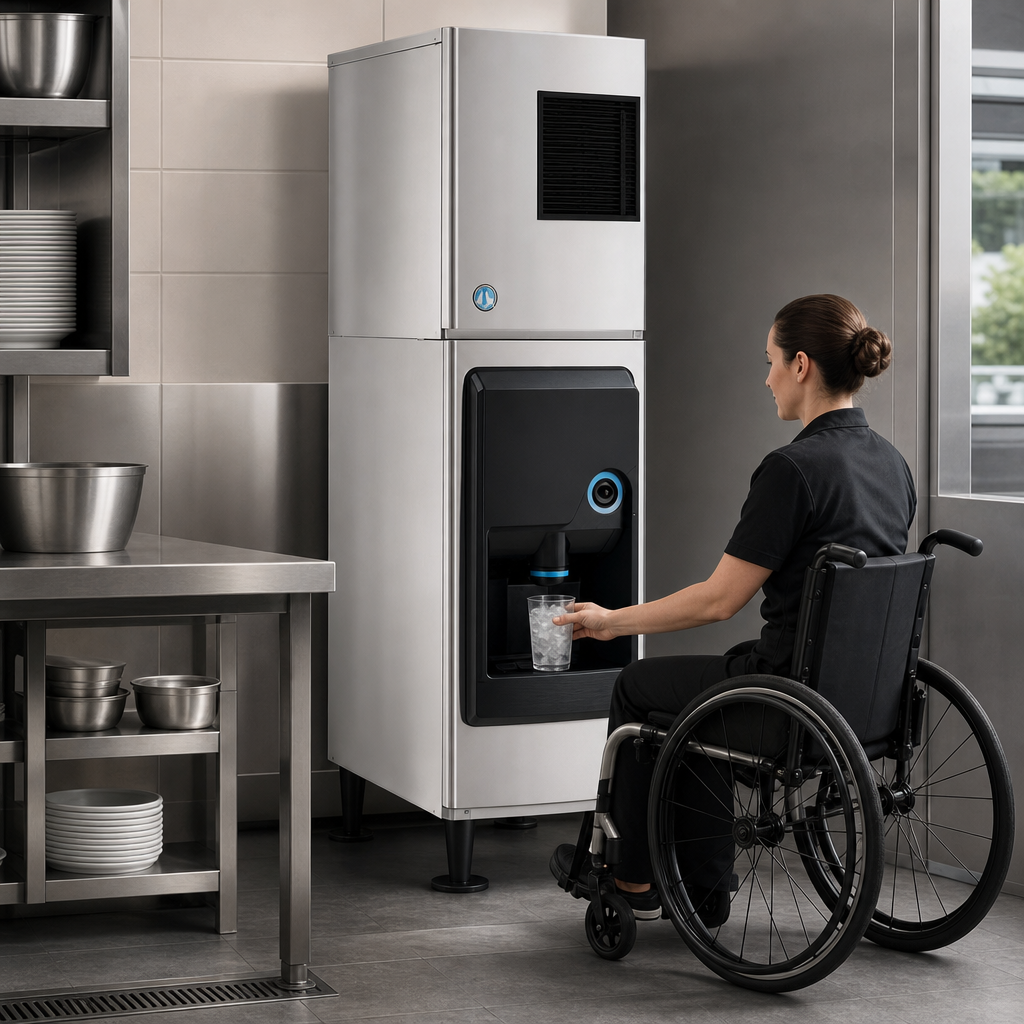

195.0 lbADA-Compliant Dispensing Area
The ice dispensing area is ADA compliant for accessible operation.

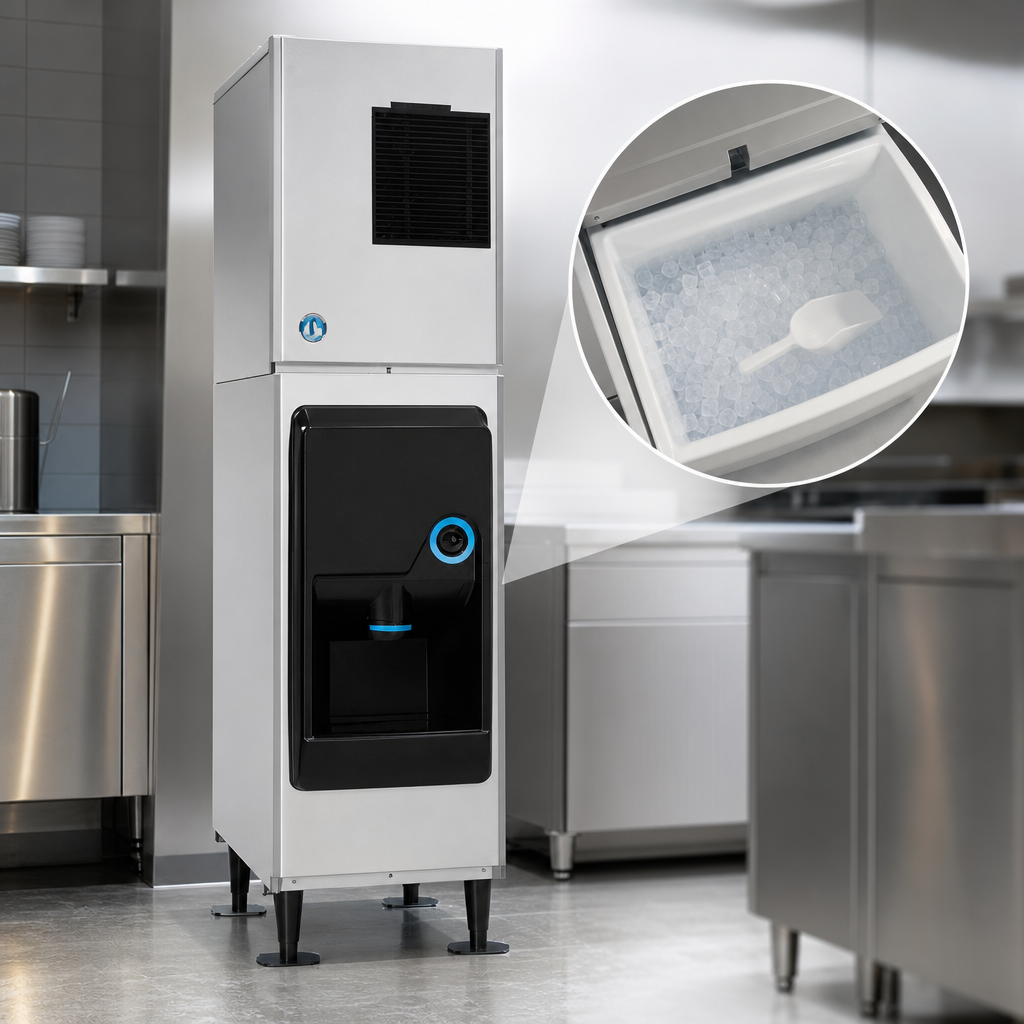

130-Lb Insulated Storage Bin
Built-in storage capacity with an insulated polyethylene-lined ice bin.
Push-Button Single Auger Agitator
Dispenses ice quickly and evenly at up to 20 lb. per minute.
Compatible With Select Cubers
Designed to pair with select Hoshizaki KM and KMD series cubers; ice machine sold separately.
ABS Molded Front Panel
Durable molded front panel supports everyday commercial use.
6" Flanged Painted Legs
Provides stable floor installation and service clearance.
Hard-Wired 115V Power
60W, 1.4A electrical setup; power cord is not included and the unit must be hard-wired on site.
Drain Connection Required
Requires a minimum 3/4" nominal ID hard pipe or equivalent drain line.
Optional Water Dispenser Conversion Kit
HS-5749 is listed as an accessory.
Top Kit May Be Required
Consult the bin matrix for the correct top kit when matching this dispenser with an ice machine.
Certifications & Compliance
Warranty & Protection
3-year parts and labor on the entire machine.
