Hoshizaki  |  Steelheart  |  SKU: CR85A

Hoshizaki CR85A Steelheart Undercounter & Worktop Refrigeration

$11,651.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Refrigeration brochure Parts manual Video Installation & operation Warranty Equipment stand comparison flyer Flyer
Related Searches
Commercial Work Tables Equipment Stands Hoshizaki Kitchen Equipment Tables Restaurant Equipment Undercounter & Worktop Refrigeration

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

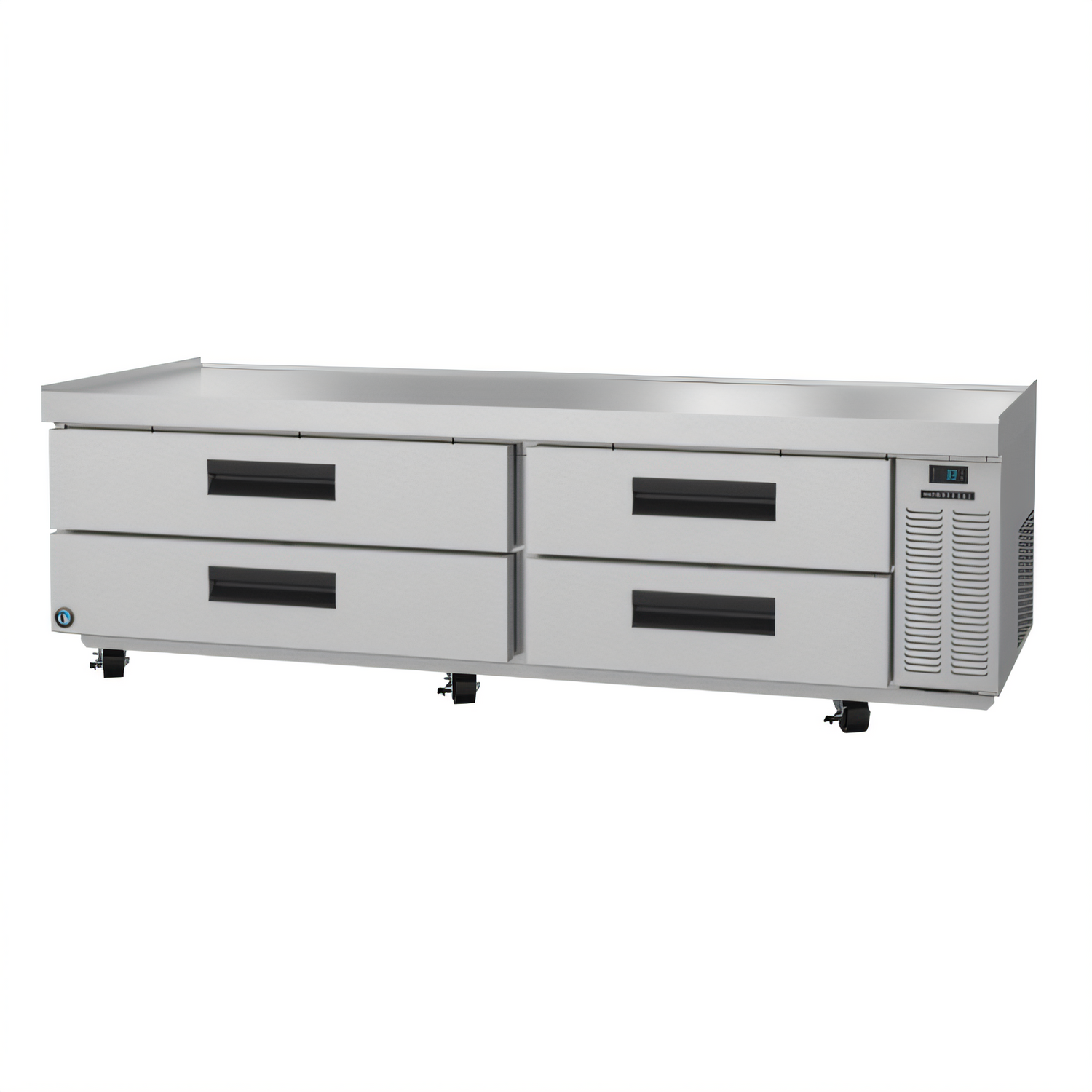

Hoshizaki Steelheart CR85A 85" Refrigerated Chef Base

Low-Profile, 4-Drawer Equipment Stand  |  115 V

Keep ingredients safely chilled right where the action happens. The Steelheart CR85A tucks 21 ft³ of cold storage beneath a heavy-duty 16-gauge stainless worktop that supports up to 1,500 lb of countertop cooking equipment—perfect for griddles, charbroilers and more.

Key Advantages

  • Integrated ceramic heat shield deflects high cook-top temperatures, protecting food quality.
  • All-stainless construction inside & out with coved-corner floor for fast, thorough cleaning.
  • Solid-state digital controller with °F/°C LED read-out plus high/low temp alarms.
  • Front-breathing, side-mounted 1/5 HP refrigeration uses eco-friendly R290 and just 2.9 kWh/day.
  • Four drawers on 250-lb stainless slides—life-tested 300,000 cycles—for rock-solid durability.
  • Snap-in magnetic gaskets, finger cut-outs and removable end panel speed daily maintenance.
  • (6) 4" locking casters & rear bumpers make installation and cleaning a breeze.
  • cETLus & ETL-Sanitation listed and backed by a 7-year compressor warranty for peace of mind.

Drawer Pan Capacity

  • Left section (2 drawers): 3 × 12" × 20" × 6" pans each — 6 total
  • Right section (2 drawers): 2 × 12" × 20" × 6" pans each — 4 total
  • Accepts 1/2, 1/3 & 1/6 pans with optional divider bars (sold separately)

Food pans are not included.

Specifications

Model CR85A (Steelheart Series)
Exterior Dimensions 85" W × 32.25" D × 27" H
(26" to work surface with 4" casters)
Interior Capacity 21.10 ft³ | 18.95 ft³ (AHAM)
Work-Top Load Rating 1,500 lb
Temperature Range 32 °F – 52 °F (0 °C – 11 °C)
Refrigerant R290 Hydrocarbon | 4.2 oz charge
Compressor 1/5 HP, self-contained, side-mounted
Electrical 115 V / 60 Hz / 1-ph • 3.0 A • NEMA 5-15P • 10 ft cord
Energy Use 2.9 kWh per day (NSF)
Certifications cETLus | ETL-Sanitation | Georgia Made | Natural Refrigerant
Warranty 5-year parts & labor / 7-year compressor
Installation Note: If your local code requires GFCI protection, use a GFCI breaker instead of a GFCI receptacle to prevent nuisance tripping.

Features & Specs

Manufacturer

Hoshizaki

Brand_name

Steelheart

Certifications

cETLus, ETL-Sanitation

Height

27.0in

Width

85.0in

Depth

32.25in

Shipping Weight

567.0lbs

Top Finish

stainless steel top

Drawer Qty

4 drawers

Exterior Finish

galvanized & stainless steel exterior

Refrigeration

self-contained, side mounted

Width

85" - 96" wide

Compressor HP

1/5 HP

Specifications

Steelheart Series Refrigerated Equipment Stand, two-section, 85"W x 32-1/4"D x 27"H, (4) drawers: left two drawers will accommodate (3) 12" x 20" x 6" deep pans each, right two drawers will accommodate (2) 12" x 20" x 6" deep pans each (pans not included), solid state digital controller with temperature alarms, LED display, stainless steel front, sides, & top, stainless steel interior, side-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, NEMA 5-15P, (6) 4" casters (all with brakes), cETLus, ETL-Sanitation
