Hoshizaki  |  Steelheart  |  SKU: CR72A

Hoshizaki CR72A Steelheart Undercounter & Worktop Refrigeration

$10,001.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty Equipment stand comparison flyer Flyer Installation & operation Refrigeration brochure Video Parts manual
Related Searches
Hoshizaki Undercounter & Worktop Refrigeration

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

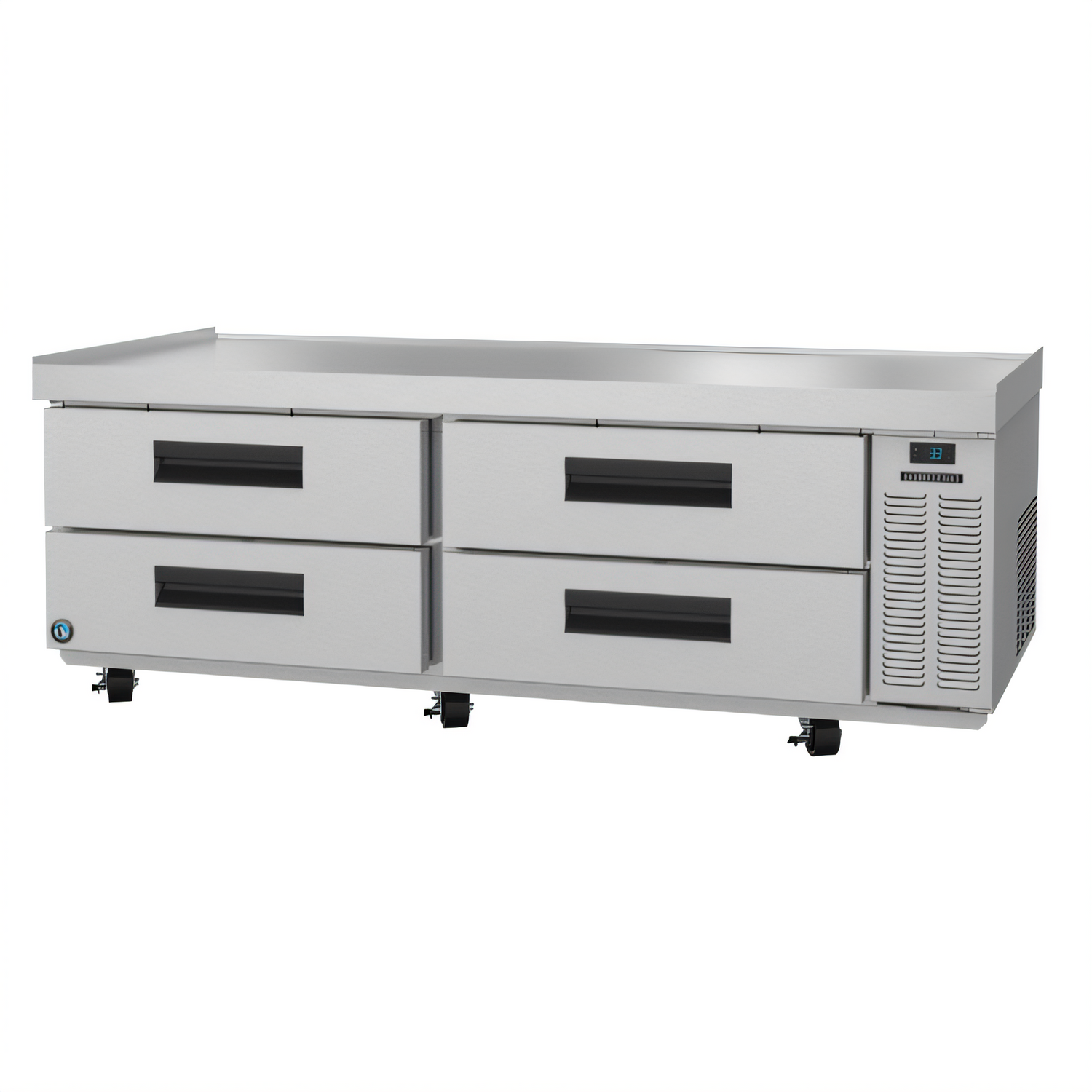

Steelheart 72" Low-Profile Refrigerated Equipment Stand – Model CR72A

by Hoshizaki | two-section • four drawers • side-mount refrigeration

Keep ingredients ice-cold right where the action happens. The Hoshizaki CR72A combines a rock-solid 1,500 lb work surface with high-performance refrigeration, giving chefs a single footprint for both cooking equipment and bulk storage.

Why chefs choose the CR72A

  • 16-gauge 304 stainless steel top with 90° side edges, marine front/rear edges, and drip edges for mess-free cleaning.
  • Integrated ceramic heat shield keeps cabinet temps steady even under a blazing charbroiler (≤ 180 °F/82 °C).
  • Four heavy-duty drawers (250 lb slide rating) tested 300,000+ cycles for long-term reliability.
  • Each drawer holds two full-size 12" × 20" × 6" pans – eight pans total (pans sold separately).
  • Solid-state digital controller with high/low temperature alarms and bright LED read-out in °F or °C.
  • Eco-friendly R290 hydrocarbon refrigerant and energy-saving hot-gas condensate evaporator.
  • All-stainless interior with coved floor corners for effortless sanitation.
  • Front-breathing, side-mounted 1/5 HP refrigeration system – no rear clearance headaches.
  • Six 4" locking casters factory-installed for easy roll-in installation.
  • cETLus & ETL-Sanitation listed; optional 7-year compressor warranty available.

Cold storage capacities

Total pan capacity 8 × 12" × 20" × 6" hotel pans (2 per drawer)
Interior volume 17.26 ft³ (15.44 ft³ AHAM)
Adjustable set-point 32 °F – 52 °F (0 °C – 11 °C)

Dimensions & installation

Exterior (W × D × H) 72.5" × 33.25" × 27" (overall)
Work surface height 26" (including 4" casters)
Depth with drawers open 55.75"
Required clearances Top: ≥ 4" below heat source • Sides: 1" • Rear: factory bumpers provide spacing
Shipping weight 500 lb crated

Electrical & refrigeration

Voltage 115 V / 60 Hz / 1-phase
Full-load amps 3.0 A (15 A HACR breaker recommended)
Plug type NEMA 5-15P, 10 ft cord included
Compressor 1/5 HP (1,354 BTU/hr nominal)
Refrigerant / charge R290 / 4.1 oz
Energy use (NSF) 2.78 kWh per day

Hotel pans, countertop cooking equipment, and optional divider bars are not included.

Electrical safety: Where ground-fault protection is required, a GFCI breaker must be used instead of a GFCI receptacle.

Features & Specs

Manufacturer

Hoshizaki

Brand_name

Steelheart

Certifications

cETLus, ETL-Sanitation

Height

27.0in

Width

72.5in

Depth

33.25in

Shipping Weight

500.0lbs

Width

61" - 72" wide

Compressor HP

1/5 HP

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Drawer Qty

4 drawers

Exterior Finish

all stainless steel exterior

Specifications

Steelheart Series Refrigerated Low-Profile Equipment Stand, two-section, 72-1/2"W x 33-1/4"D x 26"H, (4) drawers: each will accommodate (2) 12" x 20" x 6" deep pans (pans not included), solid state digital controller with temperature alarms, LED display, stainless steel exterior front, sides, & top, stainless steel interior, (6) 4" casters, side-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, cord with NEMA 5-15P, cETLus, ETL-Sanitation
