Hoshizaki  |  Steelheart  |  SKU: CR60A

Hoshizaki CR60A Steelheart Undercounter & Worktop Refrigeration

$8,712.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

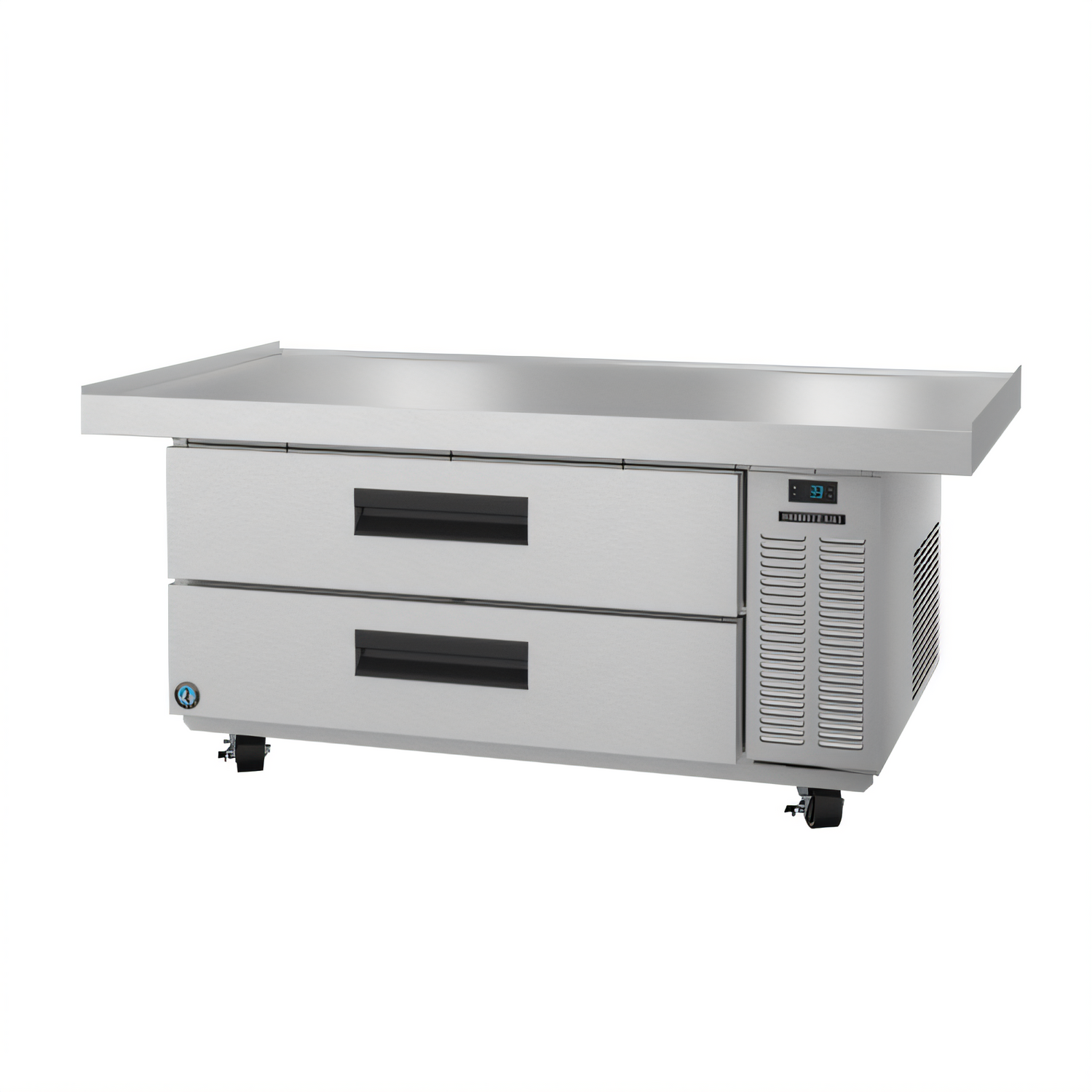

Hoshizaki Steelheart CR60A 60-inch Refrigerated Equipment Stand

Low-Profile Chef Base - One Section, Two Drawers

Keep ingredients safely chilled right where the action happens. The Steelheart CR60A combines a heavy-duty 1,000 lb work top with high-performance, side-mounted refrigeration—perfect for supporting charbroilers, griddles or countertop ranges while holding pans of mise en place at food-safe temperatures.

Why You’ll Love It

  • 16 ga. stainless steel top with 90° side edges & marine drip edges to catch spills.
  • Integrated ceramic heat shield deflects cooking heat, protecting stored food and reducing energy use.
  • (2) full-extension drawers hold up to (4) 12" x 20" x 6" pans (pans sold separately).
  • Solid-state digital controller with Hi/Lo temperature alarms and easy-read LED display (°F / °C).
  • Front-breathing, side-mounted, self-contained refrigeration for zero-clearance installation.
  • Earth-friendly R290 hydrocarbon refrigerant  |  2.1 kWh/day energy use.
  • Magnetic, snap-in drawer gaskets—remove without tools for fast cleaning.
  • (4) 4" locking casters included for effortless mobility and cleaning access.
  • cETLus & ETL-Sanitation listed; Georgia-Made proud.

Built for the Long Haul

  • 1000 lb distributed load rating supports heavy countertop equipment.
  • Stainless steel interior & exterior resist corrosion and simplify wipe-downs.
  • 250 lb-rated, life-tested drawer slides with acetal rollers—300,000+ cycles.
  • E-coated evaporator and hot-gas condensate system for extended service life.

Technical Specifications

Model CR60A
Exterior Dimensions 60.5" W × 33.25" D × 27" H (incl. 4" casters)
Work-Surface Height 26"
Interior Capacity 10.60 ft³ (9.52 ft³ AHAM)
Drawer Capacity 2 drawers – each fits (2) 12"×20"×6" full pans
Top Load Rating 1,000 lb
Refrigerant / Charge R290  /  3.5 oz
Compressor 1/5 HP (1354 BTU/h)
Electrical 115 V / 60 Hz / 1-ph, 2.7 A, NEMA 5-15P, 10 ft cord
Energy Use 2.1 kWh per day (NSF)
Controller Range 32 °F – 52 °F set-point
Certifications cETLus, ETL-Sanitation
Warranty 2 yrs parts & labor + 7 yrs compressor (USA/Canada/Puerto Rico)
Installation Reminder: Maintain a minimum 4" clearance between the cooking-equipment heating element and the chef-base top. Surface temperature must not exceed 180 °F (82 °C).

Food pans and cooking equipment shown are for demonstration only and are not included. If local code requires GFCI protection, use a GFCI breaker in place of a receptacle.

Features & Specs

Manufacturer

Hoshizaki

Brand_name

Steelheart

Certifications

cETLus, ETL-Sanitation

Height

27.0in

Width

60.5in

Depth

33.25in

Shipping Weight

369.0lbs

Compressor HP

1/5 HP

Width

49" - 60" wide

Exterior Finish

all stainless steel exterior

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Drawer Qty

2 drawers

Specifications

Steelheart Series Refrigerated Equipment Stand, one-section, 60-1/2"W x 33-1/4"D x 27"H, (2) drawer: each will accommodate (2) 12" x 20" x 6" deep pans, solid state digital controller with temperature alarms, LED display, stainless steel exterior front, sides, & top, stainless steel interior, side-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.7 amps, cord, NEMA 5-15P, (4) 4" casters, cETLus, ETL-Sanitation
