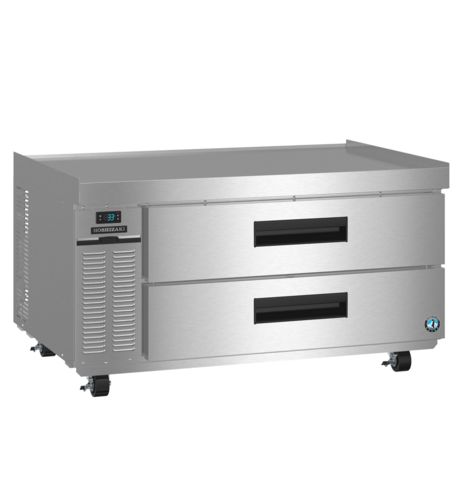

Hoshizaki Steelheart CR49B-L 49-Inch Low-Profile Refrigerated Chef Base with 2 Drawers

Left-Side Condenser, Self-Contained Side-Mounted Refrigeration, 115V

A heavy-duty refrigerated chef base that keeps cold storage under your cooking line while supporting up to 1,000 lb of equipment.

  • Two refrigerated drawers keep ingredients close to the work area.
  • Left-side condenser model for installation flexibility.
  • Stainless steel exterior and interior for durability and easy cleaning.
  • Solid-state digital controller with temperature alarms and LED display.
  • Self-contained refrigeration uses R290 hydrocarbon refrigerant.
  • Standard 4-inch casters with brakes make positioning and service easier.

Overall Dimensions:

49.0"W x 33.25"D x 27.0"H

Product Weight:

339.0 lb

Left-Side Condenser

The CR49B-L version places the condenser on the left side of the unit.

Two Refrigerated Drawers

Provides refrigerated storage in two drawers, with pan capacity for foodservice line use.

Heavy-Duty Stainless Steel Construction

Features a stainless steel exterior front, sides, and top, plus a stainless steel interior.

Digital Temperature Control

Solid-state digital controller includes temperature alarms and an LED display with Fahrenheit or Celsius readout.

Self-Contained R290 Refrigeration

Uses an environmentally friendly R290 hydrocarbon refrigerant in a self-contained refrigeration system.

Heat-Resistant Top

16-gauge stainless steel top includes a ceramic heat shield and edge design to help protect stored food from heat.

High Load Capacity

Built to support up to 1,000 lb of cooking equipment.

Service-Friendly Design

Includes a removable air filter, removable stainless steel end panel, and factory-installed 4-inch casters with brakes.

Type Refrigerated Chef Base
Style Low-Profile
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Capacity 9.74 Cubic Feet
Drawer Count 2
Condenser Location Left Side
Refrigeration Type Self-Contained, Side-Mounted
Refrigerant Type R290 Hydrocarbon
Controls Digital
Temperature Range 28 Degrees F to 45 Degrees F
Voltage 115 Volts
Amps 3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Breaker Size 15 Amps
Shipping Width 49 Inches
Shipping Depth 34 Inches
Shipping Height 27 Inches
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

7-year parts, labor, and compressor warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The CR49B-L has the condenser on the left side of the unit, while the CR49B is the standard model.
Each drawer accommodates (2) 12" x 20" x 6" deep pans and (3) 1/6-size pans 6" deep. Pans are not included.
It operates on 115V/60/1-phase power, draws 3 amps, and uses a NEMA 5-15P plug. The document also lists a 15-amp HACR breaker.
The unit has a maximum load capacity of 1,000 lb.
Yes. It includes (4) 4-inch casters with brakes that are factory-installed.
Steelheart limited warranty covers labor, parts, and compressor for 7 years.
