Hoshizaki CR49A Steelheart Undercounter & Worktop Refrigeration
Description

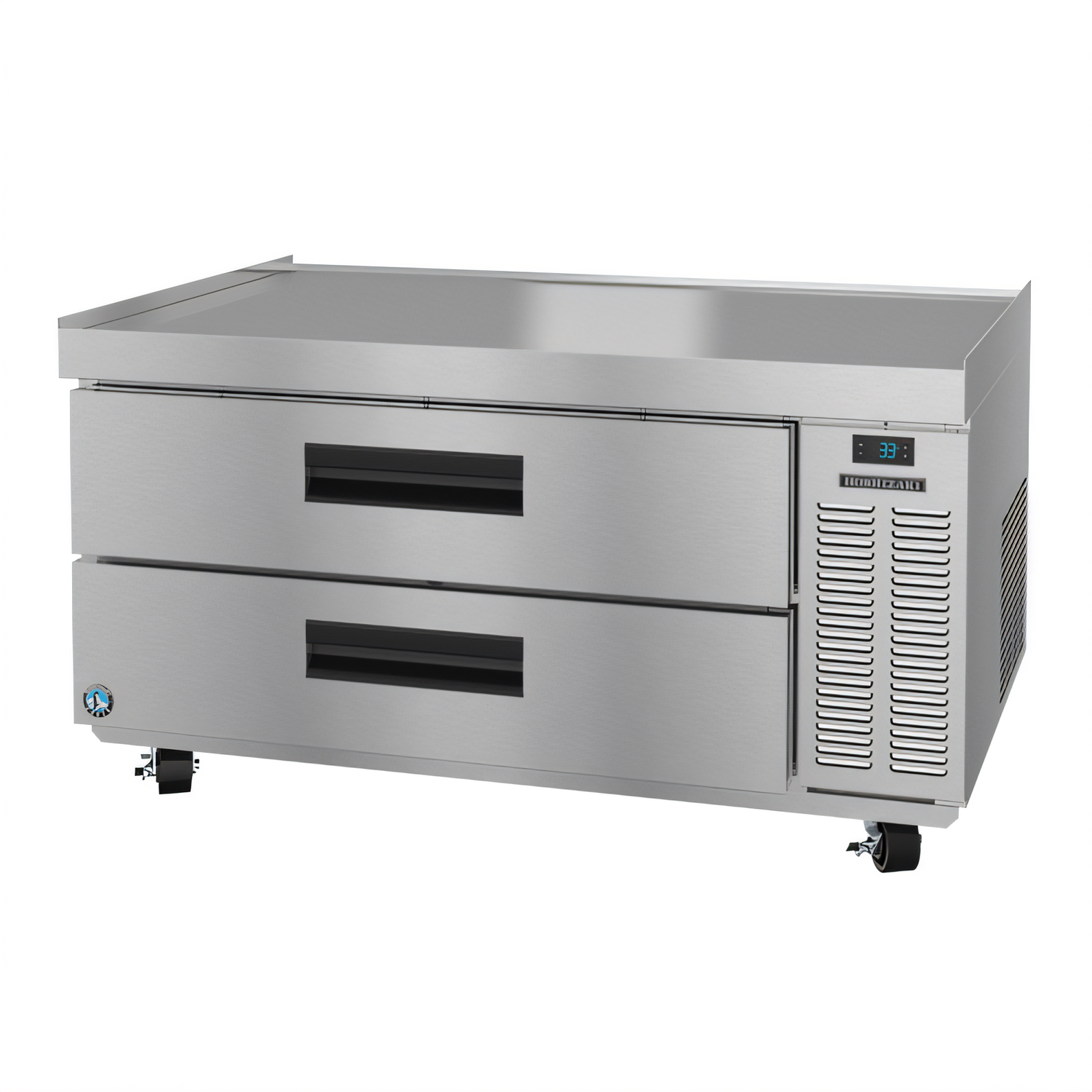

Hoshizaki Steelheart CR49A – 49" Refrigerated Chef Base
Low-profile, two-drawer equipment stand with 1,000 lb worktop loadCombine heavy-duty cold storage with a rock-solid platform for countertop cooking equipment. The Steelheart CR49A keeps ingredients safely chilled in the harshest kitchen conditions while its 16-gauge stainless top and integrated ceramic heat shield stand up to the heat above.
Key benefits
- 16 ga stainless steel top with marine edges and drip guards – prevents spills and maximizes surface area.
- Integrated ceramic heat shield protects product from char-broilers, griddles and more.
- Two self-closing drawers each hold (2) 12" × 20" × 6" pans plus (1) ½-size long 6" pan*.
- Solid-state digital controller with LED read-out, hi/low temp alarms, °F/°C toggle.
- Energy-saving, front-breathing side-mounted refrigeration charged with eco-friendly R290.
- E-coated evaporator, automatic hot-gas condensate removal & 2" foamed-in insulation for long service life.
- 1,000 lb top load rating; 250 lb drawer slide rating – built for heavy equipment and fully loaded pans.
- (4) 4" locking casters and 10 ft cord with NEMA 5-15P plug make installation a breeze.
- cETLus & ETL-Sanitation listed; optional 7-year parts/labor/compressor warranty available.
Technical specifications
| Model | CR49A (Steelheart Series) |
|---|---|
| Sections / Drawers | 1 section / 2 drawers |
| Exterior Dims (W × D × H) | 49" × 33.25" × 27" (incl. bumper & 4" casters) |
| Work surface height | 26" |
| Interior capacity | 10.6 ft³ (9.52 ft³ AHAM) |
| Top load rating | 1,000 lb |
| Drawer pan capacity | Each drawer: (2) full-size 6" pans & (1) ½-size long 6" pan |
| Temperature range | 32 – 52 °F set-point; certified to hold 33 – 41 °F in 100 °F ambient |
| Refrigeration | Side-mount, self-contained, 1/5 HP compressor, R290 (3.5 oz charge) |
| Electrical | 115 V / 60 Hz / 1-phase, 2.7 A, NEMA 5-15P |
| Energy consumption | 2.1 kWh / day (NSF-7) |
| Certifications | cETLus, ETL-Sanitation, Natural Refrigerant |
| Included | (4) 4" locking casters, removable stainless end panel for service access |
Built for the real-world kitchen
- Front-breathing condenser allows zero side clearance and lets you line up multiple units.
- Snap-in magnetic drawer gaskets pop out for sanitizing – no tools required.
- Finger cut-outs in rails make lifting hot or cold pans quick and safe.
- Life-tested drawer slides (300k cycles) glide on acetal rollers – no metal-to-metal wear.
*Food pans shown for reference only and are not included. If a GFCI is required, use a GFCI breaker in place of a receptacle per manufacturer guidelines.
