Hoshizaki Steelheart CF60B-L Undercounter Freezer, 1-Section, 60"W, Stainless Steel, 2 Drawers, Side-Mounted Self-Contained

SKU: CF60B-L
$10,371.00
Free Shipping
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

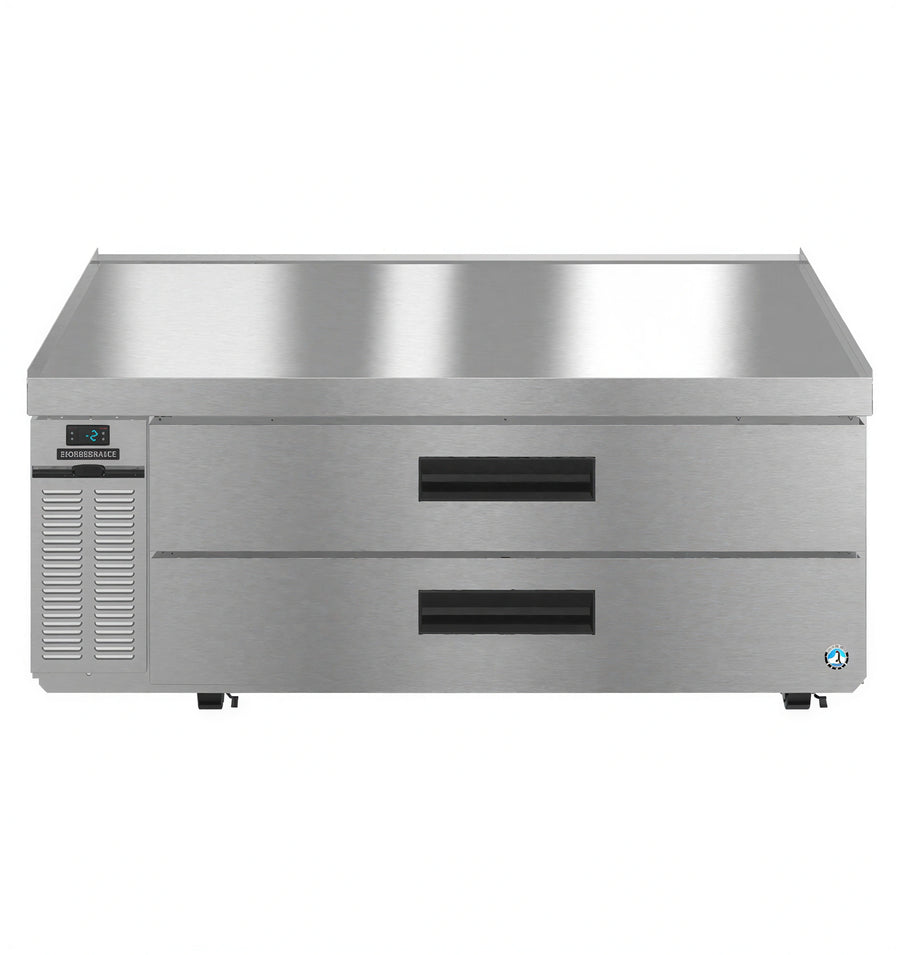

CF60B-L is a one-section, 60-inch low-profile freezer chef base with 12.82 cu. ft. of interior storage, two stainless steel drawers, and side-mounted self-contained refrigeration with the condenser on the left.

The unit features stainless steel exterior front, sides, and top construction, along with stainless steel interior sides, back, and floor. Four 4-inch casters with brakes are factory installed.

Each drawer configuration allows for seven 6-inch-deep pans. The refrigeration system uses R290 hydrocarbon refrigerant, a solid-state digital controller with temperature alarms and LED display, and an automatic hot gas condensate evaporator.

The freezer operates on 115 V, 60 Hz, single-phase power at 4 amps and includes a NEMA 5-15P cord and plug. Certifications include ENERGY STAR, ETL-Sanitation, and cETLus.

Overall Dimensions:

60.0"W x 32.25"D x 26.0"H

Product Weight:

392.0 lb

Two-drawer storage

Two stainless steel drawers allow for seven 6-inch-deep pans.

Side-mounted refrigeration

Self-contained refrigeration is mounted on the side, with the condenser on the left.

Stainless steel construction

The exterior front, sides, and top, as well as the interior sides, back, and floor, are stainless steel.

Digital temperature control

A solid-state digital controller includes temperature alarms and an LED display adjustable to Fahrenheit or Celsius.

Hot gas condensate evaporation

An automatic hot gas condensate evaporator manages condensate removal.

Factory-installed casters

Four 4-inch casters are included, and all have brakes.

R290 refrigeration

The refrigeration system uses R290 hydrocarbon refrigerant.

1000-pound load capacity

The cutsheet specifies a maximum load capacity of 1000 pounds.

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Hoshizaki New Arrivals Refrigeration & Ice Refrigerators & Freezers Restaurant Equipment Undercounter & Worktop Cabinet Equipment Undercounter & Worktop Refrigeration Undercounter Freezers Undercounter Freezers
Product type Low-profile freezer chef base
Configuration One section
Storage capacity 12.82 cu. ft.
Drawer count 2
Drawer pan capacity 7 total, 6 in. deep
Refrigeration Self-contained, side-mounted
Condenser location Left side
Refrigerant R290 hydrocarbon, 2.4 oz charge
Compressor 1/2 HP
Temperature setpoint range -12°F to 10°F
Ambient temperature range 45°F to 100°F
Exterior construction Stainless steel front, sides, and top
Interior construction Stainless steel sides, back, and floor
Insulation 2 in. CFC-free foamed-in-place polyurethane
Casters Four 4 in. casters, all with brakes; factory installed
Maximum load capacity 1000 lb
Electrical rating 115 V / 60 Hz / 1 phase
Amperage 4 A
Electrical connection NEMA 5-15P cord and plug
Energy consumption 5.50 kWh/day at ASHRAE
Heat rejection 701 BTU/hr at NSF

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Seven-year warranty on labor, parts, and compressor.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The CF60B-L has two stainless steel drawers.
The drawers allow for seven 6-inch-deep pans.
The unit has side-mounted self-contained refrigeration with the condenser on the left side.
The freezer operates at 115 V, 60 Hz, single-phase power, draws 4 amps, and uses a NEMA 5-15P cord and plug.
It uses R290 hydrocarbon refrigerant.
The listed product dimensions are 60 inches wide by 32.25 inches deep by 26 inches high.
Yes. Four 4-inch casters are factory installed, and all have brakes.
The product has a seven-year warranty covering labor, parts, and the compressor.
