Hoshizaki

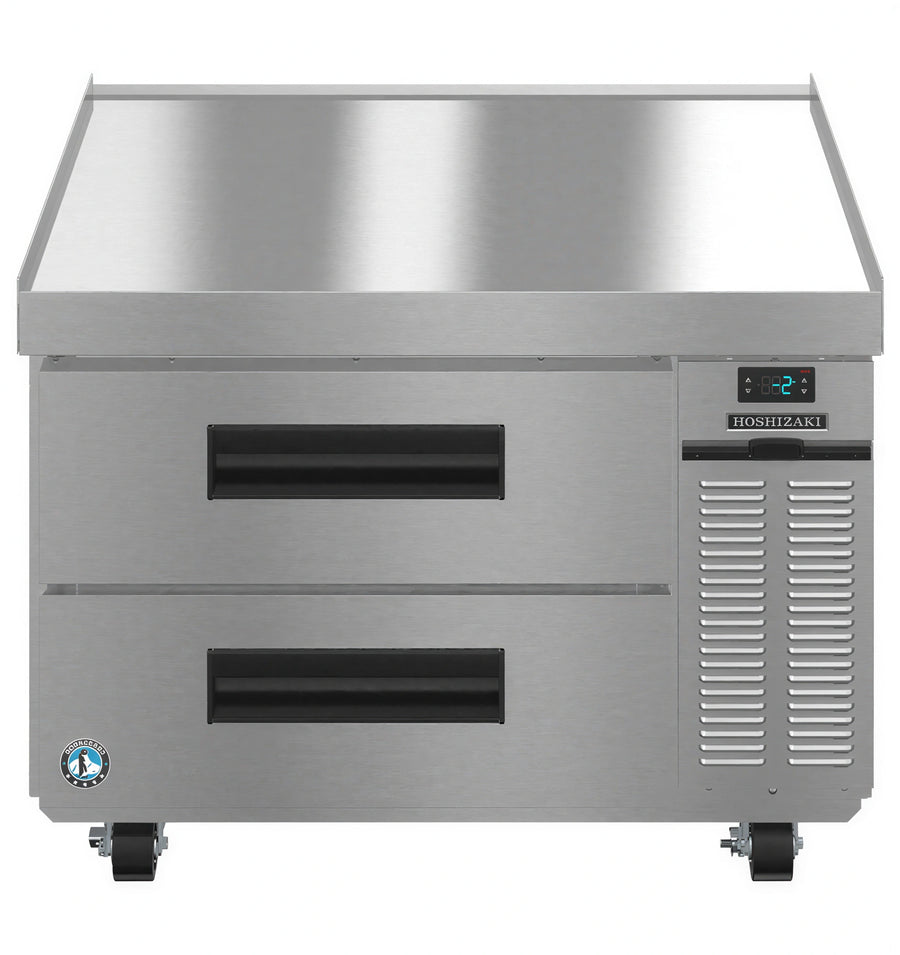

Hoshizaki Steelheart CF36B Undercounter Freezer, 36.5"W, 6.3 cu. ft., 2 Stainless Steel Drawers, Side-Mounted Self-Contained Refrigeration

SKU: CF36B
$8,861.00
Free Shipping
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Hoshizaki Steelheart CF36B is a one-section, low-profile undercounter freezer chef base with 6.3 cu. ft. of storage and two stainless steel drawers.

  • Side-mounted, self-contained refrigeration with a right-side condenser and R290 hydrocarbon refrigerant.
  • Each drawer accommodates one 12 x 20 x 6-inch pan and three 1/6-size pans that are 6 inches deep.
  • Stainless steel exterior front, sides, and top with a stainless steel interior, including the sides, back, and floor.
  • Four factory-installed 4-inch casters are included, and all have brakes.

Overall Dimensions:

36.5"W x 32.25"D x 26.0"H

Product Weight:

294.0 lb

Drawer storage

Two stainless steel drawers accommodate one 12 x 20 x 6-inch pan and three 1/6-size 6-inch-deep pans per drawer.

Side-mounted refrigeration

The self-contained refrigeration system has a right-side condenser and uses R290 hydrocarbon refrigerant.

Stainless steel construction

The exterior front, sides, and top are stainless steel; the interior sides, back, and floor are also stainless steel.

Chef-base top

The 16-gauge stainless steel top includes a ceramic heat shield and supports a maximum load capacity of 1,000 lb.

Digital controls

A solid-state digital controller provides temperature alarms and an LED display adjustable to Fahrenheit or Celsius.

Condensate and defrost system

The unit uses a hot gas condensate evaporator and automatic, time-initiated heated defrost.

Mobility

Four factory-installed 4-inch casters are standard, and all casters have brakes.

Electrical connection

The freezer operates at 115 V, 60 Hz, single phase, draws 4 amps, and includes a cord and NEMA 5-15P plug.

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Hoshizaki New Arrivals Refrigeration & Ice Refrigerators & Freezers Restaurant Equipment Undercounter & Worktop Cabinet Equipment Undercounter & Worktop Refrigeration Undercounter Freezers Undercounter Freezers
Brand Steelheart
Manufacturer Hoshizaki
Product type Low-profile undercounter freezer chef base
Section 1 section
Storage capacity 6.3 cu. ft.
Drawer count 2
Access type Drawers
Pan capacity Each drawer accommodates one 12 x 20 x 6-inch pan and three 1/6-size 6-inch-deep pans
Refrigeration Self-contained, side mounted
Condenser location Right side
Refrigerant R290 hydrocarbon
Compressor horsepower 1/2 HP
Temperature control Solid-state digital controller with temperature alarms and LED display; Fahrenheit or Celsius display
Control setpoint range -12° to 10°F
Electrical 115 V / 60 Hz / 1 phase
Amperage 4 amps
Electrical connection Cord and plug, NEMA 5-15P
Exterior finish Stainless steel front, sides, and top
Interior finish Stainless steel interior sides, back, and floor
Insulation 2-inch CFC-free foamed-in-place polyurethane
Top construction 16-gauge stainless steel with marine edge and ceramic heat shield
Maximum load capacity 1,000 lb.
Casters Four 4-inch casters, all with brakes, factory installed
Condensate management Hot gas condensate evaporator
Defrost Automatic, time-initiated heated defrost
Energy efficiency ENERGY STAR

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Seven-year warranty on labor, parts, and compressor.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The CF36B has two stainless steel drawers.
It uses self-contained, side-mounted refrigeration with the condenser on the right side and R290 hydrocarbon refrigerant.
Each drawer accommodates one 12 x 20 x 6-inch pan and three 1/6-size pans that are 6 inches deep.
The freezer operates at 115 V, 60 Hz, single phase, draws 4 amps, and uses a NEMA 5-15P cord and plug.
Yes. It includes four factory-installed 4-inch casters, all with brakes.
The product has a seven-year warranty covering labor, parts, and the compressor.
