Hoshizaki C-80BAK-ADDS ADA Compliant Air-Cooled Nugget Ice Machine with Built-In 27 lb. Bin and Custom Cabinet Door System

Self-Contained Undercounter Design with Customer-Provided Cabinetry

Built for tight undercounter installs, this ADA-compliant nugget ice maker delivers up to 92 lb. of ice per day and stores 27 lb. in a compact, cabinet-ready package.

  • Produces up to 92 lb. of nugget-style ice per 24 hours.
  • Built-in storage bin holds up to 27 lb. of ice.
  • ADA-compliant, undercounter design for low-clearance installations.
  • Custom cabinet door system is designed for customer-provided cabinetry.
  • Air-cooled, self-contained refrigeration with front in and out airflow.
  • R290 hydrocarbon refrigerant, easy-clean water circuit, and accessible power switch.
  • Includes a 6 ft. cord with NEMA 5-15P plug.

Overall Dimensions:

14.89"W x 22.5"D x 31.5"H

Product Weight:

125.0 lb

ADA Compliant Height

The -AD configuration is less than 32 inches tall for ADA applications.

ADA Compliant Height

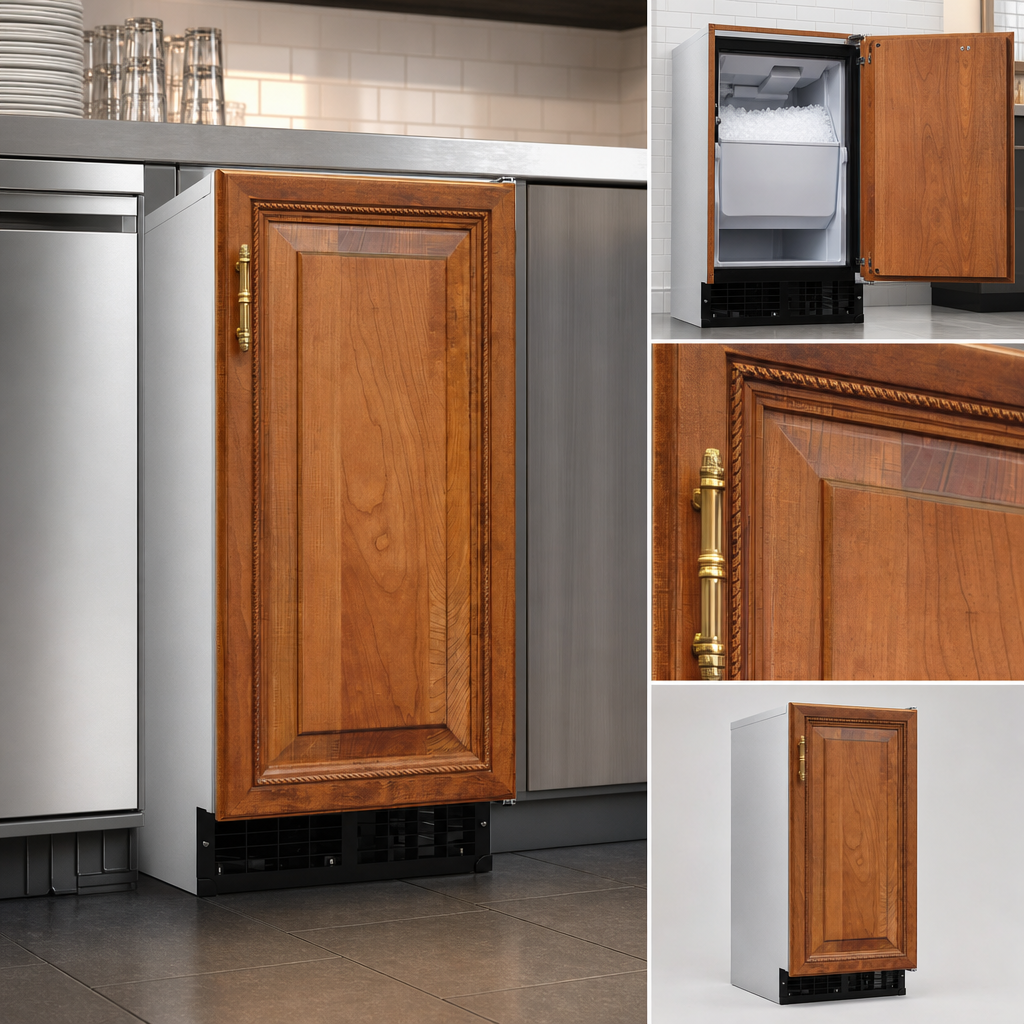

Custom Cabinet Door System

The -DS configuration is intended for customer-provided cabinetry.

Custom Cabinet Door System

Ice Production

Produces up to 92 lb. of ice per 24 hours.

Built-In Storage Bin

Stores up to 27 lb. of ice.

Air-Cooled Front Ventilation

Front in and out airflow supports flexible undercounter installation.

R290 Hydrocarbon Refrigerant

Uses an environmentally friendly hydrocarbon refrigerant.

Easy Service Access

Power switch is accessible without panel removal, and the water circuit disassembles for easier cleaning.

Full-Length Stainless Steel Door Handle

Durable, easy-grip handle for everyday use.

Electrical Package

Includes a 6 ft. cord with NEMA 5-15P plug; rated for 115V, 60 Hz, 1-phase, 2.8 amps.

Type Nugget Ice Machine
Style With Built-In Storage Bin
Installation Type Undercounter
Cooling Air-Cooled
Cube Type Nugget
Capacity 27 lb. Storage Bin Capacity
Ice Production Up to 92 lb. per 24 Hours
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Finish Stainless Steel
Voltage 115 Volts
Amps 2.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
BTU 1,400 BTU/hr
Water Connection Required
Drain Connection Required
Water Inlet Size Minimum 1/4 Inch Nominal ID Copper Tubing or Equivalent
Drain Connection Size Minimum 1/2 Inch Nominal ID Hard Pipe or Equivalent
Shipping Width 20 3/4 Inches
Shipping Depth 30 1/2 Inches
Shipping Height 38 Inches
Shipping Weight 134 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

2 years parts and labor on the entire machine; 1 year parts and labor on the drain pump assembly.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. The C-80BAK-ADDS is the ADA-compliant version and is less than 32 inches tall.
It produces up to 92 lb. of nugget ice per 24 hours.
Up to 27 lb. of built-in storage capacity.
115V, 60 Hz, 1-phase power at 2.8 amps, with a 6 ft. cord and NEMA 5-15P plug.
A water supply line with minimum 1/4-inch nominal ID copper tubing or equivalent and a drain line with minimum 1/2-inch nominal ID hard pipe or equivalent.
The machine includes a 2-year parts and labor warranty on the entire unit, plus 1-year parts and labor on the HS-5061 drain pump assembly.
