Hoshizaki C-80BAJ-DS Ice Machines
Description

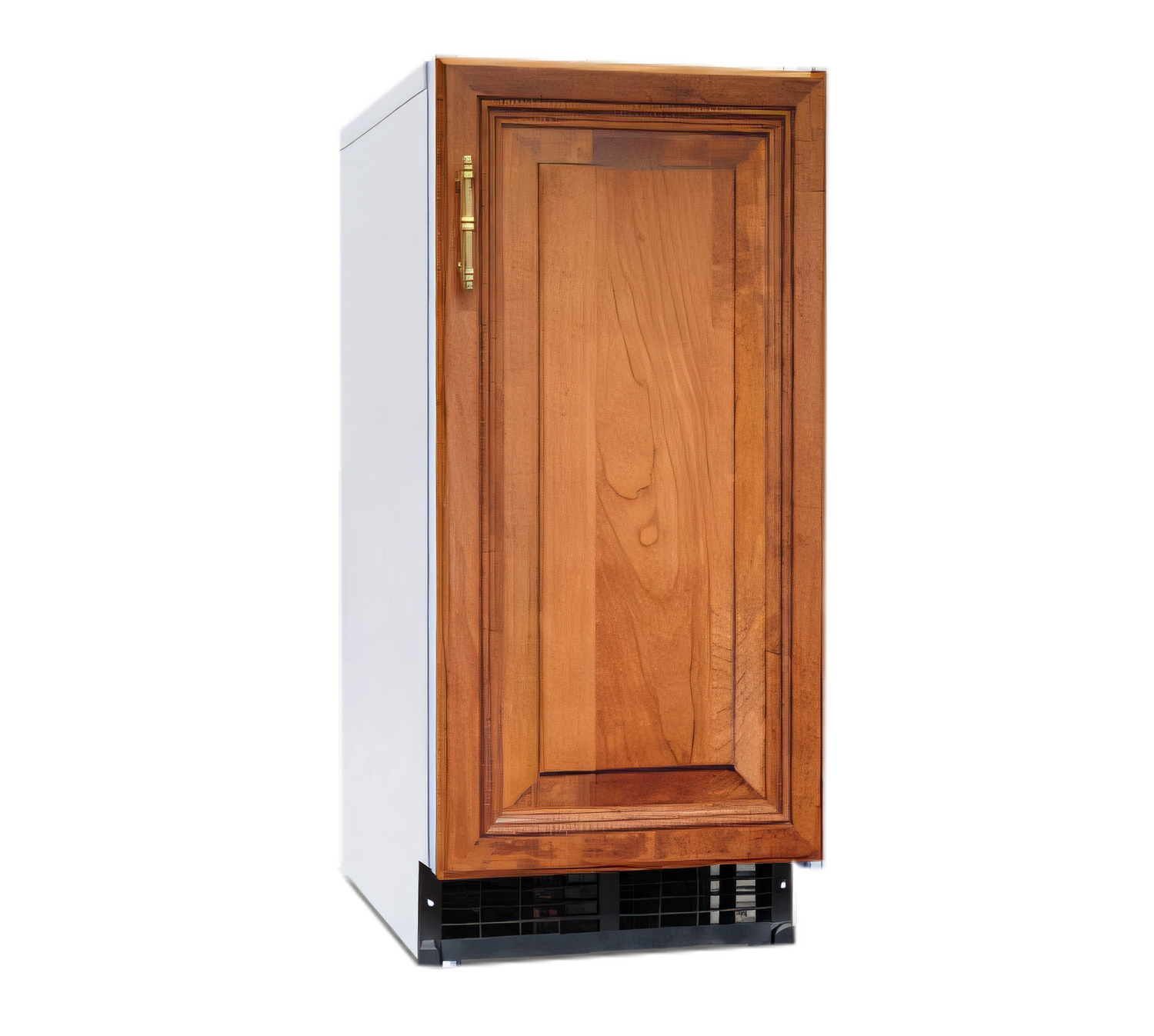

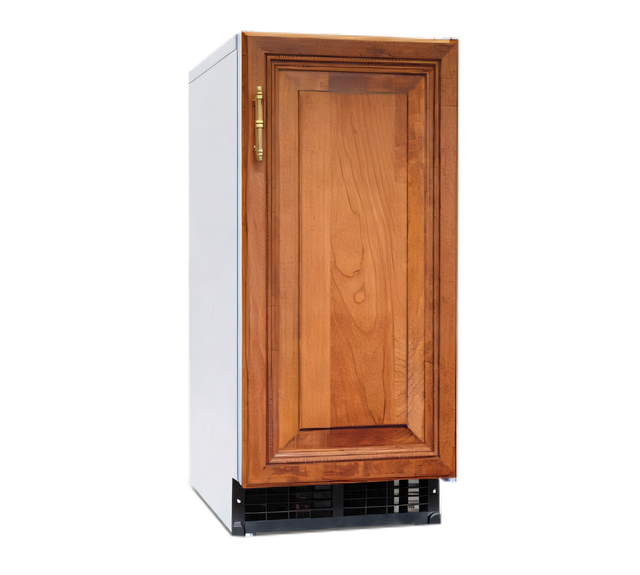

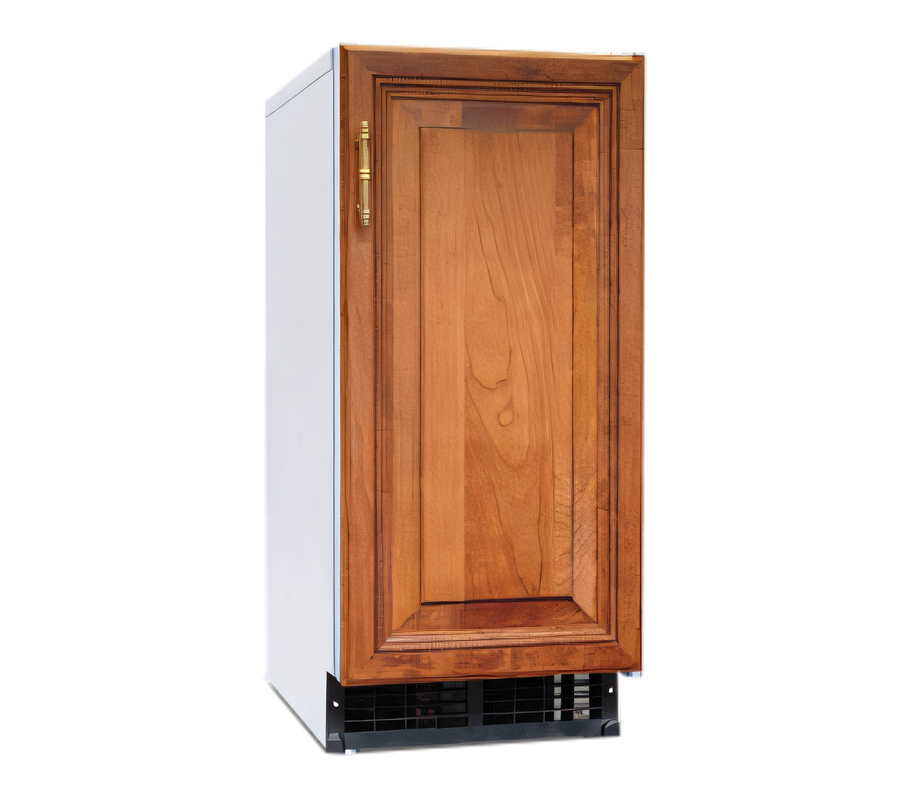

Hoshizaki C-80BAJ-DS Cubelet Ice Maker With Bin
Custom-panel ready, air-cooled, self-contained – UL outdoor ratedProduce soft, chewable “nugget” ice anywhere you need it. The C-80BAJ-DS tucks neatly under a 34 inch counter, delivers up to 80 lb of cubelet ice every 24 hours, and stores 22 lb in its built-in bin. Front-breathing ventilation, a factory-installed cord & plug, and an outdoor-approved stainless steel cabinet let you add reliable Hoshizaki performance to breakrooms, hospitality suites, poolside bars, or residential kitchens with minimal fuss.
Why you’ll love it
- 80 lb/day production (70 °F air / 50 °F water) – still 45 lb at 90 °F/70 °F.
- 22 lb built-in storage keeps ice on hand for peak periods.
- Cubelet ice – light, chewable nuggets that are perfect for soft drinks, blended cocktails, and rapid cooling.
- Custom door system (-DS) accepts your own 3⁄4-in. cabinet panel for a seamless look.
- All-stainless exterior cabinet with full-length door handle resists corrosion indoors or out.
- Front in / front out airflow – no side or rear clearance required.
- Power switch is accessible without removing the front panel for quick shut-downs and cleanings.
- Water circuit disassembles in seconds for sanitation.
- Factory-installed 6 ft cord with NEMA 5-15P; uses only 4 amps on a standard 115 V outlet.
- R-134A refrigeration with UL (outdoor) & ETL-Sanitation approvals.
Technical specifications
| Ice style | Cubelet (nugget) |
|---|---|
| Daily production | 80 lb @ 70 °F air / 50 °F water 45 lb @ 90 °F air / 70 °F water |
| Storage capacity | 22 lb built-in polyethylene bin |
| Condenser type | Air-cooled, self-contained |
| Electrical | 115 V / 60 Hz / 1-phase, 4.0 A, NEMA 5-15P |
| Heat rejection | 1,850 BTU/hr |
| Refrigerant / charge | R-134A, 3.92 oz |
| Exterior construction | Stainless steel on front, sides & top |
| Panel compatibility | Accepts 3⁄4 in. custom door panel (not included) |
| Overall dimensions (W × D × H) | 14 ⅞ in. × 22 ⅝ in. × 33 ½ in.* |
| Net / ship weight | 118 lb / 130 lb |
| Certifications | UL (Indoor/Outdoor), ETL-Sanitation |
| Warranty | 2-year parts & labor (ice maker) 1-year parts & labor (optional drain pump) |
*Height excludes door handle; leveling legs adjust 0.5 in.
Installation notes
- No side clearance required; allow 15 in. at the front for service.
- Ambient temp: 45 – 100 °F | Water temp: 45 – 90 °F | Water pressure: 7 – 113 PSI.
- Water inlet: ¼ in. OD copper or equivalent; gravity drain: ½ in. ID.
- If a GFCI is mandated, use a GFCI breaker rather than a receptacle.
Optional accessories
- HS-5061 drain pump – for installations without a floor drain.
- HS-0182 side trim kit (stainless).
- HS-2133 top trim kit (stainless).
- H9320-51 in-line water filtration system.
