Hoshizaki

Hoshizaki C-80BAJ-ADDS Ice Machines

SKU: C-80BAJ-ADDS
$4,575.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Hoshizaki New Arrivals

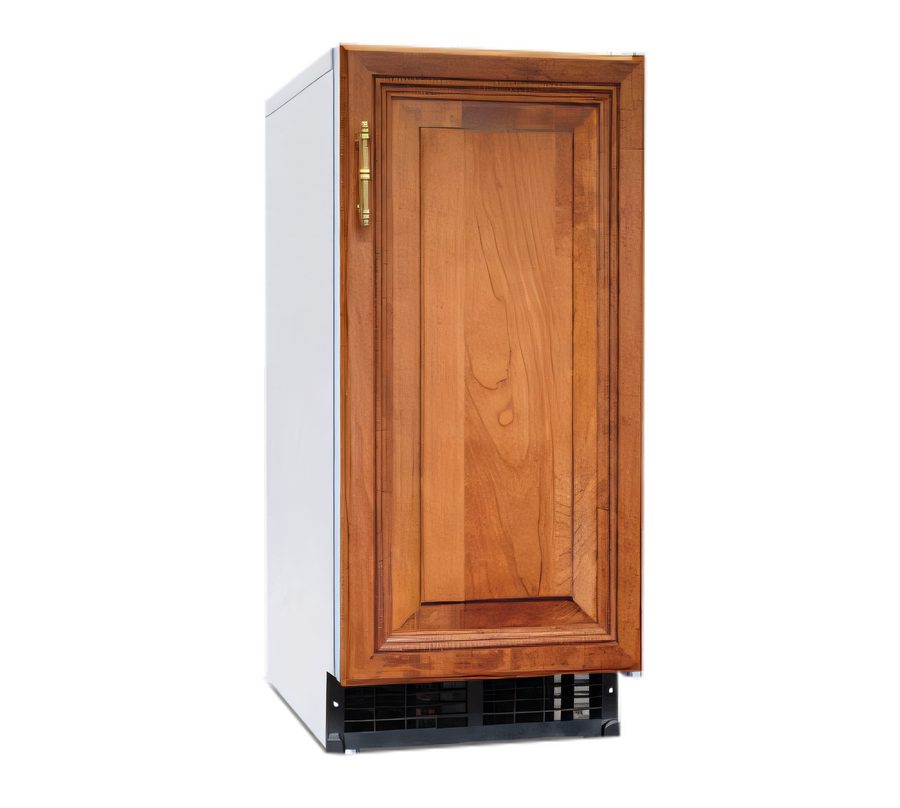

Hoshizaki C-80BAJ-ADDS Cubelet Ice Maker With Bin

80 lb / 24 hr production • 22 lb built-in storage • ADA compliant undercounter

Specifically engineered for tight spaces, the C-80BAJ-ADDS tucks neatly beneath 34" countertops while delivering up to 80 lb of chewable cubelet ice every day. The unit’s self-contained bin stores an additional 22 lb, so you’ll always have soft, nugget-style ice on hand for patient hydration, cocktails, or self-serve beverage stations—indoors or out.

Key advantages

  • Outdoor-rated & UL approved – built to handle patios, kiosks, pool decks, and more
  • ADA height (31.5") fits below 34" counters and remains accessible to all guests
  • Panel-ready door system (customer-supplied) with full-length stainless steel handle for a seamless look
  • Front-breathing air flow and 6 ft. NEMA 5-15 cord allow true plug-and-play installation
  • Power switch located behind the door—no panel removal required for quick shut-off
  • Tool-free, easily disassembled water circuit speeds up routine cleaning
  • Environmentally-responsible R-134a refrigerant
  • Backed by Hoshizaki’s 2-year parts & labor warranty

Ice output & storage

Ice style Cubelet (soft, chewable nuggets)
Daily production 80 lb @ 70 °F air / 50 °F water
45 lb @ 90 °F air / 70 °F water
Bin capacity 22 lb built-in, insulated
Water usage 12 gal per 100 lb of ice

Installation requirements

Dimensions (W × D × H) 14 ⅞" × 22 ⅝" × 31 ½" * (excluding handle)
Electrical 115 V / 60 Hz / 1-phase, 4.0 A (plug included)
Heat rejection 1,850 BTU/hr
Refrigerant charge 3.92 oz R-134a
Water supply ¼" ID (minimum) copper tubing, 7-113 PSIG
Drain ½" ID gravity drain (optional HS-5061 pump)
Net / ship weight 118 lb / 130 lb

*Shipping dimensions: 20 ¾" W × 30 ½" D × 38" H

Why choose cubelet ice?

  • Highly absorbent—perfect for flavored drinks & fountain sodas
  • Soft, easy-to-chew texture loved by patients and patrons alike
  • Fast cooling with minimal splash in to-go cups
  • Moldable for salad bars and blended beverages

Popular accessories (sold separately)

  • HS-0182 Side Trim Kit – flush fit in cabinetry runs
  • HS-2133 Top Trim Kit – fills overhead gaps for a built-in look
  • HS-5061 Drain Pump – use when a gravity drain is not available
  • H9320-51 Water Filter – extend machine life & improve ice clarity

Certifications & warranty

  • UL & UL-Outdoor listed
  • ETL Sanitation listed
  • ADA compliant height
  • Factory warranty: 2 years parts & labor on entire machine
    1 year parts & labor on HS-5061 pump (if added)
Important: This “DS” model is panel-ready. A custom ¾" cabinet door is required and is not included with the unit.

Overall Dimensions:

14.88"W x 22.63"D x 31.5"H

Product Weight:

135.0 lb
Manufacturer Hoshizaki
Certifications ["UL", "ETL-Sanitation", "ADA Compliant"]
Height 31.5in
Width 14.88in
Depth 22.63in
Shipping Weight 135.0lbs
Cube Type nugget
Cooling air-cooled
Bin Storage Capacity 0 - 50 lb bin capacity
Production per 24 hr 71 - 80 lb = 32 - 36 kg
Finish stainless steel
Refrigeration self-contained refrigeration
Specifications Ice Maker With Bin, air-cooled, self-contained condenser, production capacity up to 80 lb/24 hours at 70°/500 (45 lb at 90°/70°), 22 lb built-in storage capacity, cubelet style, stainless steel exterior, accommodates custom cabinet door (NOT INCLUDED), ADA compliant, 115v/60/1-ph, 4.0 amps, UL (approved for outdoor use), ETL-Sanitation

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Parts manual PDF Download PDF Video PDF Download PDF Ice maker calculator PDF Download PDF Warranty PDF Download PDF Flyer PDF Download PDF Service manual PDF Download
