Hoshizaki C-80BAJ-AD Ice Machines

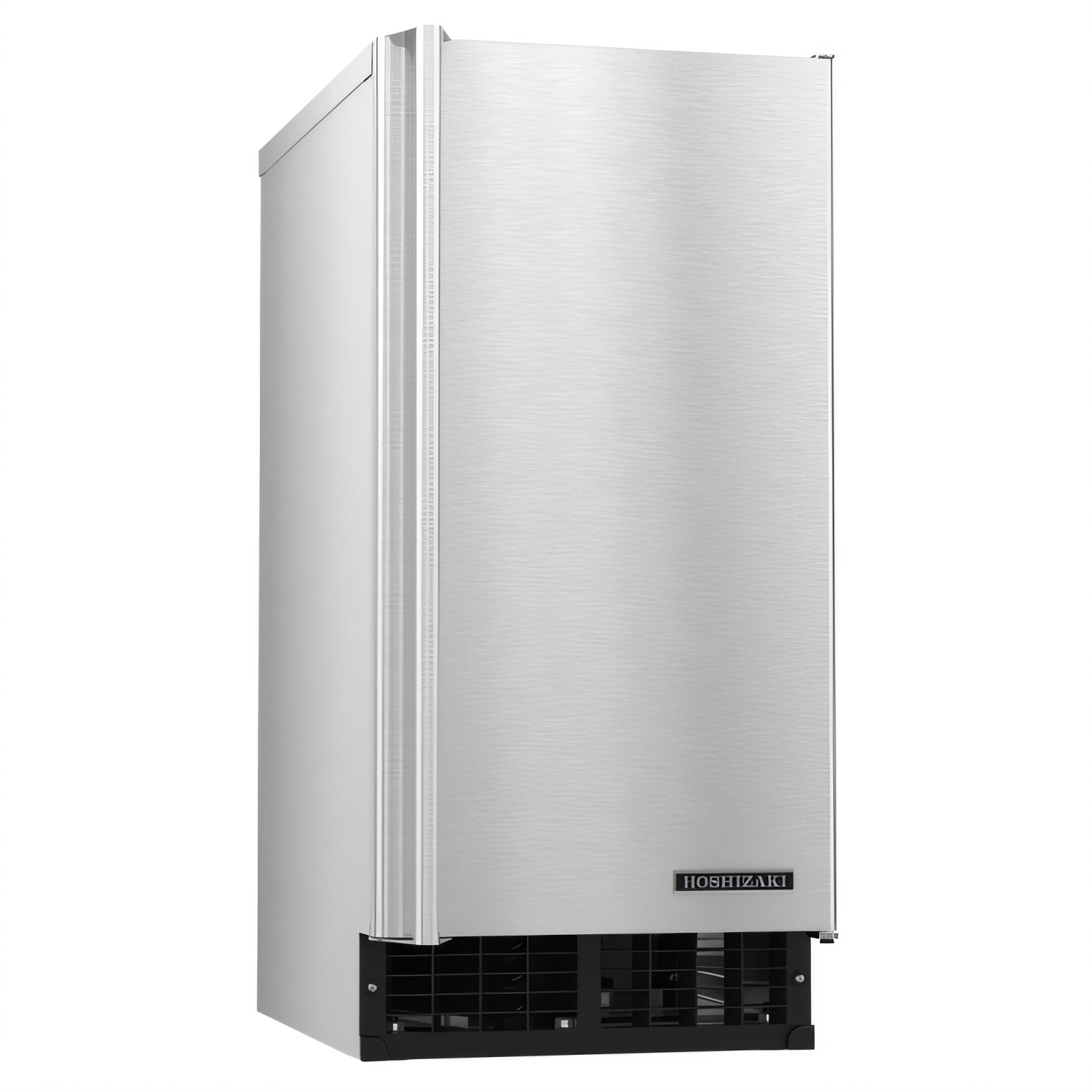

Hoshizaki C-80BAJ-AD Cubelet Ice Maker with Built-In Bin

Perfect for breakrooms, healthcare stations, hospitality suites and patio bars, the C-80BAJ-AD packs commercial performance into a compact, 31 ½"-tall footprint that slides easily beneath ADA counters. Guests get the soft, chewable cubelet ice they crave, while you enjoy low-maintenance operation backed by Hoshizaki quality.

Why You’ll Love It

• Produces up to 80 lb of cubelet (nugget-style) ice every 24 hours; stores 22 lb internally.
• Air-cooled, self-contained condenser—no remote parts to install.
• Stainless steel exterior with full-length handle stands up to heavy use and weather (UL listed for outdoor installation).
• Front in / front out airflow enables true built-in placement.
• ADA compliant height (≤ 32") and 14 ⅞" width fit almost anywhere.
• Power switch and easy-to-disassemble water circuit speed up cleaning & maintenance.
• Ships with 6 ft cord & NEMA 5-15 plug—just connect water & drain and start making ice.
• 2-year parts & labor warranty on the entire machine.

Performance & Utilities

Installation Notes

• Operating ambient 45 – 100 °F; incoming water 45 – 90 °F.
• Water pressure 7 – 113 PSI. Connect with minimum ¼" ID potable water line.
• Gravity drain requires minimum ½" ID hard pipe; optional HS-5061 drain pump available.
• If ground-fault protection is required, use a GFCI breaker rather than a GFCI receptacle.

What’s in the Box

• C-80BAJ-AD cubelet ice machine with built-in bin
• 6 ft power cord & NEMA 5-15 plug
• Adjustable leveling legs
• Owner’s/installation manual

Popular Accessories

• HS-0182 side trim kit (for flush built-in installations)
• HS-2133 top trim kit (fills gap to 34" counters)
• HS-5061 drain pump assembly (when floor drain is unavailable)
• H9320-51 water filter kit

Hoshizaki reserves the right to modify specifications without notice.
