Hoshizaki B-500SF Ice Machine Bins
Description

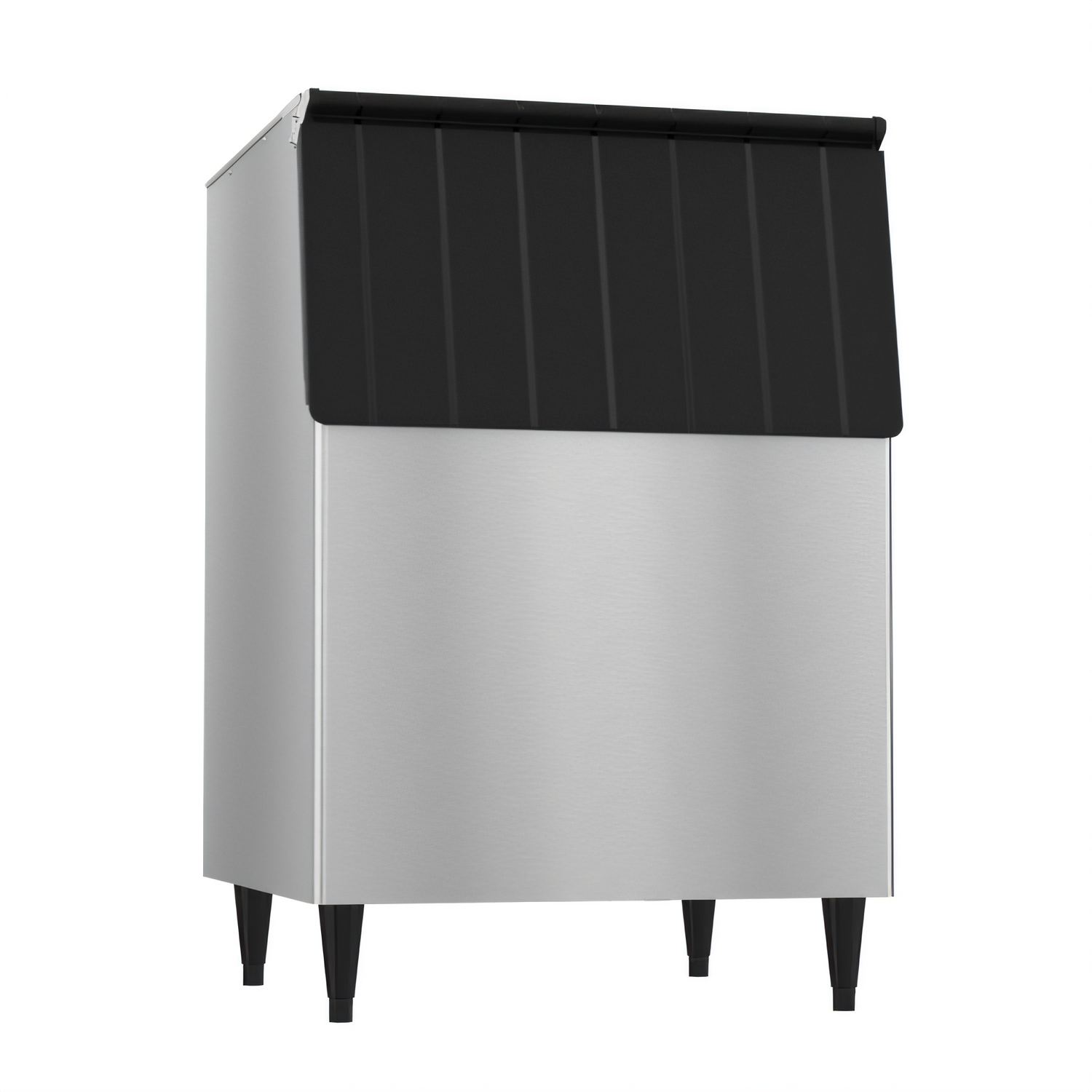

Hoshizaki B-500SF 500-lb Ice Storage Bin
30″ stainless-steel bin with top-hinged door | H-GUARD Plus antimicrobial protectionBuilt for busy bars, restaurants, and institutions, the Hoshizaki B-500SF keeps up to 500 lb of ice sanitary, cold, and ready to scoop. Pair it with any 30″ Hoshizaki modular ice maker for a compact, high-capacity solution that looks as good as it performs.
Key features & benefits

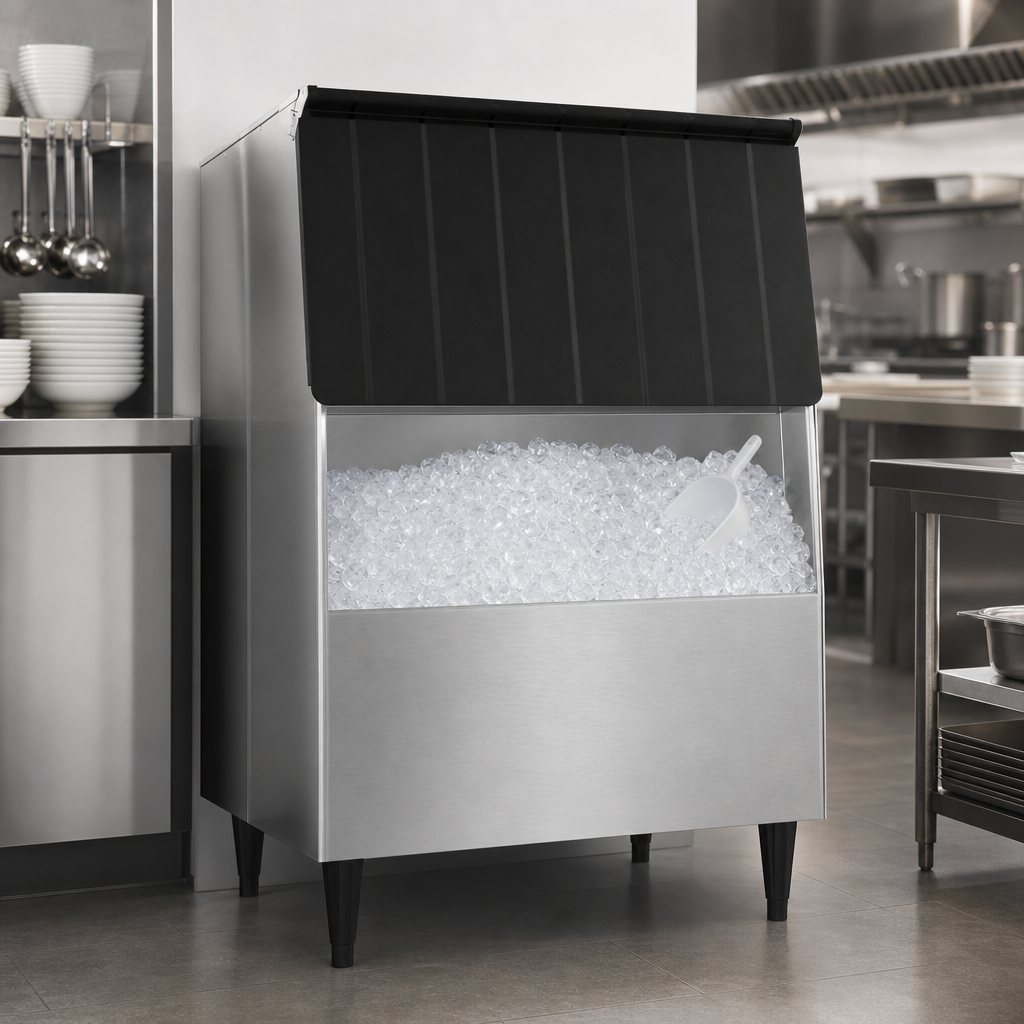

- 500 lb application storage capacity—ideal companion for most 30″ Hoshizaki ice heads.
- Top-hinged, front-opening door stays open for hassle-free one-handed scooping.
- Durable stainless-steel exterior resists corrosion and dents for a long-lasting, professional appearance.
- Seamless polyethylene liner is easy to wipe clean and is protected by H-GUARD Plus Antimicrobial Agent to inhibit bacterial growth.
- Foamed-in-place polyurethane insulation in every wall and the base preserves ice longer and reduces energy loss.
- Includes four 6″ painted, adjustable legs for quick leveling on uneven floors.
- Side-by-side or stacked installation ready—perfect for expanding operations.
- ETL & ETL-Sanitation listed to meet health-code requirements right out of the box.

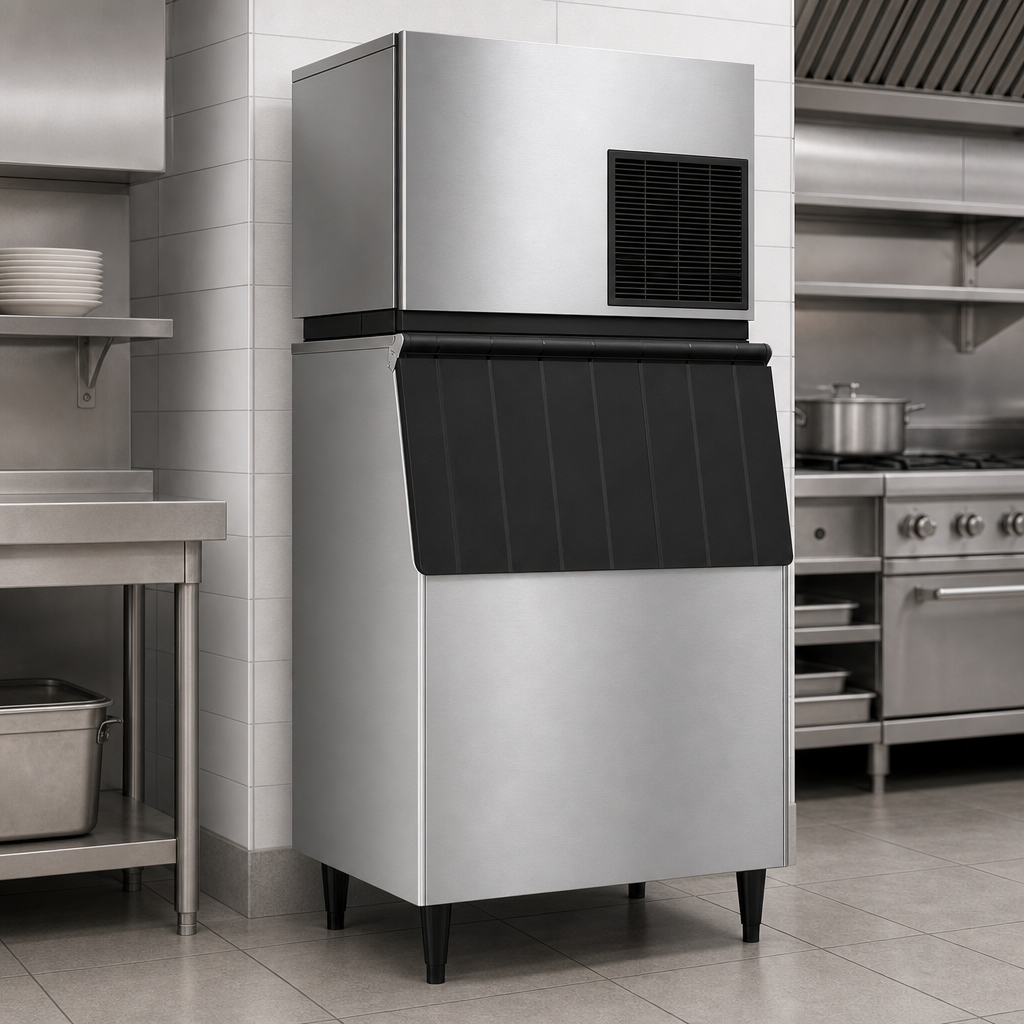

Compatible 30″ Hoshizaki ice machines
The B-500SF accepts most 30″ modular ice makers with no top kit required, including:
- KM-901M, KM-1100M, KM-1340M, KM-1601M crescent-cube makers
- KMD-355M, KMD-505M, KMD-705M flake/nugget makers
- KMD-530M, KMD-860M cubers
- IM-500S square-cube maker
Need to mate a narrower ice head? 4″–22″ ABS top kits are available.
Specifications
| Model | B-500SF |
|---|---|
| Ice storage capacity | 500 lb (226.8 kg) |
| Exterior dimensions (W × D × H) | 30″ × 32.3″ × 46″ (height includes 6″ legs) |
| Interior dimensions (W × D × H) | 27″ × 27.7″ × 37.6″ |
| Cubic volume | 16.33 ft³ |
| Drain connection | ¾″ FPT (rear) |
| Shipping weight | 140 lb |
| Certifications | ETL & ETL-Sanitation |
| Warranty | 3-year parts & labor (units produced Jan 2012 & later) 2-year parts & labor (prior to Jan 2012) |
What’s in the box
- Hoshizaki B-500SF ice storage bin
- (4) 6″ painted, adjustable legs
- Installation & user manual
Popular accessories (sold separately)
- ABS top kits: 4″, 8″, 14″, and 22″ heights
- Bin flanged legs for under-counter anchoring
- Seismic or anchored leg kits for code-compliant installs
- Stainless-steel cover/separator to protect stored ice while idle
Capacity based on 30 lb / ft³ average ice density. Ice maker heads and scoop sold separately.
