Hoshizaki

Hoshizaki AM-50BAJ-ADDS Ice Machines

SKU: AM-50BAJ-ADDS
$3,190.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Hoshizaki New Arrivals

Hoshizaki AM-50BAJ-ADDS Undercounter Ice Machine – 55 lb/Day, Top Hat Cube

Air-cooled • Self-contained • ADA compliant

Turn any bar, breakroom or hospitality station into a premium beverage hub. The compact AM-50BAJ-ADDS slides comfortably beneath ADA-height counters yet cranks out up to 55 lb of crystal-clear Top Hat ice every 24 hours and holds 22 lb in its insulated bin. A door-ready front lets you add your own cabinet panel (not included) for a seamless, built-in look.

Why you’ll love it

  • Gourmet Top Hat cubes – ⅞″ diameter x 1″ high – slow-melting & perfect for cocktails
  • 55 lb daily production at 70 °F/50 °F (34 lb AHRI certified at 90 °F/70 °F)
  • 22 lb internal storage keeps service flowing during rush periods
  • 31.5″ overall height meets ADA countertop clearance requirements
  • Front-breathing design allows zero side or rear clearance
  • Power switch is behind the door for quick access without removing panels
  • Tool-free water circuit disassembles in minutes for fast, thorough cleaning
  • R-134a refrigeration with fewer moving parts for long-term reliability
  • 6 ft cord & NEMA 5-15P plug – just connect water and drain, then plug in
  • NSF listed for food safety & UL approved for indoor or outdoor installation

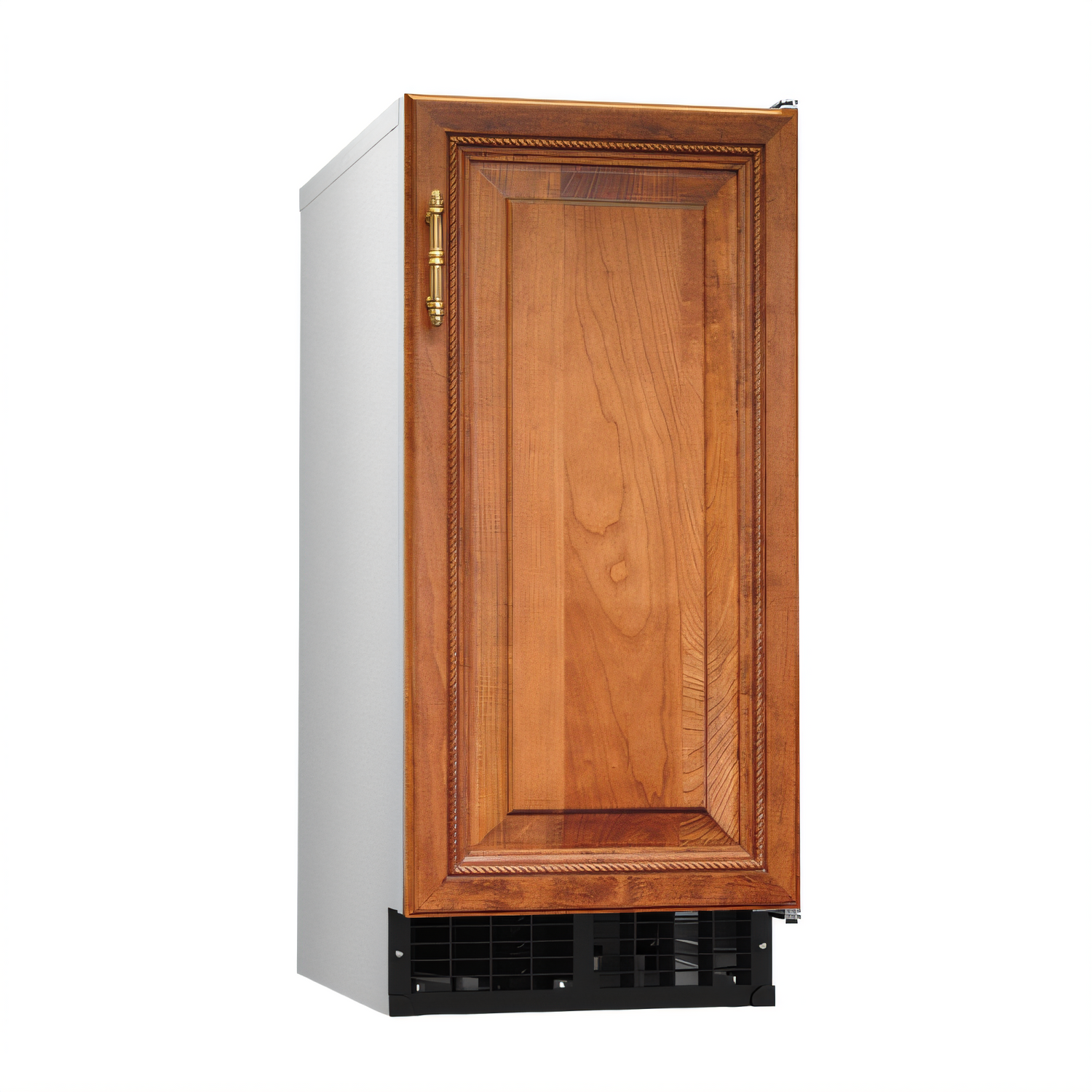

Custom-panel ready

The “DS” door system accepts a ¾″-thick cabinet panel so the unit disappears into your millwork. A door-reversal kit is available if you need to change the swing on site.

Specifications

Ice type Top Hat (full gourmet cube)
Production 55 lb/24 hr @ 70 °F air / 50 °F water
34 lb/24 hr (AHRI) @ 90 °F/70 °F
Storage capacity 22 lb
Dimensions (W × D × H) 14.88″ × 22.63″ × 31.5″ (without handle)
Electrical 115 V / 60 Hz / 1-ph, 3.8 A, NEMA 5-15P
Energy usage 16.8 kWh per 100 lb of ice
Water usage 63.9 gal per 100 lb of ice
Refrigerant / charge R-134a / 4.2 oz
Operating limits Ambient 45–100 °F • Water 45–95 °F • Water pressure 7–113 PSI
Net / ship weight 88 lb / 112 lb
Certifications NSF • UL (indoor/outdoor) • ADA compliant
Warranty 2 yr parts & labor (machine)
1 yr parts & labor (optional drain pump)

In the box

  • AM-50BAJ-ADDS ice maker with built-in bin
  • 6 ft power cord with plug
  • Ice scoop
  • Installation & operation manual
Door panel not included: Supply your own cabinet panel (up to ¾″ thick) or order model AM-50BAJ-AD for a stainless-steel door.

Add a factory drain pump, water filter or ozone sanitation unit during checkout, or contact us for help configuring the perfect setup.

Overall Dimensions:

14.88"W x 22.63"D x 31.5"H

Product Weight:

110.0 lb
Manufacturer Hoshizaki
Certifications ["NSF", "UL", "AHRI", "ADA Compliant"]
Height 31.5in
Width 14.88in
Depth 22.63in
Shipping Weight 110.0lbs
Bin Storage Capacity 0 - 50 lb bin capacity
Cube Type full size/dice
Finish stainless steel
Production per 24 hr 51 - 60 lb = 23 - 27 kg
Condenser Type air-cooled
Specifications Ice Maker With Bin, Cube-Style, air-cooled, self-contained condenser, production capacity up to 55 lb/24 hours at 70°/50° (34 lb AHRI certified at 90°/70°), 22 lb. storage capacity, Top Hat style full cube, accommodates custom cabinet door (NOT included), 115v/60/1-ph, 3.8 amps, NSF, UL, ADA Compliant

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Other PDF Download PDF Warranty PDF Download PDF Installation & operation PDF Download PDF Service manual PDF Download PDF Ice machine brochure PDF Download PDF Video PDF Download PDF Ice maker calculator PDF Download
