Hobart SL30/E-NOHDRL Warewash Undercounter Dishwashers
Description
Hobart SL30 Side Loader – E-Series (Right-to-Left)
30" side-loading extension for Hobart CLeN & other non-CLCS conveyor dishwashersFree up aisle space and accelerate rack handling with Hobart’s SL30 Side Loader. Engineered to mount directly to your existing conveyor machine, the SL30 automatically indexes each rack a full 90° while adding just 30 inches of length—no extra motors, drives or utilities required.
Key advantages
- Automatic 90° rack indexing keeps workflow fast and hands-free
- Powered directly from the dishmachine drive – zero additional energy consumption
- 14-gauge all-stainless construction for maximum durability and hygiene
- Accepts full-size sheet pans and standard warewashing racks
- Compact footprint saves valuable floor space compared with straight-thru layouts
- Field-mount design ships in one crate (≈100 lb) for quick, low-cost installation
- Low-maintenance welded sump with integrated 1 ½" drain and stainless strainer
Built to perform

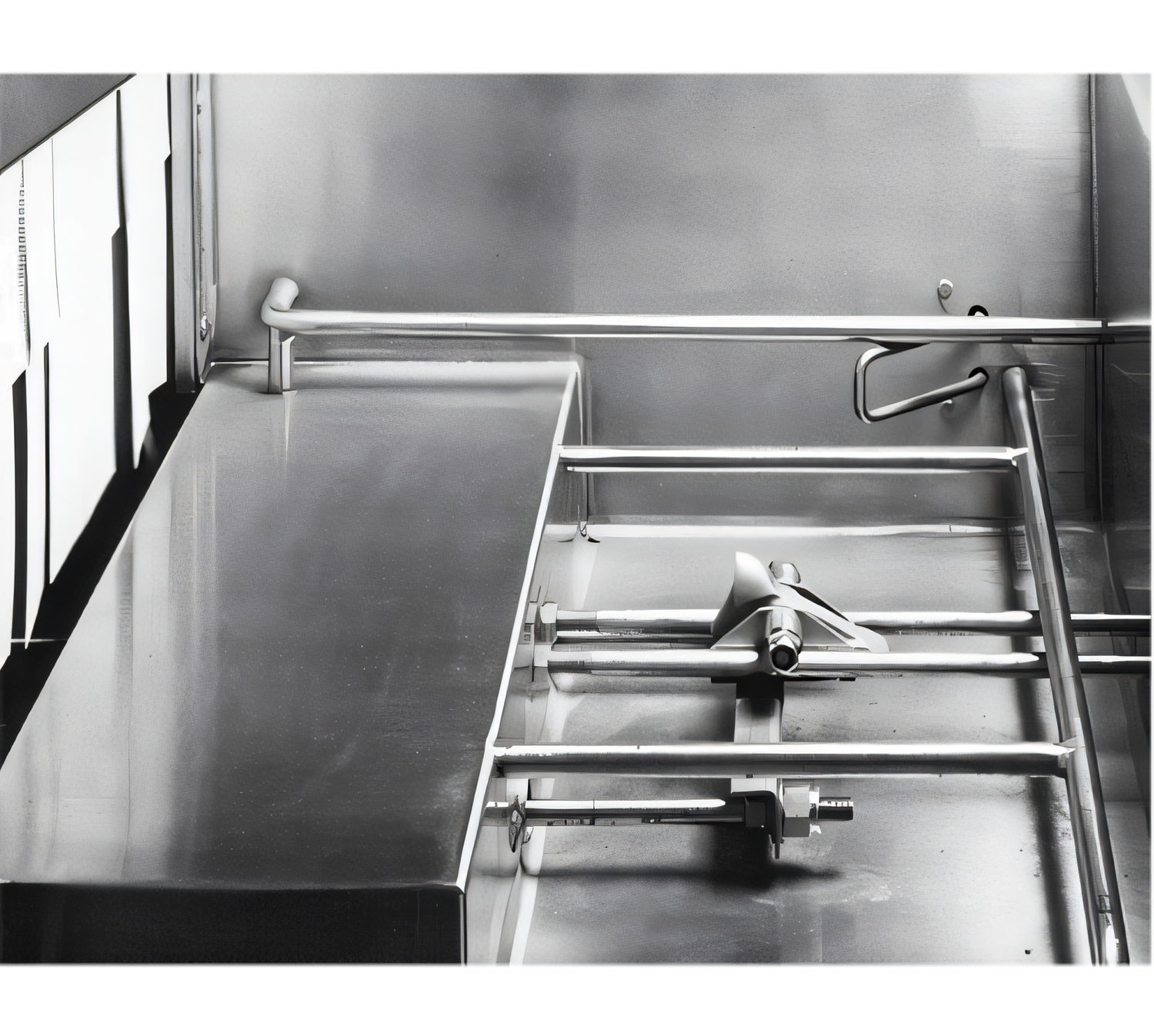

- Conveyor interface – twin stainless rack slides and a single pawl drive smoothly hand off racks to the main machine.
- Reinforced frame – diagonal stainless supports eliminate flexing under heavy commercial loads.
- Coved corners & heliarc welds – promote thorough wash-down and superior sanitation.
Technical specifications
| Model | SL30-RL E-Series (Right-to-Left operation) |
|---|---|
| Compatibility | Hobart CLeN Series & other non-CLCS conveyor dishwashers |
| Added machine length | 30 inches (762 mm) |
| Material thickness | 14-gauge type-304 stainless steel |
| Drain connection | 1 ½" FPT (P1) |
| Overall height | 58 5⁄8" (1489 mm) maximum |
| Shipping weight | ≈100 lb (45 kg) |
| Rack requirements | Must include center & side index strips |
Need a left-to-right model? Ask for SL30-LR (part # D-936613). CAD/Revit files are available from Hobart for seamless kitchen planning.
