Hobart

Hobart NGW2-LS2RL Automatic Wrapping System with Integrated Scale and Label Applier

SKU: NGW2-LS2RL
$109,704.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bags, Film & Wrap Baking Equipment Baking Supplies Best Sellers Disposables & Packaging Foil & Plastic Wrap Dispensers Hobart New Arrivals Smallwares

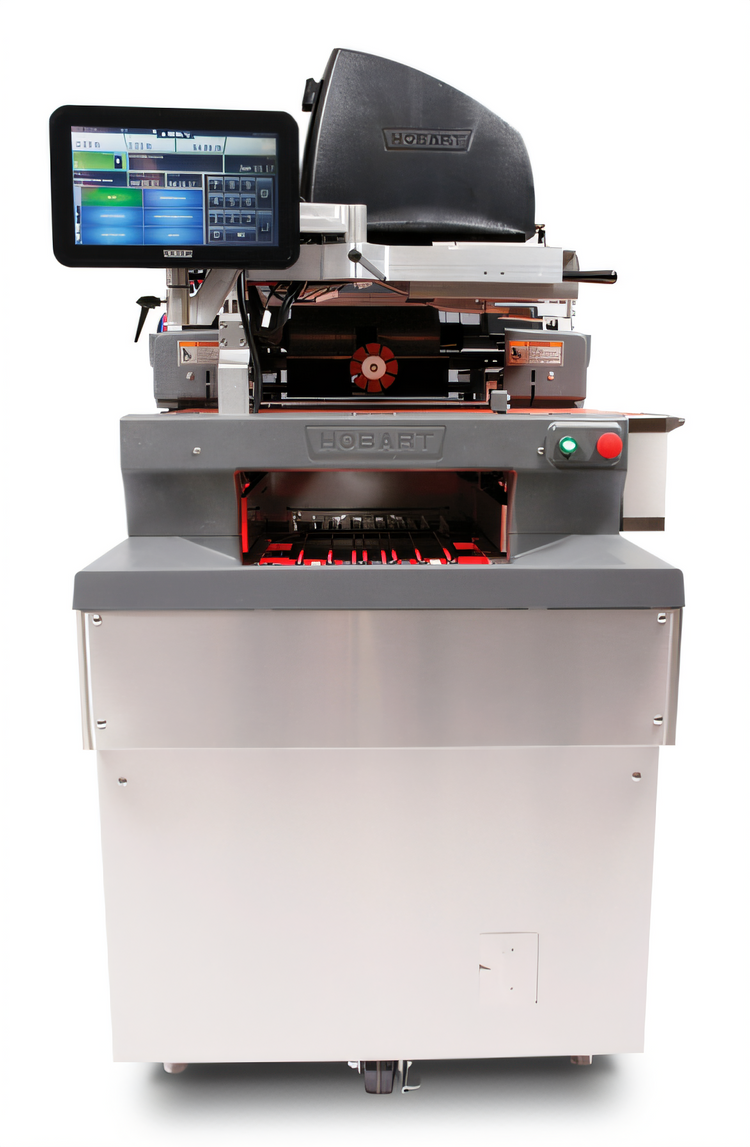

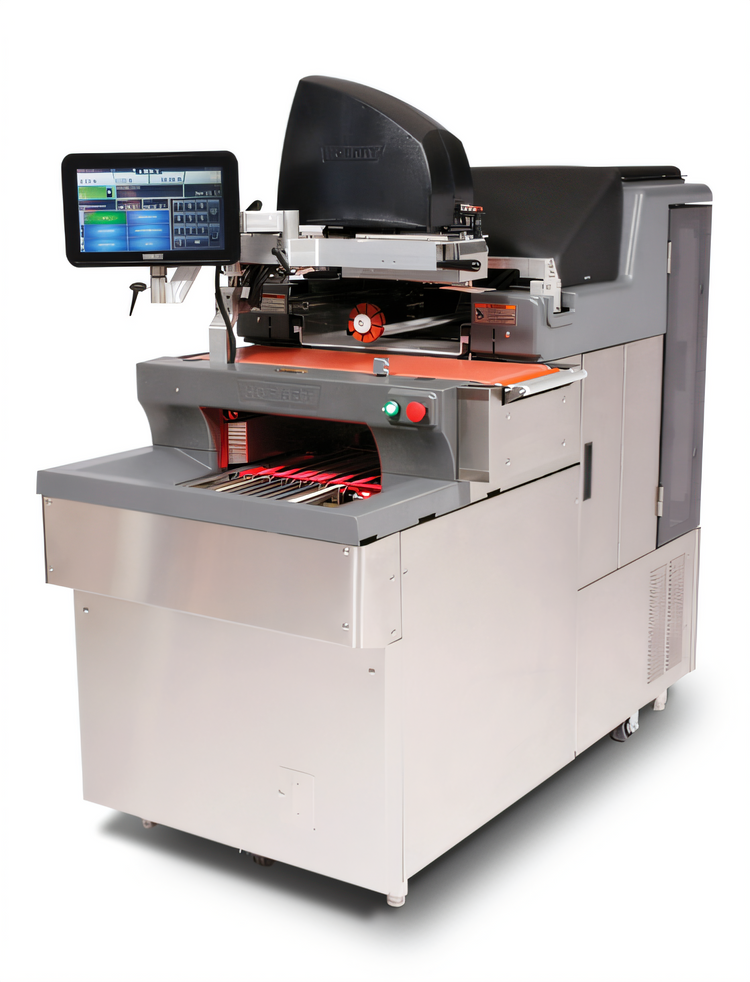

Hobart NGW2-LS2RL Automatic Wrapping System with Integrated Scale and Label Applier

Two Film Rolls, Right-to-Left Operation, Standard Depth

Streamline your packaging process with the Hobart NGW2-LS2RL, a fully automatic weighing, wrapping, and labeling system designed for efficiency and space-saving.

  • Fully automatic operation, handling weighing, wrapping, and labeling seamlessly.
  • Compact footprint integrates the scale and label applier, optimizing floor space.
  • Achieves high efficiency with a wrapping speed of up to 30 packages per minute.
  • Accommodates a wide range of package sizes and film widths for versatile use.
  • Features advanced connectivity with both wired Ethernet and wireless network capabilities.
  • Equipped with intuitive operator diagnostics and a 14-inch touchscreen display for easy control.
  • Durable and hose-downable design ensures easy cleaning and maintenance.

Overall Dimensions:

88.5"W x 45.13"D x 68.88"H

Product Weight:

1300.0 lb

Fully Automatic Operation

Operators simply place the package, and the system automatically performs weighing, wrapping, and labeling.

Integrated Scale and Label Applier

Combines weighing and labeling functions into one compact unit, significantly reducing the required floor space.

High Performance Processing

Features a 1.0GHz dual-core processor, 1GB DDR3 RAM, and 8GB storage media, supporting up to 999,999 PLU codes for efficient operation.

High Resolution Thermal Printhead

Equipped with an 8 dot/mm (640 dots) thermal printhead for clear and precise label printing.

Automatic Sealer Belt Control

An auto off/on timer for the heated sealer belt enhances safety and energy efficiency.

Emergency Safety Stop

Includes an emergency safety stop switch conveniently located on the front of the unit for immediate shutdown.

Hose-Downable Design

Designed for easy cleaning with covers for the console and printer, making it as simple to clean as other commercial kitchen equipment.

Automatic System Shutdown

The system automatically shuts down when not in use to conserve energy.

Swivel Wand Label Placement

Allows for flexible label application on all four corners of the meat package.

Intuitive Operator Diagnostics

Built-in diagnostics help operators troubleshoot issues, potentially reducing the need for service calls.

Wide Package Range

Capable of handling packages up to 10 inches in length, 15 inches in width, and 6 inches in height.

Advanced Communication

Supports 802.3 wired communication at 10/100/1000 Mbps Ethernet and 802.11 a/b/g/n for wireless network integration, enabling remote access and monitoring.

Customizable Labeling

Enables creation and modification of Country of Origin Labeling (COOL), USDA mandated safe handling statements, ingredients, graphics, special messages, and nutrifacts information.

Barcode Generation

Supports UPC, EAN 13, EAN 128 Barcodes, and GS1 DataBar for comprehensive product identification.

Remote Access and Integration

Allows remote access from a help desk and communication with other HT Series devices and scale management software on the same network.

Tool-Free Film Roll Change

Operators can easily change/replace film rolls through rear doors without requiring any special tools.

Integrated Touchscreen Display

A 14-inch touchscreen display allows operators to monitor package information and controls during the wrapping process.

Linux Embedded Operating System

The embedded Linux OS is capable of being upgraded to support new features and security patches.

Includes EPP-3 Access Prepack Printer

Comes with an EPP-3 Access Prepack printer for enhanced functionality.

Includes EPCP-5e HT Series Console

Equipped with an EPCP-5e console featuring HT series functionality and a 14-inch touchscreen.

Type Automatic Wrapping System
Style Floor Model
Installation Type Freestanding
Operation Right to Left
Film Rolls 2
Wrapping Speed 30 packages per minute
Weighing Capacity 30 lb. (Manual), 15 lb. (Automatic mode)
Weighing Increments 30 x 0.01 lb., 12 x 0.005 lb.
Minimum Weight to Print 0.20 lb.
Label Width 1.5", 2.25", 3.0"
Label Length 1.5" up to 4.0" (in 0.5" increments)
Package Size Width (Min) 4.5 Inches
Package Size Width (Max) 15.0 Inches
Package Size Length (Min) 4.5 Inches
Package Size Length (Max) 10.1 Inches
Package Size Height (Min) 0.4 Inches
Package Size Height (Max) 6.0 Inches
Type of Film Used PVC
Film Thickness (Min) 60 gauge
Film Thickness (Max) 100 gauge
Film Core Size 3 Inches I.D.
Film Maximum Diameter 9.5 Inches O.D.
Film Widths (Min) 15 Inches
Film Widths (Max) 20 Inches
Pricing Capacity 999.99 (in 0.01 steps)
Voltage 220 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 20 Amps
Shipping Width 89 Inches
Shipping Depth 46 Inches
Shipping Height 69 Inches
Shipping Weight 1300 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Service terms & conditions PDF Download

Frequently Asked Questions

The Hobart NGW2-LS2RL Automatic Wrapping System can wrap and label up to 30 packages per minute.
The system requires 220 Volts, 60 Hz, 1-Phase, and 20 Amps for operation. It uses a 4-wire connection (2 hot lines, neutral, and ground).
It can handle packages with a minimum width of 4.5 inches, maximum width of 15.0 inches; minimum length of 4.5 inches, maximum length of 10.1 inches; and minimum height of 0.4 inches, maximum height of 6.0 inches.
Yes, the system is designed to be hose-downable, featuring covers for the console and printer for easy and thorough cleaning.
The NGW2-LS2RL uses PVC film with a thickness range of 60 to 100 gauge, and film widths between 15 and 20 inches.
Yes, the system supports 802.3 wired Ethernet and 802.11 a/b/g/n wireless networks, allowing for remote access from a help desk and communication with other network-connected devices.
