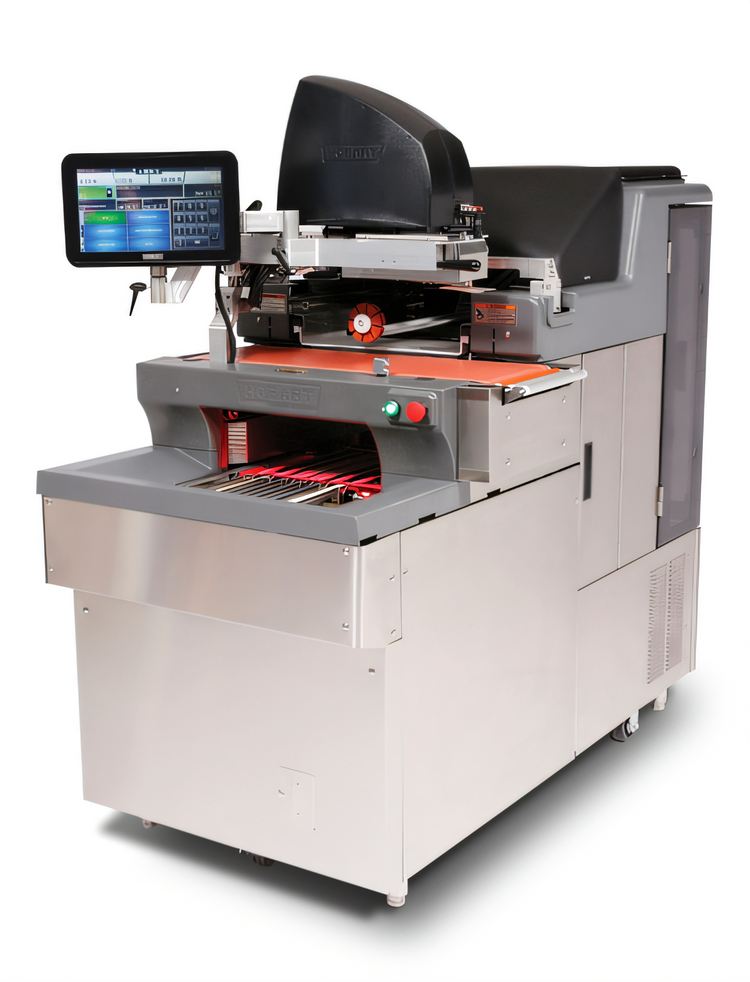

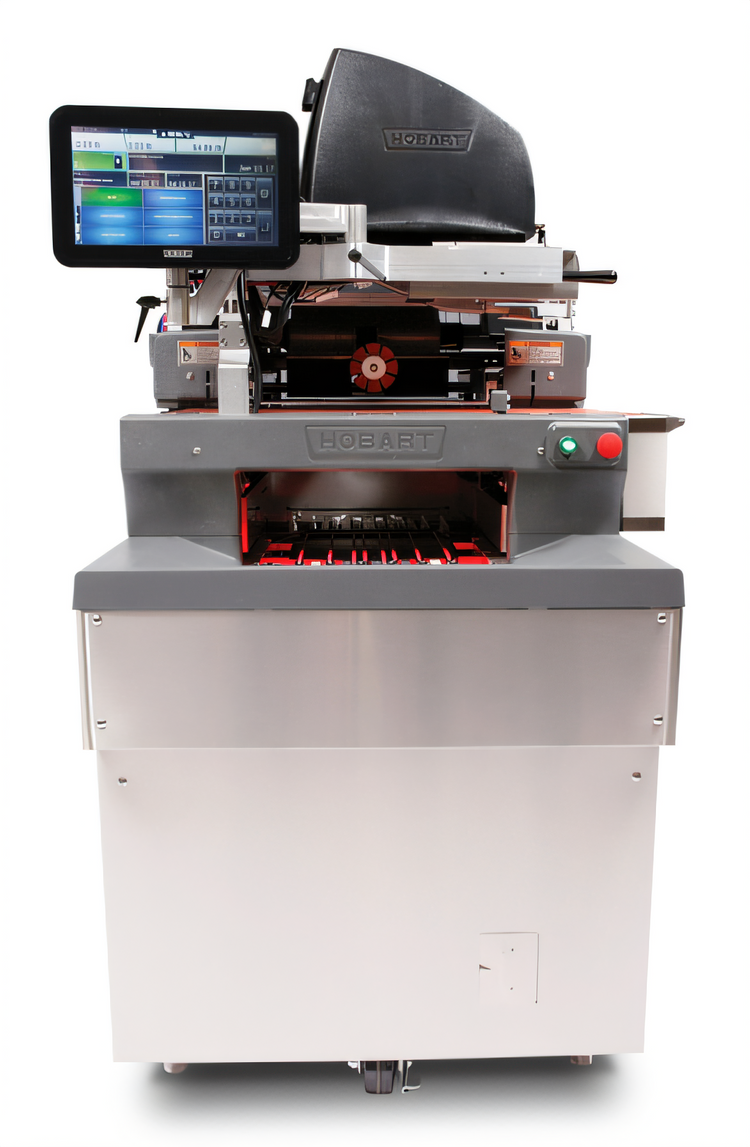

Hobart Weigh/Wrap NGW1-LS2LR Left-to-Right Automatic Wrapping System with Integrated Scale and Label Applier

One Film Roll, Up to 30 Packages Per Minute, 220V

Automate weighing, wrapping, pricing, and labeling in one space-saving system built for fast, consistent package handling.

  • Fully automatic system handles weighing, wrapping, and label application with minimal operator handling.
  • Left-to-right operation supports efficient line flow in prep and packaging areas.
  • Integrated scale and label applier help reduce floor space requirements.
  • Wraps up to 30 packages per minute for high-volume production.
  • Supports packages up to 10" W x 15" D x 6" H and labels up to 3" x 4".
  • 220V, 60 Hz, 1-phase, 20 amp electrical requirement.
  • Remote diagnostics and network communication help reduce service calls and simplify monitoring.

Overall Dimensions:

88.5"W x 45.13"D x 68.88"H

Product Weight:

1300.0 lb

Fully Automatic Wrapping Cycle

Operator places the package into the unit and the system weighs, wraps, prices, and applies the label automatically.

Integrated Scale And Label Applier

Combines weighing and label application in one machine to save floor space and streamline workflow.

Left-To-Right Operation

Configured for left-to-right product flow.

High-Speed Output

Wraps up to 30 packages per minute.

Dual-Range Weighing

Supports 30 x 0.01 lb. and 12 x 0.005 lb. weighing increments.

Touchscreen Controls

Includes a 14-inch touchscreen interface for operator monitoring and control.

Remote Diagnostics And Monitoring

Supports remote access and network communication for diagnostics and service support.

Flexible Label Printing

Supports label widths of 1.5", 2.25", and 3.0" with lengths up to 4.0".

Tool-Free Film Roll Access

Film rolls can be changed without tools, with rear access doors for loading.

Included Console And Printer

Includes Access Prepack printer and HT series console functionality with Linux OS and a 14-inch touchscreen.

Type Automatic Wrapping System
Style Left To Right
Installation Type Floor Model
Controls Touchscreen
Capacity 30 lb. Manual / 15 lb. Automatic Mode
Wrapping Speed Up To 30 Packages Per Minute
Package Size Up To 10 Inches W x 15 Inches D x 6 Inches H
Label Size Up To 3 Inches x 4 Inches
Film Type PVC
Film Thickness 60 Gauge Min / 100 Gauge Max
Film Core Size 3 Inches I.D.
Film Maximum Diameter 9.5 Inches O.D.
Film Width 15 Inches Min / 20 Inches Max
Scale Increments 30 x 0.01 lb. / 12 x 0.005 lb.
Minimum Weight To Print 0.20 lb.
Voltage 220 Volts
Amps 20 Amps
Hertz 60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 89 Inches
Shipping Depth 46 Inches
Shipping Height 69 Inches
Shipping Weight 1,300 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Service terms & conditions PDF Download

Frequently Asked Questions

The product is specified for packages up to 10" W x 15" D x 6" H.
Maximum wrapping speed is up to 30 packages per minute.
It requires 220 volts, 60 Hz, single-phase power at 20 amps.
It supports label widths of 1.5", 2.25", and 3.0" with label lengths from 1.5" up to 4.0".
Yes. The unit supports remote diagnostics/monitoring and network communication.
Available accessories include a fixed stainless side shelf, rotary bin gravity with casters, a roller discharge table, and a 4 ft. discharge roller conveyor.
