Hobart LXNR-5 Warewash - Stationary Undercounter Dishwashers
Description

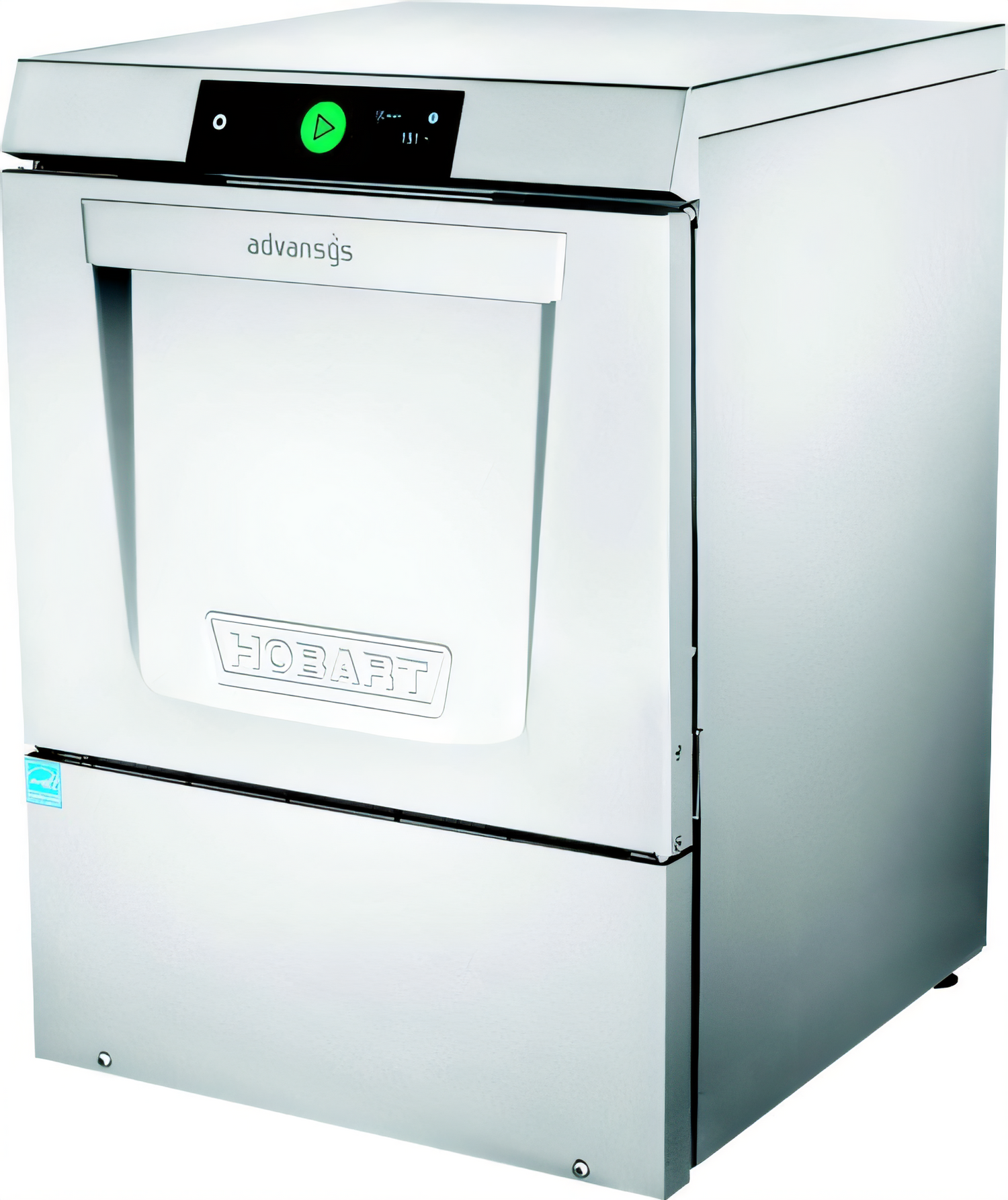

Hobart LXe Advansys™ Ventless High-Temperature Undercounter Dishwasher
Steam-Eliminating • Energy-Recovering • SmartConnect™ EnabledElevate your warewashing with Hobart’s most advanced undercounter platform. The LXe Advansys combines true high-temperature sanitizing, built-in steam elimination and energy recovery to deliver industry-leading results while using just .62 gal of fresh water per rack. Add the optional two-level rack kit and you can power through up to 48 racks per hour in the same 24" footprint.
Key Performance Benefits
- High-temperature sanitizing with on-board booster for full NSF compliance

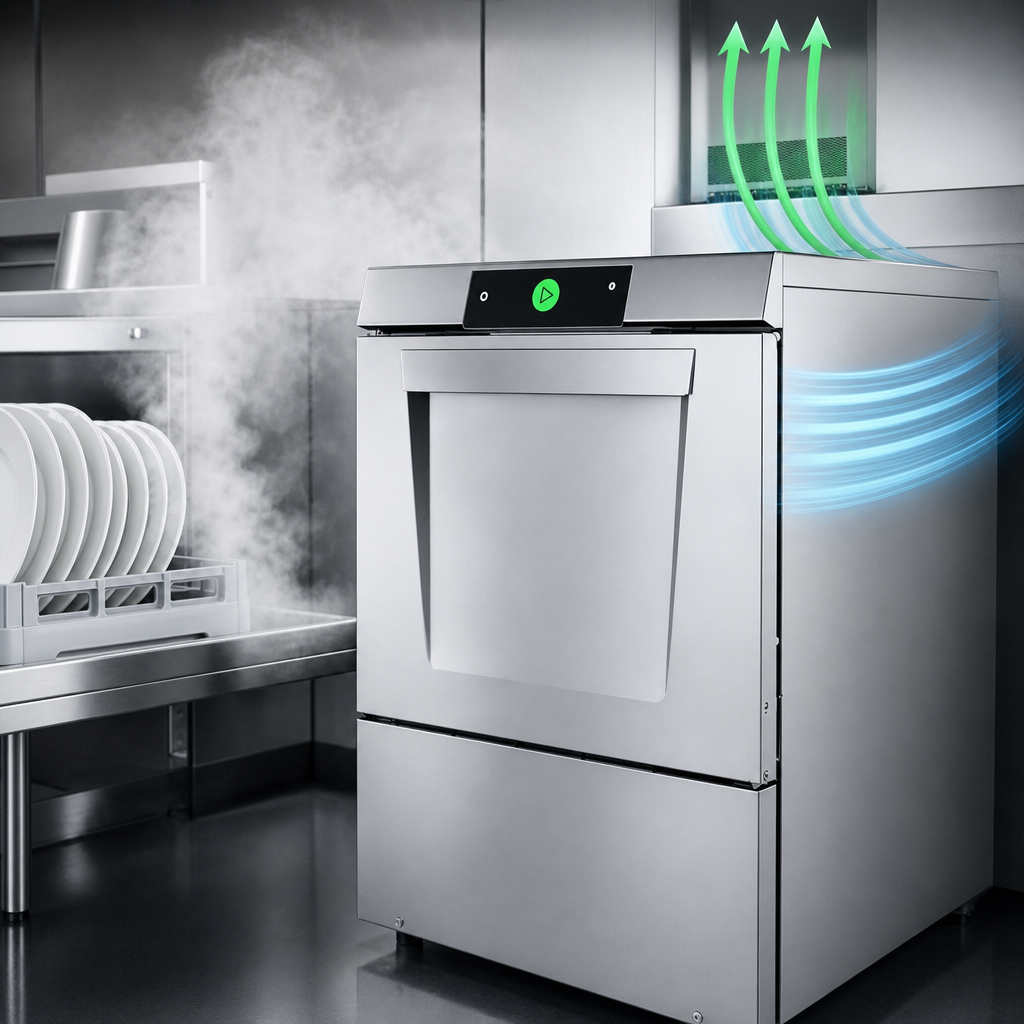

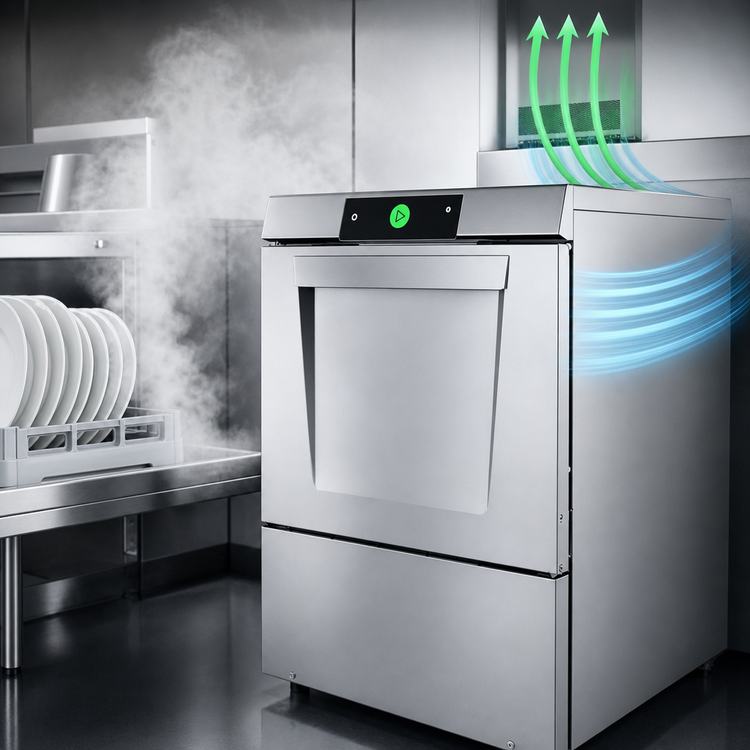

- Ventless design with steam elimination & energy recovery – no dedicated hood required and up to 15 % energy savings
- Fresh-water rinse—no dirty water carry-over for the ultimate “Hobart Clean”
- Three selectable cycles (Light, Normal, Heavy) with NSF Pot & Pan mode on Heavy cycle

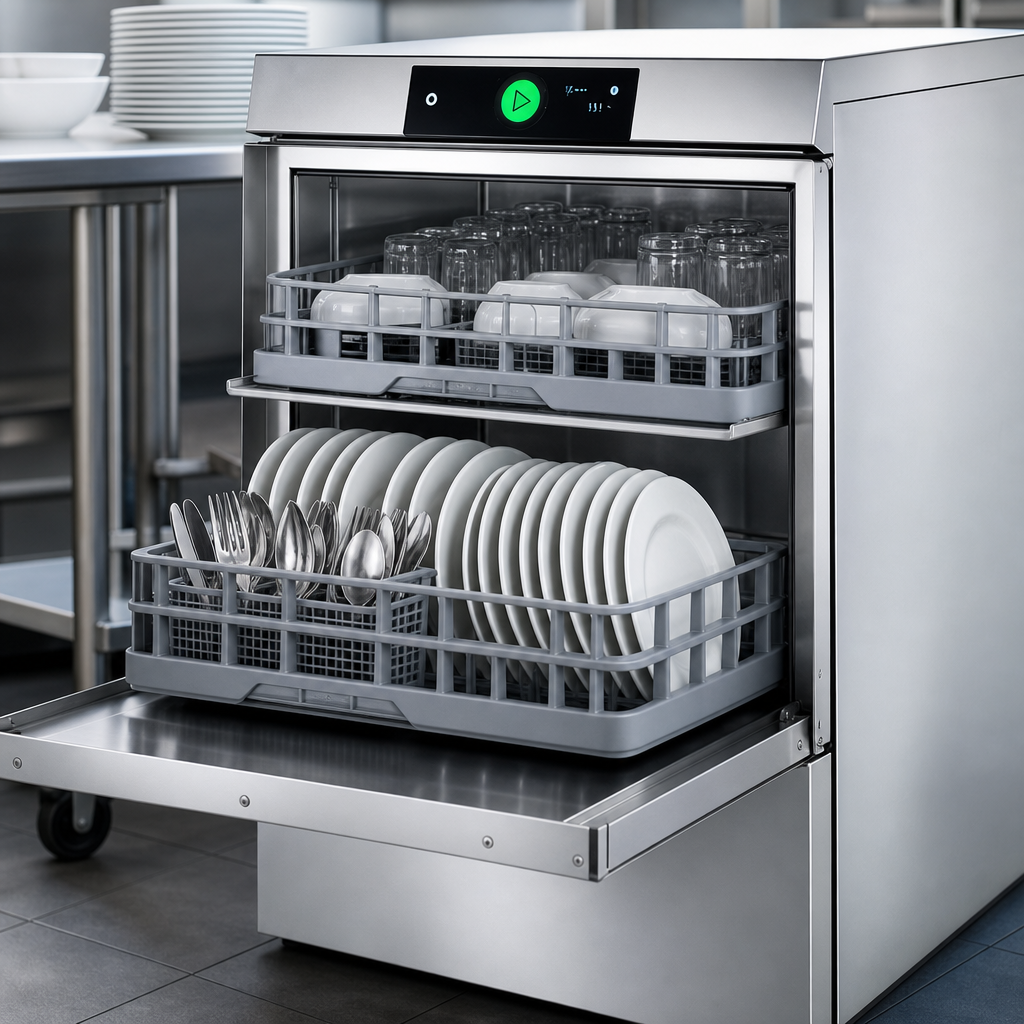

- Optional two-level racking accessory doubles throughput to 48 racks/hour
- Complete Delime™ system with automatic dosing, booster protection & on-screen reminders
- Smart touchscreen controls with built-in Wi-Fi and Hobart SmartConnect™ app for remote temperature logs, usage analytics & service alerts
- Detergent & rinse-aid pumps with Auto-Prime for plug-and-play chemical hookup
- Service diagnostics and self-monitoring reduce downtime and service calls
- Soft-start wash protects glasses and delicate ware
- ENERGY STAR®, NSF & cULus listed
At-a-Glance Specifications
| Door opening / clearance | 17 in H |
|---|---|
| Rack capacity (racks /hr) | Light 30 | Normal 24 | Heavy 13 48 with optional two-level rack |
| Water use | .62 gal per rack (18.6 gal max/hr) |
| Cycle selections | Light • Normal • Heavy (Pot & Pan) |
| Sanitizing method | High temperature (180 °F final rinse) |
| Utilities | 208-240 V / 60 Hz / 3 ph |
| Dimensions (W × D × H) | 23-15/16 in × 26-13/16 in × 33-1/4 in |
| Construction | Stainless-steel cabinet & tank |
| Certifications | NSF, ENERGY STAR®, cULus |
Included & Optional Items
- Combination rack (standard)
- Detergent & rinse-aid pumps with pickup tubes (standard)
- Two-level rack kit, power cord kit, stands, casters & other accessories (optional – sold separately)
Need help choosing accessories or confirming utility requirements? Our team is ready to assist—just reach out via the chat or call your Hobart representative.
