Hobart  |  Warewash - Stationary  |  SKU: LXNR-30

Hobart LXNR-30 Warewash - Stationary Undercounter Dishwashers

$9,718.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Terms & conditions
Related Searches
Bar Equipment Dishwashers Undercounter Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

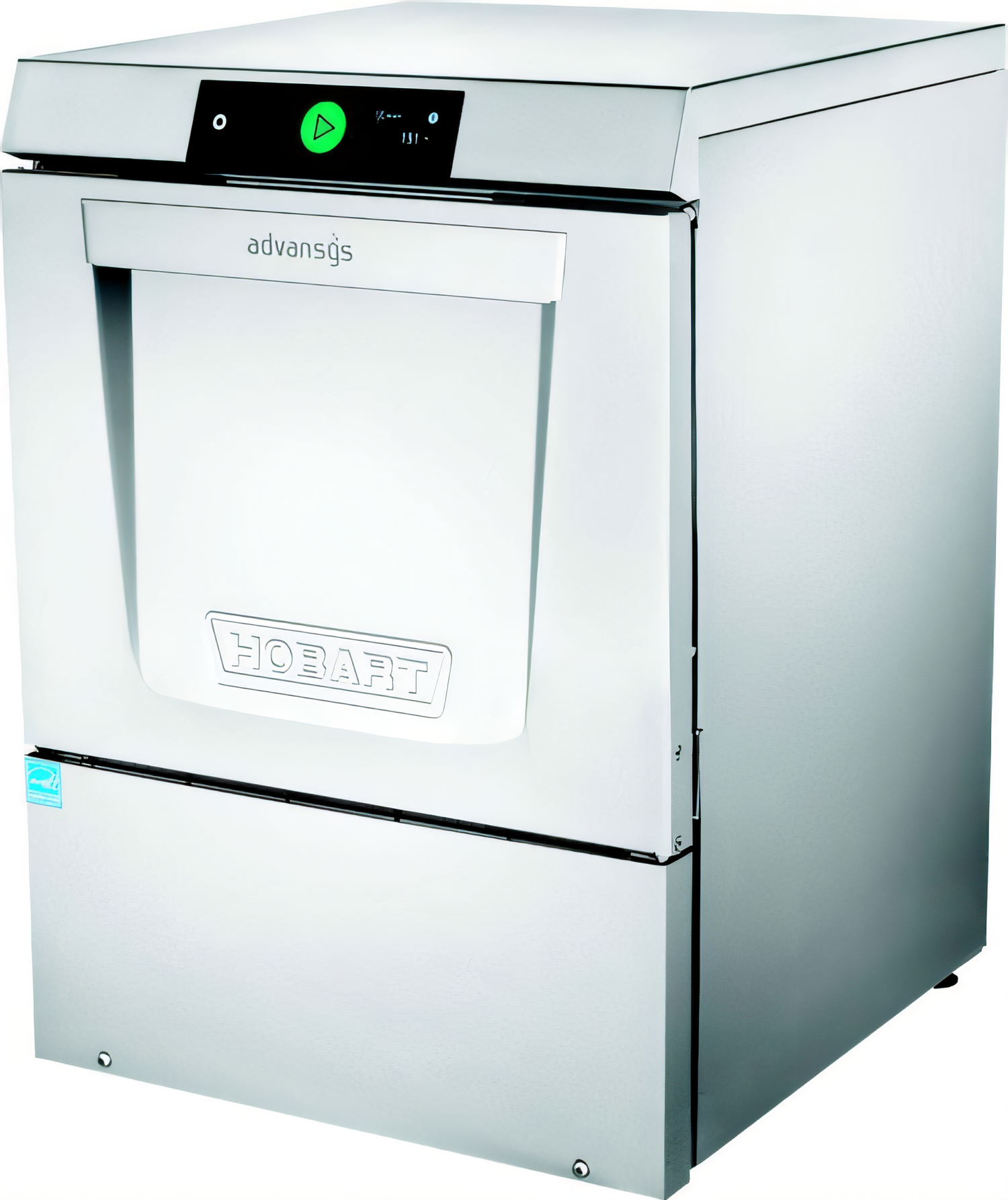

Hobart Advansys LXnR High-Temperature Undercounter Dishwasher

Ventless • Steam-Eliminating • Wi-Fi Connected

Get Hobart Clean in a compact 24-inch footprint. The ENERGY STAR® qualified LXnR combines high-temperature sanitizing, built-in Energy Recovery™ and smart touchscreen controls to deliver spotless results while slashing water, energy and labor costs.

Why Operators Choose the LXnR

  • High-temp sanitizing with integrated 70 °F-rise Sense-A-Temp™ booster—no chemical sanitizer needed.

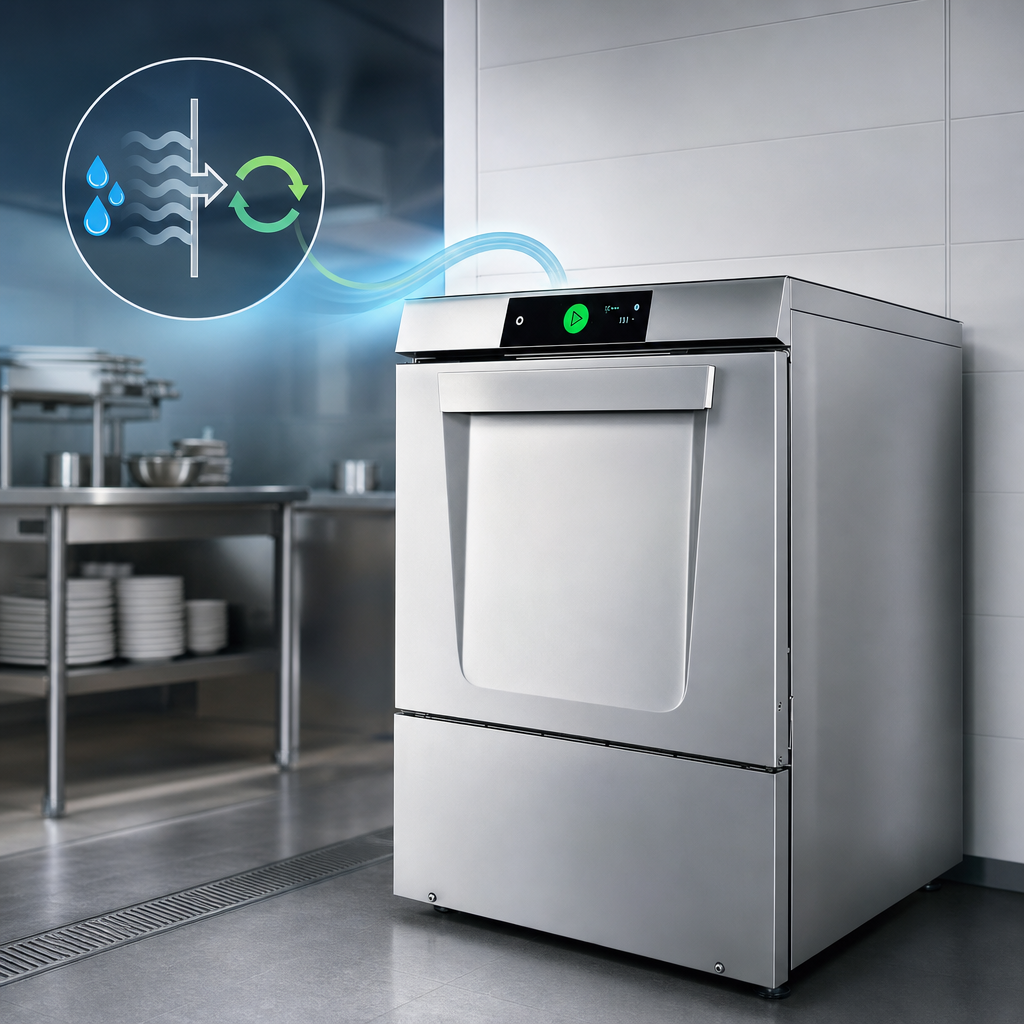

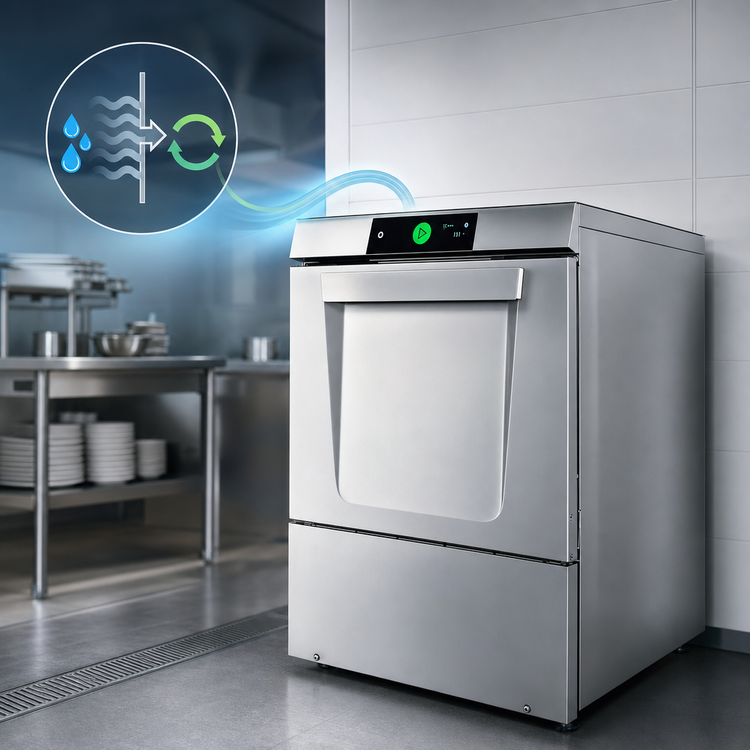

  • Ventless Steam Elimination & Energy Recovery™ sends zero visible steam into the dishroom and reduces energy use up to 15 %.
  • Three selectable cycles: Light, Normal, Heavy (NSF pot & pan rated) for everything from glassware to sheet pans.

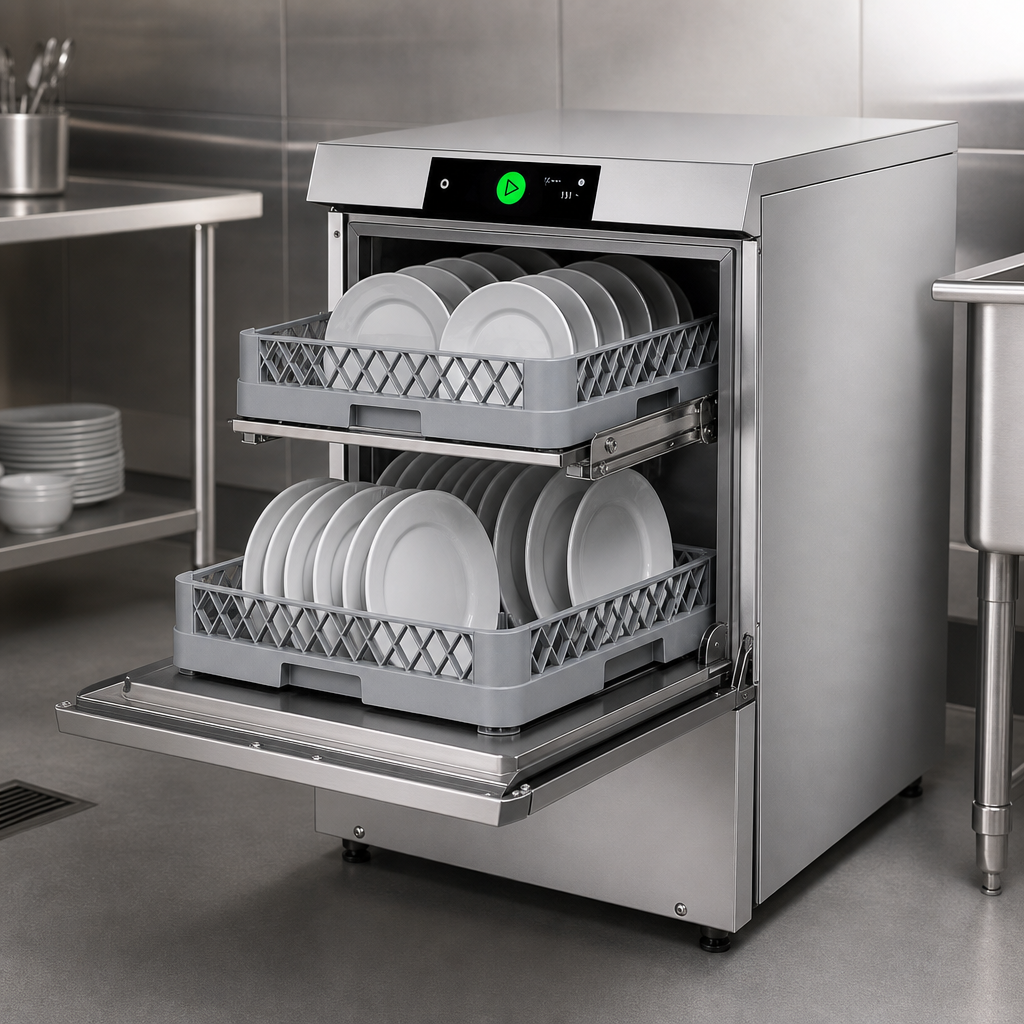

  • Optional two-level rack kit boosts throughput to 48 racks/hr with no extra water or energy.
  • Ultra-low water use—just 0.62 gal per rack.
  • Color touchscreen with Wi-Fi provides temperature logs, usage analytics and alerts through the free Hobart SmartConnect™ app.
  • Complete Delime™ system with Booster Guard™ automates deliming and prolongs component life.
  • AutoClean cycle rinses and drains the interior at shutdown to cut daily maintenance time.
  • Soft-start wash pump plus interchangeable anti-clogging wash & rinse arms protect delicate ware.
  • cULus, NSF and ENERGY STAR® certified—eligible for many local utility rebates.

Performance Snapshot

Cycles / Racks per Hour Light 30 • Normal 24 • Heavy 13
Water Consumption 0.62 gal per rack (18.6 gal max/hr)
Door Opening 17 in – fits a full-size sheet pan
Cycle Times 119 s / 148 s / 278 s
Tank Capacity 2.9 gal
Pump Horsepower Wash 0.85 HP • Rinse 0.19 HP
Electrical 120/208-240 V, 3-wire, 60 Hz, 1-ph, 30 A low-amp connection
Booster Heater 4.9 kW electric (70 °F rise)
Exterior Dimensions 23-15/16" W × 26-13/16" D × 33-1/4" H
Shipping Weight ≈ 215 lb

Built-In Intelligence

  • Real-time temperature & chemical monitoring with optional lockouts for guaranteed sanitization.
  • On-board diagnostics and downloadable error codes speed up service calls.
  • Chemical pumps with Auto-Prime keep detergent and rinse-aid flowing without manual intervention.
  • Energy Saver Mode idles components during slow periods to cut utilities even further.

What’s Included

  • (1) Combination rack & (1) peg rack
  • Built-in detergent, rinse-aid & delime pumps
  • 6 ft incoming water hose & 6 ft drain hose
  • 1-year parts & labor warranty
  • Factory start-up (free within 100 mi of a Hobart Service Office; accessible by public roadway with prior notice)

Popular Accessories (sold separately)

  • NSF two-level rack kit (48 racks/hr)
  • 6" stainless legs or 17" storage stand
  • External or internal casters
  • Door lock, splash-reduction panel, power-cord kit & more
Need help specifying? Contact our team—We’ll confirm utilities, clearances and optional accessories to ensure the LXnR fits your operation perfectly.

SKU: LXnR-Advansys-HT-Ventless  |  Certifications: ENERGY STAR®, NSF, cULus

Features & Specs

Manufacturer

Hobart

Brand_name

Warewash - Stationary

Certifications

NSF, cULus, ENERGY STAR

Height

33.25in

Width

23.94in

Depth

26.81in

Energy Efficiency

ENERGY STAR®

Rack Capacity

approximately (30) racks/hour

Temperature

high temp with booster

Specifications

Advansys™ Dishwasher, undercounter with 17” door opening height, 120/208 (3W)/60/1 (low amp, 30 amps), accommodates optional two-level racking accessory, high temperature sanitizing, Steam elimination and Energy Recovery™, 30, 24,13 Racks/Hour (48 racks / hour with second level rack), Fresh Water Rinse, .62 gal/rack, Complete Delime™ with Delime Notification, Auto Dispensing, and Booster Guard™, 3 selectable cycles – light, normal, heavy (Pot & Pan cycle on heavy cycle), smart touchscreen controls with SmartConnect™ app, Service Diagnostics, Chemical Pumps with Auto Prime, 23-15/16”W x 26-13/16”D x 33-1/4”H, cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles (accessible by public roadway) of a Hobart Service Office during normal business hours with appropriate notice; Installation beyond 100 miles or those not accessible by public roadway will be quoted by Service.
