Hobart LXNR-2L Warewash - Stationary Undercounter Dishwashers
Description

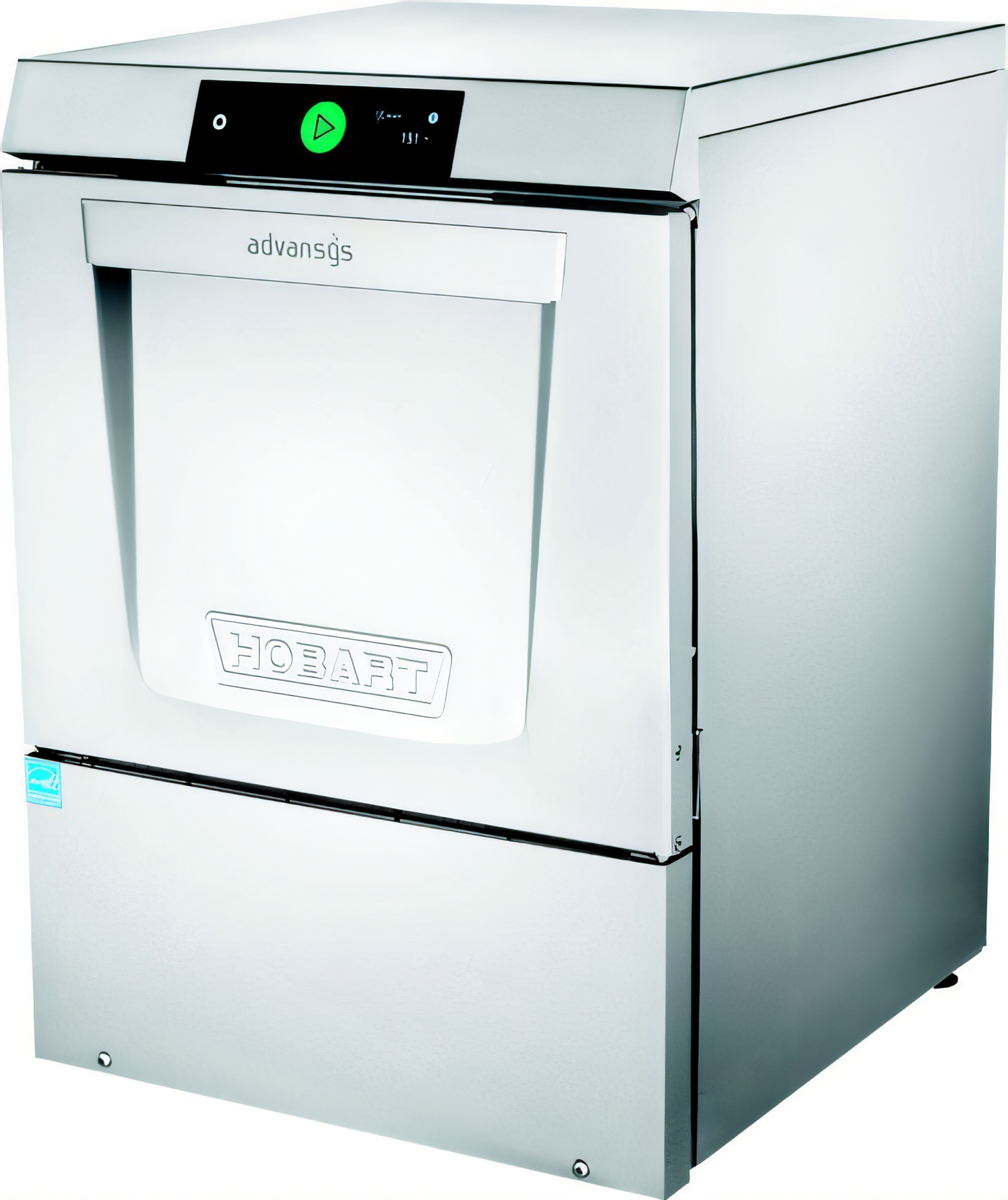

Hobart Advansys LXnR High-Temperature Undercounter Dishwasher
Energy-recovering, steam-free performance in a compact 24" footprintGive your dishroom Hobart Clean without the hood or the hassle. The Advansys LXnR combines ventless steam elimination, built-in energy recovery and NSF-certified two-level racking to deliver up to 48 racks per hour while using only .62 gal of fresh water per rack. Smart touchscreen controls with Wi-Fi connectivity keep operators informed and in control, and Hobart’s Complete Delime™ system protects your investment wash after wash.
Key advantages

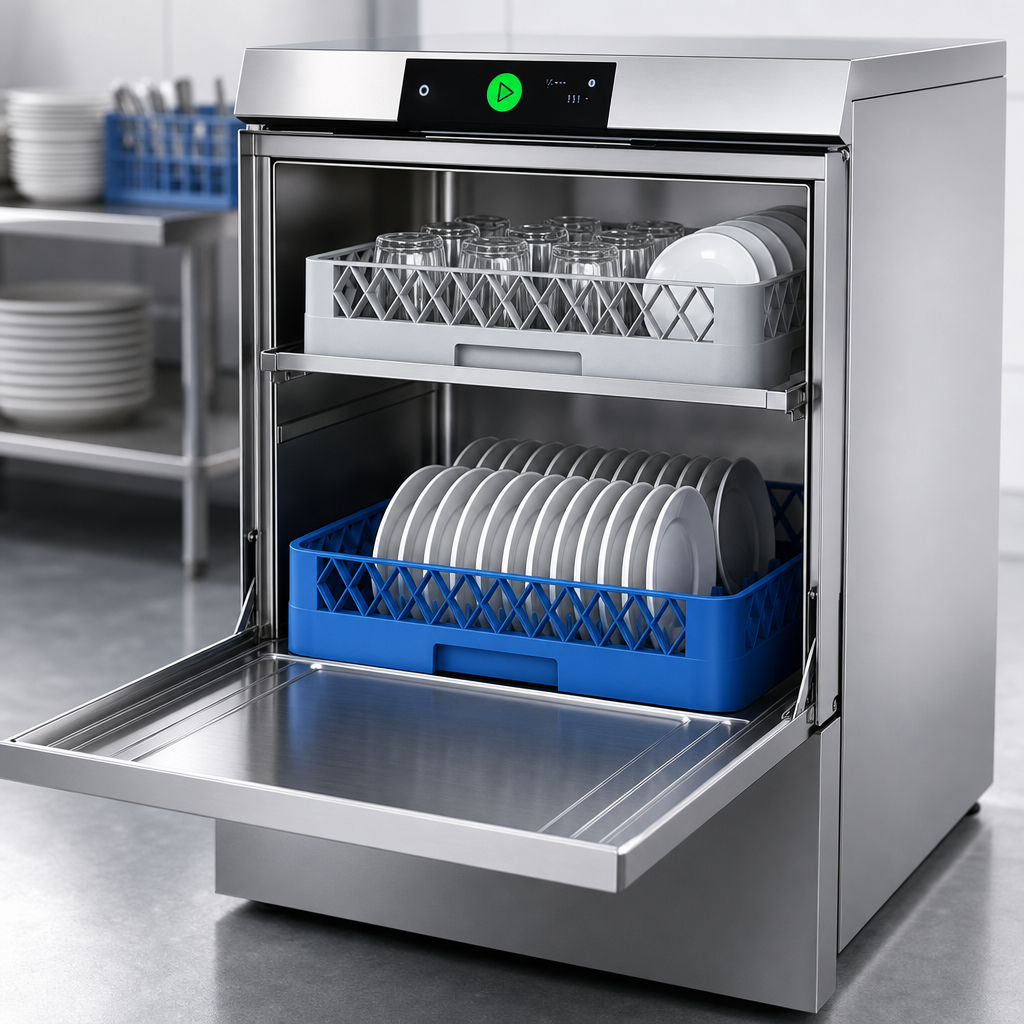

- Two-level rack kit included – boosts capacity from 30/24/13 rph to 48 rph
- Ventless Steam Elimination & Energy Recovery – installs on a cold-water line and can reduce energy use up to 15%

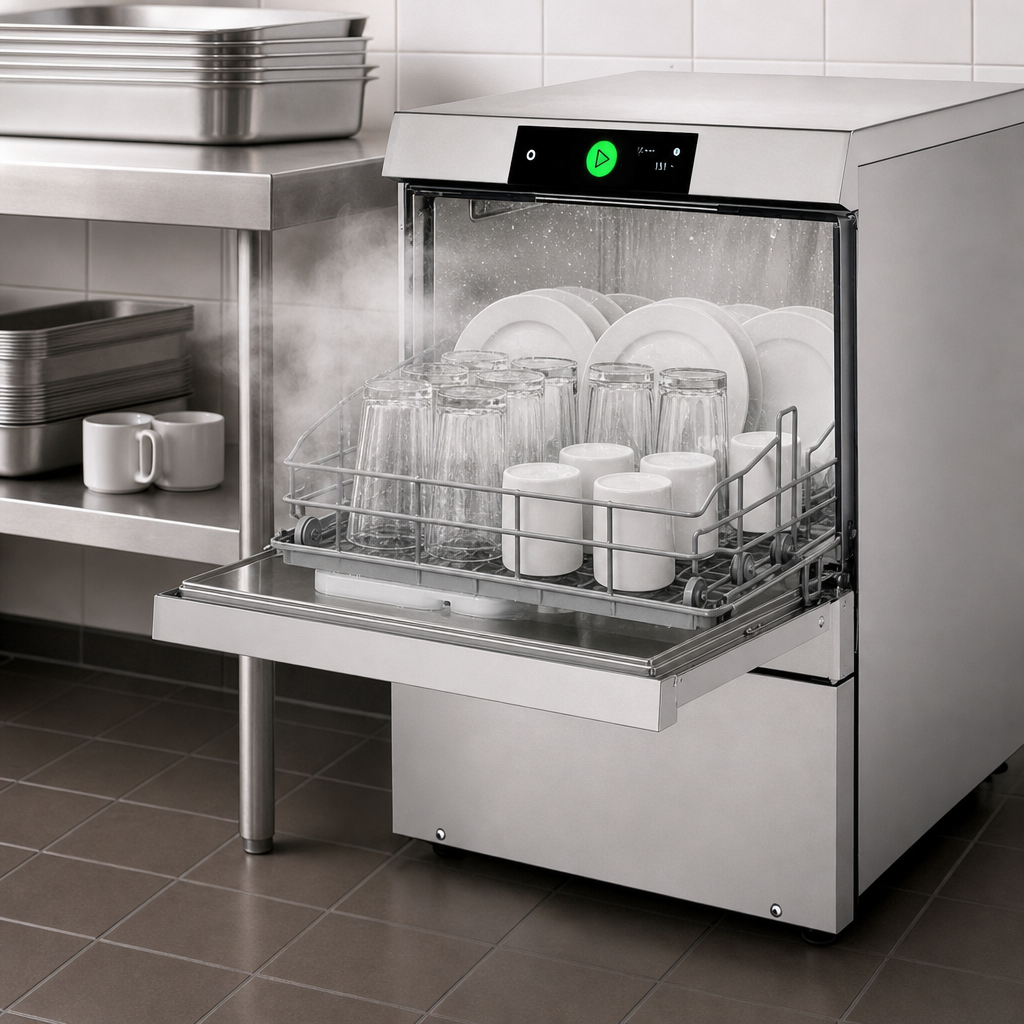

- High-temperature sanitizing with Sense-A-Temp™ 70 °F booster for a consistent 180 °F final rinse
- Three selectable cycles (Light, Normal, Heavy) – Heavy cycle is NSF Pot & Pan rated
- Smart touchscreen with built-in Wi-Fi and free SmartConnect™ app for live status, temperature logs and error alerts
- Complete Delime™ system with auto-dispensing, Delime Notification and Booster Guard™
- Chemical pumps with Auto-Prime for detergent, rinse aid and delimer
- AutoClean shutdown rinse, two-stage filtration and snap-in wash/rinse arms for fast daily cleaning
- Soft-start motor protects glassware; Energy-Saver mode cuts idle energy draw
- cULus, NSF & ENERGY STAR® certified – qualifies for many utility rebates
Performance & capacities
| Racks / Hour | Light 30 | Normal 24 | Heavy 13 Two-Level Mode 48 |
|---|---|
| Water Use | .62 gal per rack (18.6 gal/hr max) |
| Cycle Times | Light 119 s | Normal 148 s | Heavy 278 s |
| Door Opening | 17" |
| Tank Capacity | 2.9 gal |
| Wash / Rinse Temps | 150 °F wash | 180 °F final rinse |
Technical specifications
| Electrical | 120/208-240 V, 3-wire, 60 Hz, 1-phase, 34 A |
|---|---|
| Booster / Tank Heat | 4.9 kW booster | 1.8 kW tank |
| Water Supply | 55-80 °F cold water, 15-65 psi (3 gr / gal hardness or less recommended) |
| Drain Connection | 5/8" barb fitting, peak 4 gpm |
| Dimensions (W × D × H) | 23-15/16" × 26-13/16" × 33-1/4" |
| Shipping Weight | ≈ 215 lb |
| Rack Complement | 1 Combination, 1 Peg, 1 Two-Level (upper/lower) |
Included with your dishwasher
- Two-level racking kit (upper insert & dedicated spray zone)
- Combination & peg racks (20" × 20")
- 6' fill hose with ¾" GHT connection & 6' drain hose
- Built-in chemical pumps (detergent, rinse aid, delimer)
- On-board service diagnostics & data-logging
- 1-year parts & labor warranty backed by Hobart Service
Need help sizing or specifying? Contact our team or call Hobart at 888-4HOBART for a free total-cost-of-ownership audit.
