Hobart LXNR-1 Warewash - Stationary Undercounter Dishwashers
$10,216.50
Unit price
/
Unavailable
Description

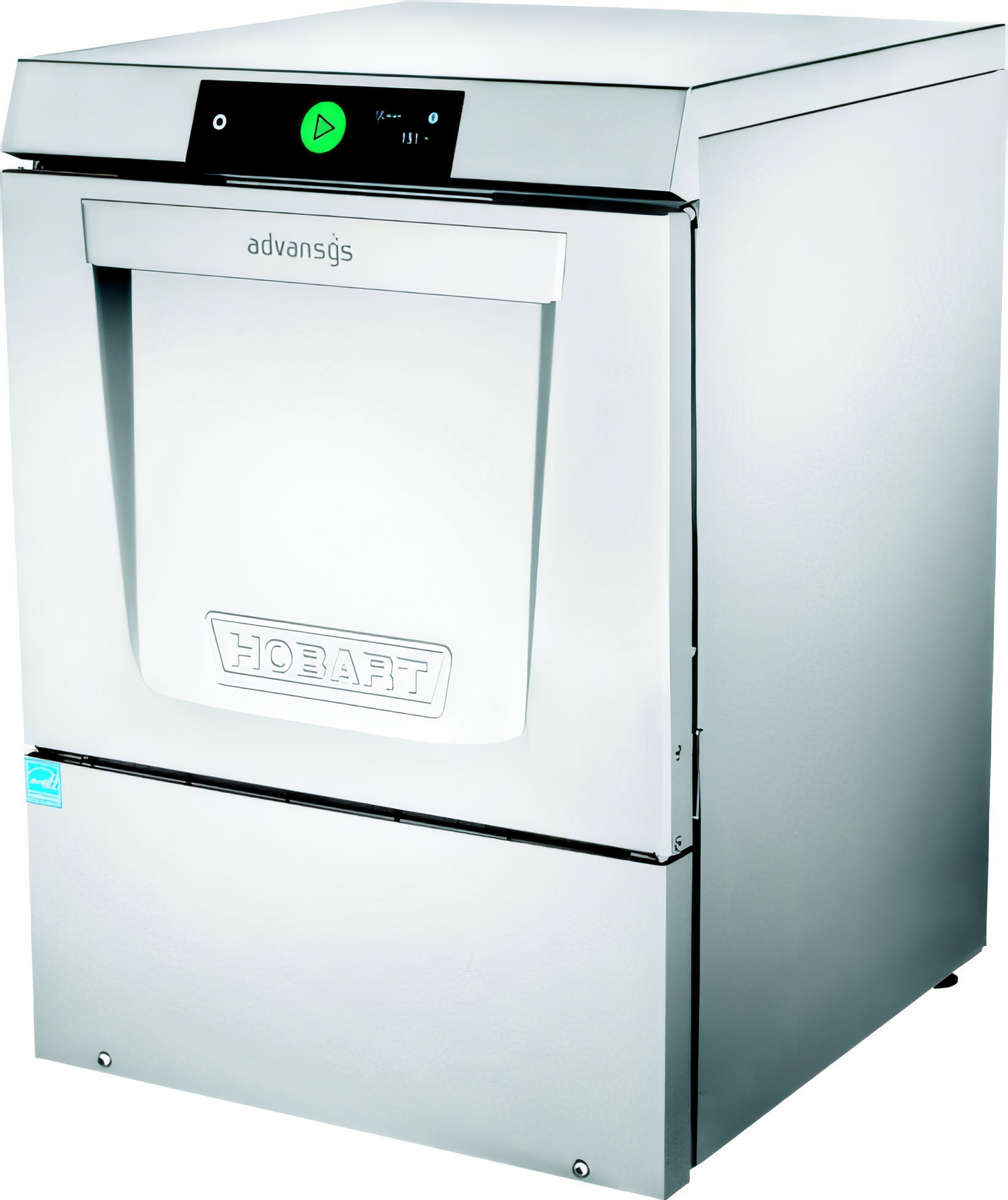

Hobart LXn Advansys™ Ventless Undercounter Dishwasher
Model LXnR — High-Temperature • Energy-Recovering • 17″ Door OpeningAchieve Hobart Clean in a compact 24″ footprint. The LXn Advansys™ uses high-temperature sanitizing, built-in steam elimination and energy recovery to deliver spotless ware while using just 0.62 gal of fresh water per rack—no vent hood required.
Key Advantages

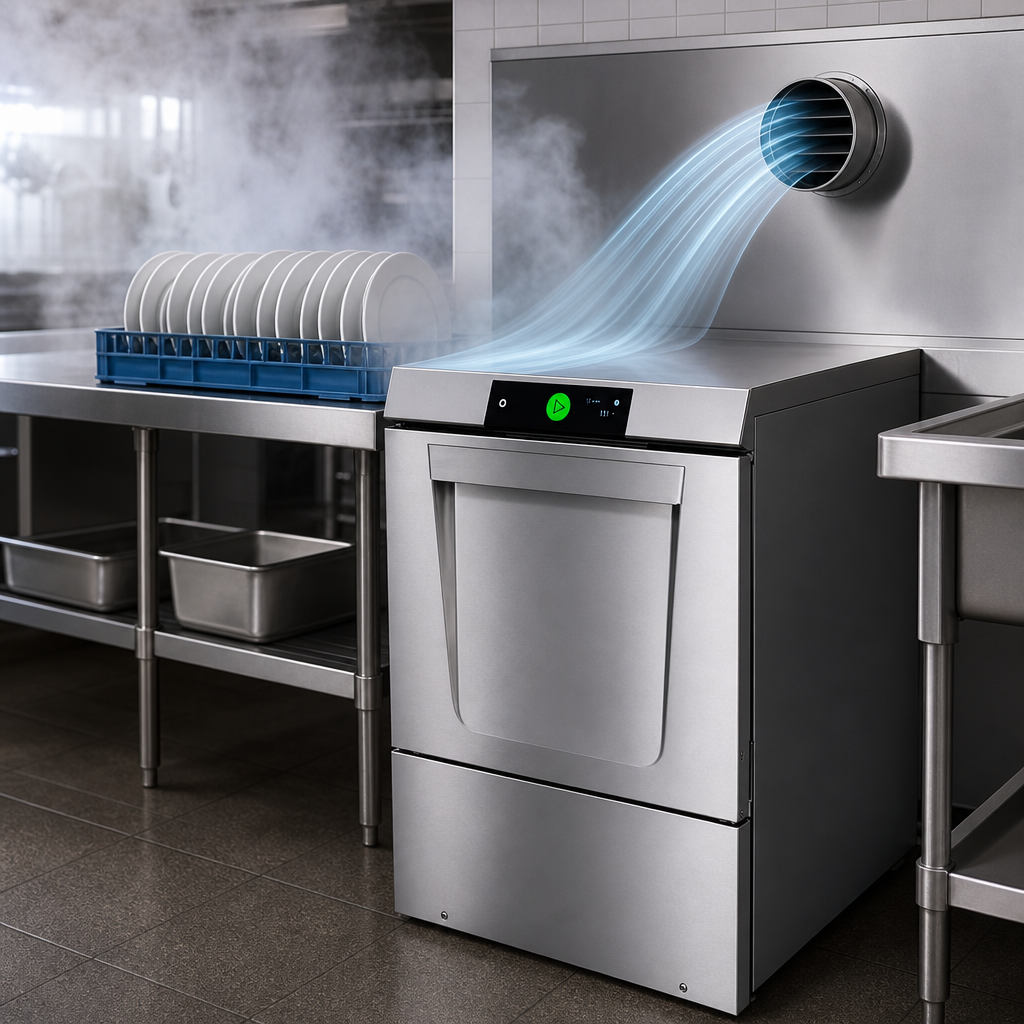

- Ventless Steam Elimination & Energy Recovery saves up to 15 % in energy and eliminates hood costs.
- High-temperature 180 °F sanitizing rinse with Sense-A-Temp™ 70 °F-rise booster.
- Three selectable cycles (Light, Normal, Heavy) with NSF-certified Pot & Pan mode on Heavy cycle.

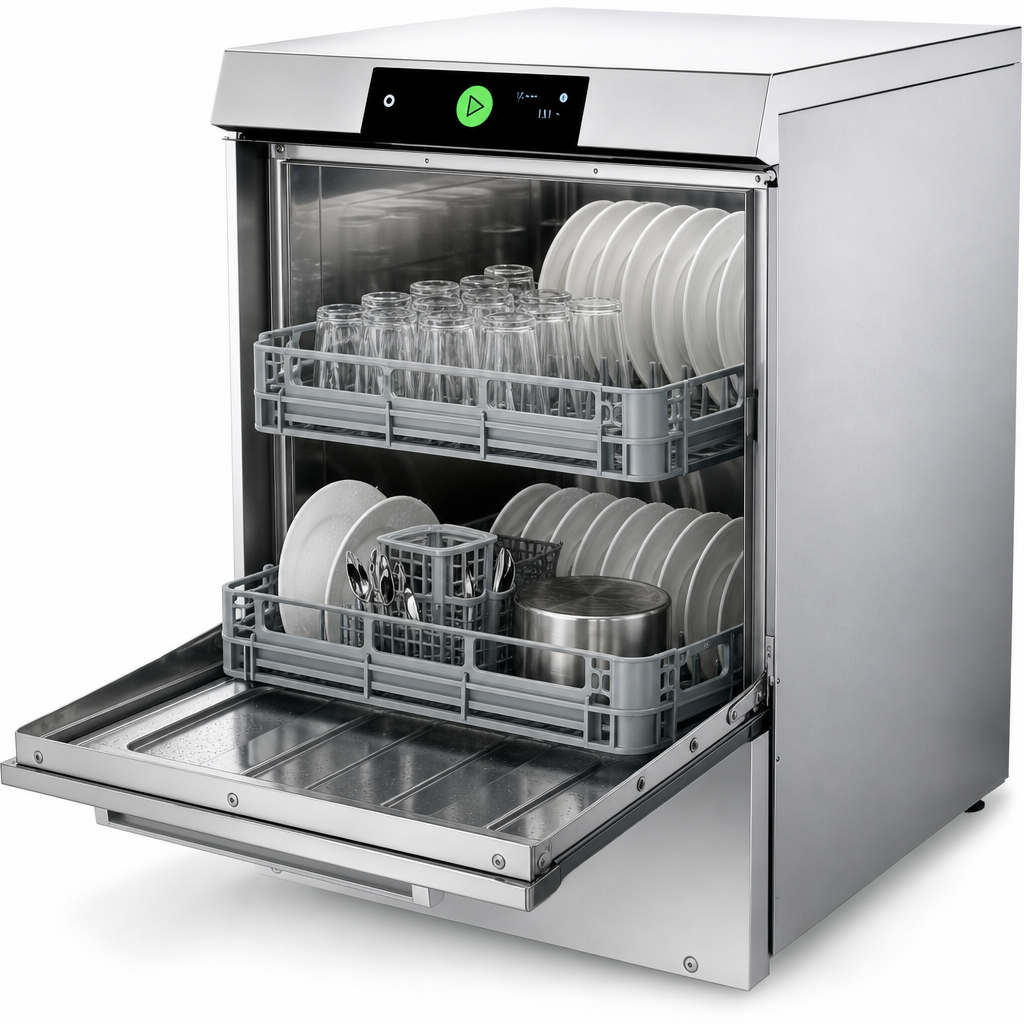

- Throughput: 30 / 24 / 13 racks per hour; boost to 48 racks/hr with optional two-level rack kit.
- Fresh-water rinse—only 0.62 gal per rack for lower utility bills.
- Smart touchscreen controls + built-in Wi-Fi and SmartConnect™ app for real-time status, temperature logs & alerts.
- Complete Delime™ with automatic dosing and Booster Guard™ extends heater life.
- AutoClean cycle, soft-start glass protection, two-stage filtration & snap-in wash/rinse arms.
- On-board chemical pumps with Auto-Prime; temperature & chemical lockouts ensure sanitation.
- Deep-drawn stainless tank and advanced service diagnostics for long-term reliability.
Performance at a Glance
| Cycle Times | Light 119 s • Normal 148 s • Heavy 278 s |
|---|---|
| Racks per Hour | 30 • 24 • 13 (48 w/ two-level rack) |
| Water per Rack | 0.62 gal / 2.35 L |
| Wash / Rinse Temps | 150 °F / 180 °F (65.5 °C / 82.2 °C) |
| Tank Capacity | 2.9 gal |
Technical Specifications
| Voltage | 208–240 V / 60 Hz / 1-ph • 33.7 A • 4-wire |
|---|---|
| Booster Heater | 4.9 kW electric (70 °F rise) |
| Tank Heater | 1.8 kW electric |
| Dimensions (W × D × H) | 23 15⁄16″ × 26 13⁄16″ × 33 1⁄4″ (609 × 681 × 845 mm) |
| Door Opening | 17″ (432 mm) |
| Rack Size | 20″ × 20″ |
| Shipping Weight | ≈ 215 lb (98 kg) |
| Water Connection | 3⁄4″ GHT cold-water hose (55–80 °F recommended) |
| Drain Connection | 5⁄8″ pumped drain hose (included) |
| Certifications | ENERGY STAR®, NSF, cULus |
What’s in the Box
- (1) Combination rack 20″ × 20″
- (1) Peg rack
- Built-in detergent, rinse-aid & delime pumps
- 6′ fill and drain hoses
Popular Accessories
- NSF two-level racking kit (48 racks/hr)
- 17″ stainless stand or 6″ legs
- Power-cord kit, door lock, splash-reduction panel, adjustable casters & more
Factory Startup Included: Hobart provides one complimentary startup for installations within 100 miles (public-road access) of a Hobart Service Office during normal business hours with advance notice. Installations beyond this radius or with limited access will be quoted separately.
Optimal performance is achieved with incoming water hardness ≤ 3 grains and a dishroom temperature of 65 °F / 18 °C or higher.
Features & Specs
Features & Specs
Manufacturer
Hobart
Brand_name
Warewash - Stationary
Certifications
NSF, cULus, ENERGY STAR
Height
33.25in
Width
23.94in
Depth
26.81in
Shipping Weight
165.0lbs
Tank Heat
electric
Rack Capacity
approximately (30) racks/hour
Temperature
high temp with booster
Cabinet base
fully enclosed
Energy Efficiency
ENERGY STAR®
Rack Size
20" x 20"
Construction
stainless steel
Specifications
LXn Advansys Dishwasher, undercounter with 17” door opening height, 208-240v/60/1ph, accommodates optional two-level racking accessory, high temperature sanitizing, Steam Elimination and Energy Recovery, 30, 24, 13 Racks/Hour, 48 with racks/hour with second level rack, Fresh Water Rinse, .62 gal/rack, Complete Delime™ with Delime Notification, Auto Dispensing, and Booster Guard™, 3 selectable cycles - light, normal, heavy (NSF Pot & Pan cycle on heavy cycle), smart touchscreen controls with SmartConnect™ app, Service Diagnostics, Chemical Pumps with Auto Prime, 23-15/16"W x 26-13/16"D x 33-1/4"H, cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles (accessible by public roadway) of a Hobart Service Office during normal business hours with appropriate notice; Installation beyond 100 miles or those not accessible by public roadway will be quoted by Service.
