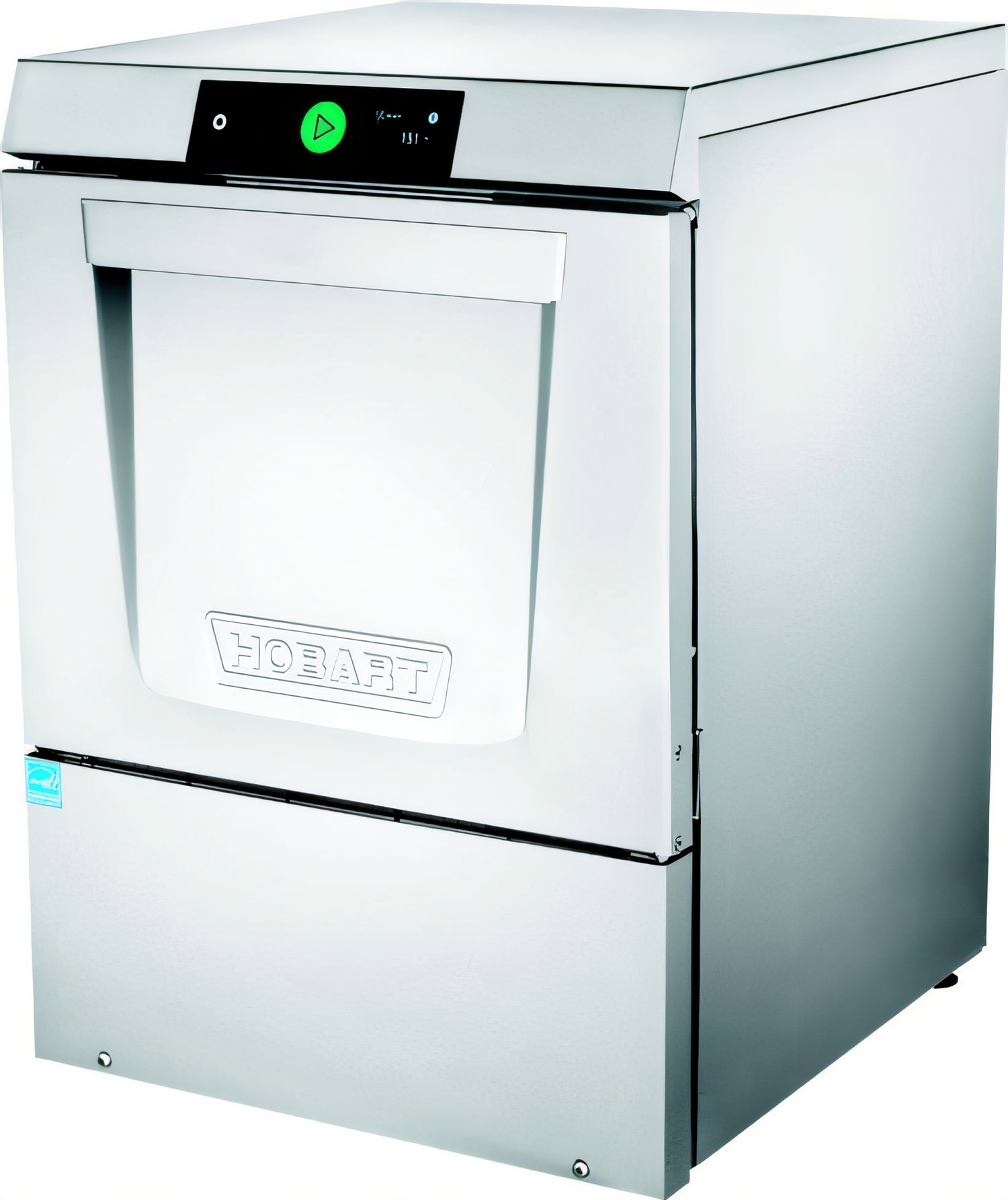

Hobart LXNH-5 High-Temperature Sanitizing Undercounter Dishwasher

17-Inch Door Opening, Smart Touchscreen, 208-240V, 3-Phase

A compact high-temp dishwasher that combines fast rack throughput, smart monitoring, and low water use for busy kitchens.

  • High-temperature sanitizing undercounter dishwasher designed for tight kitchen spaces.
  • 17-inch door opening accommodates a wide range of ware, including a single sheet pan.
  • Standard throughput of 32 racks per hour, with up to 48 racks per hour using the optional two-level rack.
  • Built-in Wi-Fi and SmartConnect app support remote monitoring, alerts, and temperature logs.
  • Touchscreen controls, service diagnostics, and auto-priming chemical pumps help simplify training and maintenance.
  • Fresh-water rinse and low water consumption help reduce utility use.

Overall Dimensions:

23.94"W x 25.56"D x 33.25"H

Product Weight:

150.0 lb

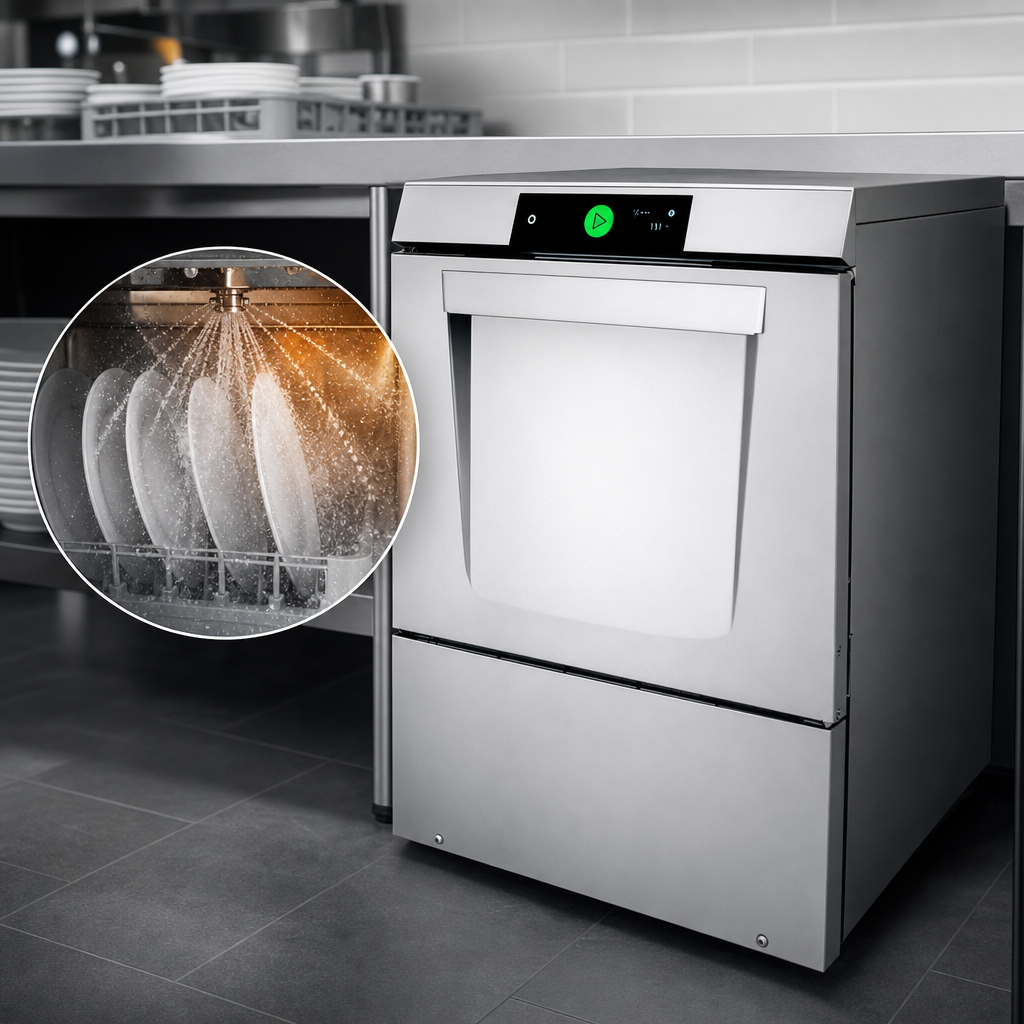

High-Temperature Sanitizing

Uses a high-temp wash cycle with fresh-water rinse for dependable sanitizing performance.

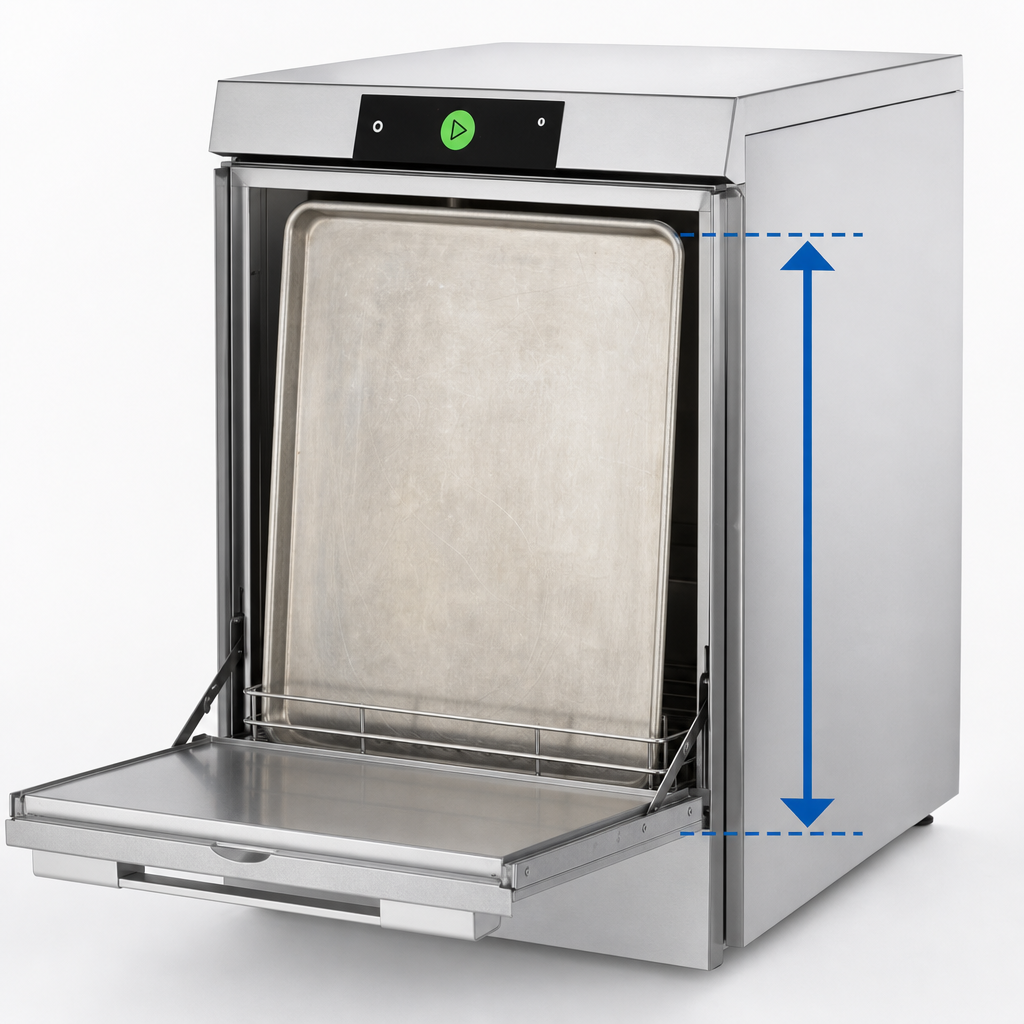

17-Inch Door Opening

Tall opening accommodates a variety of ware, including a single sheet pan.

Two-Level Racking Capability

Optional second-level rack increases throughput to 48 racks per hour.

Smart Touchscreen Controls

Top-mounted touchscreen provides simple operation with service diagnostics and troubleshooting.

SmartConnect Wi-Fi Connectivity

Built-in Wi-Fi connects to the SmartConnect app for remote monitoring, temperature tracking, and downloadable logs.

Delime Notification with Cycle

Alerts operators when deliming is needed to help maintain performance and reduce downtime.

Auto Chemical Priming and On-Board Pumps

Detergent and rinse aid pumps with automatic priming simplify startup and chemical handling.

Auto Clean and Two-Stage Filtration

Automatic shutdown rinse and two-stage filtration help keep maintenance simple and support consistent cleaning results.

Type Dishwasher
Style High Temperature Sanitizing
Installation Type Undercounter
Voltage 208-240 Volts
Hertz 60 Hz
Phase 3-Phase
Controls Smart Touchscreen
Capacity 32 Racks Per Hour
Water Consumption 0.62 Gallons Per Rack
Door Opening Height 17 Inches
Shipping Width 24 Inches
Shipping Depth 26 Inches
Shipping Height 34 Inches
Shipping Weight 150 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

It requires 208-240V, 60 Hz, 3-phase power.
It washes 32 racks per hour in standard operation, or up to 48 racks per hour with the optional second-level rack.
Yes. The 17-inch door opening height accommodates a variety of ware, including a single sheet pan.
Yes. Built-in Wi-Fi connects to the SmartConnect app for monitoring temperatures, sanitization status, and downloadable logs.
It includes delime notification with cycle, auto chemical priming, detergent and rinse aid pumps, auto clean, and two-stage filtration.
